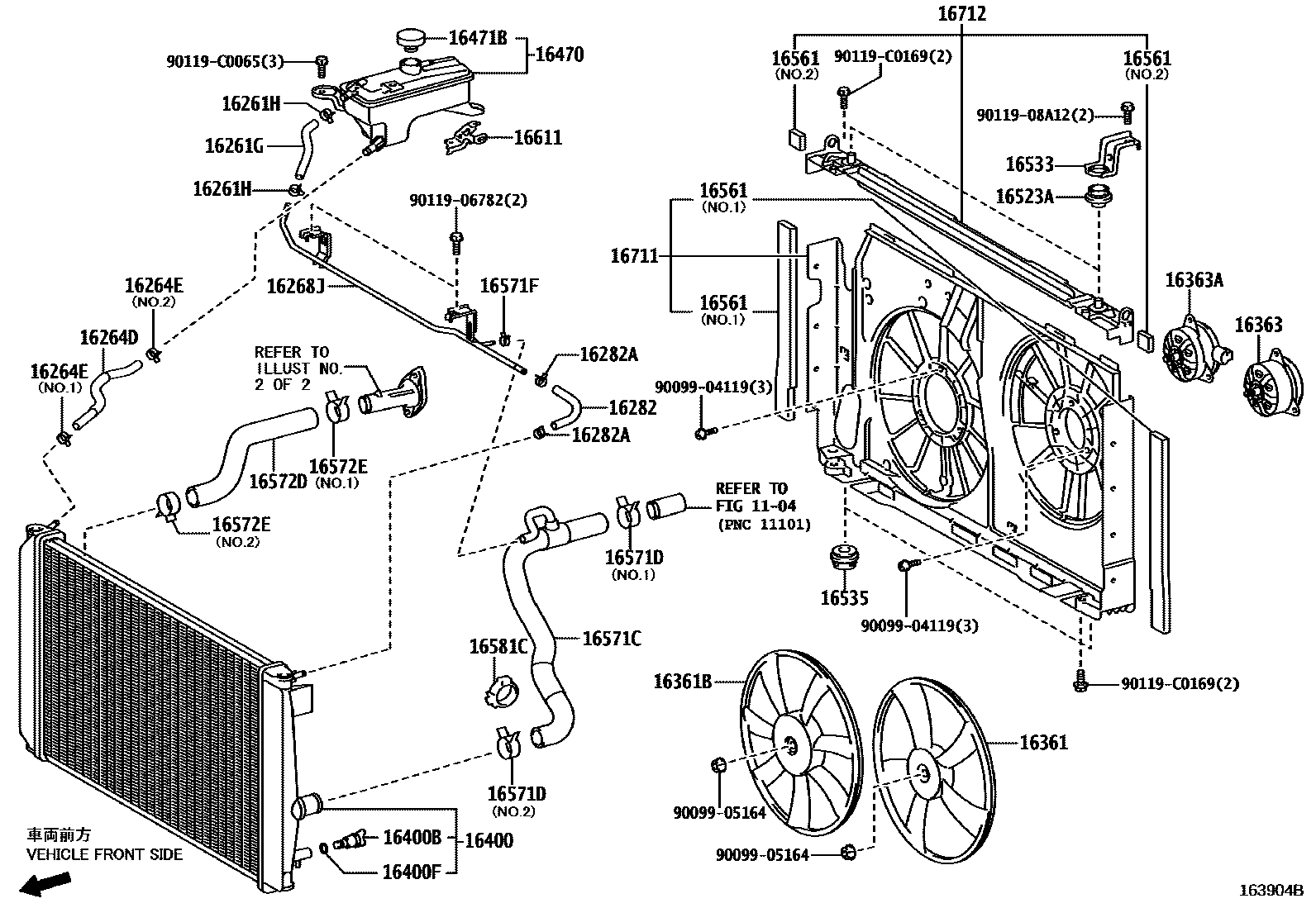

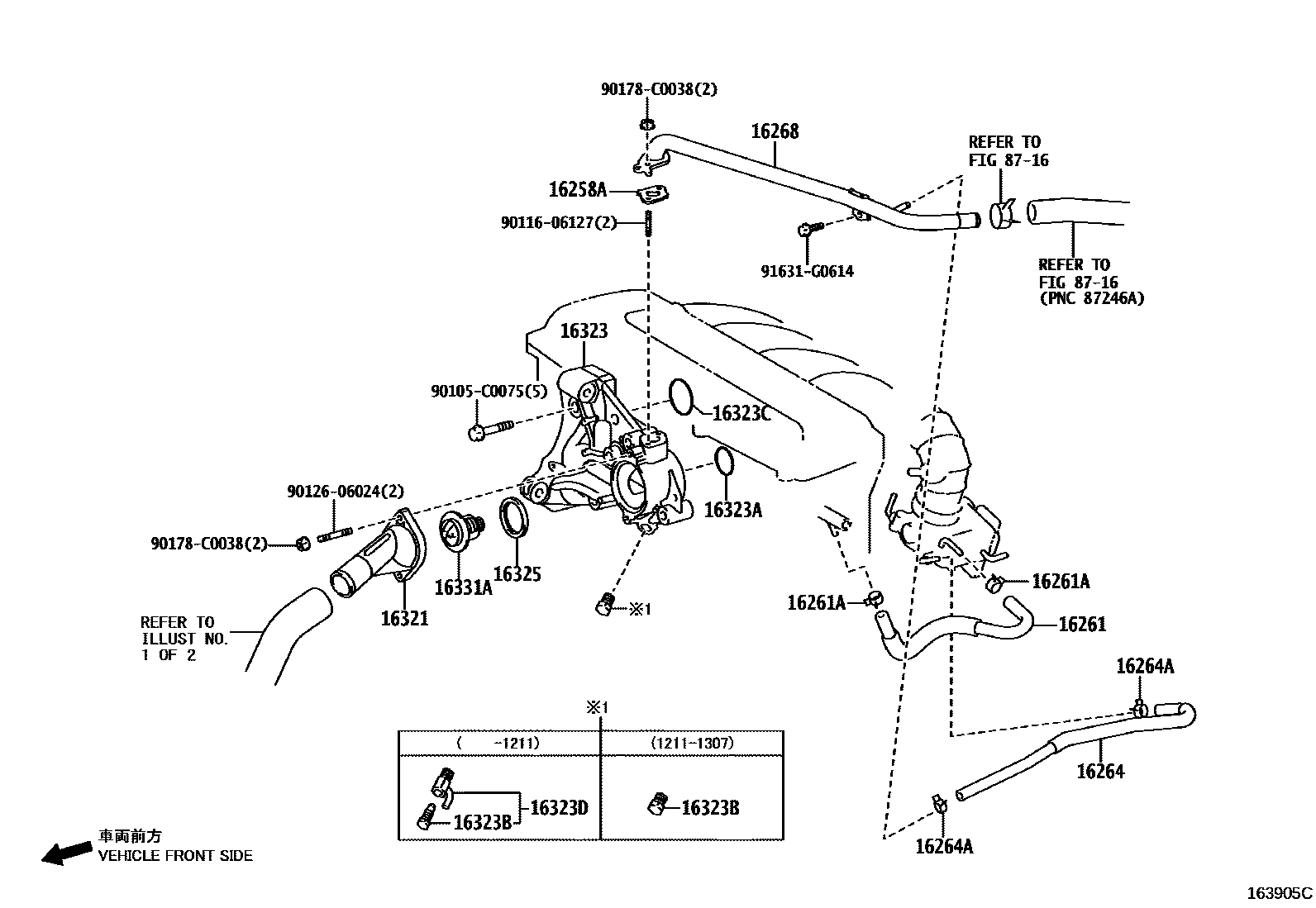

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-0H040 · 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-28100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0H110 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0003 · 90467-15022 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-28120 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0H090 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0003 · 90466-C0022 · 90467-15022 · 96136-51801 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-28070 |
| 16268J | No. 5 water bypass pipe | 16268-0H100 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0H010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-C0003 · 90467-15022 |
| 16321 | water inlet | 16321-0H060 |
| 16323 | HOUSING, WATER INLET | 16323-0H010 |
| 16323A | Gasket (for inlet housing) | 90301-C0029 |
| 16323B | Screw plug (for water inlet housing) | 90345-52001 · 90910-09087 |
| 16323C | O-ring (for water inlet housing) | 90301-C0030 |
| 16323D | Water discharge switch assembly (for water inlet shell) | 90910-09129 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-28010 |
| 16331A | thermostat | 90916-03136 · 90916-C3001 |
| 16361 | Fan | 16361-0H290 |
| 16361B | Fan No. 2 | 16361-0H300 |
| 16363 | cooling fan motor | 16363-0H220 |
| 16363A | Cooling fan motor No. 2 | 16363-0H230 |
| 16400 | Radiator assembly | 16400-0H350 · 16400-0H360 |
| 16400B | Radiator drain switch screw plug | 16417-30170 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 |
| 16470 | Radiator reservoir assembly | 16470-0H100 |
| 16471B | Reservoir tank cover | 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-0H060 |
| 16533 | Radiator upper bracket | 16533-0H030 |
| 16535 | Radiator lower support | 16535-0H080 · 16535-0H090 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0H020 · 16561-0H060 |
| 16571C | Radiator hose No. 1 | 16571-0H190 |
| 16571D | No. 1 radiator hose clip | 90466-C0009 · 90466-C0016 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16571F | Clamps or clips (for water hoses) | 90466-C0023 · 96137-51501 |
| 16572D | Radiator hose No. 2 | 16572-0H160 |
| 16572E | No. 2 radiator hose clip | 90466-C0009 · 90466-C0016 · 96136-44301 · 96136-44801 · 96136-54301 · 96136-54801 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-26040 |
| 16611 | Radiator reservoir bracket | 16611-28030 |
| 16711 | fan cover | 16711-0H190 |
| 16712 | No. 2 fan cover | 16712-0H030 |
