Toyota RAV4 Water Pump — Figure 1601

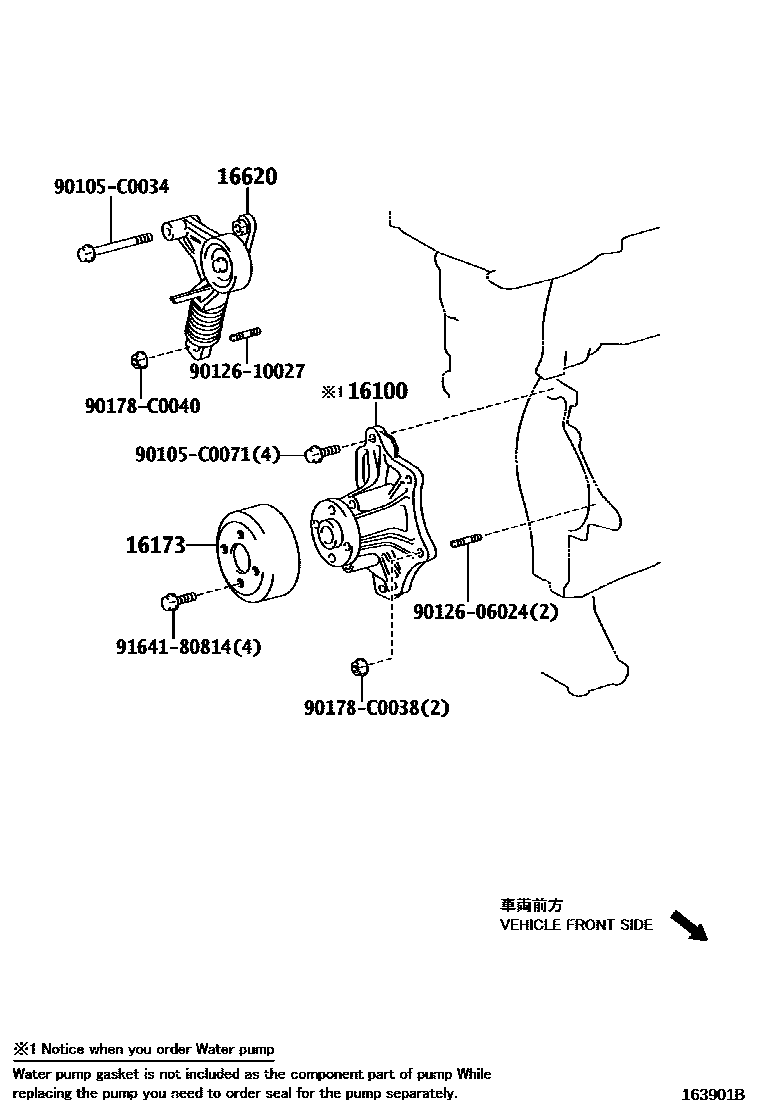

Toyota RAV4 EPC diagram 1601, Water Pump, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-0H040 |
| 16173 | water pump pulley | 16173-0H040 |
| 16620 | Poly V-belt tensioner assembly | 16620-0H020 · 16620-0H021 |
