Toyota RAV4 Engine Mounting — Figure 1107

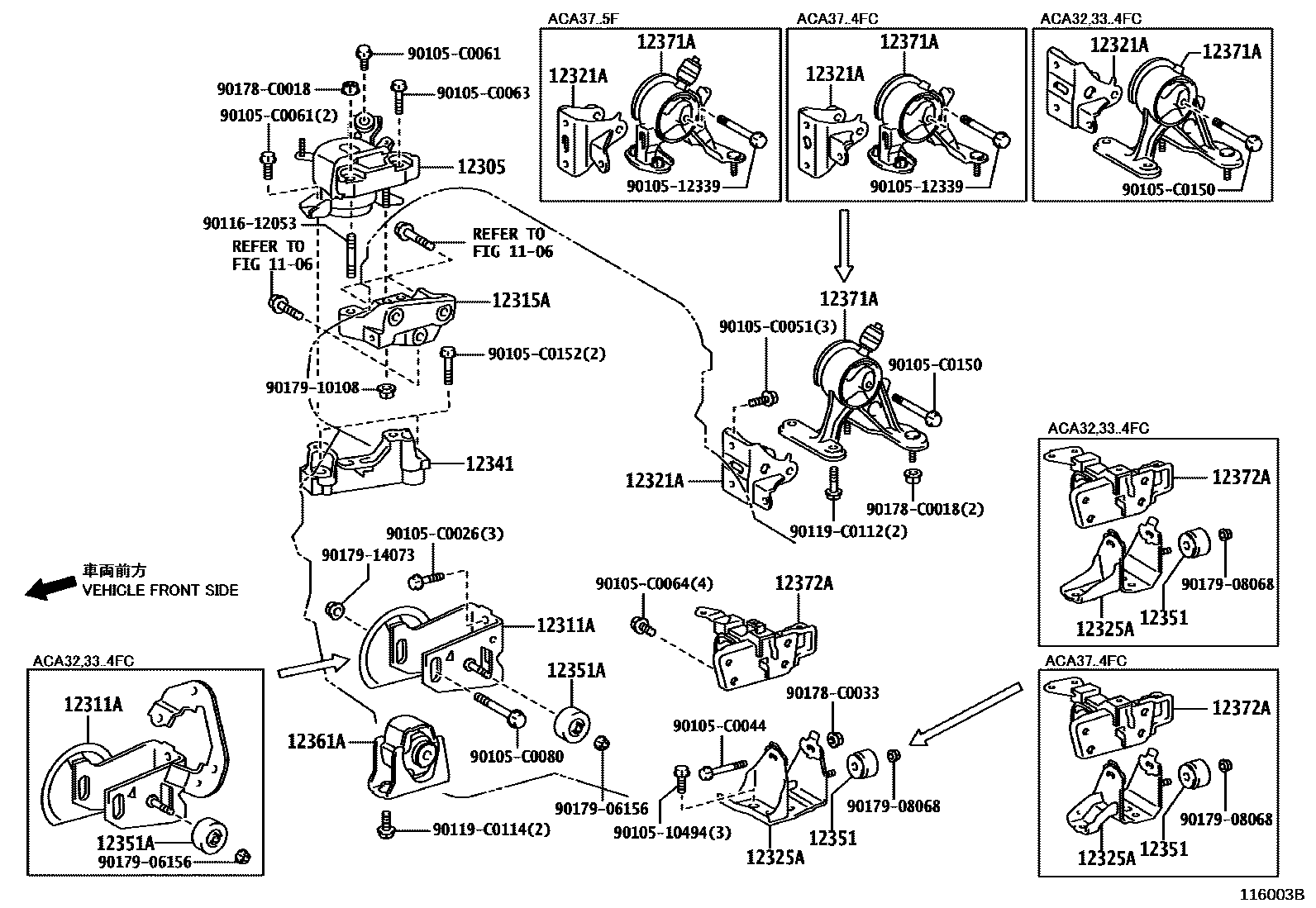

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0H040 · 12305-0H050 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0H160 · 12311-0H170 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-28090 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0H090 · 12321-0H100 · 12321-0H110 · 12321-0H120 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0H060 · 12325-0H070 · 12325-0H080 |
| 12341 | engine mounting spacer | 12341-26011 |
| 12351 | engine mount shock absorber | 12351-0H040 · 12351-0H050 · 12351-0H060 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-0H030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0H140 · 12361-0T010 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0H100 · 12371-0H110 · 12371-0H120 · 12371-0H130 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0H180 · 12372-0H190 |
