Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 7 PNC and OE references.

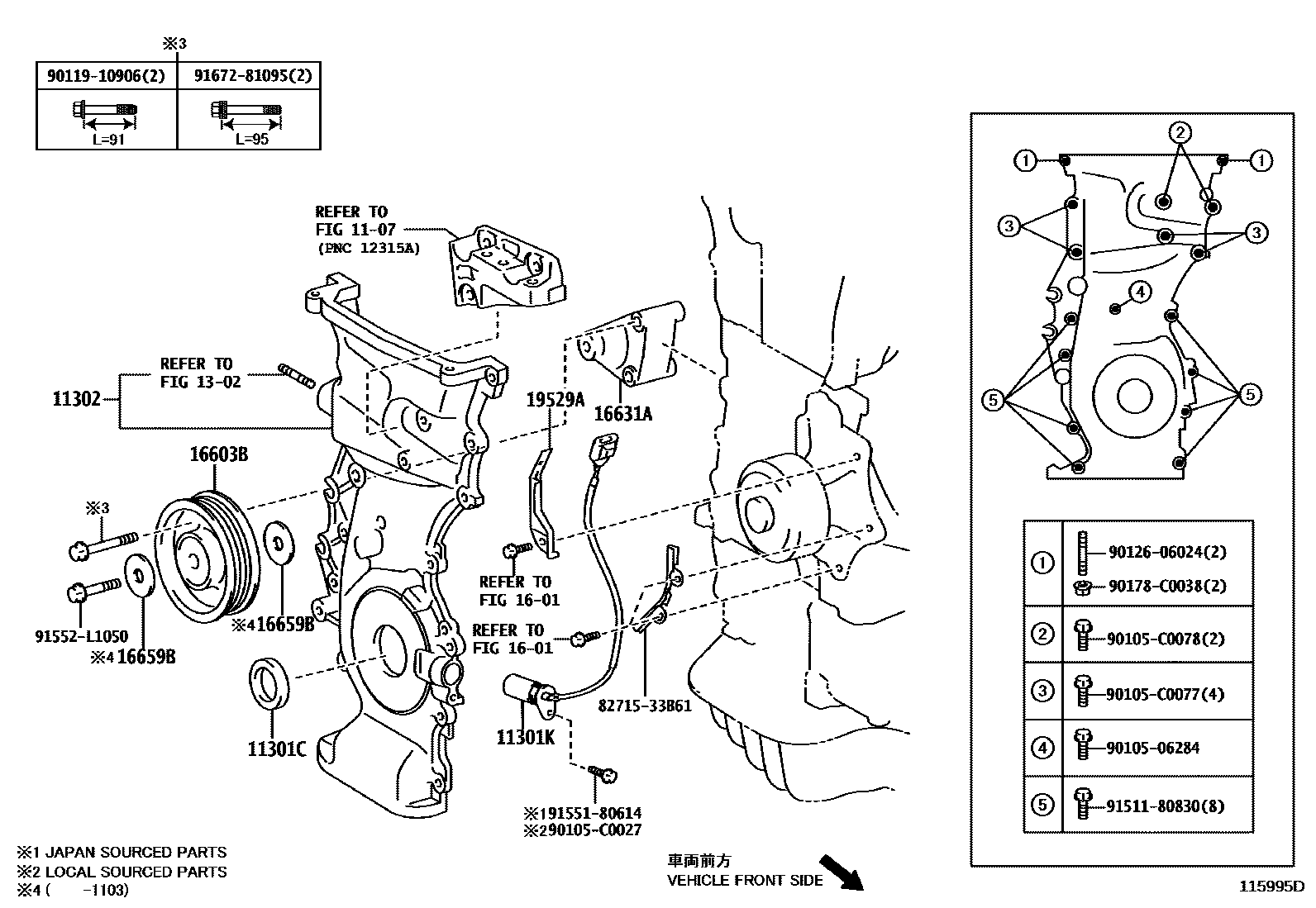

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 115995D
Timing Gear Cover & Rear End Plate — 115995D (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-C0025 · 90311-T0024
11301Kcrankshaft position sensor90919-05067
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0H070 · 11310-28090
16603BIdler gear sub-assembly16603-28020 · 16603-28050
16631AIdler gear bracket16631-28031
16659BNo. 2 idler cover16659-31011
19529Acard holder19529-28050
