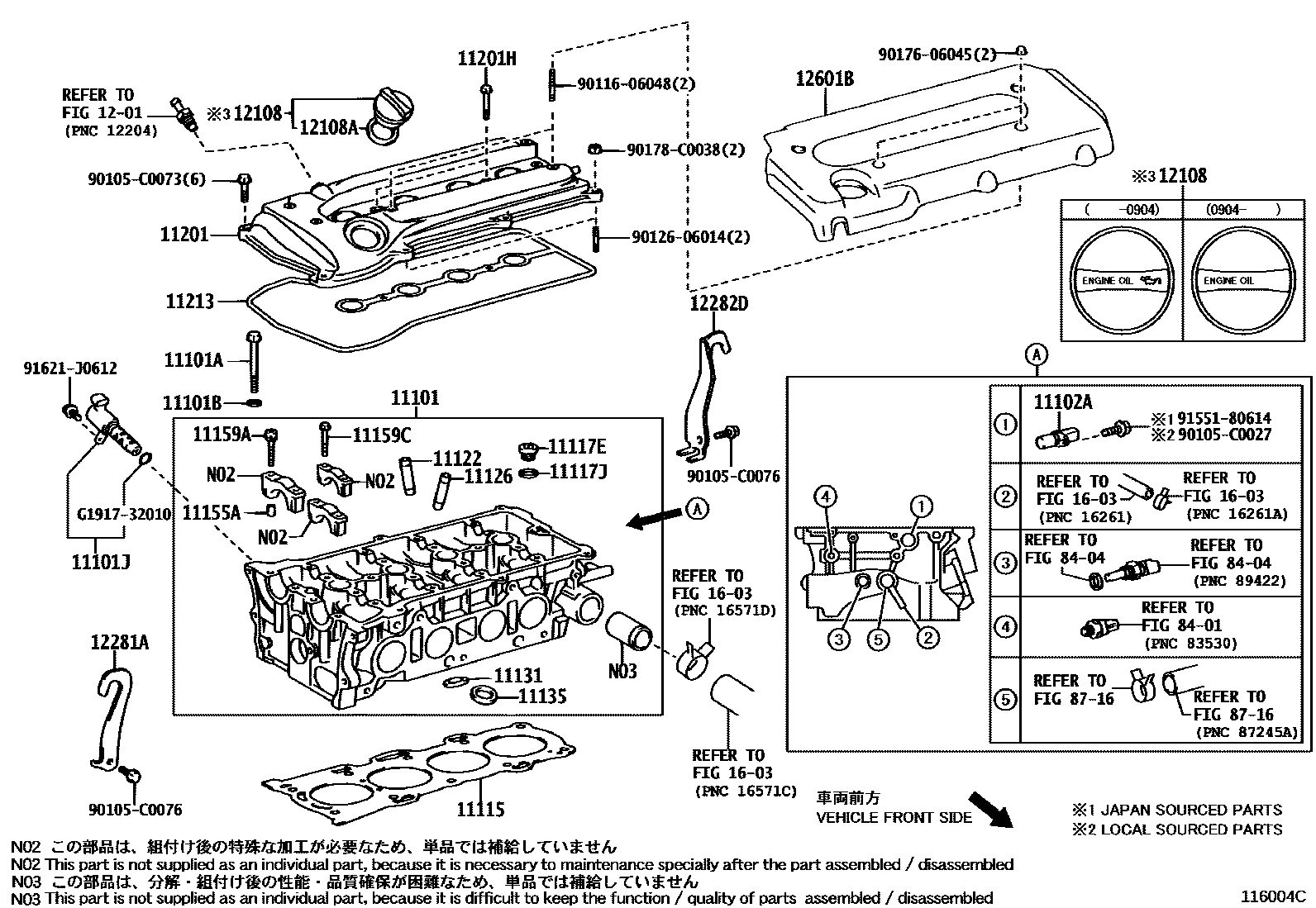

Toyota RAV4 Cylinder Head — Figure 1104
Toyota RAV4 EPC diagram 1104, Cylinder Head, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0H040 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02162 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 |
| 11101J | Camshaft timing oil control valve assembly | 15330-28020 |
| 11102A | Camshaft position sensor | 90919-05026 |
| 11115 | GASKET, CYLINDER HEAD | 11115-28040 · 11115-28050 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-27006 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-27005 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-28010 · 11123-28010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-20020 · 11127-20020 |
| 11131 | intake valve seat | 11131-0H010 · 11131-28030 · 11132-28030 |
| 11135 | Exhaust valve seat | 11135-0H010 · 11135-28050 · 11136-28050 |
| 11155A | PIN, RING W/HEAD | 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-C0069 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-C0121 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0H060 · 11201-0H061 |
| 11201H | Bolts (for cylinder head cover) | 90119-C0122 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0H040 · 11213-28021 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-28010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 · 90430-37004 |
| 12281A | Engine No. 1 hanger | 12281-0H010 · 12281-28010 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0H010 · 12282-28010 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0H090 · 12601-28150 |
