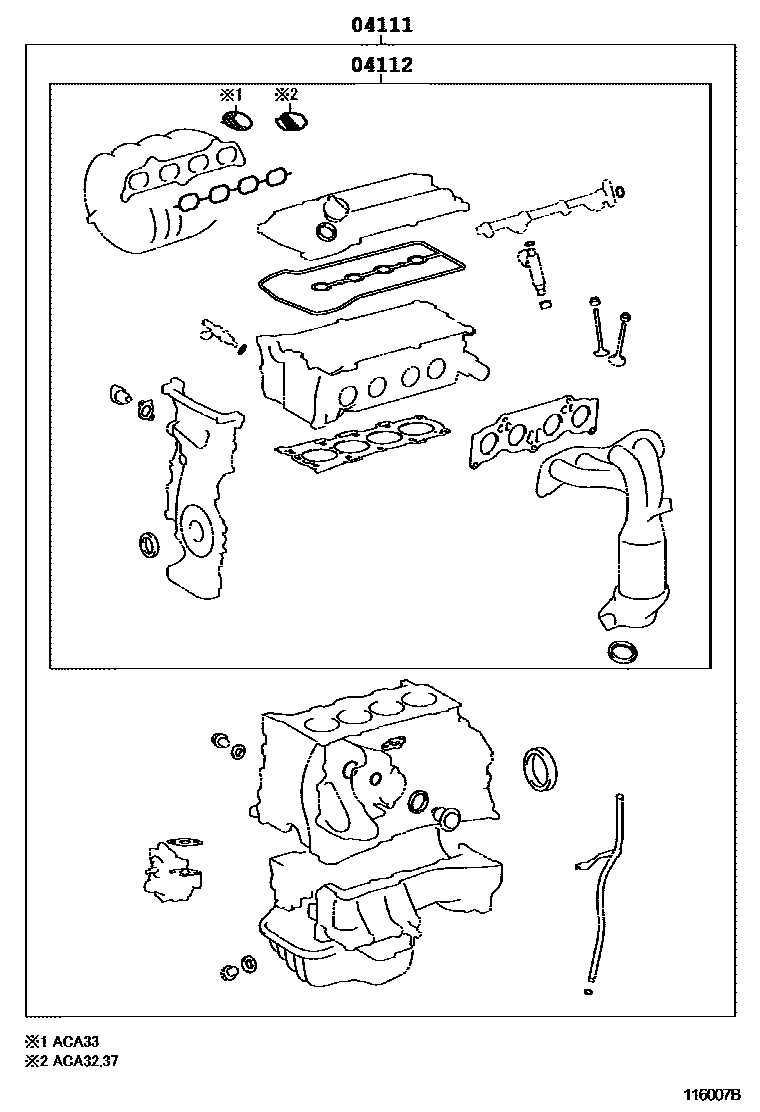

Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103
Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-0H420 · 04111-0H421 · 04111-0H422 · 04111-0H423 · 04111-0H430 · 04111-0H431 · 04111-0H432 · 04111-0H433 |
| 04112 | Engine valve grinding pad assembly | 04112-0H380 · 04112-0H381 · 04112-0H382 · 04112-0H383 · 04112-0H390 · 04112-0H391 · 04112-0H392 · 04112-0H393 |
