Toyota RAV4 Standard Tools — Figure 0901

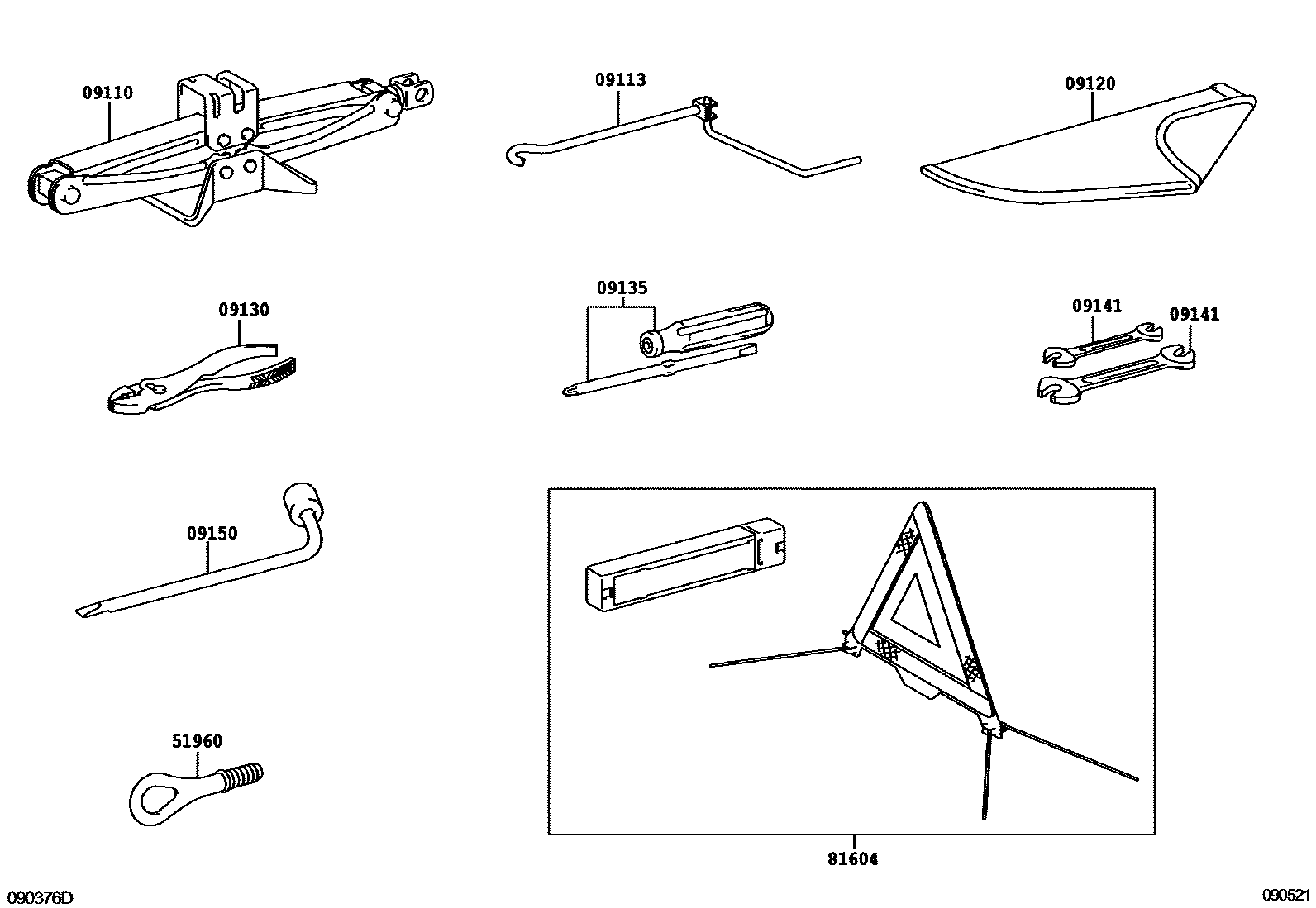

Toyota RAV4 EPC diagram 0901, Standard Tools, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0R010 |
| 09113 | Jack Handle | 09113-0R020 |
| 09120 | Tool Bag | 09120-0R020 |
| 09130 | Pliers | 09130-0N010 |
| 09135 | Screwdriver | 09135-0N010 |
| 09141 | Wrench | 09141-0N010 · 09141-0N020 |
| 09150 | Wheel Nut Wrench Case | 09150-0D020 |
| 51960 | Front Towing Hook Assembly | 51961-0R020 |
| 81604 | Triangular reflector assembly | 81604-02030 |
