Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718

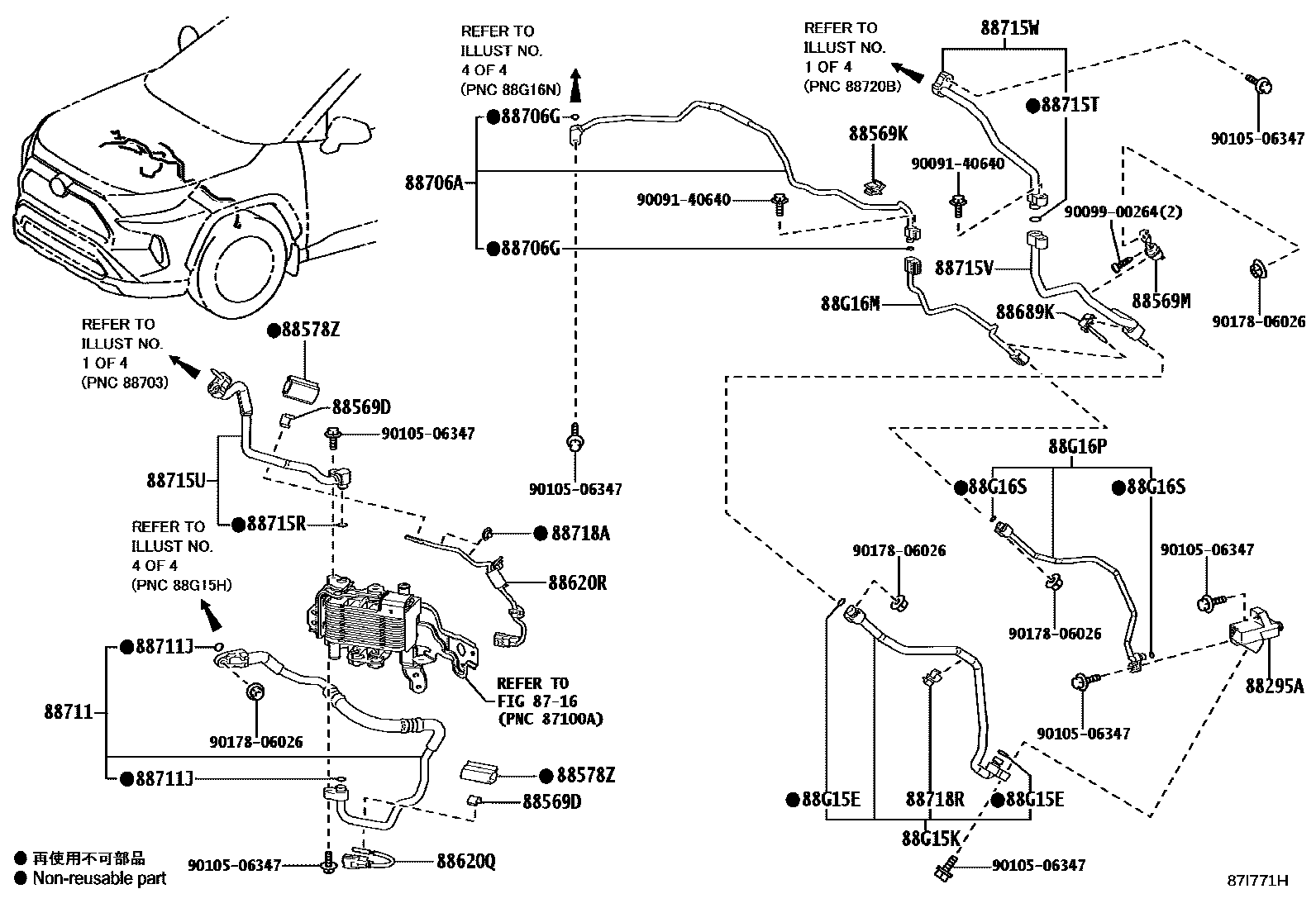

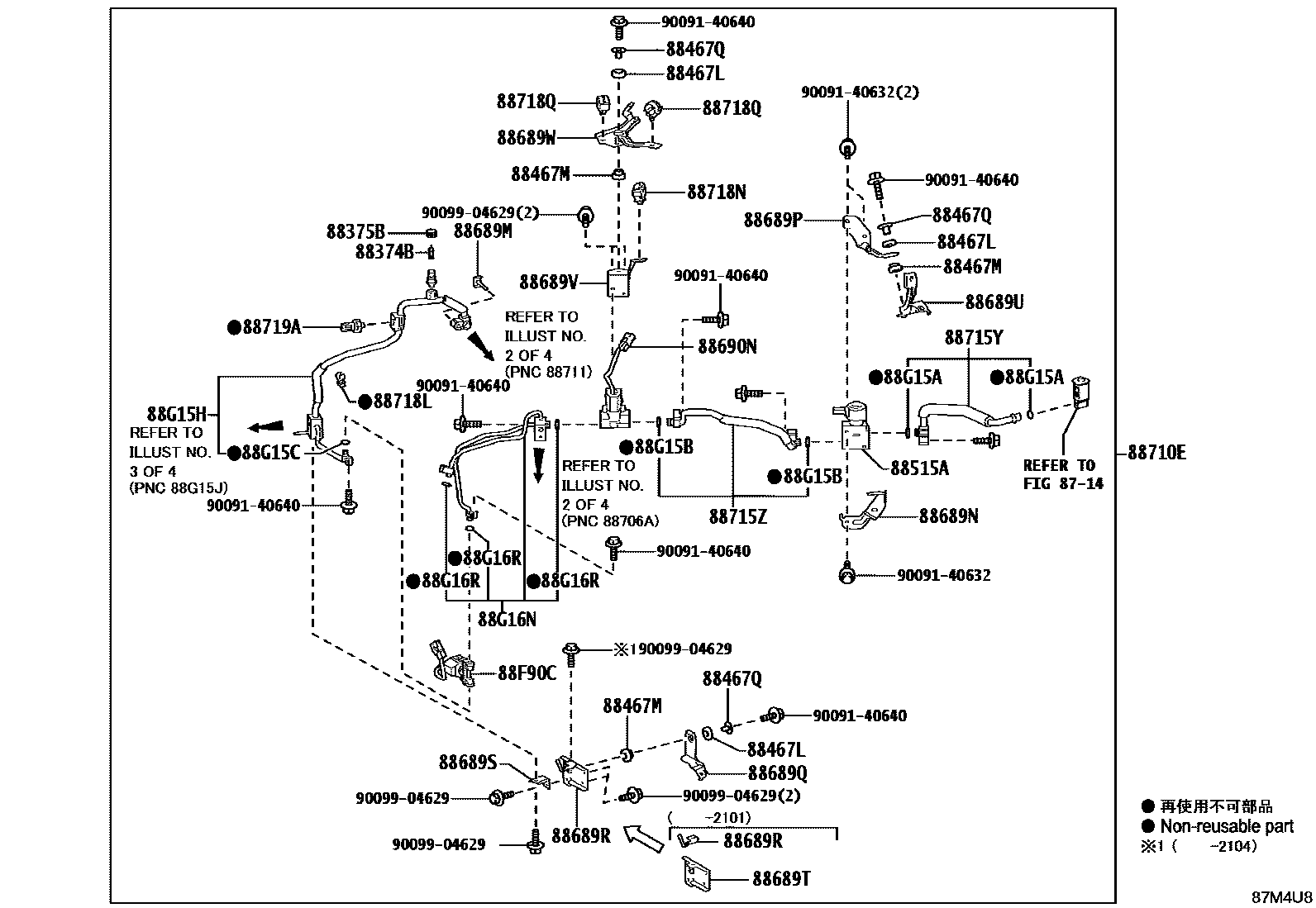

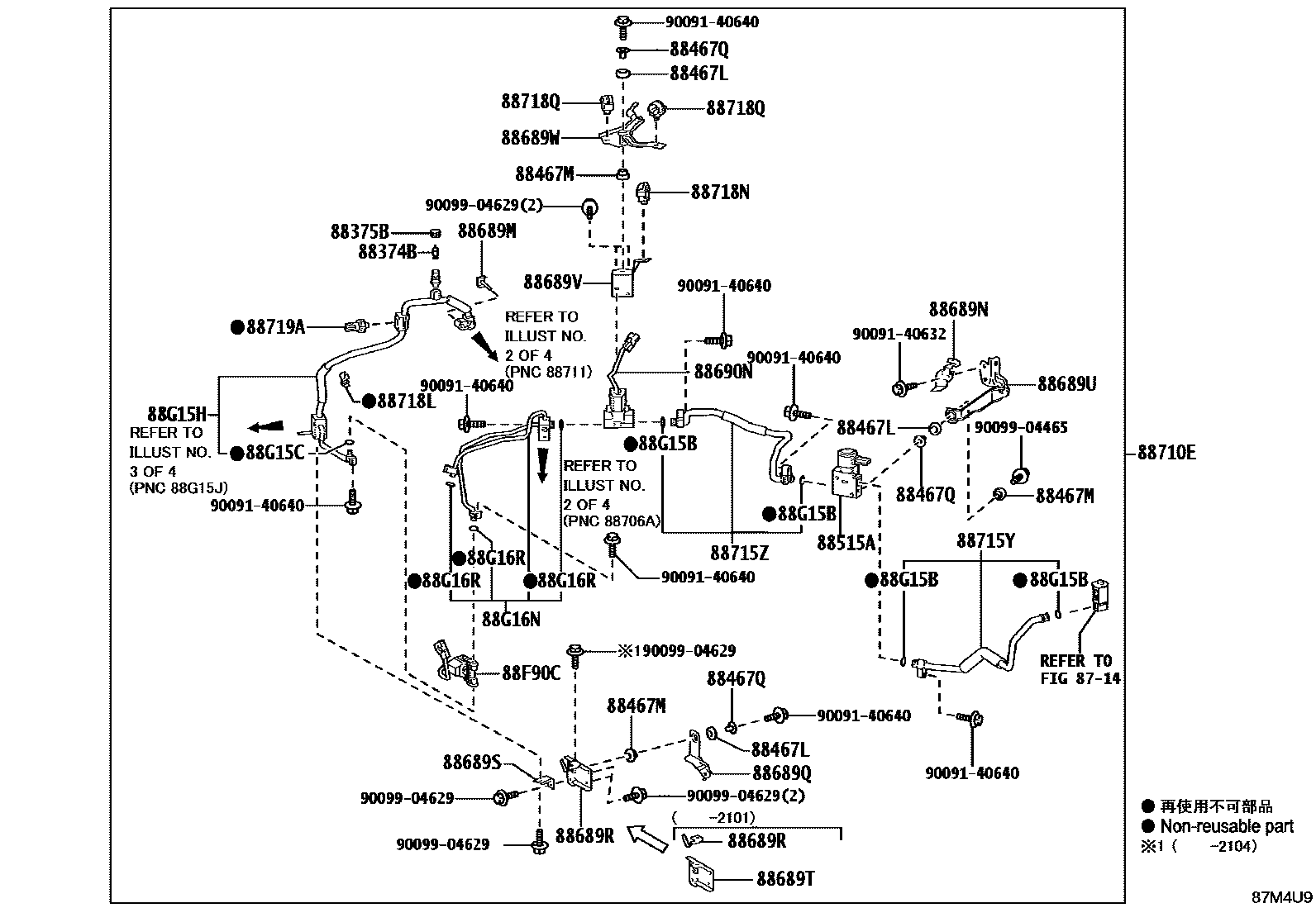

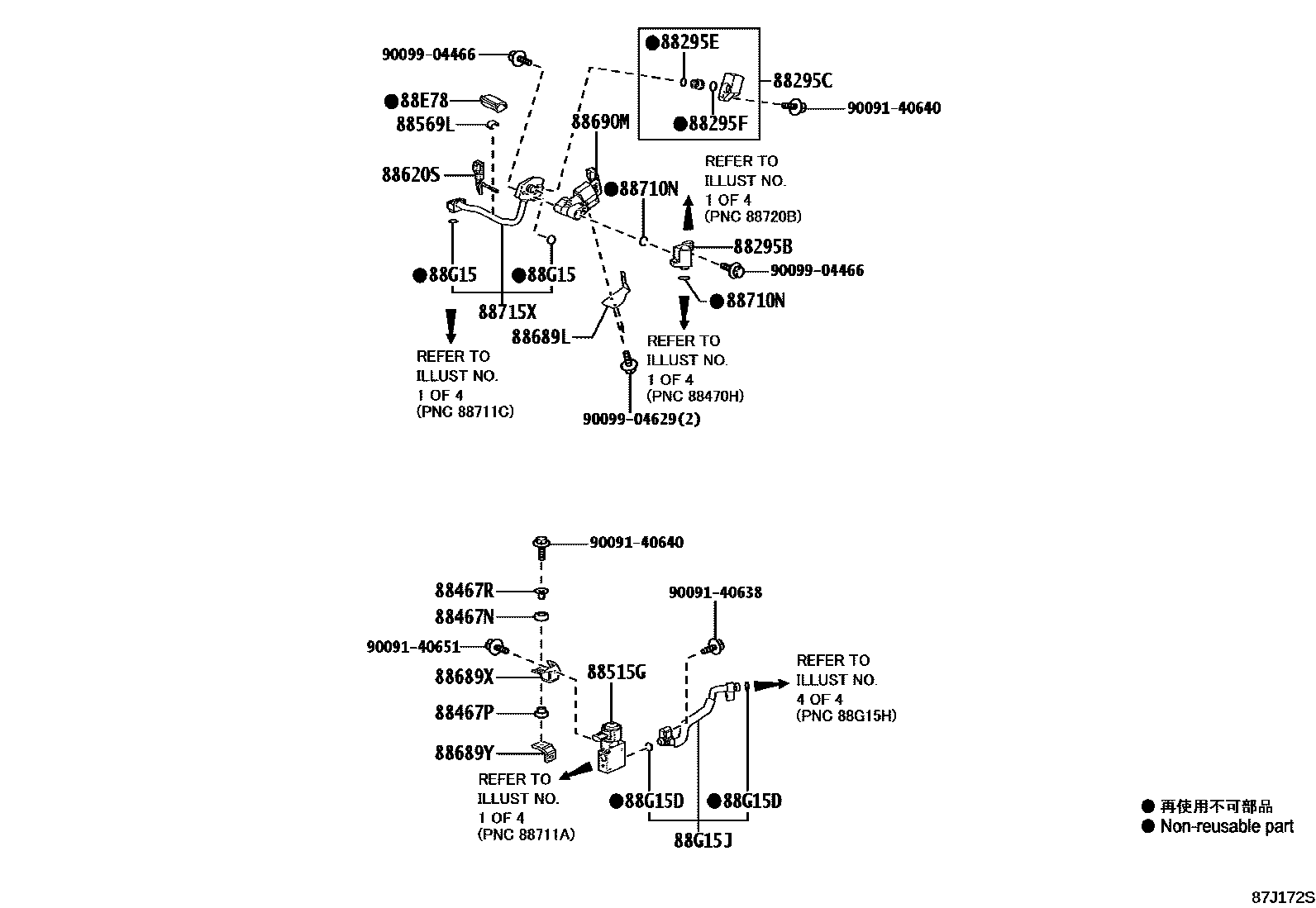

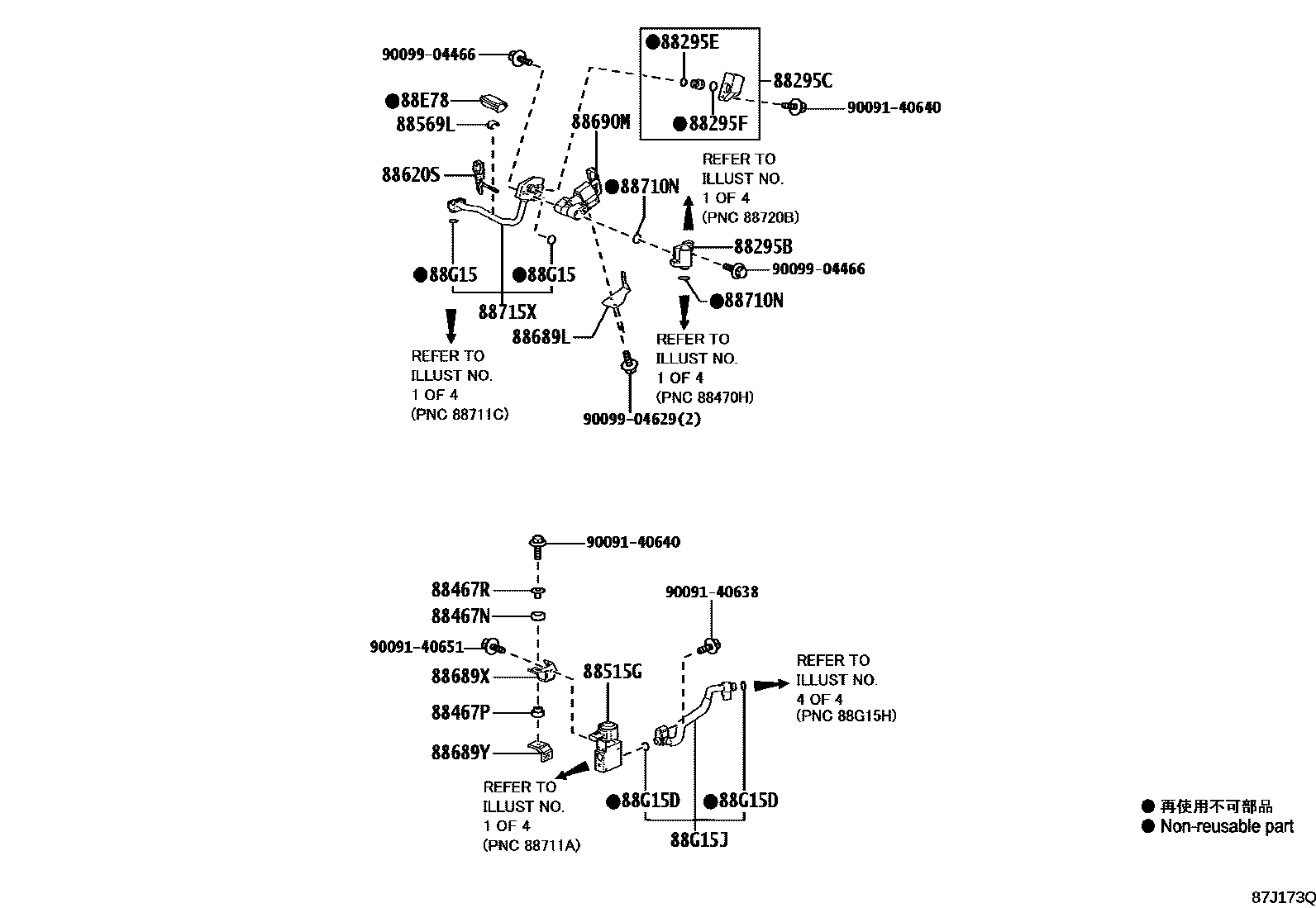

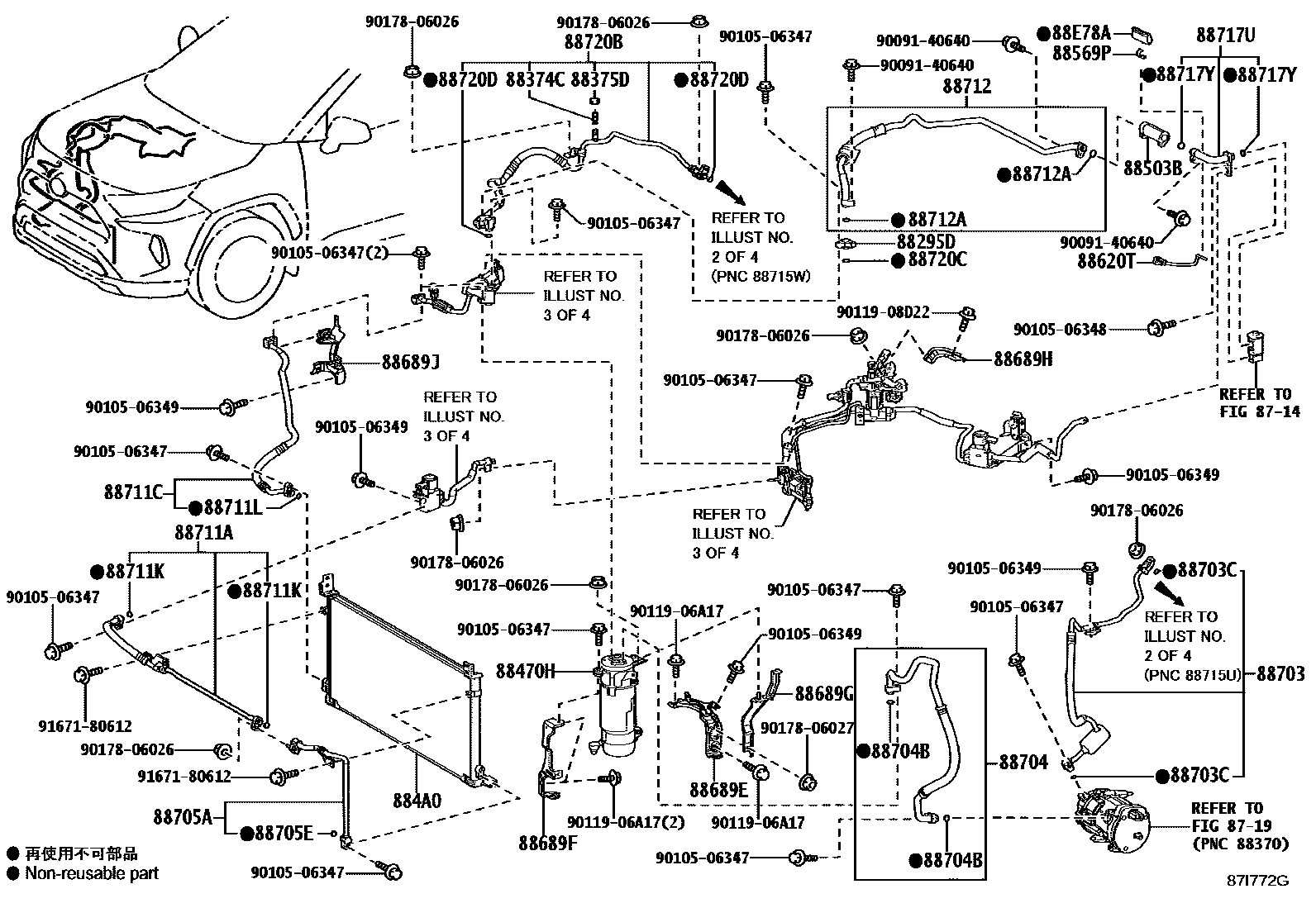

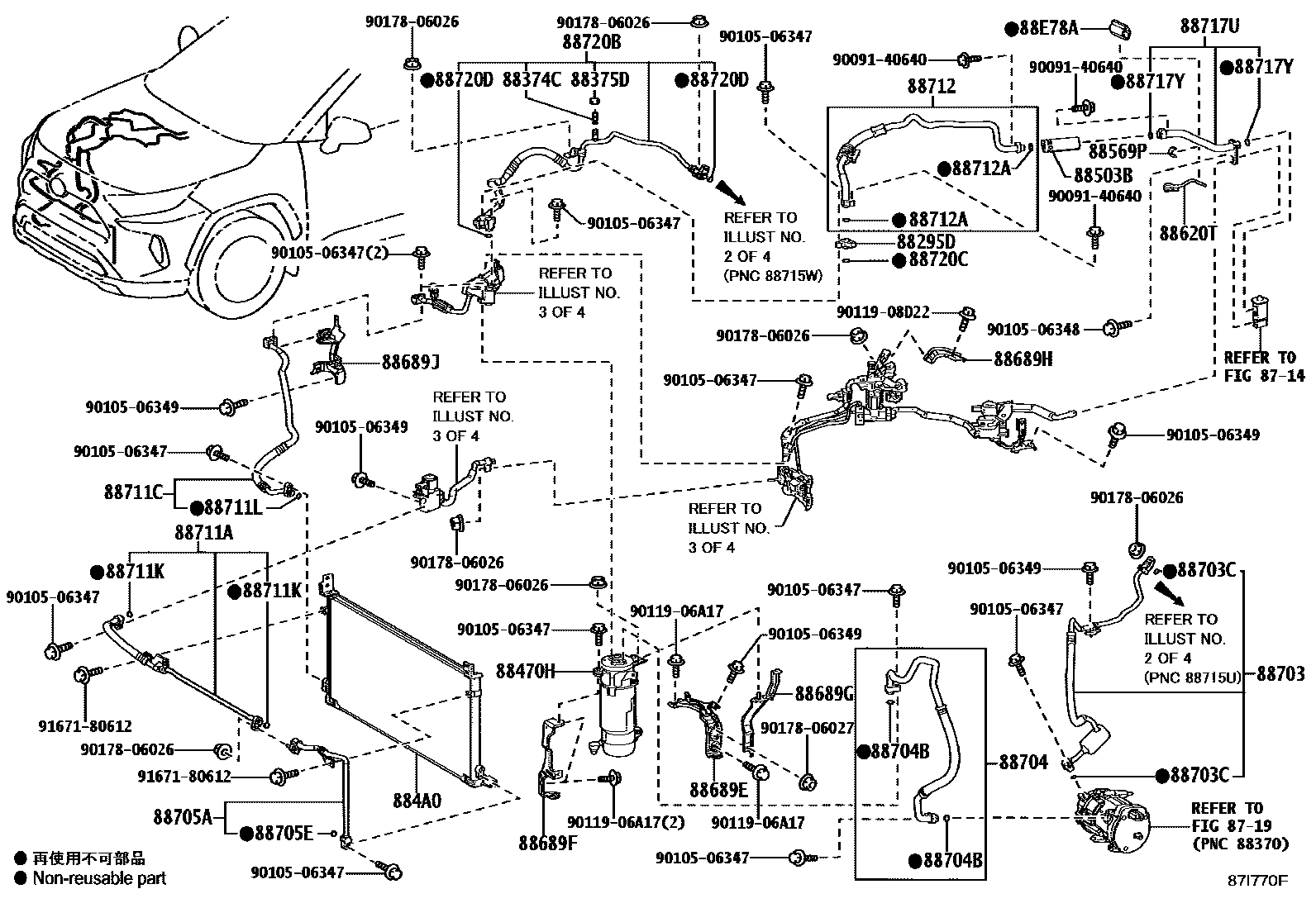

Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 8 images and 106 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88295A | TUYAU, SOUPAPE AU CONNECTEUR | 88295-42010 |
| 88295B | TUYAU, SOUPAPE AU CONNECTEUR, NO.2 | 88295-42020 |
| 88295C | TUYAU, SOUPAPE AU CONNECTEUR, NO.3 | 88295-42030 |
| 88295D | TUYAU, SOUPAPE AU CONNECTEUR, NO.4 | 88295-42040 |
| 88295E | JOINT, TORIQUE, NO.1(POUR TUYAU, SOUPAPE AU CONNECTEUR) | 90099-14157 |
| 88295F | JOINT, TORIQUE, NO.2(POUR TUYAU, SOUPAPE AU CONNECTEUR) | 90099-14169 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-74010 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88375D | No. 2 maintenance valve cover | 88375-30310 · 88375-74010 |
| 88467L | COUSSIN, REFROIDISSEUR, NO.1 | 88467-47020 |
| 88467M | COUSSIN, REFROIDISSEUR, NO.2 | 88467-47030 |
| 88467N | COUSSIN, REFROIDISSEUR, NO.3 | 88467-47020 |
| 88467P | COUSSIN, REFROIDISSEUR, NO.4 | 88467-47030 |
| 88467Q | BAGUE, NO.1 | 88467-14050 |
| 88467R | BAGUE, NO.2 | 88467-14050 |
| 88470H | ENS ACCUMULATEUR | 88470-42100 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-42050 · 884A0-42090 |
| 88503B | Pressure regulator sub-assembly | 88503-42010 · 88503-42020 · 88503-42030 · 88503-47010 |
| 88515A | Cooler expansion valve | 88515-42110 · 88515-42130 |
| 88515G | VANNE, EXPANSION REFROIDISSEUR, NO.2 | 88515-42120 |
| 88569D | COLLIER, REFROIDISSEUR, NO.1 | 88569-74090 |
| 88569K | COLLIER, REFROIDISSEUR, NO.2 | 88718-50330 |
| 88569L | COLLIER, REFROIDISSEUR, NO.3 | 88569-74090 |
| 88569M | COLLIER, TUYAUTERIE, NO.1 | 88718-42160 |
| 88569P | COLLIER, REFROIDISSEUR, NO.4 | 88569-47020 |
| 88578Z | Cooler seal No. 1 | 88578-47070 |
| 88620Q | ENS. THERMISTANCE, CLIMATISATION NO.1 | 88620-42030 |
| 88620R | ENS. THERMISTANCE, CLIMATISATION NO.2 | 88620-42020 |
| 88620S | ENS. THERMISTANCE, CLIMATISATION NO.3 | 88620-42040 |
| 88620T | ENS. THERMISTANCE, CLIMATISATION NO.4 | 88620-42050 · 88620-42080 |
| 88689E | SUPPORT, REFROIDISSEUR, NO.1 | 88688-42720 |
| 88689F | SUPPORT, REFROIDISSEUR, NO.2 | 88688-42730 |
| 88689G | SUPPORT, REFROIDISSEUR, NO.3 | 88688-42740 |
| 88689H | SUPPORT, REFROIDISSEUR, NO.4 | 88688-42750 |
| 88689J | SUPPORT, REFROIDISSEUR, NO.5 | 88688-42760 |
| 88689K | SUPPORT, REFROIDISSEUR, NO.6 | 88688-42780 |
| 88689L | SUPPORT, REFROIDISSEUR, NO.7 | 88688-42790 |
| 88689M | SUPPORT, REFROIDISSEUR, NO.8 | 88688-33240 |
| 88689N | SUPPORT, REFROIDISSEUR, NO.9 | 88688-42770 · 88688-42800 |
| 88689P | SUPPORT, REFROIDISSEUR, NO.10 | 88688-42810 |
| 88689Q | SUPPORT, REFROIDISSEUR, NO.11 | 88688-42820 |
| 88689R | SUPPORT, REFROIDISSEUR, NO.12 | 88688-42830 · 88688-42A50 |
| 88689S | SUPPORT, REFROIDISSEUR, NO.13 | 88688-42840 |
| 88689T | SUPPORT, REFROIDISSEUR, NO.14 | 88688-42850 |
| 88689U | SUPPORT, REFROIDISSEUR, NO.15 | 88688-42860 · 88688-42890 |
| 88689V | SUPPORT, REFROIDISSEUR, NO.16 | 88688-42870 |
| 88689W | SUPPORT, REFROIDISSEUR, NO.17 | 88688-42880 |
| 88689X | SUPPORT, REFROIDISSEUR, NO.18 | 88688-42A00 |
| 88689Y | SUPPORT, REFROIDISSEUR, NO.19 | 88688-42A10 |
| 88690M | ENSEMBLE VALVE, AIMANT, NO.1 | 88690-42090 |
| 88690N | ENSEMBLE VALVE, AIMANT, NO.2 | 88690-42100 |
| 88703 | Discharge hose sub-assembly | 88703-42260 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-42750 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90099-14157 |
| 88705A | Discharge pipe sub-assembly | 88705-42140 |
| 88705E | JOINT, TORIQUE, NO.1(TUYAU VIDANGE) | 90099-14155 |
| 88706A | Liquid pipe A sub-assembly | 88706-42840 |
| 88706G | JOINT, TORIQUE(POUR TUYAU LIQUIDE) | 90099-14119 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-42260 · 88710-42280 · 88710-42310 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90099-14157 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-42090 |
| 88711A | Cooler No. 2 refrigerant drain hose | 88711-42070 · 88711-42160 |
| 88711C | Cooler No. 3 refrigerant drain hose | 88711-42080 |
| 88711J | JOINT TORIQUE, NO.1(POUR TUYAU DECHARGE) | 90099-14120 |
| 88711K | JOINT TORIQUE, NO.2(POUR TUYAU DECHARGE) | 90099-14155 |
| 88711L | JOINT TORIQUE, NO.3(POUR TUYAU DECHARGE) | 90099-14155 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-42200 · 88712-42210 · 88712-42220 |
| 88712A | O-ring (for cooler refrigerant suction hose) | 90099-14157 |
| 88715R | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90099-14120 |
| 88715T | JOINT, TORIQUE, NO.3(TUYAU VIDANGE) | 90099-14155 |
| 88715U | TUBE, DECHARGE, NO.1 | 88715-42400 |
| 88715V | TUBE, DECHARGE, NO.2 | 88715-42310 |
| 88715W | TUBE, DECHARGE, NO.3 | 88715-42320 |
| 88715X | TUBE, DECHARGE, NO.4 | 88715-42330 |
| 88715Y | TUBE, DECHARGE, NO.5 | 88715-42340 · 88715-42370 |
| 88715Z | TUBE, DECHARGE, NO.6 | 88715-42350 · 88715-42380 |
| 88717U | No. 1 suction pipe | 88717-42180 · 88717-42190 |
| 88717Y | JOINT, TORIQUE(POUR TUYAU ASPIRATION) NO.1 | 90099-14121 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-42150 |
| 88718L | Pipe clamp | 88718-2J230 |
| 88718N | FIXATION, TUYAUTERIE | 88718-42110 |
| 88718Q | FIXATION, TUYAUTERIE | 88718-42170 |
| 88718R | COLLIER, CONDUITE | 88718-2J230 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88720B | Air conditioning hoses and accessories | 88720-42040 · 88720-42050 |
| 88720C | JOINT, TORIQUE, NO.1(ENS. FLEX & ACCESSOIRE, CLIM) | 90099-14157 |
| 88720D | JOINT, TORIQUE, NO.2(ENS. FLEX & ACCESSOIRE, CLIM) | 90099-14155 · 90099-14157 |
| 88E78 | GARNITURE, REFRIGERANT, NO.2 | 88578-47070 |
| 88E78A | GARNITURE, REFRIGERANT, NO.3 | 88578-47060 |
| 88F90C | ENSEMBLE VALVE, AIMANT, NO.3 | 88690-42110 |
| 88G15 | JOINT, TORIQUE, NO.4(TUYAU VIDANGE) | 90099-14155 · 90099-14157 |
| 88G15A | JOINT, TORIQUE, NO.5(TUYAU VIDANGE) | 90099-14120 |
| 88G15B | JOINT, TORIQUE, NO.6(TUYAU VIDANGE) | 90099-14120 |
| 88G15C | JOINT, TORIQUE, NO.7(TUYAU VIDANGE) | 90099-14119 |
| 88G15D | JOINT, TORIQUE, NO.8(TUYAU VIDANGE) | 90099-14120 |
| 88G15E | JOINT, TORIQUE, NO.9(TUYAU VIDANGE) | 90099-14155 |
| 88G15H | TUBE, DECHARGE, NO.7 | 88715-42360 |
| 88G15J | TUBE, DECHARGE, NO.8 | 88715-42390 |
| 88G15K | TUBE, DECHARGE, NO.9 | 88715-42300 |
| 88G16M | TUYAU, LIQUIDE, NO.1 | 88716-42A80 |
| 88G16N | TUYAU, LIQUIDE, NO.2 | 88716-42A90 |
| 88G16P | TUYAU, LIQUIDE, NO.3 | 88716-42A30 |
| 88G16R | JOINT, TORIQUE(POUR TUYAU LIQUIDE) NO.2 | 90099-14155 · 90099-14158 |
| 88G16S | JOINT, TORIQUE, NO.3(POUR TUYAU LIQUIDE) | 90099-14119 |
