Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716

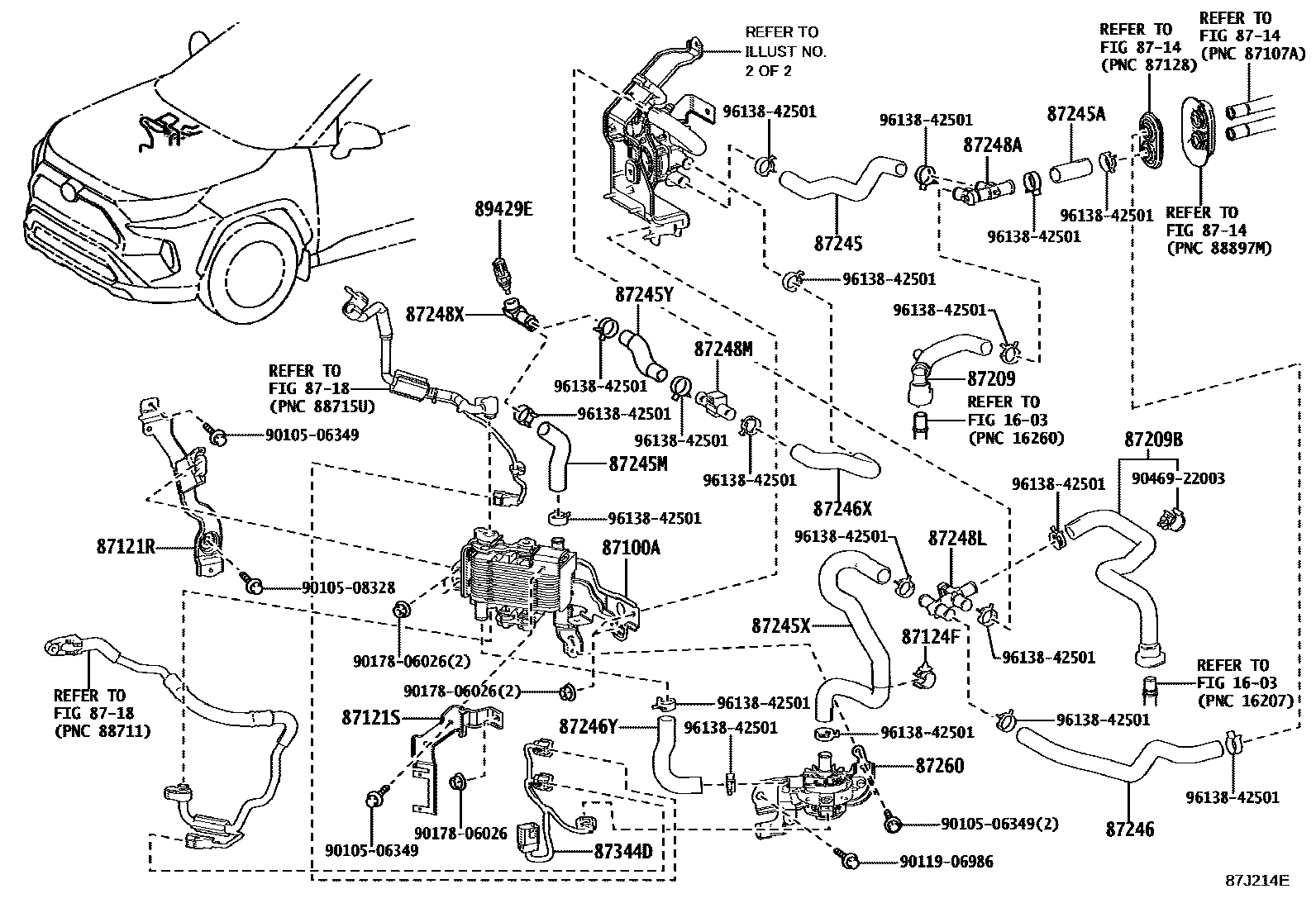

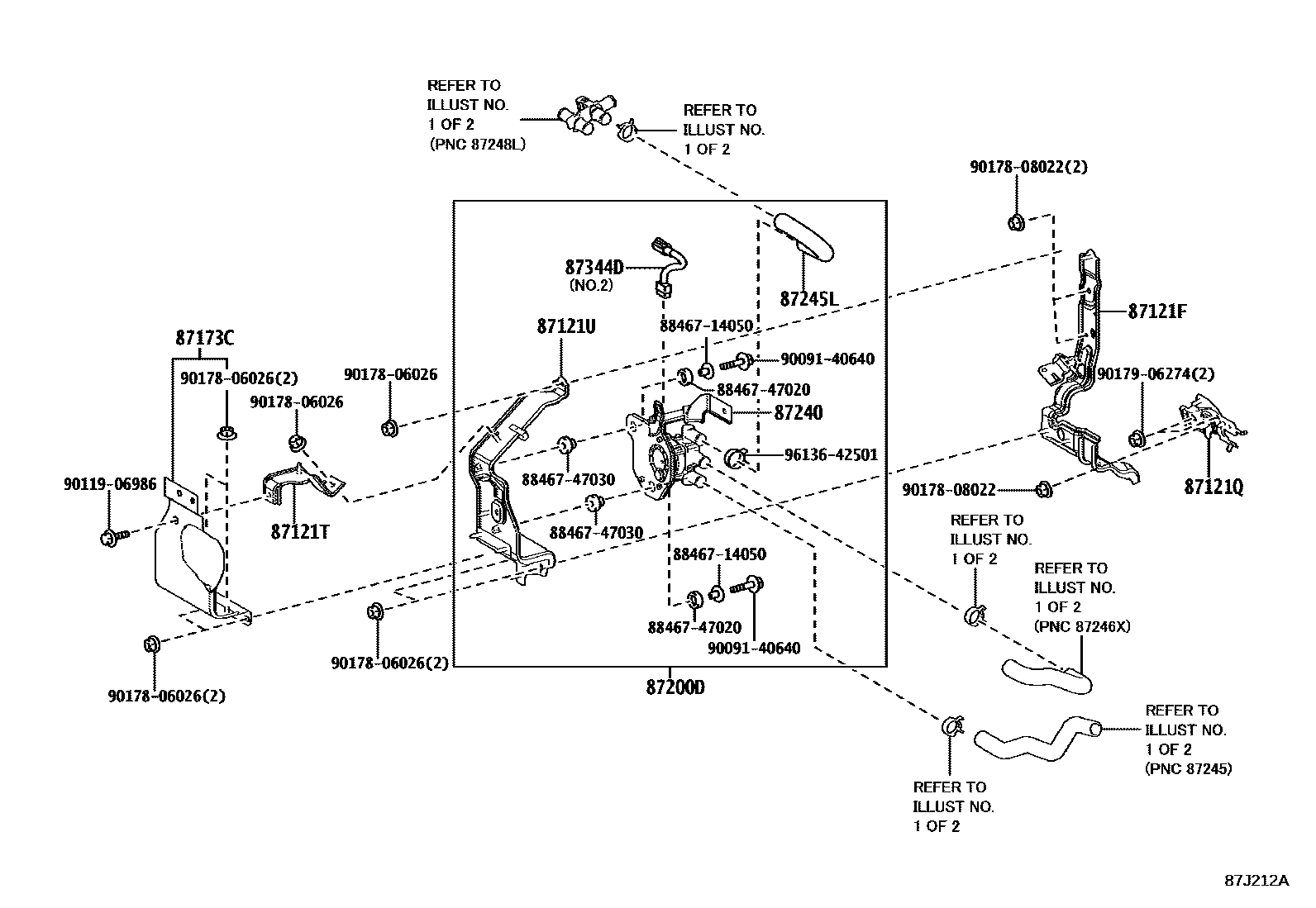

Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87100A | Heater and accessories assembly | 87100-42020 |
| 87121F | heater bracket | 87121-42030 · 87121-42080 |
| 87121Q | PLAT. FIX. CHAUFFAGE NO.2 | 87121-42040 |
| 87121R | SUPPORT, CHAUFFAGE NO.3 | 87121-42060 |
| 87121S | SUPPORT, CHAUFFAGE NO.4 | 87121-42070 |
| 87121T | SUPPORT, CHAUFFAGE NO.5 | 87121-42090 |
| 87121U | SUPPORT, CHAUFFAGE NO.6 | 87121-42110 |
| 87124F | No. 1 heater hose clamp | 88718-48360 |
| 87173C | Heater protection device | 87173-42010 |
| 87200D | Heater accessory assembly | 87200-42020 |
| 87209 | Water hose sub-assembly | 87209-42310 |
| 87209B | Water hose sub-assembly B | 87209-42320 |
| 87240 | Heater water valve assembly | 87240-42010 |
| 87245 | Heater water inlet hose | 87245-42680 |
| 87245A | Heater water inlet hose A | 87245-42690 |
| 87245L | Heater water hose L | 87245-42670 |
| 87245M | Heater water hose M | 87245-42720 |
| 87245X | heater water hose | 87245-42700 |
| 87245Y | heater water hose | 87245-42710 |
| 87246 | Heater outlet hose | 87209-42330 |
| 87246X | heater water hose | 87245-42610 |
| 87246Y | heater water hose | 87245-42620 |
| 87248A | Heater water inlet pipe A | 87248-42060 |
| 87248L | Heater water pipe L | 87248-42070 |
| 87248M | Heater water pipe M | 87248-42080 |
| 87248X | heater water pipe | 87248-42090 |
| 87260 | Heater pump assembly | 87260-42040 |
| 87344D | heating wire | 87344-42020 · 87344-42030 |
| 89429E | water temperature sensor | 89429-47010 |
