Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714

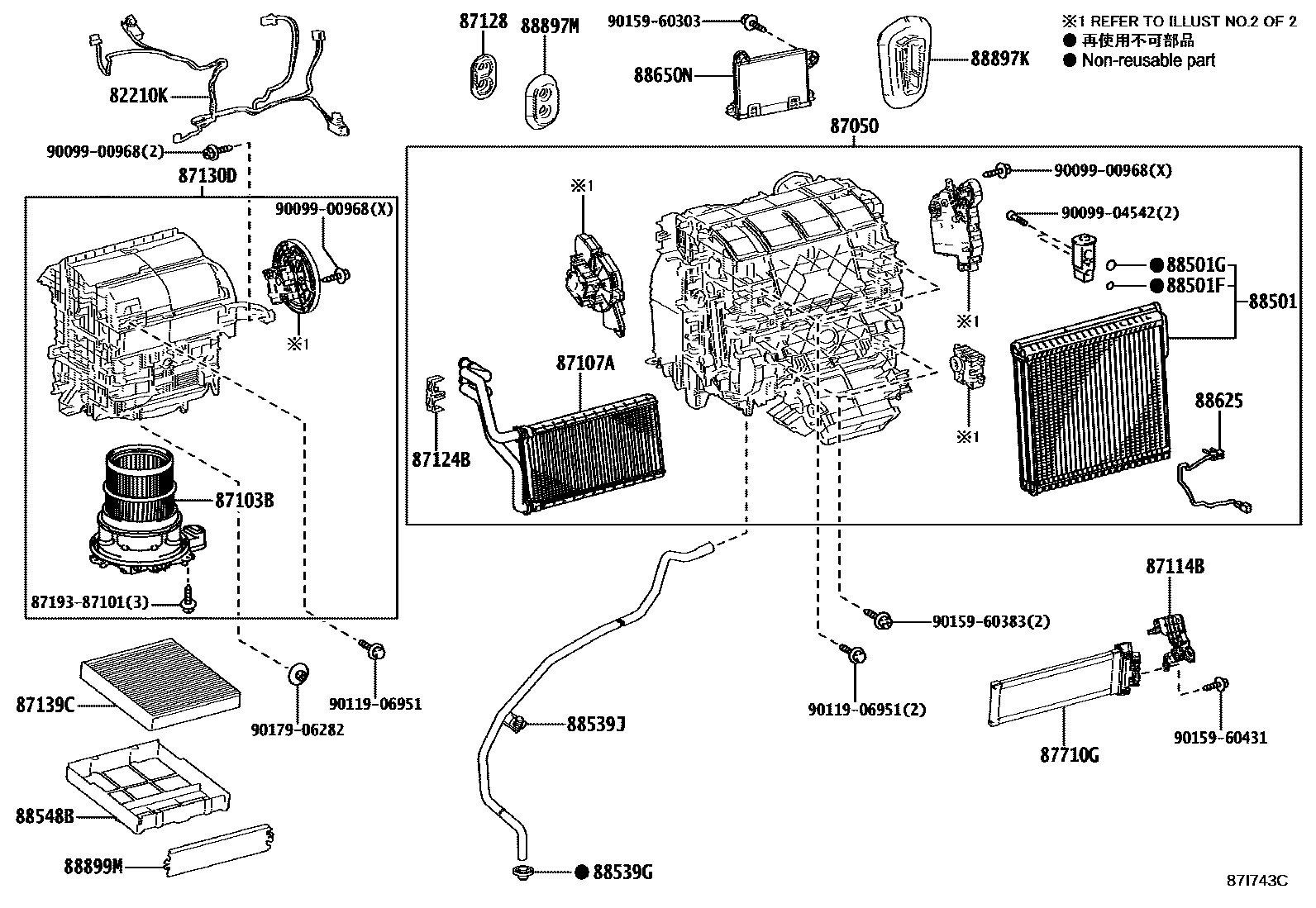

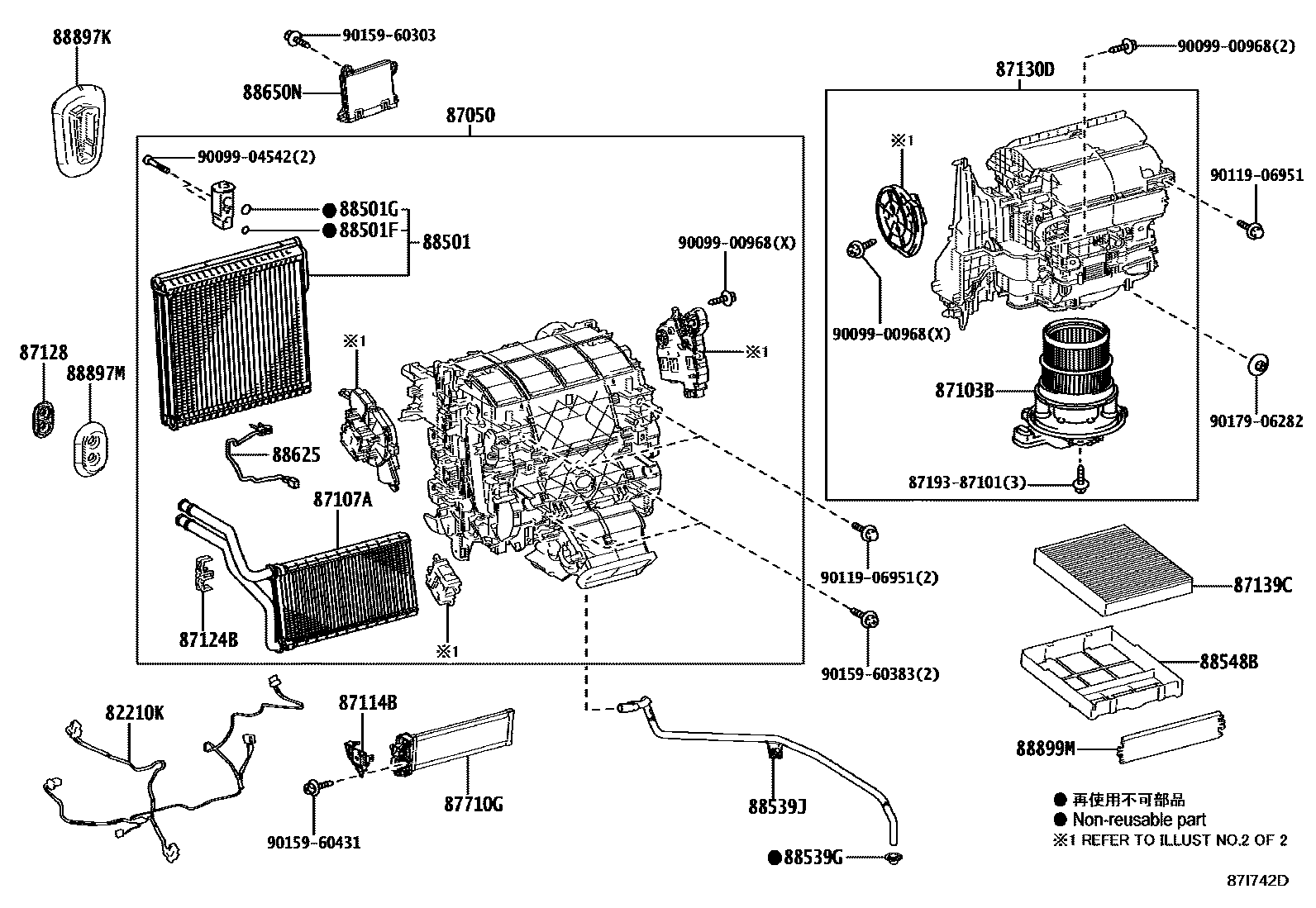

Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33170 · 82212-42040 |
| 87050 | Air conditioning radiator assembly | 87050-42B70 · 87050-42B80 |

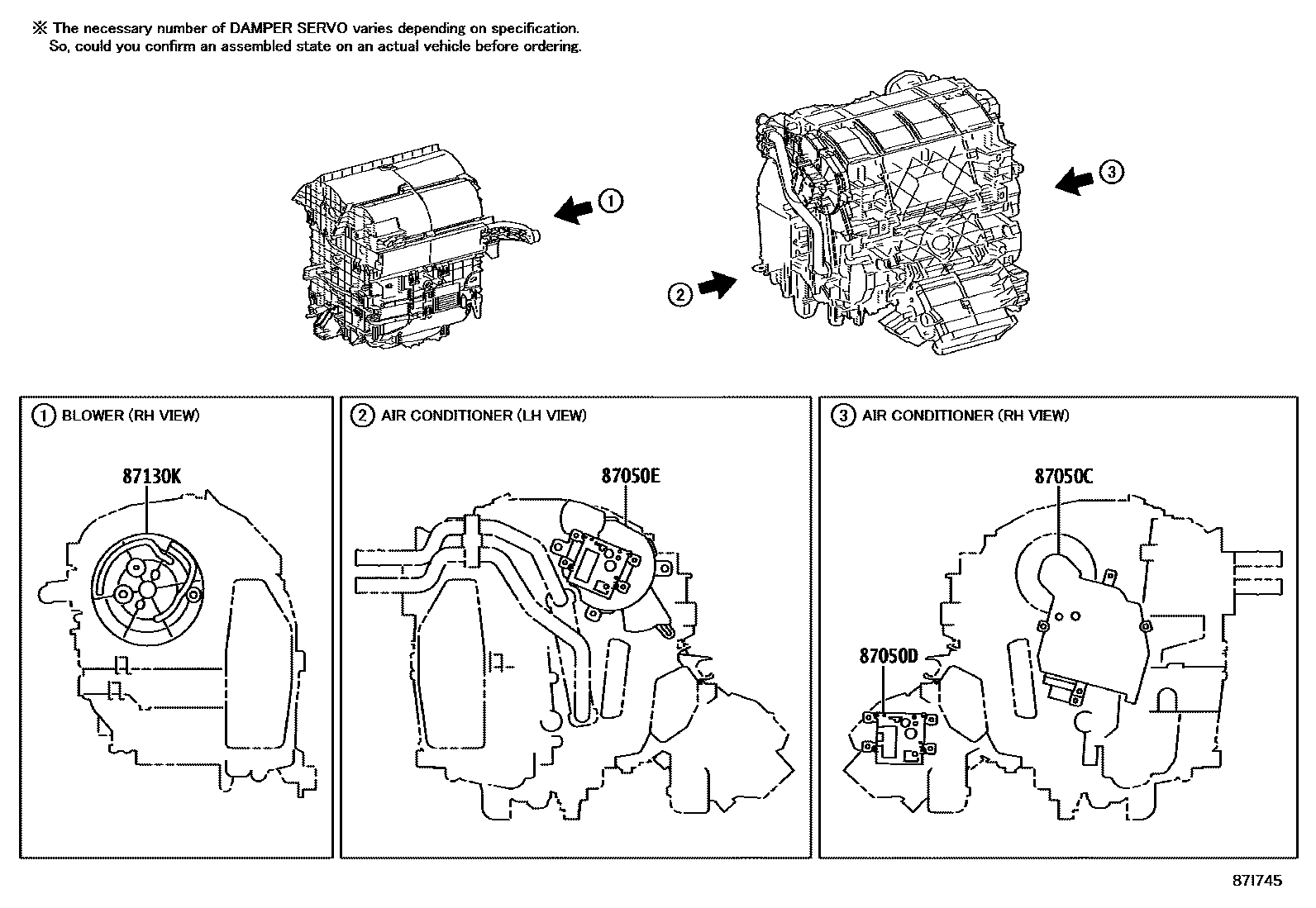

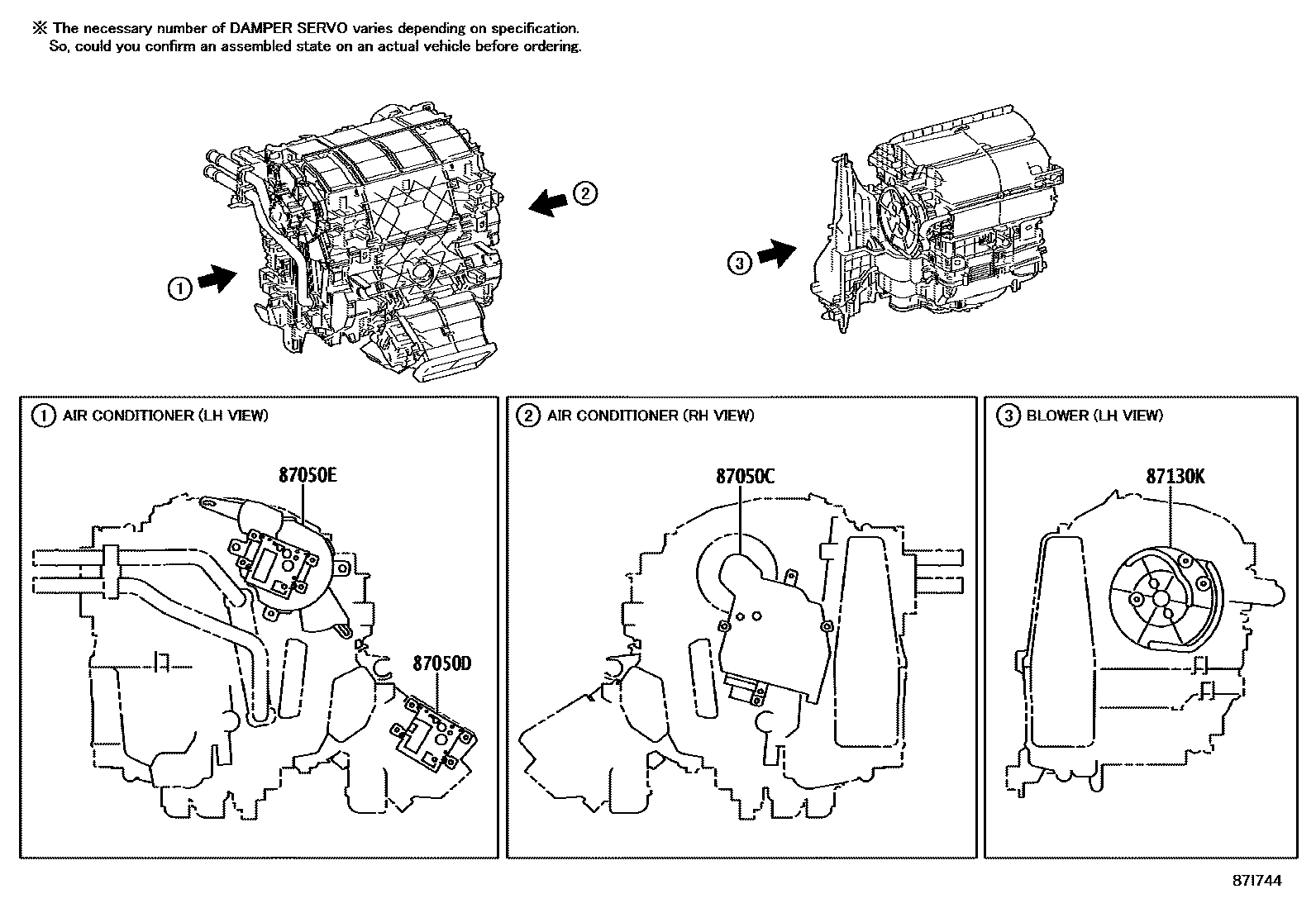

| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-48170 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-33340 · 87106-48200 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-28230 · 87106-48240 |
| 87103B | Blower motor sub-assembly with fan | 87103-42120 · 87103-42130 · 87103-78040 · 87103-78050 |
| 87107A | Heater radiator device sub-assembly | 87107-33130 · 87107-33140 |
| 87114B | heater cover | 87114-48120 · 87114-48140 |
| 87124B | heater clip | 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-16211 · 87130-42470 · 87130-42480 · 87130-42491 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-28250 · 87106-58050 |
| 87139C | air purification filter | 87139-28020 · 87139-58010 |
| 87710G | Rapid heater assembly | 87710-42050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-33350 |
| 88501F | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(DECHARGE) | 90099-14120 |
| 88501G | JOINT TORIQUE, EVAPORATEUR REFROIDISSEUR NO.1(ASPIRATION) | 90099-14121 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-42090 · 88539-42100 |
| 88548B | air filter housing | 88899-47090 |
| 88625 | Cooler No. 1 Thermistor | 88620-28050 |
| 88650N | Air conditioning amplifier assembly | 88650-42860 · 88650-42861 · 88650-42862 · 88650-42863 · 88650-42A30 · 88650-42A70 · 88650-42A71 · 88650-42A72 · 88650-42B10 |
| 88897K | Seals (for cooler tubes) | 88899-42140 |
| 88897M | Seals (for heater tubes) | 87128-33020 |
| 88899M | cover (for air cleaner) | 88899-47120 |
