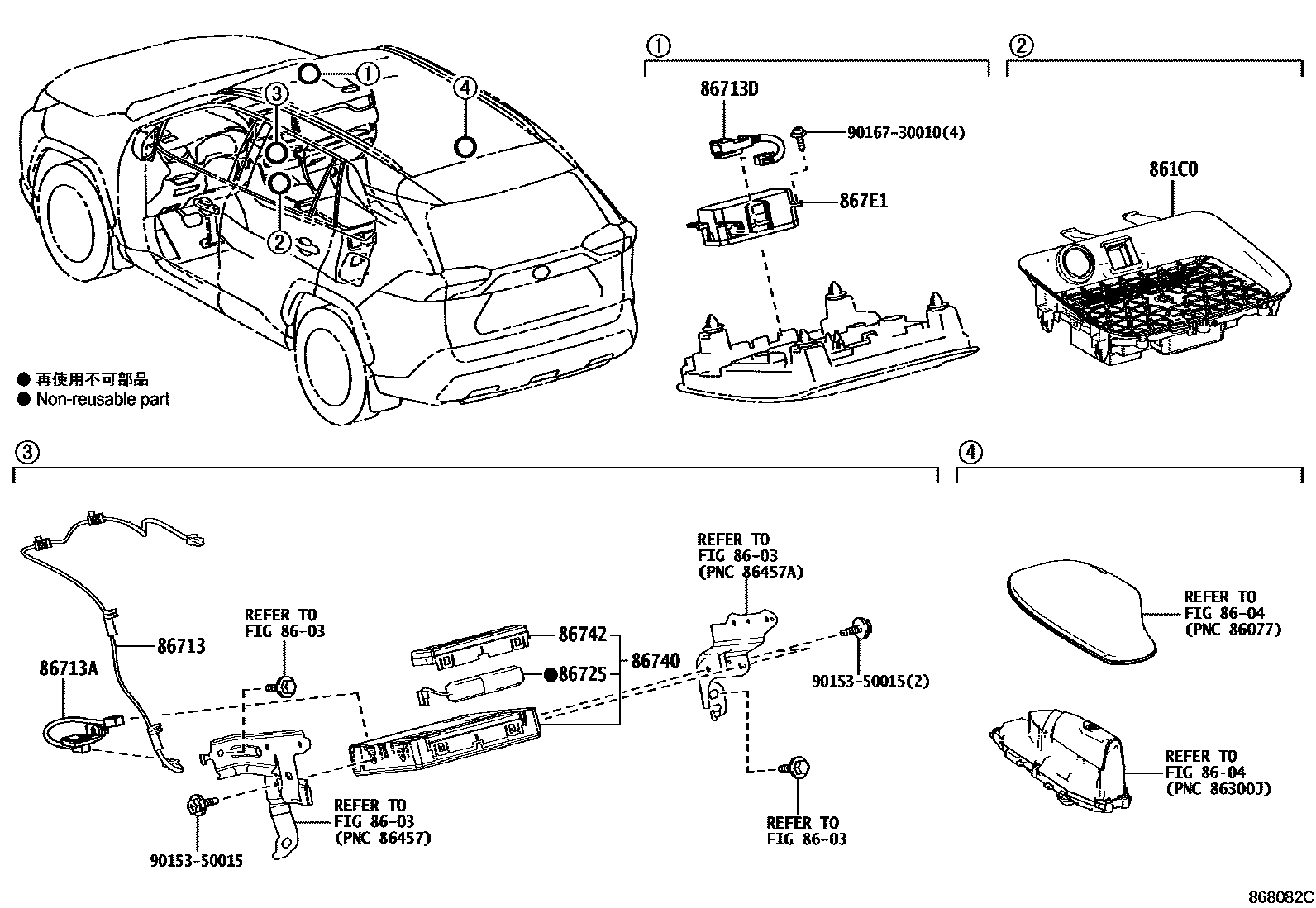

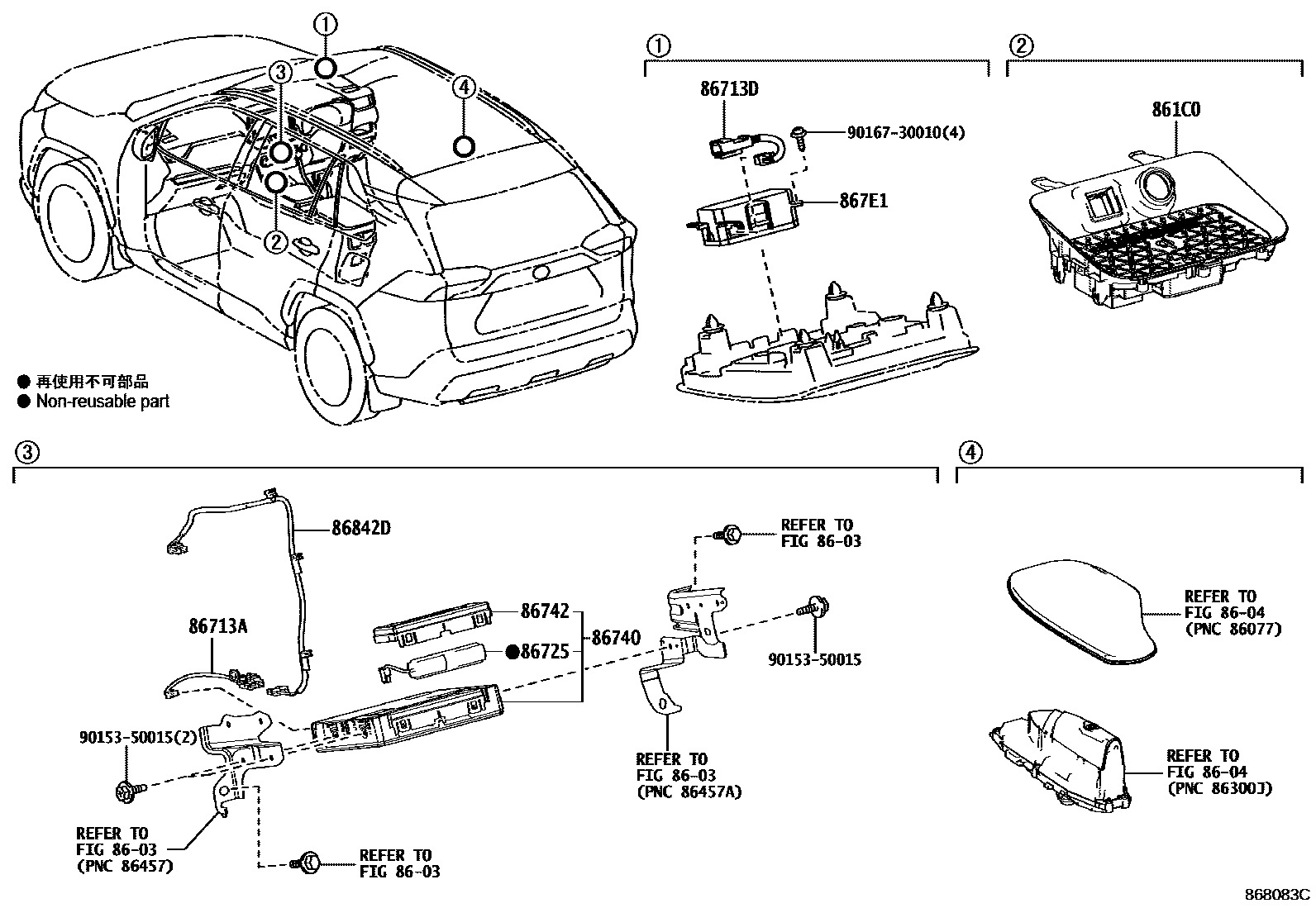

Toyota RAV4 车载电话和呼救装置 — Figure 8615
Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713 | Telephone ECU wiring harness | 86713-42170 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-42080 · 86713-42180 |
| 86713D | Distress signal wiring harness | 86713-33101 |
| 86725 | mobile phone battery | 86725-78010 · 86725-78011 |
| 86740 | Telephone transceiver assembly | 86740-42190 · 86740-42191 · 86740-42200 · 86740-42201 · 86740-42210 · 86740-42211 · 86740-42310 · 86740-42320 · 86740-42390 · 86740-42400 · 86740-42480 · 86740-42490 · 86740-76270 · 86740-76280 |
| 86742 | transceiver cover | 86742-0D020 |
| 867E1 | BOITIER, TELEMATIQUE COMMUNICATION | 867E1-33011 · 867E1-78020 |
| 86842D | Navigation harness | 86713-42190 |
