Toyota RAV4 倒车影像和摄像头 — Figure 8606

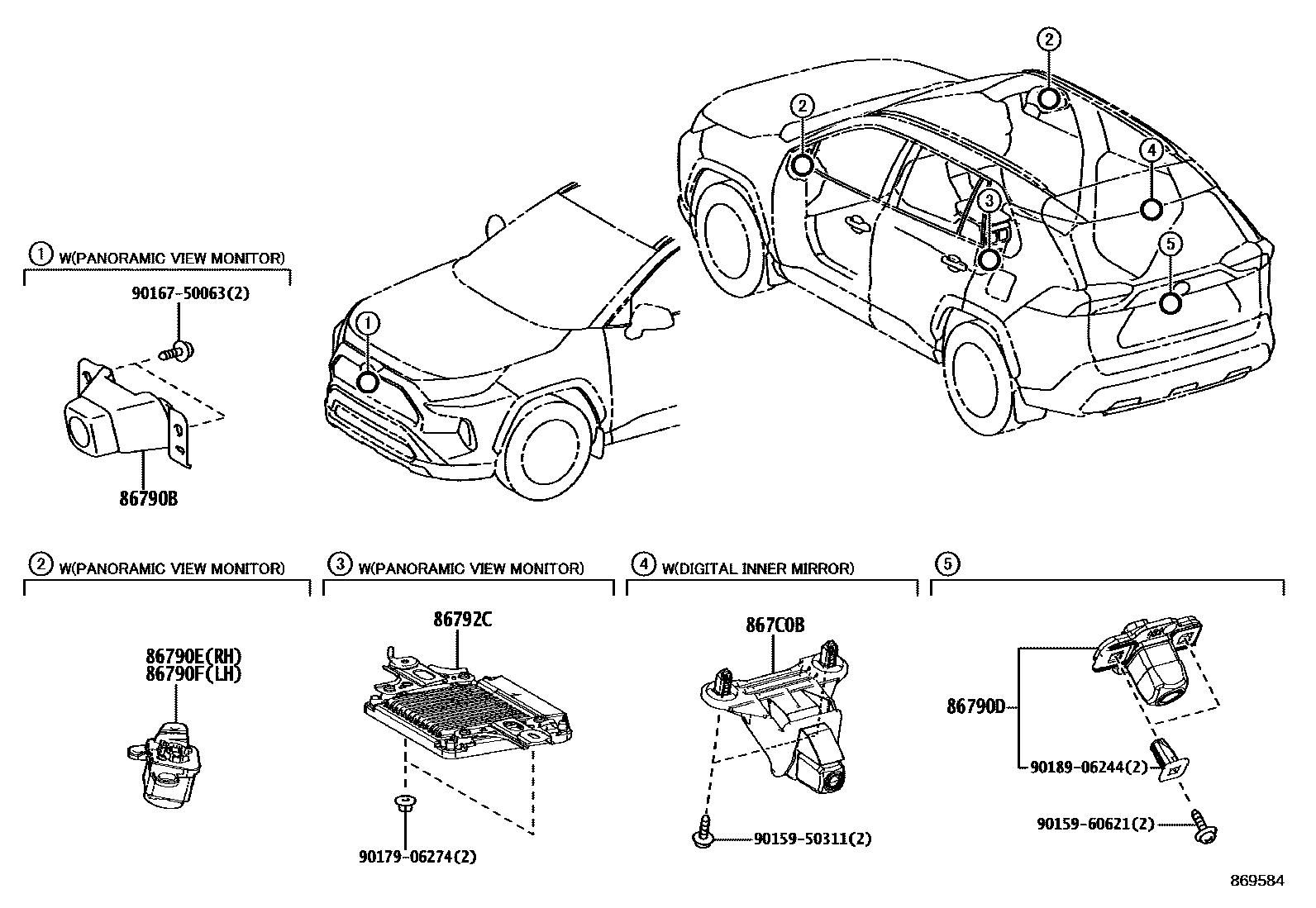

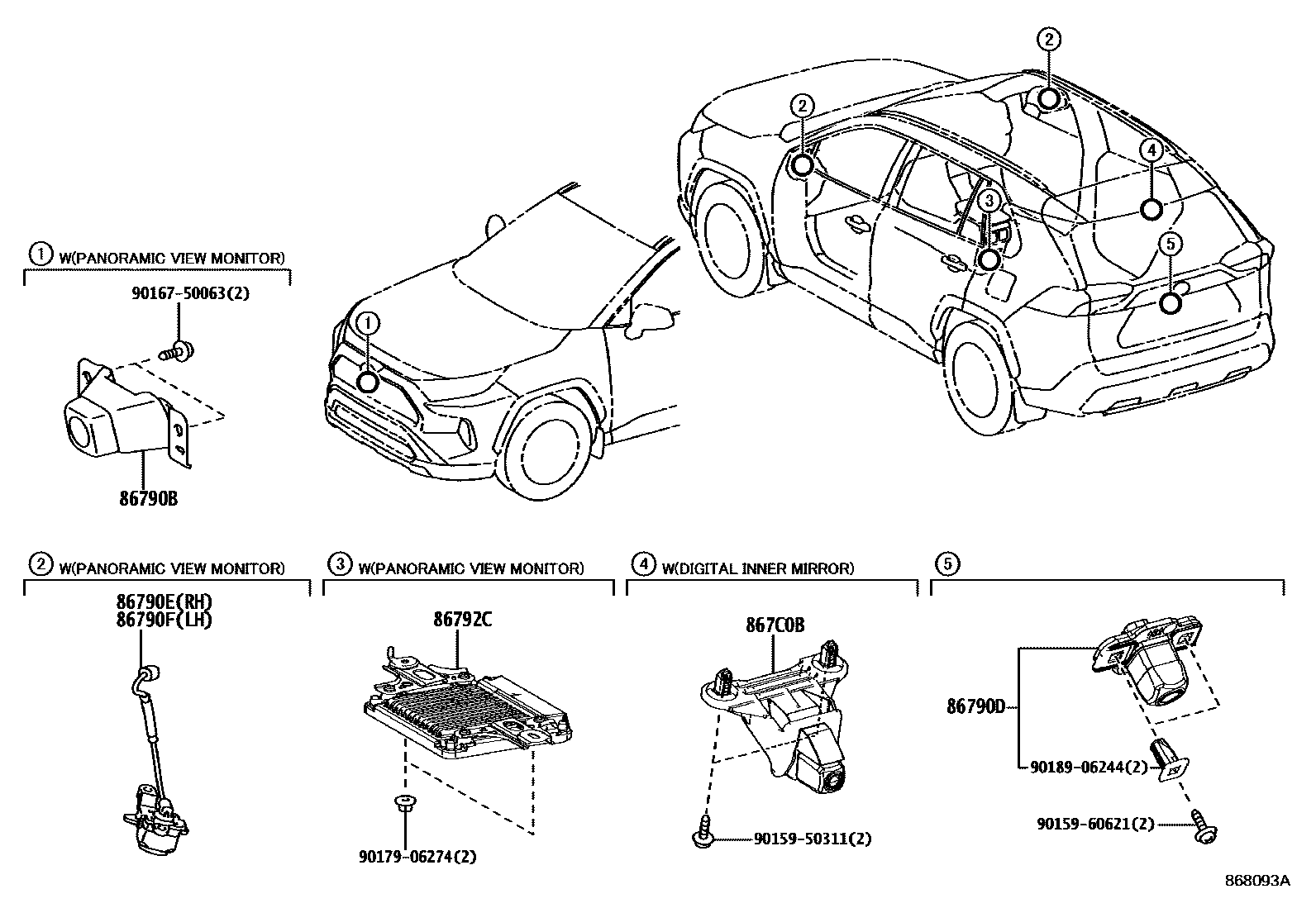

Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-42100 · 86790-42330 · 86790-42331 · 86790-42380 · 86790-42390 · 86790-42530 · 86790-42531 · 86790-42540 · 86790-42541 |
| 86790D | Rear reversing image camera assembly | 86790-42320 · 86790-42480 · 86790-42481 · 867B0-42040 · 867B0-42100 · 867B0-42120 · 867B0-42121 · 867B0-42122 |
| 86790E | ENS. CAMERA, TELEVISION, LATERALE MD | 86790-42270 · 86790-42271 · 86790-42370 · 86790-42500 · 86790-42501 · 86790-48160 |
| 86790F | ENS. CAMERA, TELEVISION, LATERALE MG | 86790-42260 · 86790-42261 · 86790-42360 · 86790-42490 · 86790-42491 · 86790-48150 |
| 86792C | Parking assist ECU | 86792-42180 · 86792-42181 · 86792-42182 · 86792-42190 · 86792-42191 · 86792-42192 · 86792-42240 · 86792-42260 · 86792-42650 · 86792-42670 |
| 867C0B | ENS. CAMERA, RETROVISEUR INT, ARR | 867C0-42030 · 867C0-42040 |
