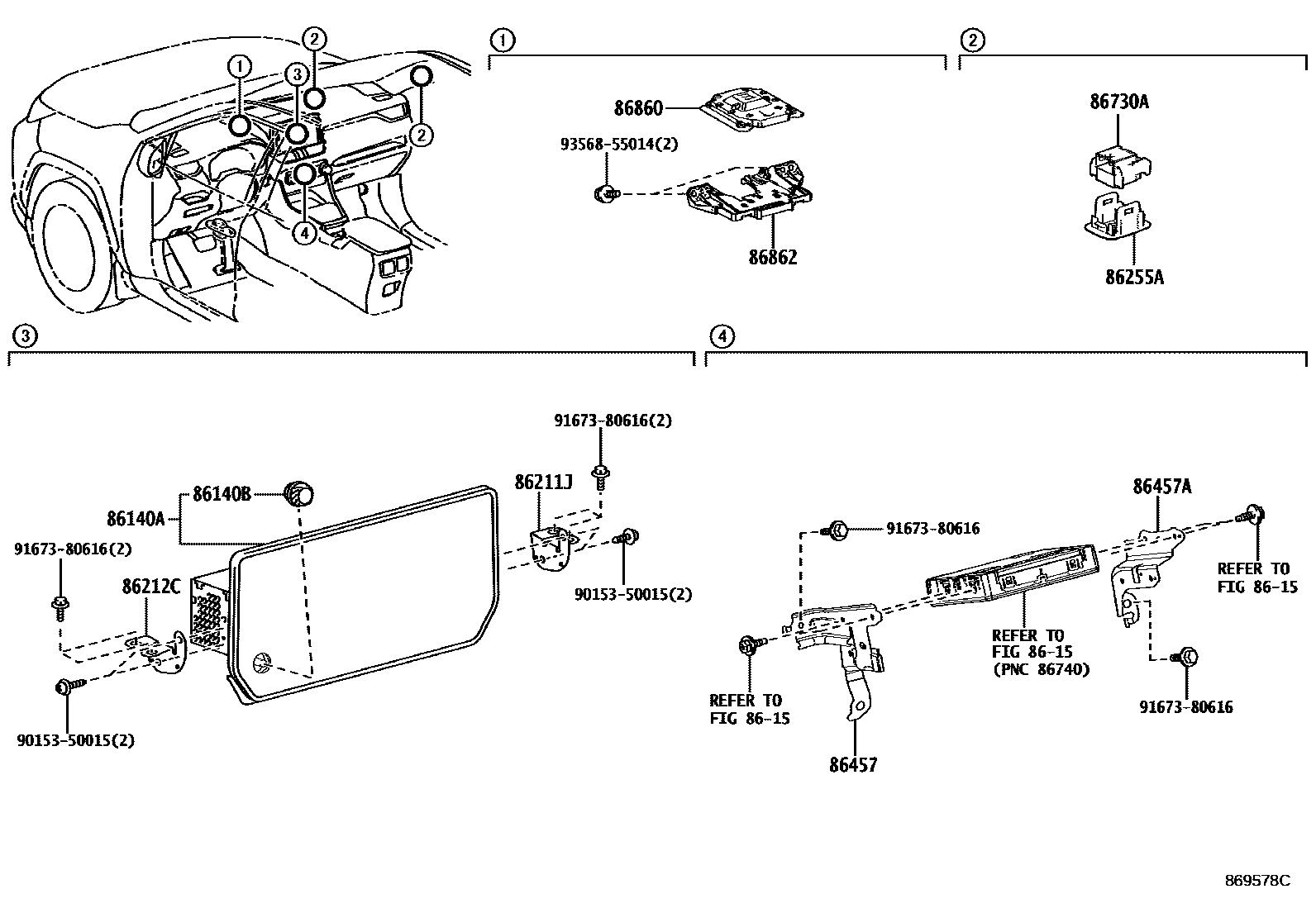

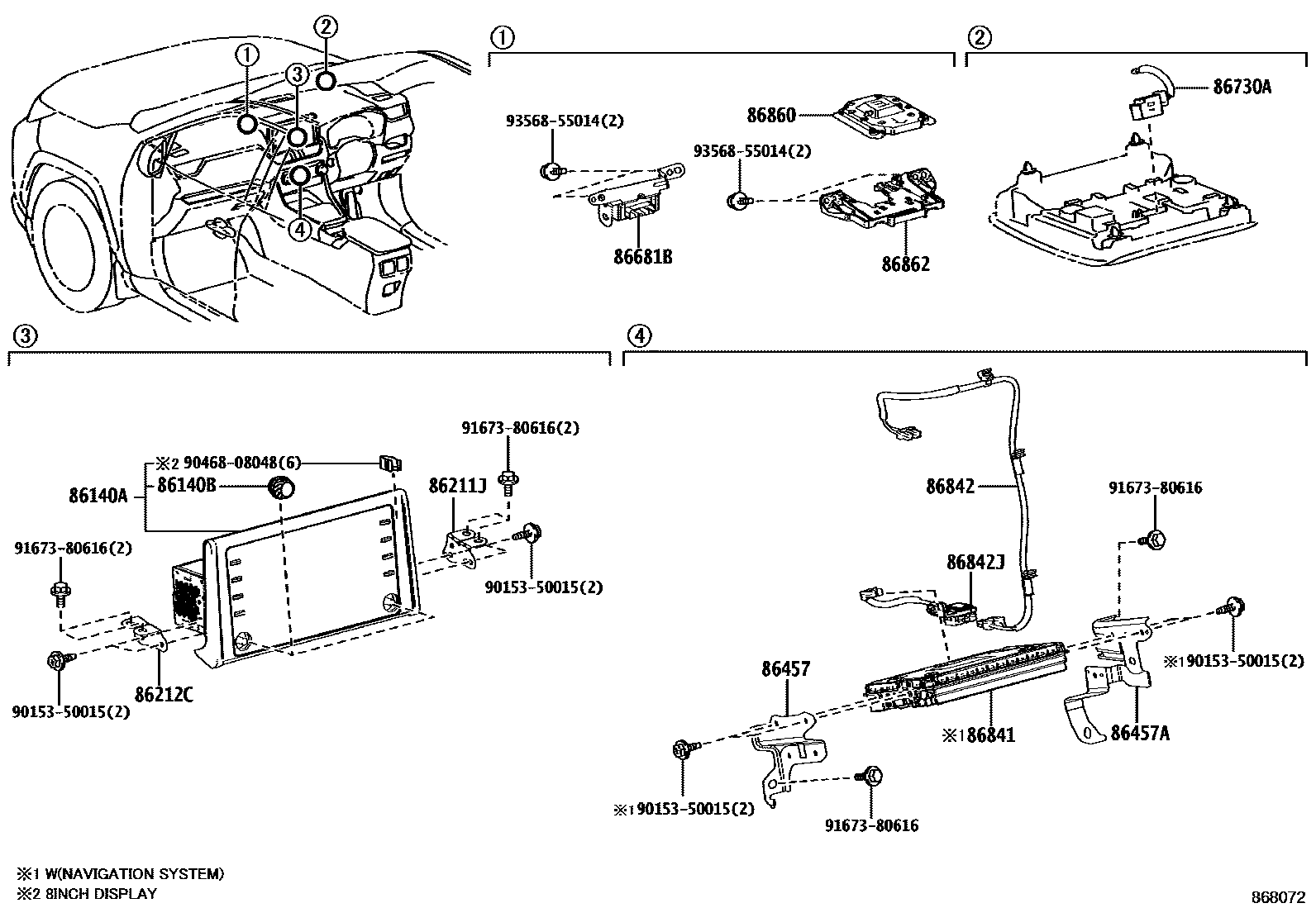

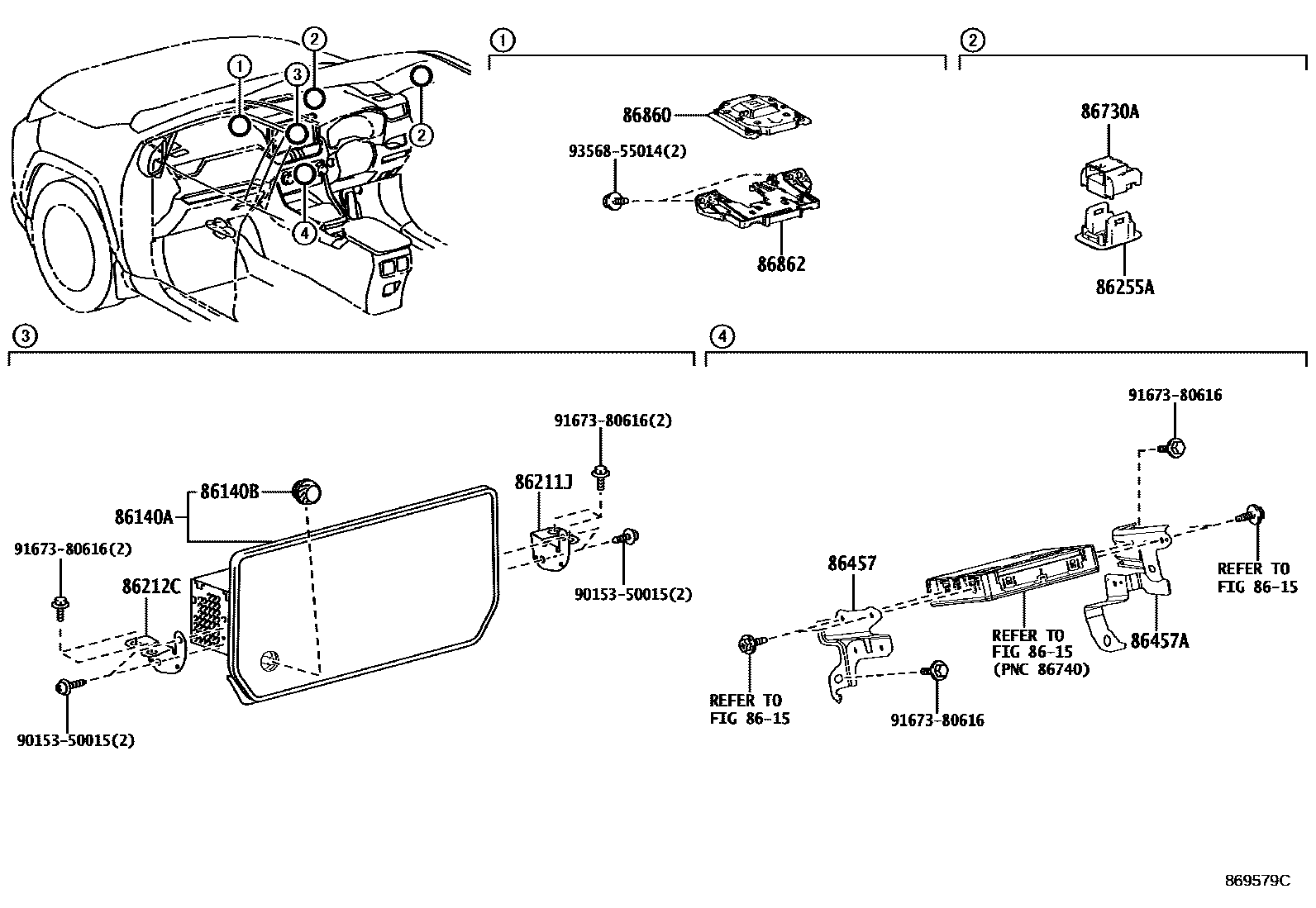

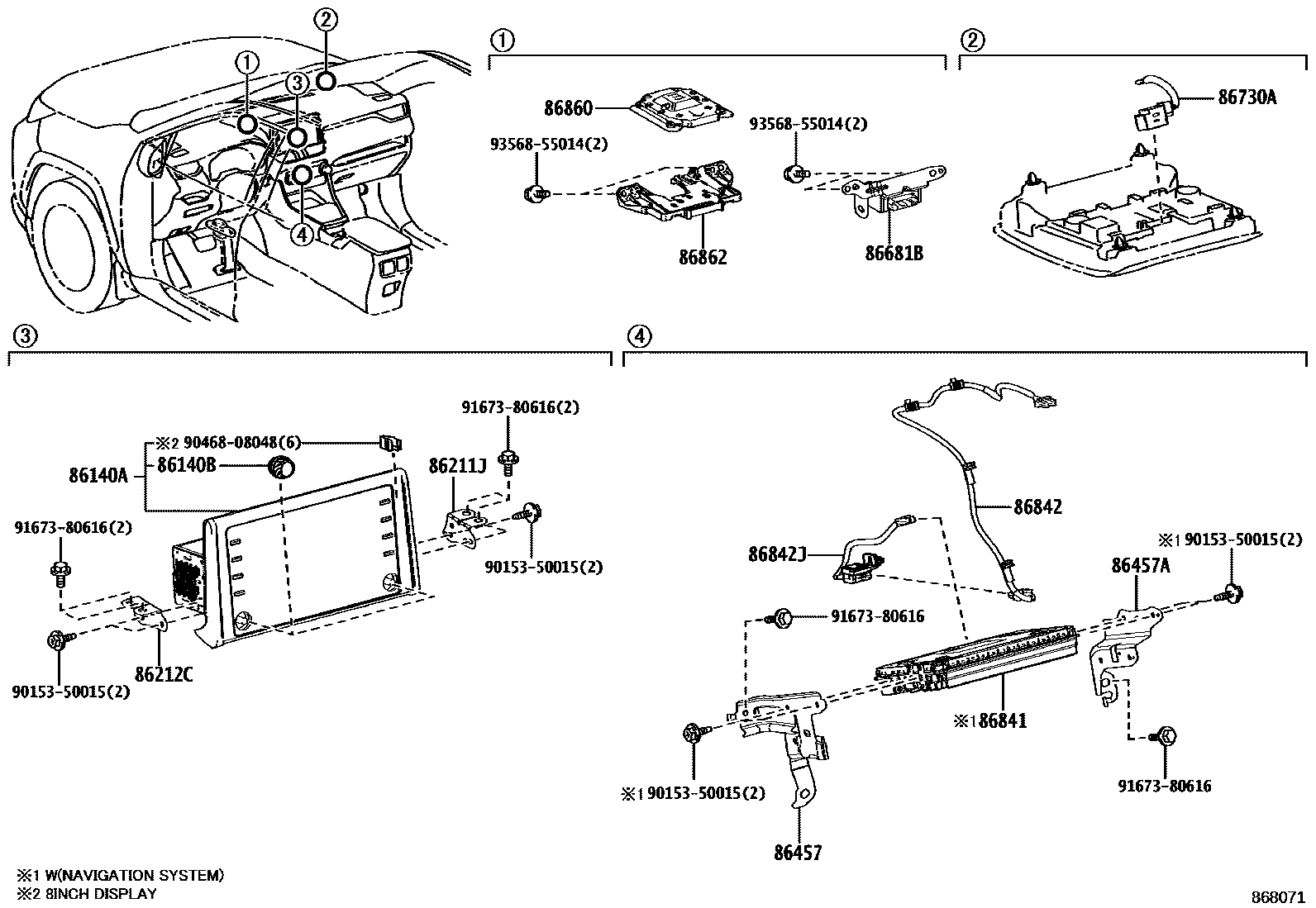

Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86100-42830 · 86100-42831 · 86100-42840 · 86100-42841 · 86140-42820 · 86140-42821 · 86140-42830 · 86140-42831 · 86140-42860 · 86140-42861 · 86140-42870 · 86140-42871 · 86140-42880 · 86140-42881 · 86140-42890 · 86140-42891 · 86140-42B70 · 86140-42B71 · 86140-42D60 · 86140-42D61 · 86140-42M90 · 86140-42N00 · 86140-42R80 · 86140-42R90 · 86140-42S00 · 86140-42S10 · 86140-42S20 · 86140-42S30 |
| 86140B | Radio and display receiver switch button | 90010-23059 · 90010-24194 · 90010-24208 |
| 86211J | No. 1 radio bracket | 86211-42110 · 86211-42170 |
| 86212C | No. 2 radio bracket | 86212-42110 · 86212-42170 |
| 86457 | Multimedia module bracket No. 1 | 86457-42050 · 86457-42070 |
| 86457A | Multimedia module bracket No. 2 | 86457-42060 · 86457-42080 |
| 86681B | Antenna splitter | 86681-42040 · 86681-42050 |
| 86730A | Telephone amplifier assembly | 86730-42080 · 86730-42110 |
| 86841 | Navigation ECU | 86840-K0010 · 86840-K0011 · 86840-K0020 |
| 86842 | Navigation harness No. 1 | 86842-42020 · 86842-42040 |
| 86842J | Navigation harness No. 2 | 86842-42030 · 86842-42050 · 86842-42060 · 86842-42070 |
| 86860 | Navigation antenna assembly | 86880-42030 · 86880-52020 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-48060 |
