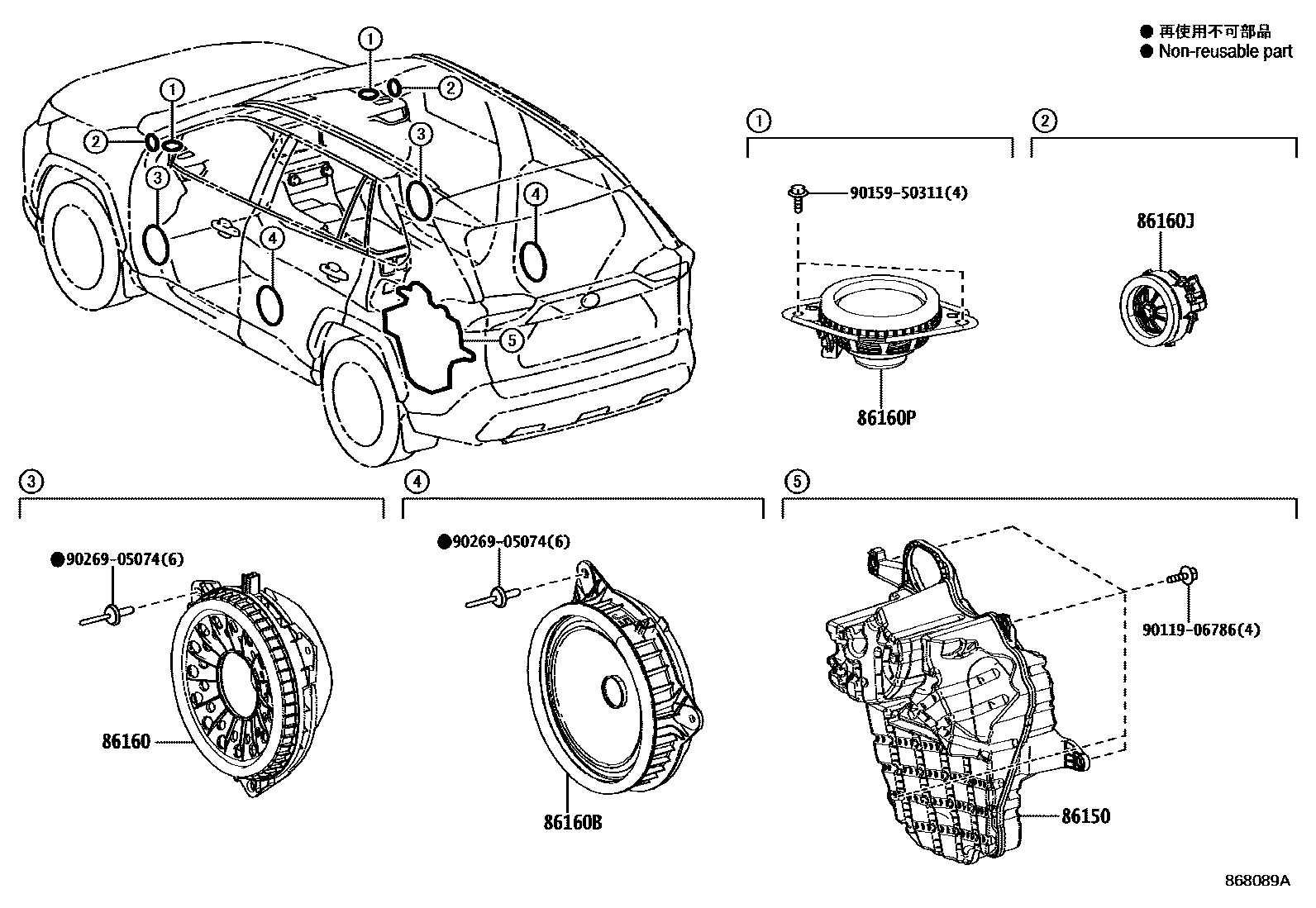

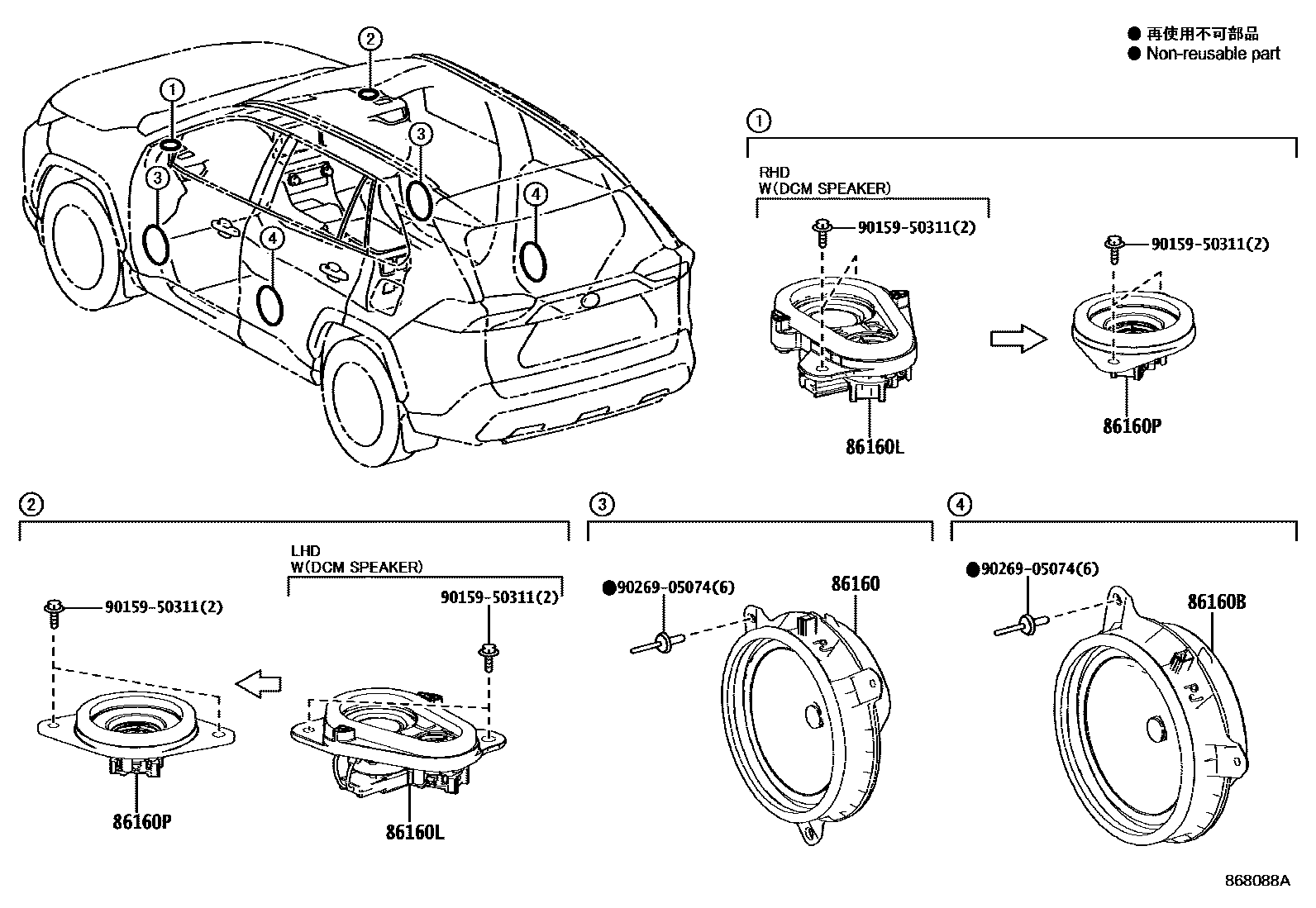

Toyota RAV4 扬声器 — Figure 8602
Toyota RAV4 EPC diagram 8602, 扬声器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-42070 |
| 86160 | No. 1 front speaker assembly | 86160-1A210 · 86160-42160 |
| 86160B | Rear speaker assembly | 86160-1A210 · 86160-42170 |
| 86160J | No. 3 front speaker assembly | 86150-42080 |
| 86160L | No. 4 front speaker assembly | 86150-42040 · 86150-42050 |
| 86160P | No. 2 front speaker assembly | 86150-42010 · 86160-33A30 |
