Toyota RAV4 前大灯清洗器 — Figure 8505

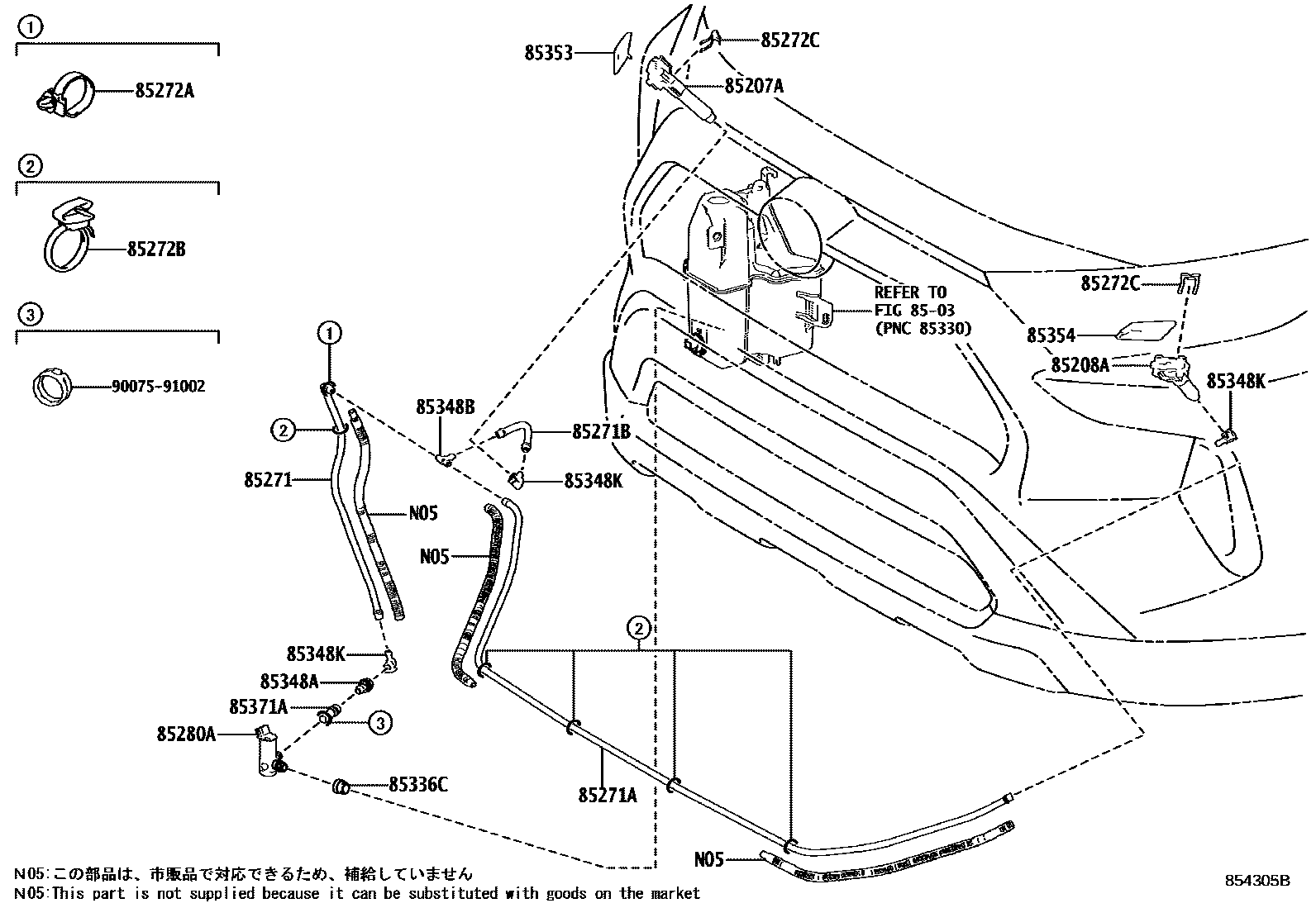

Toyota RAV4 EPC diagram 8505, 前大灯清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-42070 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-42070 |
| 85271 | No. 1 headlight washer hose | 90075-15106 |
| 85271A | No. 2 headlight washer hose | 90075-15092 |
| 85271B | No. 3 headlight washer hose | 90075-15058 |
| 85272A | Headlight washer No. 1 clip | 82711-16820 |
| 85272B | Headlight washer clip No. 2 | 82711-48190 |
| 85272C | Headlight washer clip No. 3 | 85272-75050 |
| 85280A | Headlight washer motor and pump assembly | 85280-33030 |
| 85336C | Headlight washer motor seal | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17012 |
| 85348B | No. 2 headlight washer hose connector | 90075-17020 |
| 85348K | No. 1 headlight washer elbow joint | 90075-17009 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15053 |
