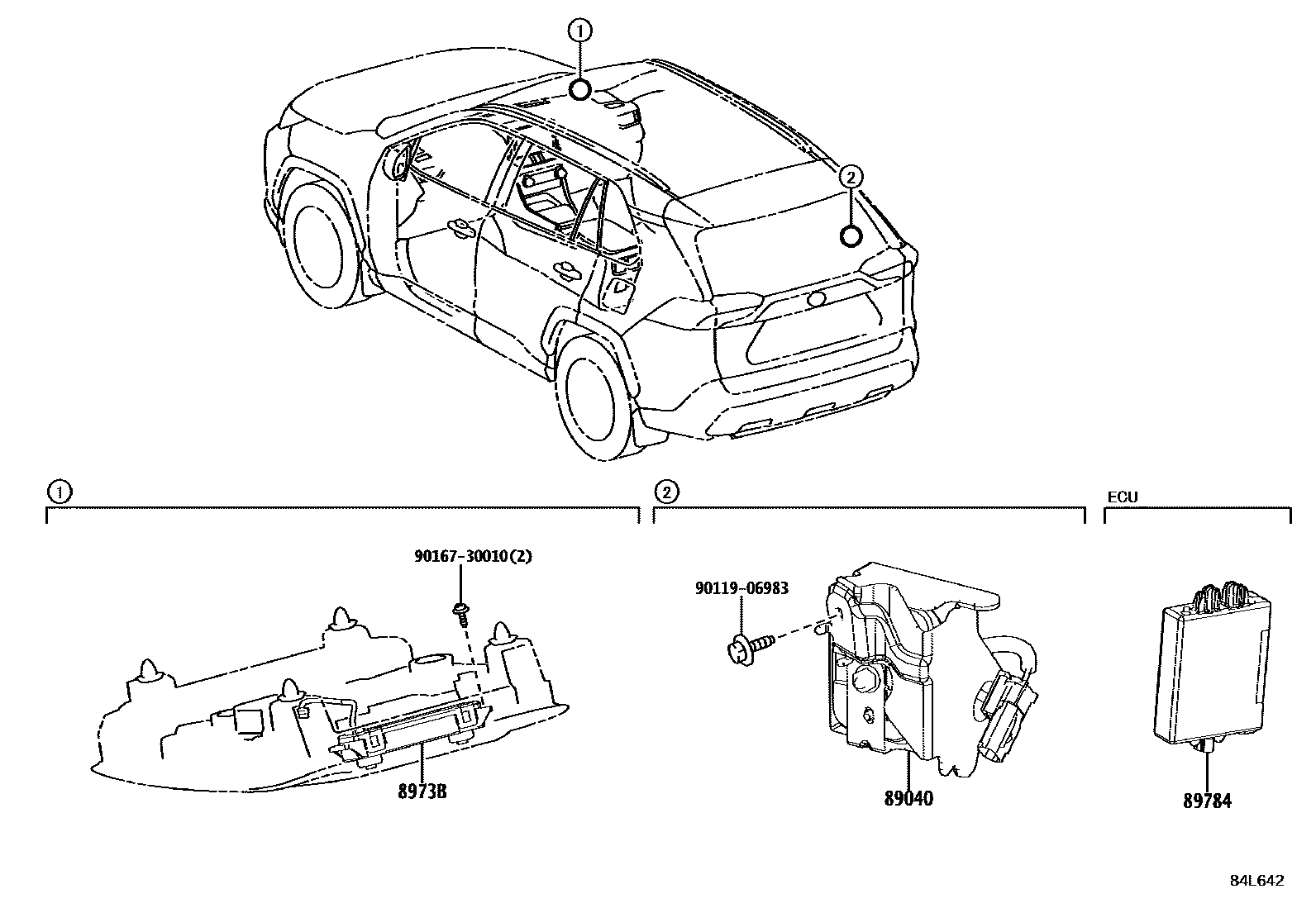

Toyota RAV4 防盗装置 — Figure 8424
Toyota RAV4 EPC diagram 8424, 防盗装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-42030 |
| 8973B | CAPTEUR, ULTRASONS AVERT CONTRE VOL ET INCLINAISON | 8973B-42020 |
| 89784 | Shutdown code system ECU | 89784-60210 · 89784-60220 · 89784-K0021 · 89784-V1010 |
