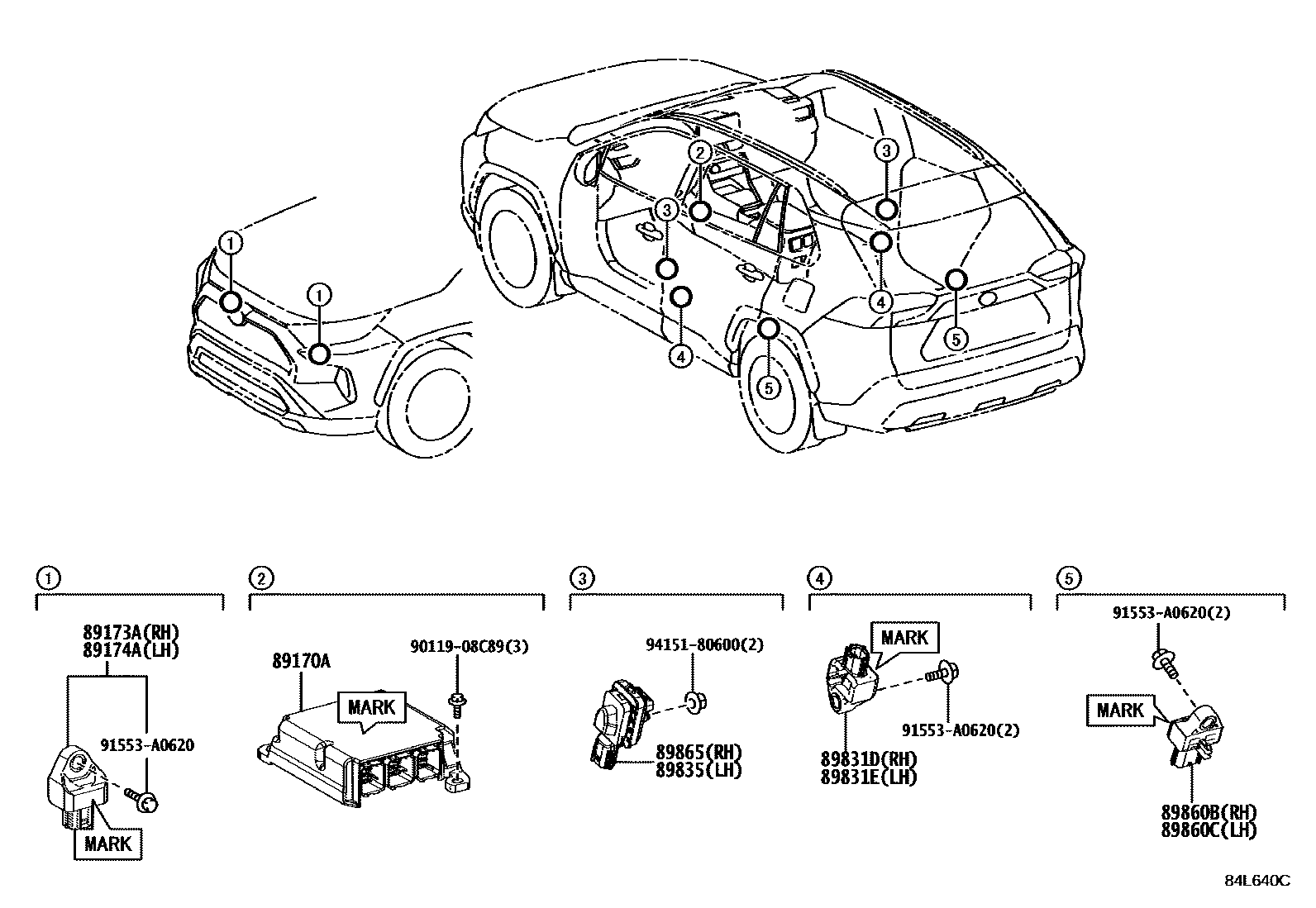

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-42720 · 89170-42730 · 89170-42C50 · 89170-42C60 |
| 89173A | Right front air bag sensor | 89173-19515 · 89173-59335 |
| 89174A | Left front air bag sensor | 89173-19515 · 89173-59335 |
| 89831D | CAPTEUR, AIRBAG LAT PLANCHER, MD | 89831-42020 · 89831-47050 |
| 89831E | CAPTEUR, AIRBAG LAT PLANCHER, MG | 89831-42020 · 89831-47050 |
| 89835 | Left door side air bag sensor | 8983A-12030 · 8983A-52010 · 8983A-52011 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-28040 · 89831-52130 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-28040 · 89831-52130 |
| 89865 | Right door side air bag sensor | 8983A-12030 · 8983A-52010 · 8983A-52011 |
