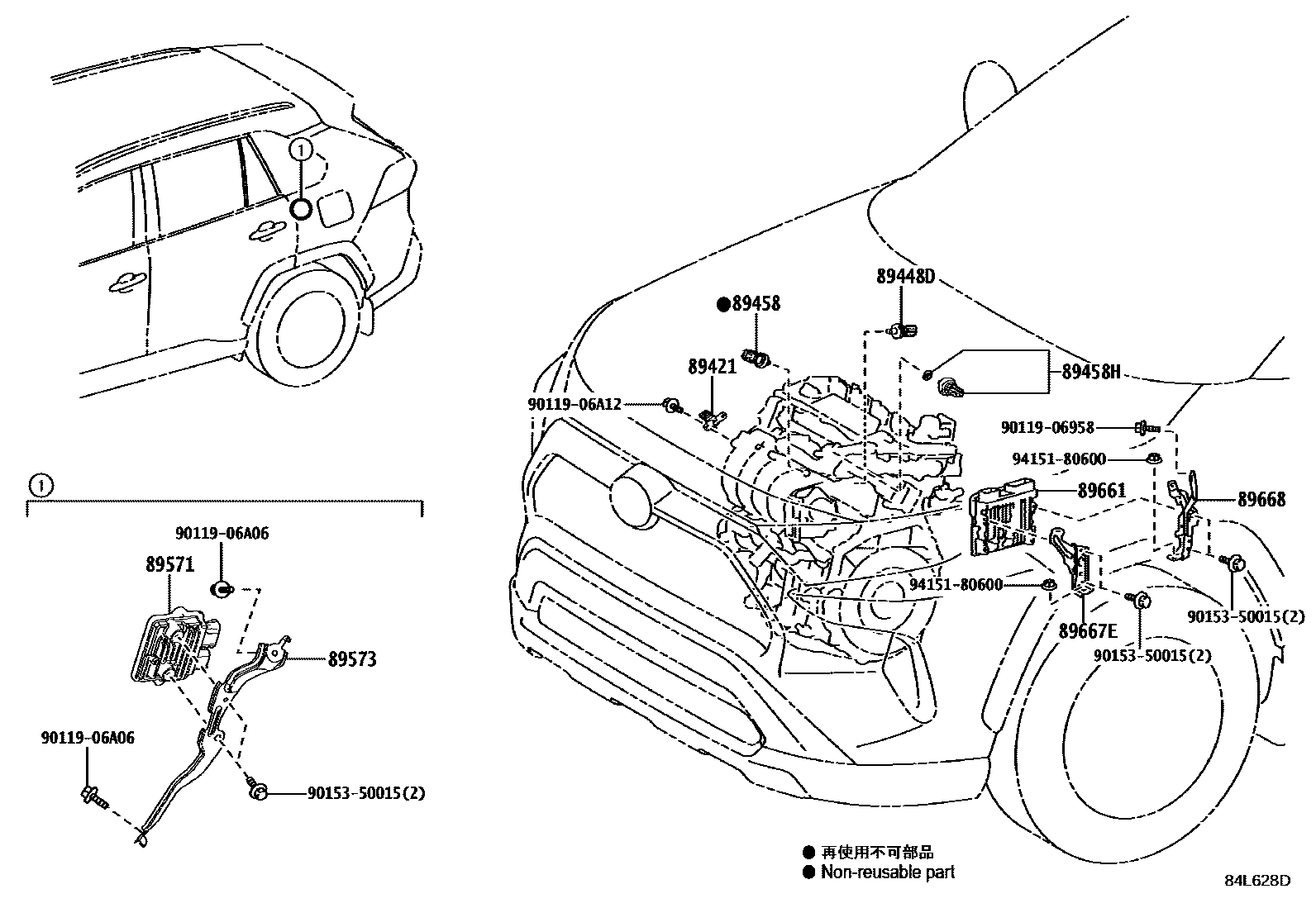

Toyota RAV4 电子燃油喷射系统 — Figure 8404
Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89448D | CAPTEUR, PRESSION & TEMPERATURE HUILE | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | CAPTEUR, PRESSION ESSENCE, NO.2 | 89458-33041 · 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-42010 |
| 89573 | Fuel pump control ECU bracket | 89573-42030 |
| 89661 | Engine control ECU | 89661-4A890 · 89661-4AF30 · 89661-4AQ10 · 89661-4AR90 · 89661-4AU10 |
| 89667E | No. 1 engine control ECU bracket | 89667-42080 · 89667-42081 |
| 89668 | No. 2 engine control ECU bracket | 89668-42100 |
