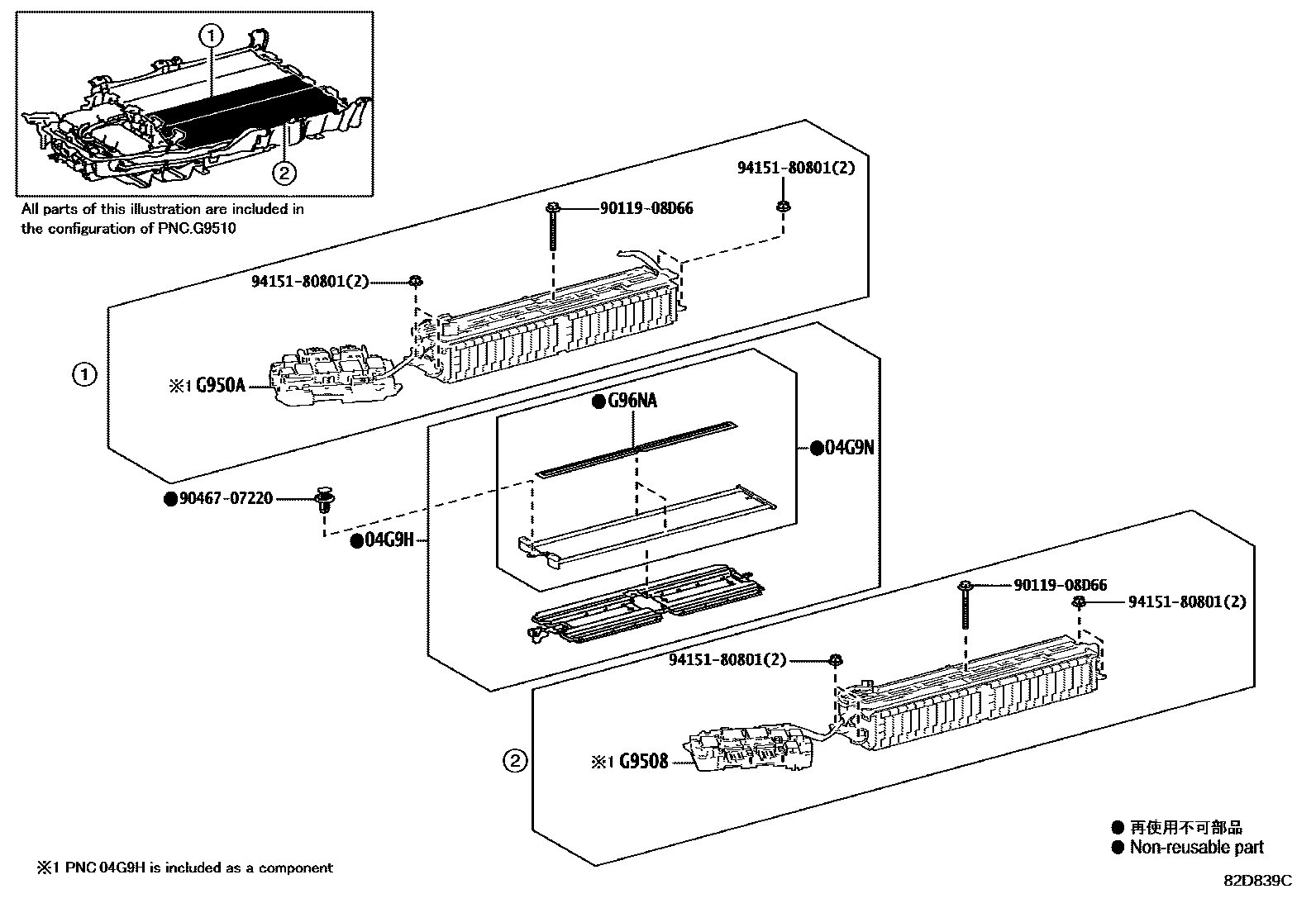

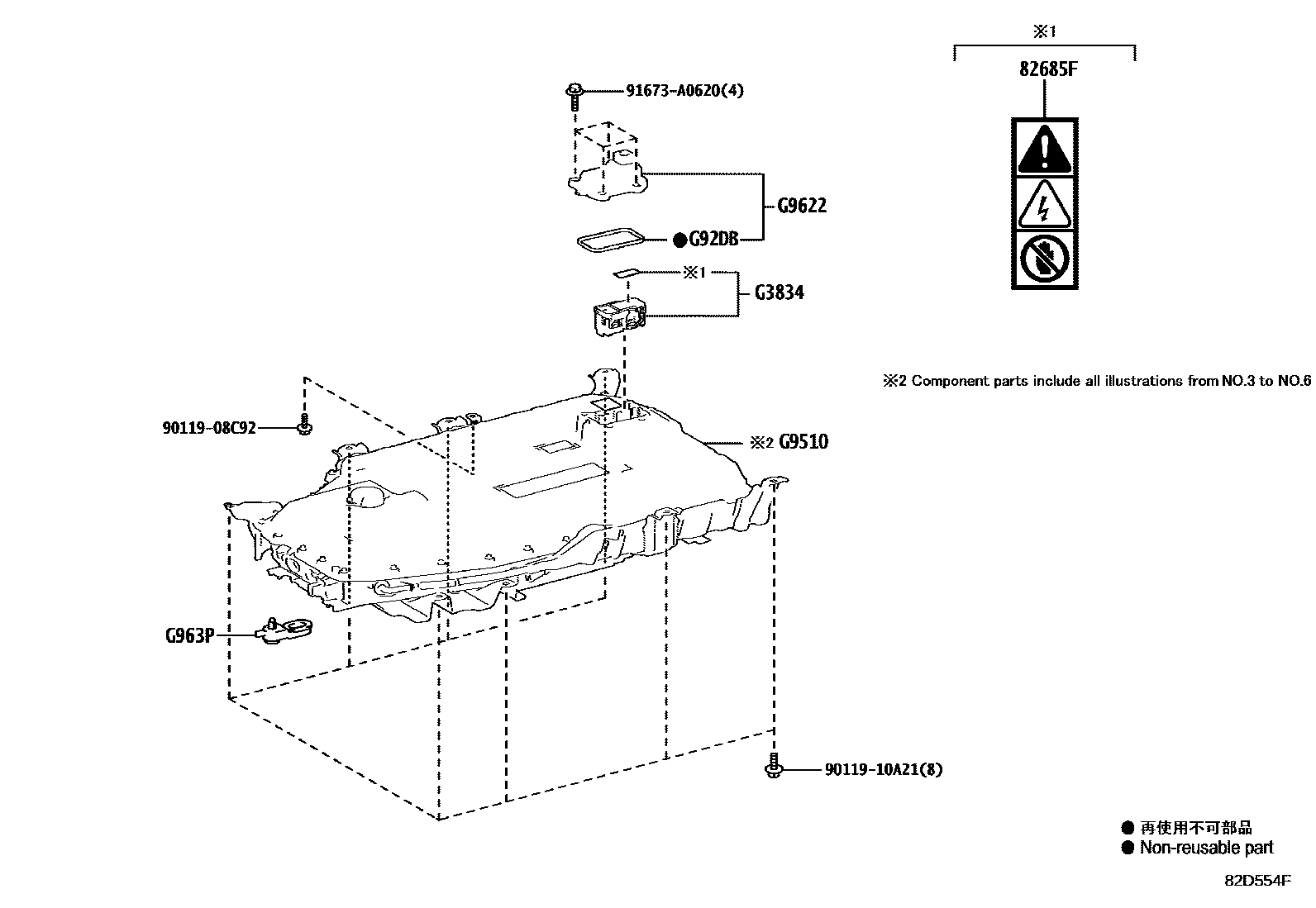

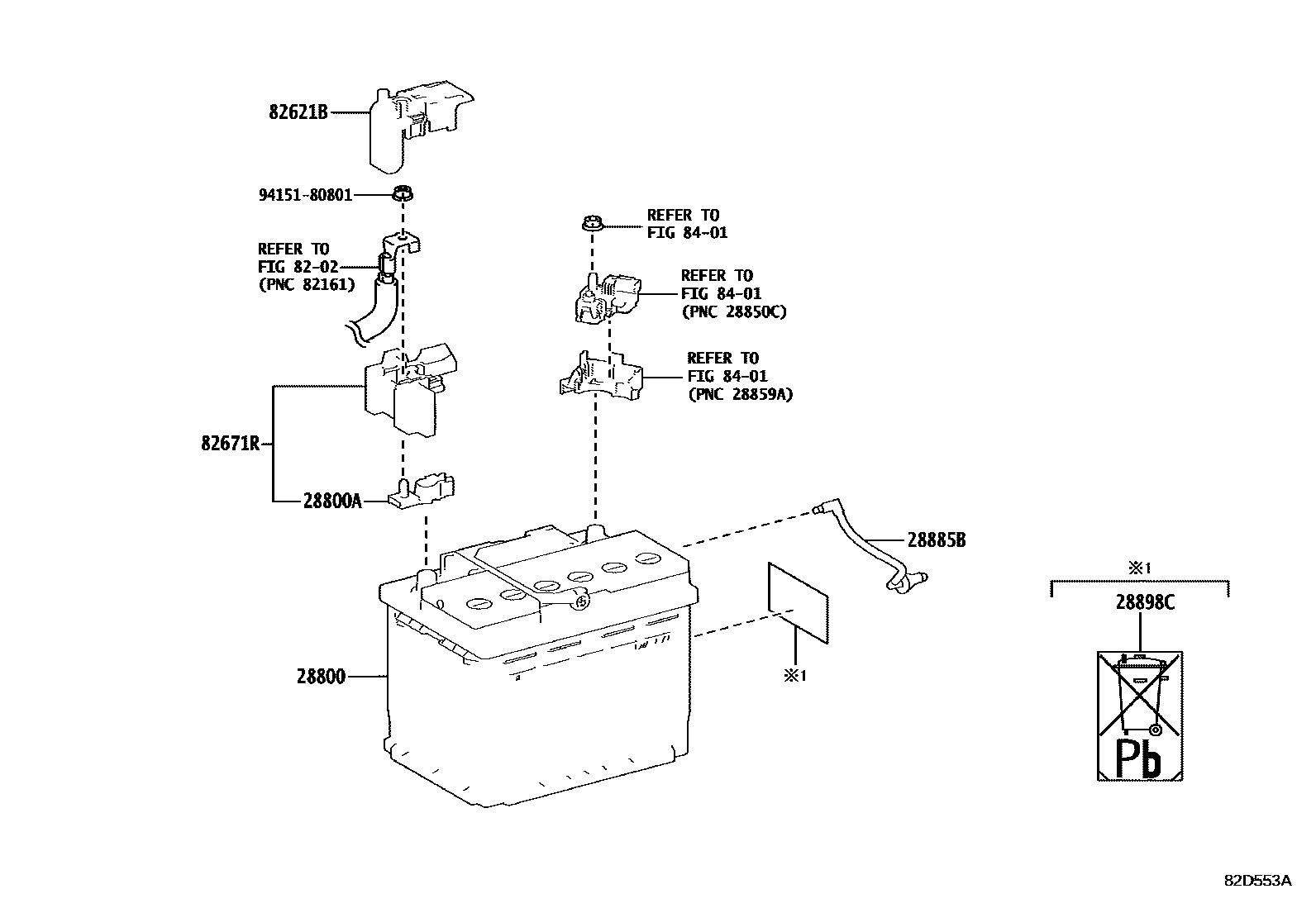

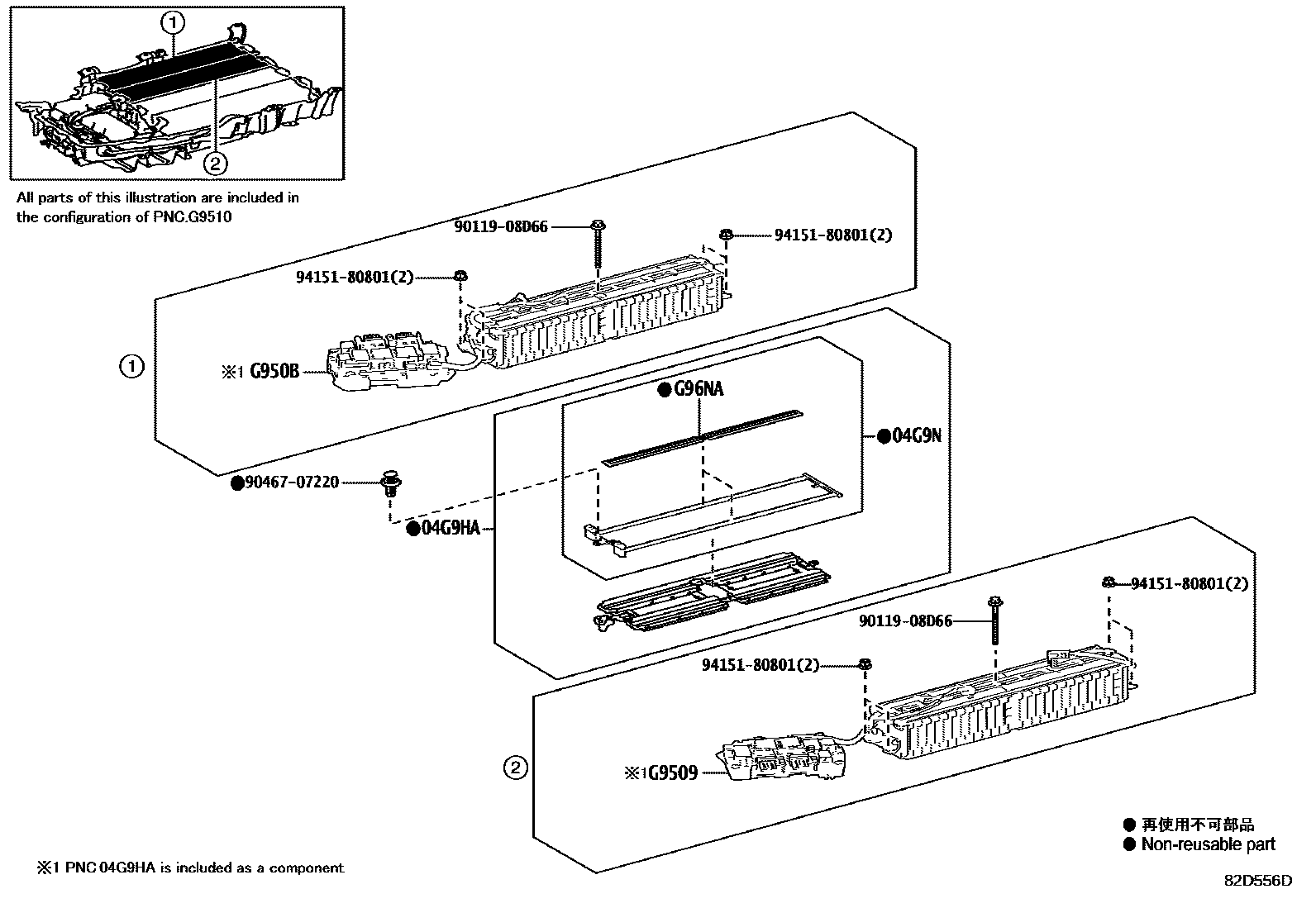

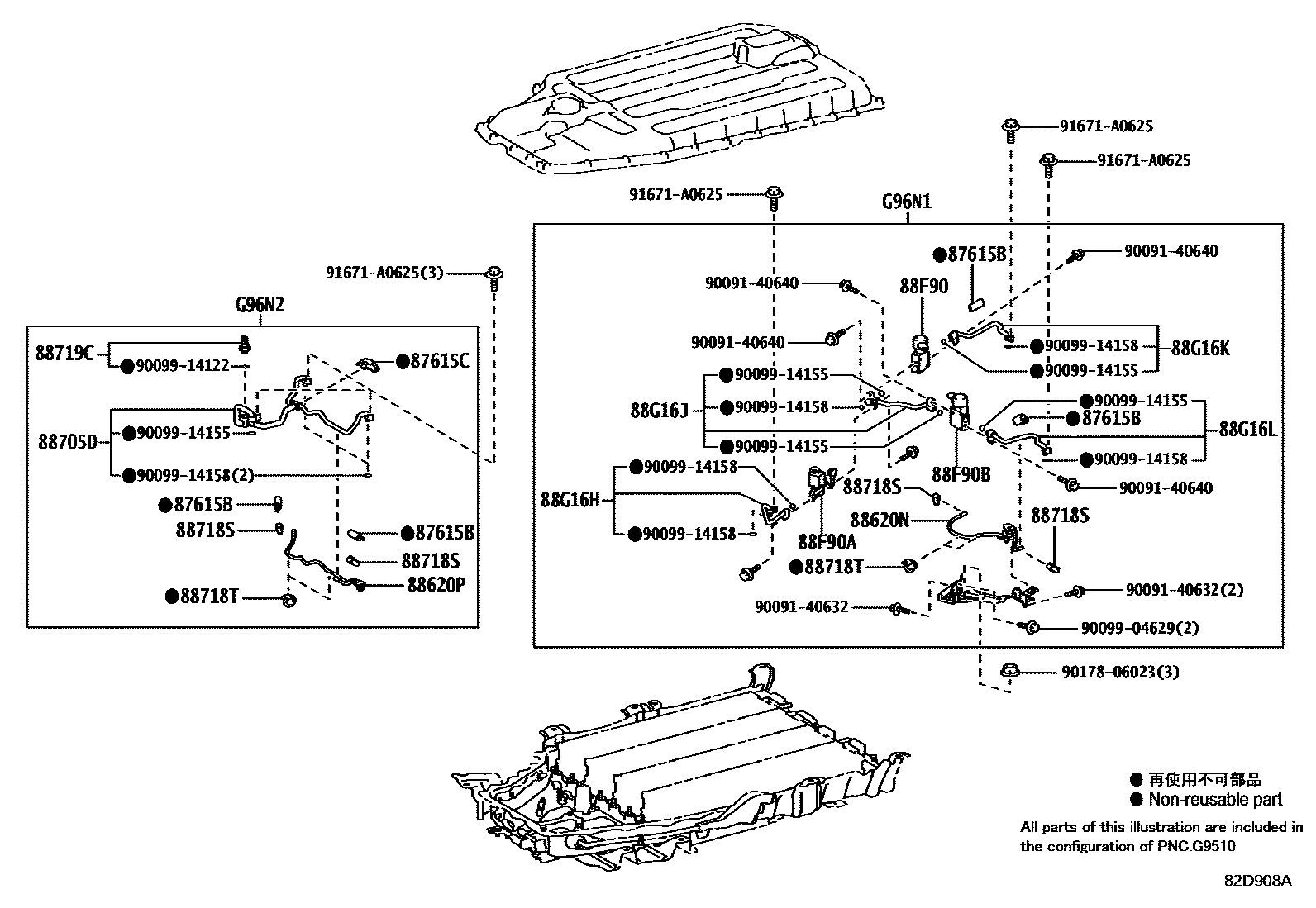

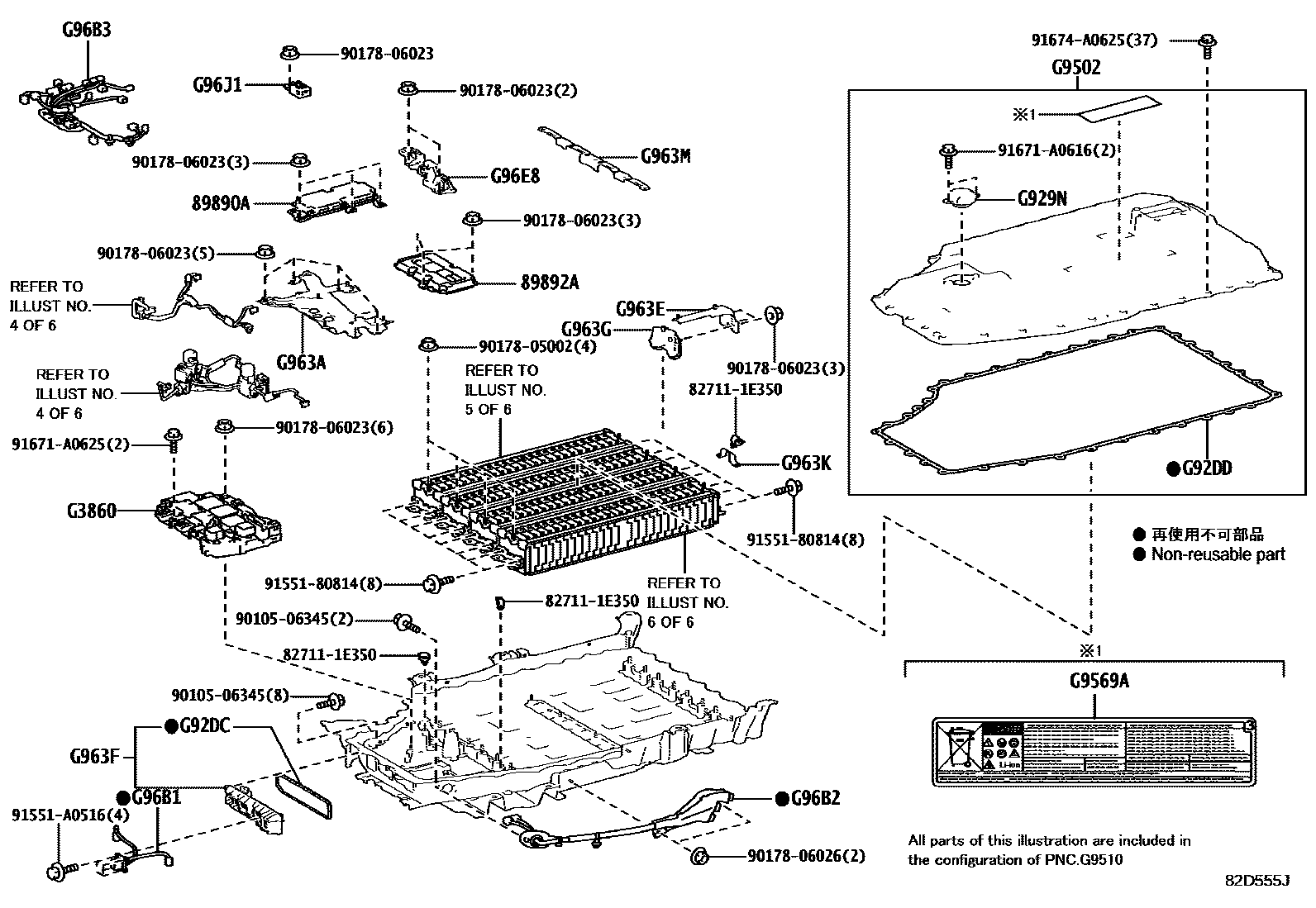

Toyota RAV4 蓄电池和蓄电池电缆 — Figure 8201
Toyota RAV4 EPC diagram 8201, 蓄电池和蓄电池电缆, with 6 images and 56 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04G9H | KIT CHAUFFAGE, BATTERIE TRACTION | 04G9H-42011 |
| 04G9HA | KIT CHAUFFAGE, BATTERIE TRACTION, NO.2 | 04G9H-42021 |
| 04G9N | KIT CONDUCTEUR, REFR BATTERIE TRACTION | 04G9N-42011 |
| 28800 | battery | 28800-25030 · 28800-25031 · 28800-25032 · 28800-25033 |
| 28800A | battery positive terminal | 90982-05058 |
| 28885B | battery hose | 28885-25020 |
| 28898C | battery plates | 28898-46020 |
| 82621B | Fuse cover | 82621-42020 |
| 82671R | BUTEE, BORNE BATTERIE | 82670-42010 |
| 82685F | Main battery No. 1 warning nameplate | 82685-76020 · 82685-76021 |
| 87615B | DISP RETENUE, ISOLANT NO.1 | 87615-42010 |
| 87615C | DISP RETENUE, ISOLANT NO.2 | 87615-42020 |
| 88620N | ENS. THERMISTANCE, CLIMATISATION NO.1 | 88620-42060 |
| 88620P | ENS. THERMISTANCE, CLIMATISATION NO.2 | 88620-42070 |
| 88705D | SOUS-ENSEMBLE DE TUBE DE REFOULEMENT | 88705-42190 |
| 88718S | COLLIER, TUYAUTERIE, NO.1 | 88718-42140 |
| 88718T | COLLIER, TUYAUTERIE, NO.2 | 88718-42150 |
| 88719C | CAPTEUR PRESSION CLIMATISEUR | 88719-11010 |
| 88F90 | ENSEMBLE VALVE, AIMANT, NO.1 | 88690-42070 |
| 88F90A | ENSEMBLE VALVE, AIMANT, NO.2 | 88690-42080 |
| 88F90B | ENSEMBLE VALVE, AIMANT, NO.3 | 88690-47040 |
| 88G16H | TUYAU, LIQUIDE, NO.1 | 88716-42A40 |
| 88G16J | TUYAU, LIQUIDE, NO.2 | 88716-42A50 |
| 88G16K | TUYAU, LIQUIDE, NO.3 | 88716-42A60 |
| 88G16L | TUYAU, LIQUIDE, NO.4 | 88716-42A70 |
| 89890A | Battery ECU assembly | 89890-42070 · 89890-42071 · 89890-42072 · 89890-42073 · 89890-42074 |
| 89892A | battery voltage sensor | 89892-42040 |
| G3834 | Service plug handle | G3855-42010 |
| G3860 | ENS. BOITIER, DISPOSITIF BATTERIE TRACTION, NO.2 | G3860-42010 |
| G929N | PRISE, APPEL DU COURANT DE LA BATTERIE | G929N-10010 |
| G92DB | No. 1 HV battery seal | G92DB-42010 |
| G92DC | HV Battery No. 2 Seal | G92DC-42010 |
| G92DD | JOINT, CACHE SUP BATTERIE VH | G92DD-42010 |
| G9502 | SOUS-ENS. BATTERIE, ALIM VE, SUP | G9502-48011 · G9502-78010 |
| G9508 | No. 1 HV power supply battery stack sub-assembly | G9508-49376 |
| G9509 | No. 2 HV power supply battery stack sub-assembly | G9509-49016 |
| G950A | No. 3 HV power supply battery stack sub-assembly | G950A-49016 |
| G950B | No. 4 HV power supply battery stack sub-assembly | G950B-49016 |
| G9510 | HV power supply battery assembly | G9510-42030 · G9510-42031 · G9510-42032 · G9510-42033 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-47120 · G9569-48050 |
| G9622 | CACHE, BATTERIE TRACTION, NO.2 | G9622-42010 |
| G963A | SUPPORT, BATTERIE TRACTION, NO.10 | G963A-42010 |
| G963E | SUPPORT, BATTERIE TRACTION, NO.14 | G963E-42010 |
| G963F | SUPPORT, BATTERIE TRACTION, NO.15 | G963F-42010 |
| G963G | SUPPORT, BATTERIE TRACTION, NO.16 | G963G-42010 |
| G963K | SUPPORT, BATTERIE TRACTION, NO.19 | G963K-42010 |
| G963M | SUPPORT, BATTERIE TRACTION, NO.21 | G963M-42010 |
| G963P | SUPPORT, BATTERIE TRACTION, NO.23 | G963P-42010 |
| G96B1 | CABLE, BATTERIE TRACTION, NO.1 | G96B1-42010 |
| G96B2 | CABLE, BATTERIE TRACTION, NO.2 | G96B2-42010 |
| G96B3 | CABLE, BATTERIE TRACTION, NO.3 | G96B3-42010 |
| G96E8 | CACHE, CABLE BATTERIE TRACTION, NO.3 | G96E8-42010 |
| G96J1 | RELAIS, CHAUFFAGE DE BATTERIE TRACTION, NO.1 | G96J1-42010 |
| G96N1 | TUYAU, REFR BATTERIE TRACTION, NO.1 | G96N1-42010 |
| G96N2 | TUYAU, REFR BATTERIE TRACTION, NO.2 | G96N2-42010 |
| G96NA | TOLE, REFR BATTERIE TRACTION, NO.1 | G96NA-42010 |
