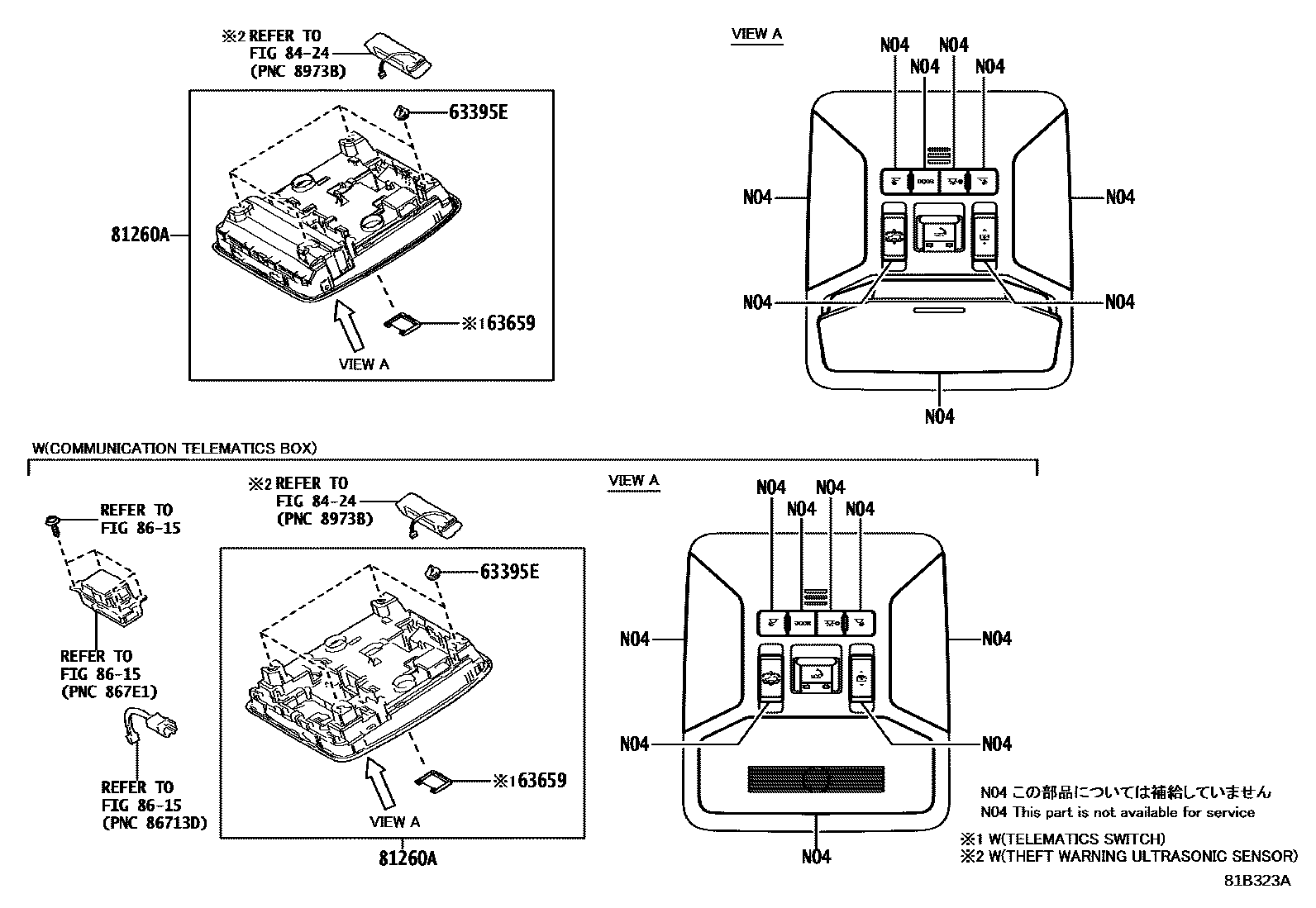

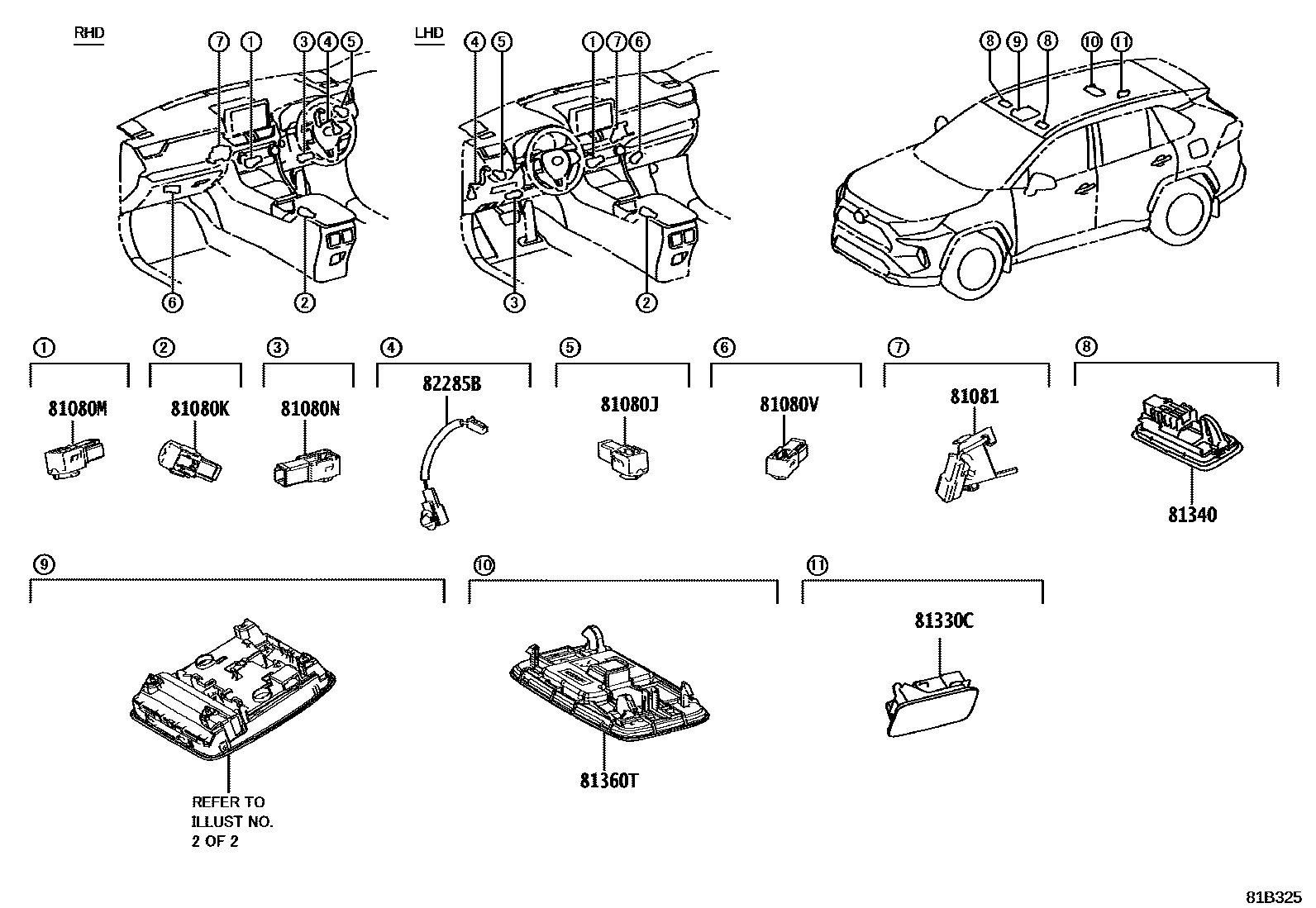

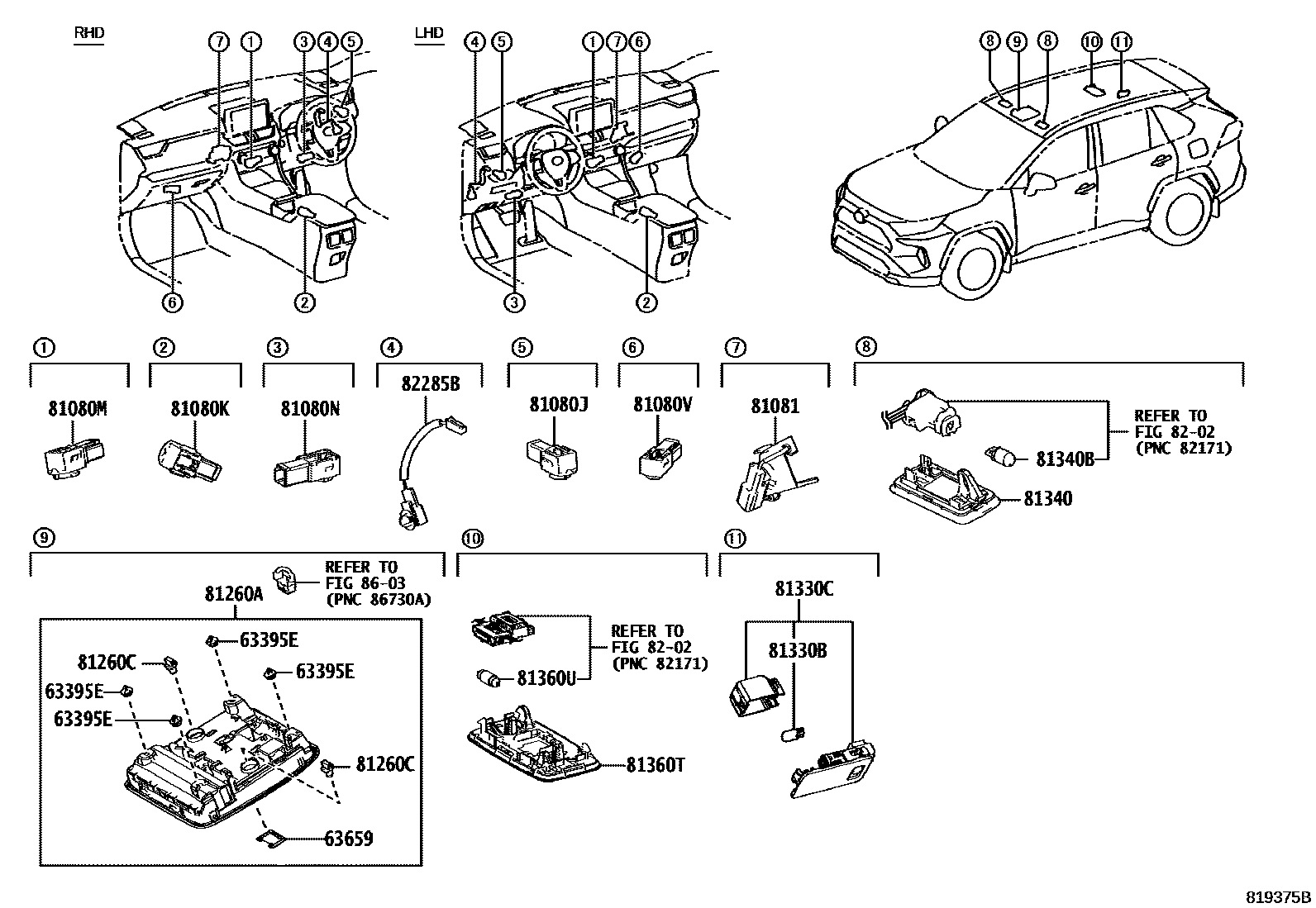

Toyota RAV4 车内灯 — Figure 8121
Toyota RAV4 EPC diagram 8121, 车内灯, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 90467-09240 · 90467-09245 |
| 81080J | No. 1 interior lighting assembly | 81080-42040 |
| 81080K | Armrest box lighting assembly | 81080-42040 |
| 81080M | No. 1 interior lighting assembly | 81080-42040 |
| 81080N | No. 1 interior lighting assembly | 81080-33280 |
| 81080V | ENS. ECLAIRAGE, ECLAIRAGE INTERIEUR, NO.2 | 81080-33280 |
| 81081 | Interior lighting sub-assembly | 81081-42030 · 81081-42040 |
| 81260C | Light bulb (for reading lamp) | 99132-12050 |
| 81330B | trunk light bulb | 99132-12050 |
| 81330C | ENS DE LAMPE, COMPARTIMENT A BAGAGES | 81330-58010 · 81360-78020 |
| 81340 | Vanity light assembly | 81340-30110 · 81340-33170 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81360U | spotlight light bulb | 90981-14011 |
| 82285B | lighting harness | 82285-42030 · 82285-42040 |
