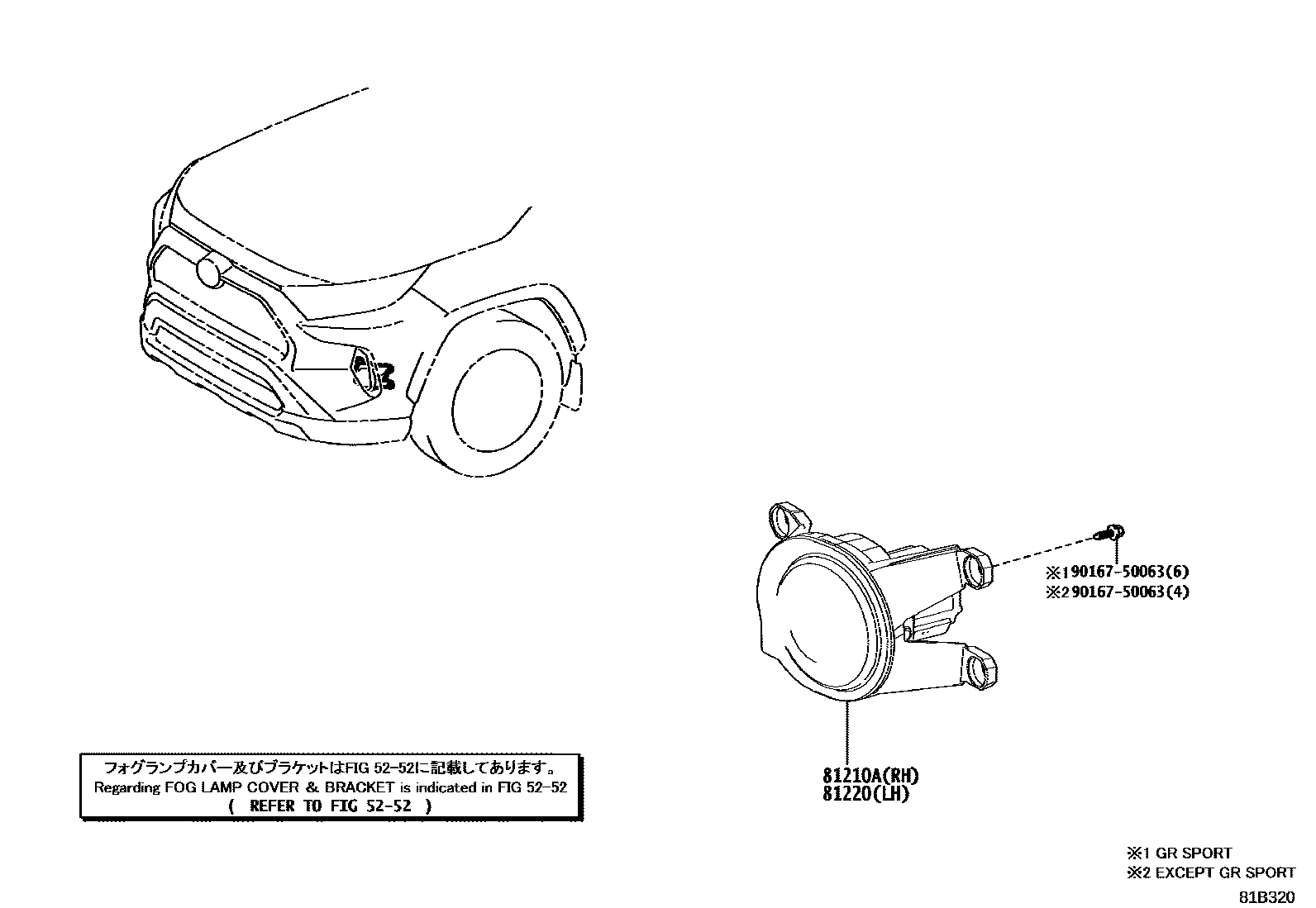

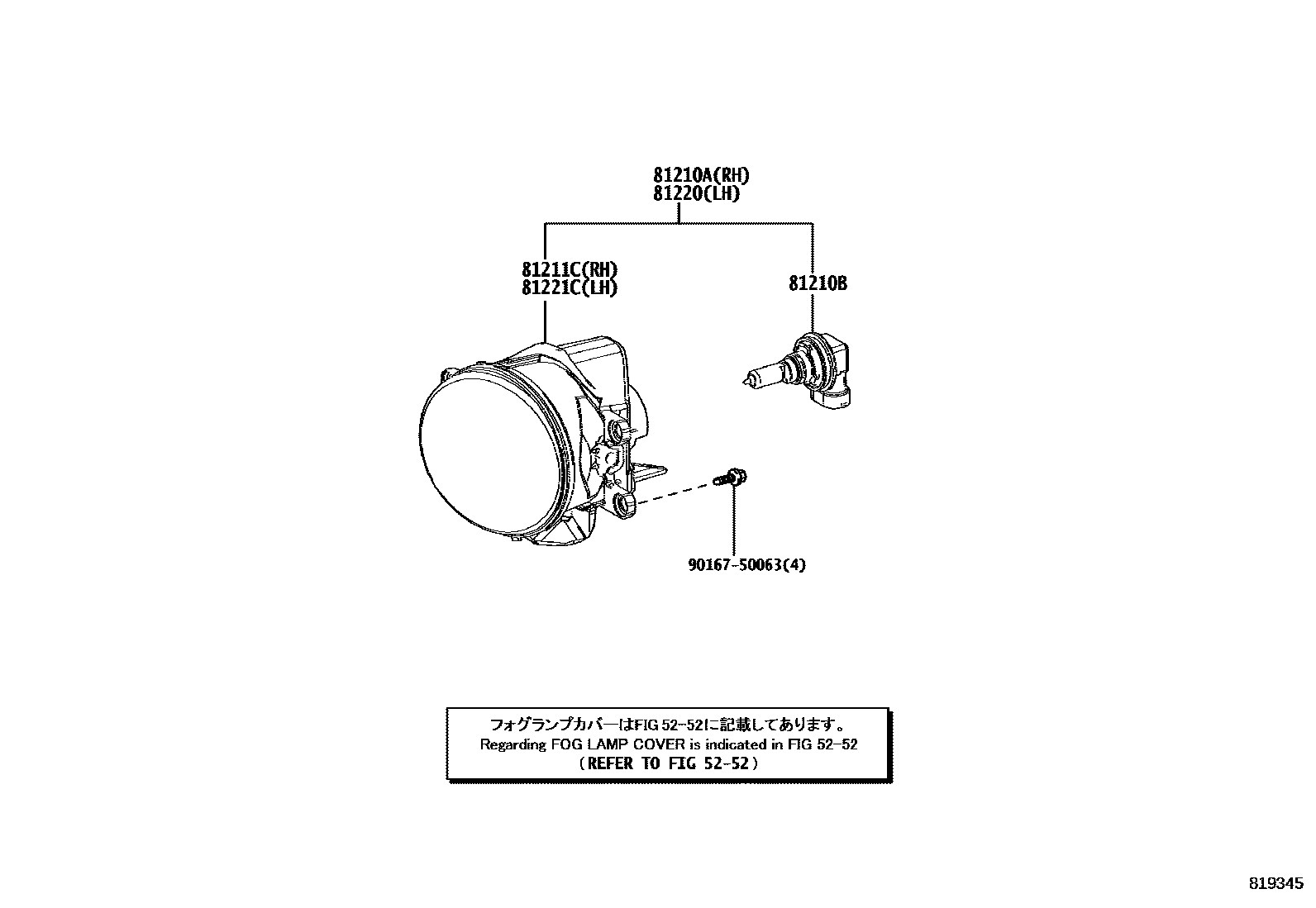

Toyota RAV4 Fog Lamp — Figure 8102
Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210A | Right fog light assembly | 81210-12240 · 81210-47010 |
| 81210B | fog light bulb | 90981-13090 |
| 81211C | Right fog light assembly | 81211-47010 |
| 81220 | Left fog light assembly | 81220-12240 · 81220-47010 |
| 81221C | Left fog light assembly | 81221-47010 |
