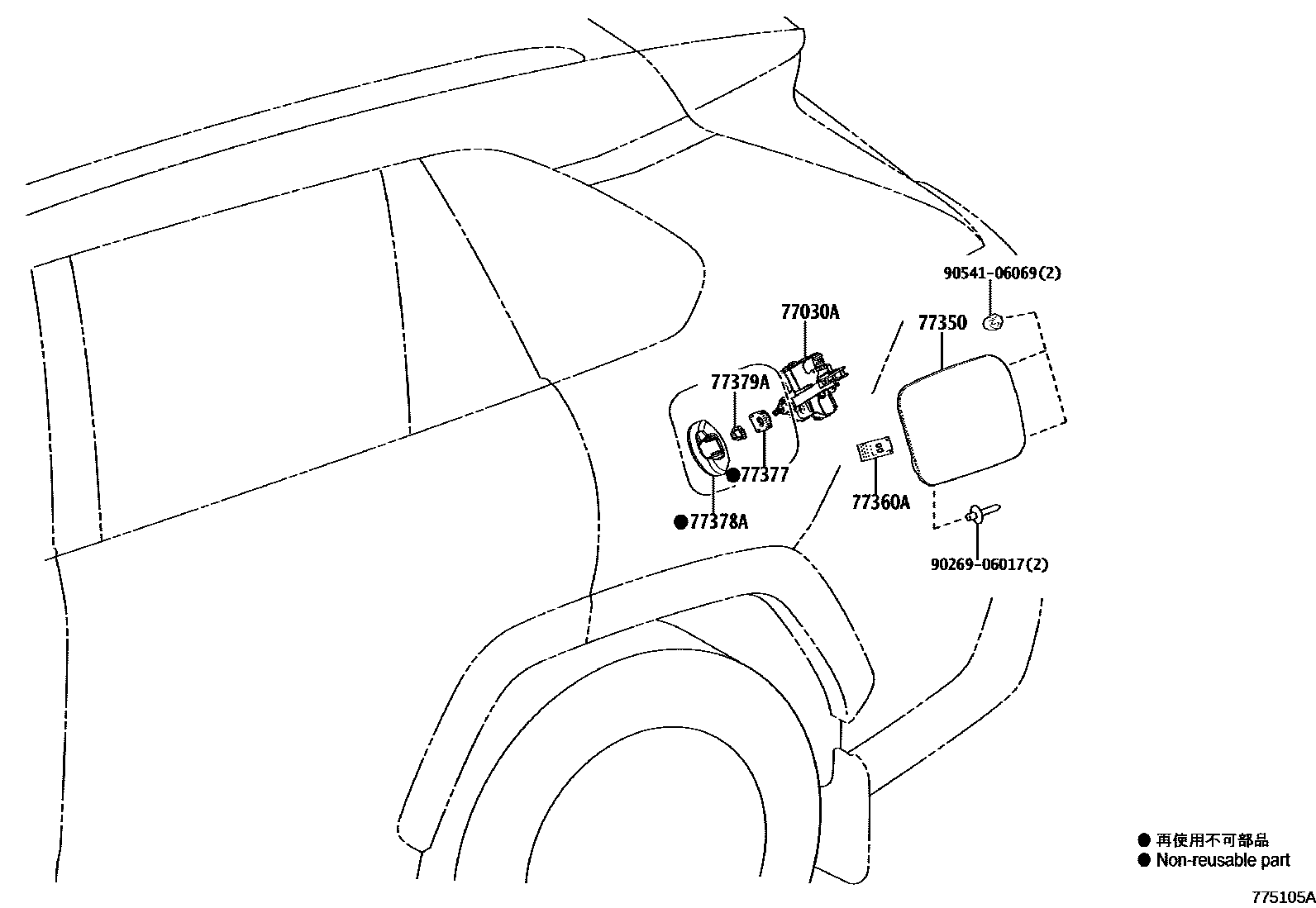

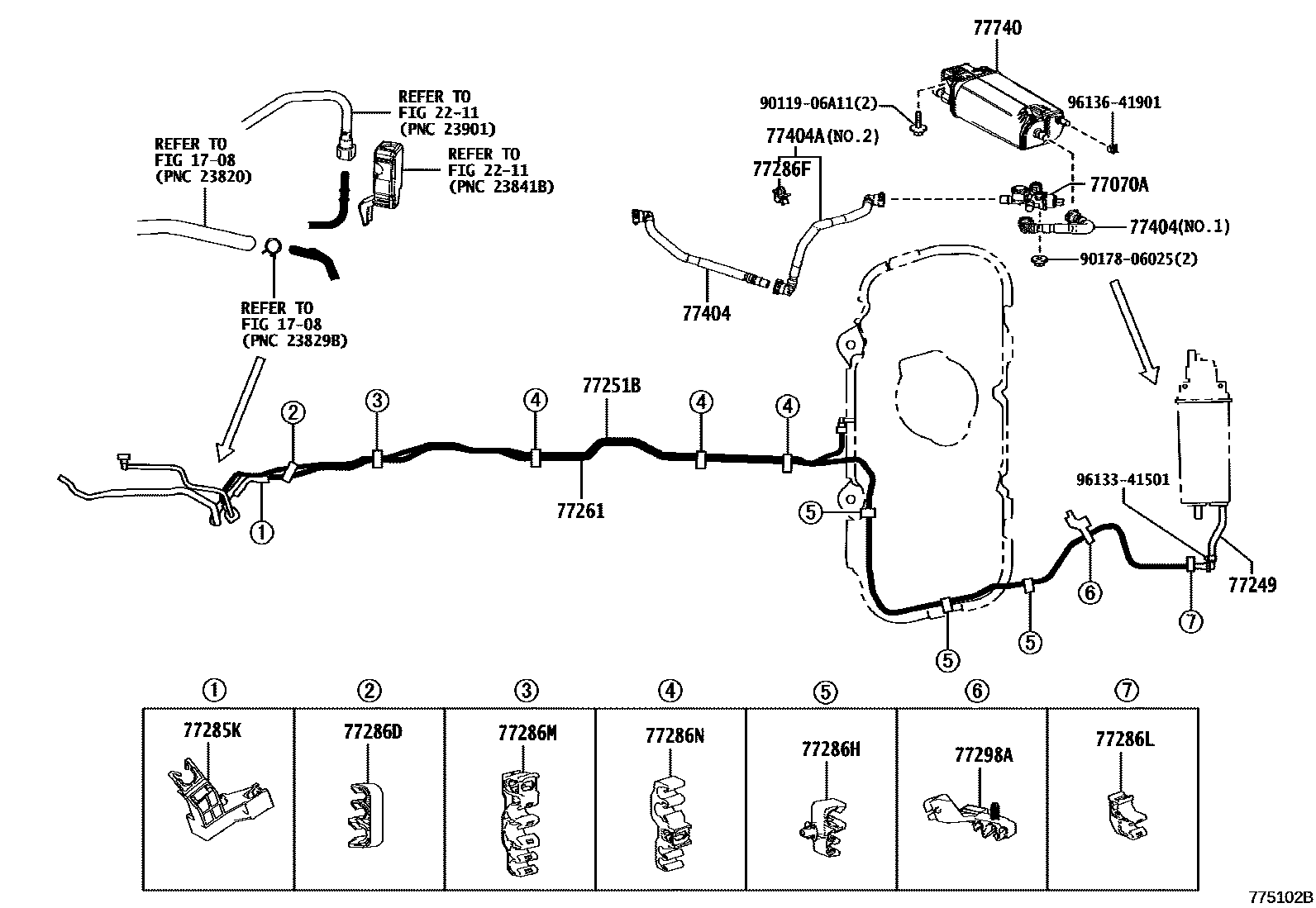

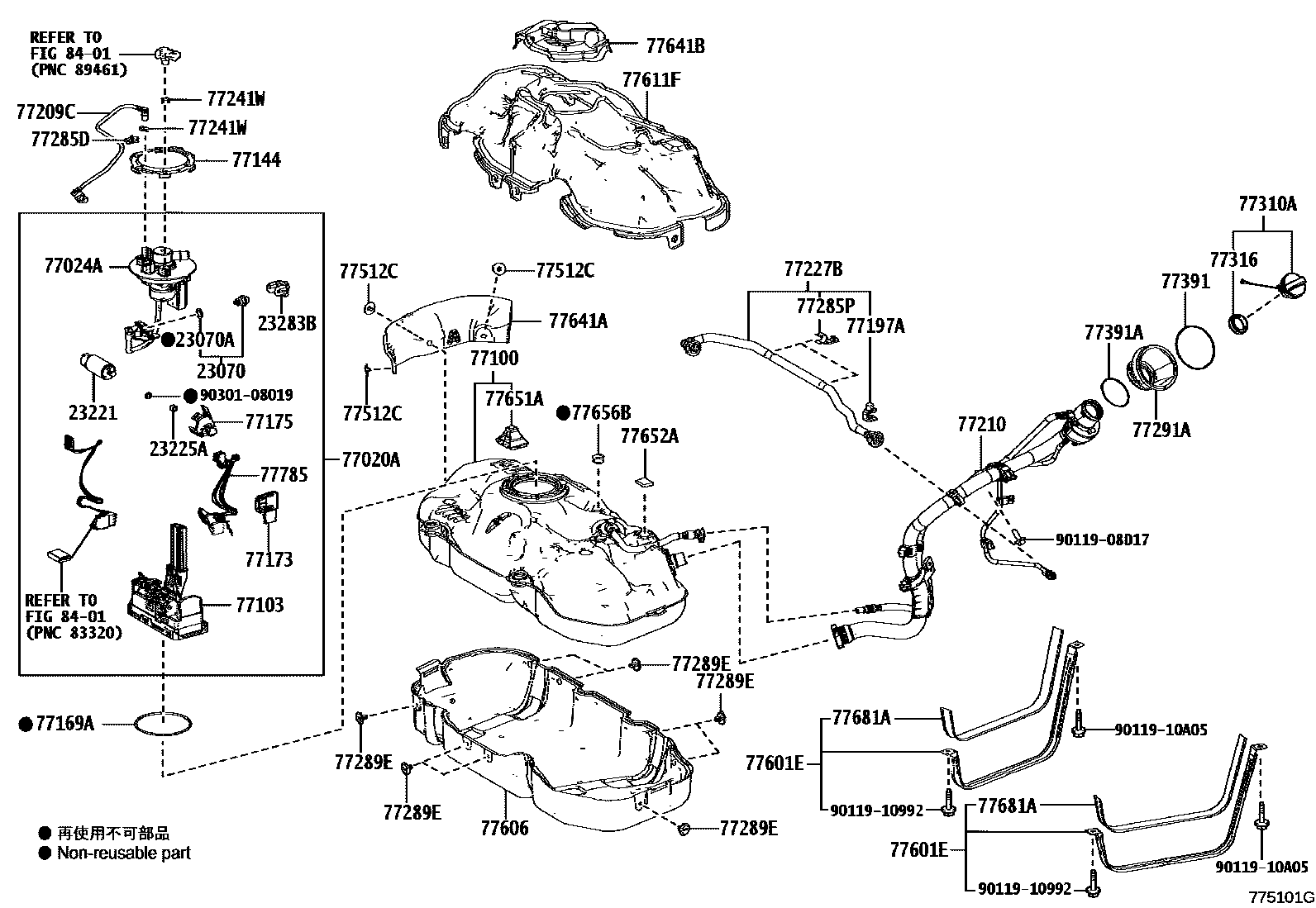

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 3 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23070A | JOINT, TORIQUE, NO.1(POUR SOUP PRINC CARB) | 90301-15024 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-24010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-42270 · 77020-42300 |
| 77024A | Fuel absorber sub-assembly | 77024-42170 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-12010 |
| 77070A | ENS. SOUPAPE, FERM RESERVOIR | 90910-15085 · 90910-15087 · 90910-15089 |
| 77100 | fuel tank assembly | 77001-42440 · 77001-42480 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-42120 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47040 |
| 77173 | SUPPORT, JAUGE CARB | 77173-12020 · 77173-42020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-47010 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-42250 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-42270 · 77210-48660 |
| 77227B | TUYAU, RENIFLARD RESERV CARB, NO.7 | 77227-42130 |
| 77241W | Pipe joint clip | 77241-33011 · 77241-60550 |
| 77249 | fuel drain hose | 77249-42130 |
| 77251B | main fuel pipe | 77251-42280 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-42150 |
| 77285D | No. 1 fuel pipe clamp | 77285-30350 |
| 77285K | No. 1 fuel pipe clamp | 77285-42170 |
| 77285P | COLLIER NO.1(POUR TUYAU CONTENEUR CHARBON ACTIF) | 77285-42340 |
| 77286D | No. 2 fuel pipe clamp | 77285-42180 |
| 77286F | No. 2 fuel pipe clamp | 77286-42170 |
| 77286H | No. 3 fuel pipe clamp | 77285-42270 |
| 77286L | No. 5 fuel pipe clamp | 77285-42290 |
| 77286M | No. 6 fuel pipe clamp | 77285-42310 |
| 77286N | No. 7 fuel pipe clamp | 77298-12160 |
| 77289E | COLLIER, RESERVOIR CARBURANT, NO.1 | 77289-47050 |
| 77291A | Fuel tank filler pipe cover | 77291-42060 |
| 77298A | No. 4 fuel pipe clamp | 77285-42280 |
| 77310A | Fuel tank cap assembly | 77300-33040 |
| 77316 | fuel tank cap gasket | 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-42100 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-12110 |
| 77378A | Fuel filler cap lock cover | 77378-42010 |
| 77379A | ENTRETOISE, LEVIER OUV TRAPPE CARB | 77379-12030 |
| 77391 | fuel inlet ring | 77391-42010 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-42150 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-42140 · 77404-42170 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-35140 |
| 77601E | Fuel tank strap sub-assembly | 77601-42140 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-42070 · 77606-42080 |
| 77611F | Fuel tank upper cover | 77611-42120 · 77611-42140 |
| 77641A | No. 1 fuel tank protective shell | 77641-42080 |
| 77641B | fuel tank cap | 77641-42090 |
| 77651A | No. 1 fuel tank liner | 77651-33060 |
| 77652A | No. 2 fuel tank liner | 77652-33060 |
| 77656B | No. 6 fuel tank liner | 77656-33010 |
| 77681A | Fuel tank strap seat | 77682-47020 |
| 77740 | Carbon canister assembly | 77740-42130 |
| 77785 | fuel pump wiring harness | 77785-42080 |
