Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

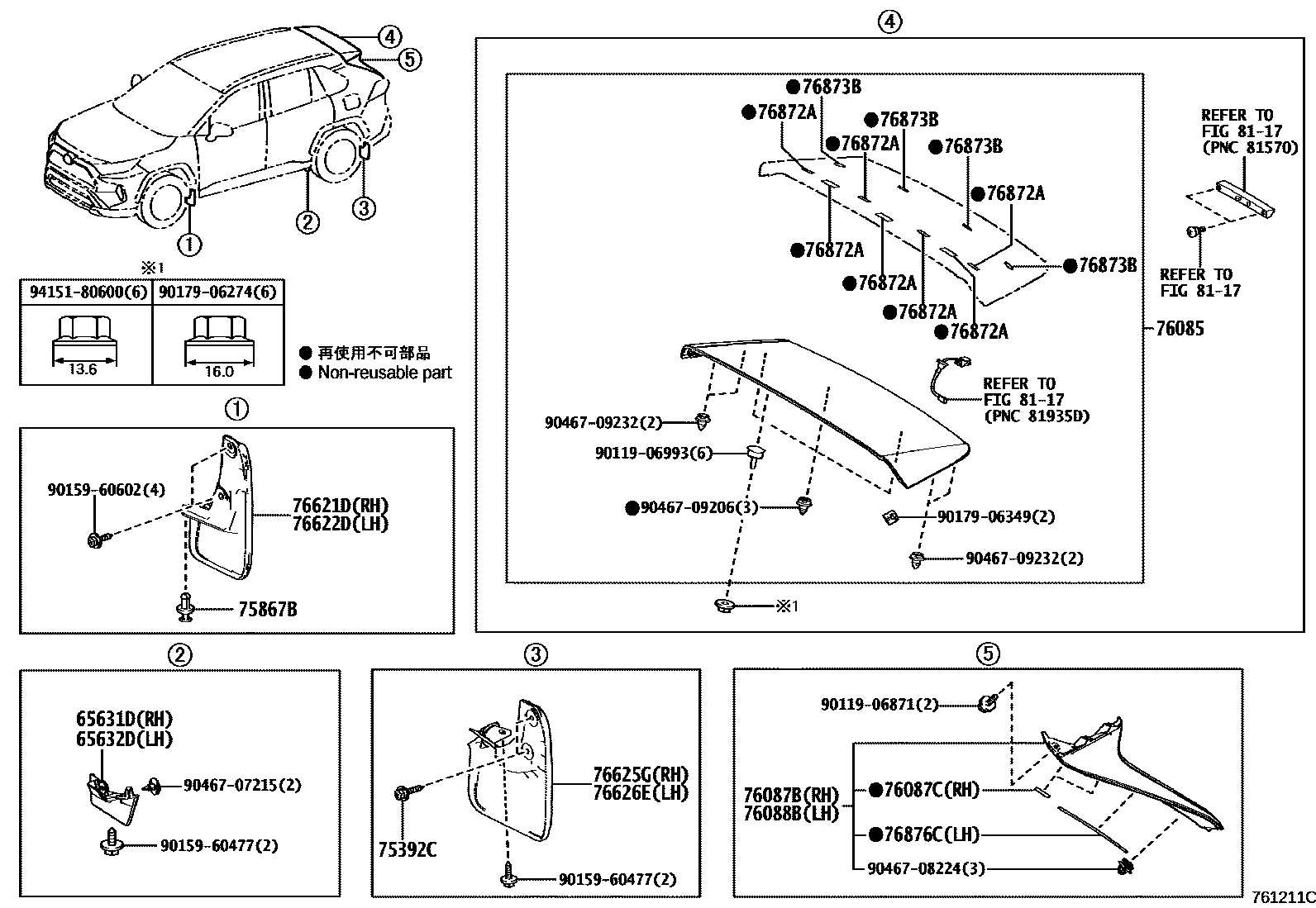

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-42040 |
| 65632D | Left rear wheel house front panel | 65632-42040 |
| 75392C | Left outer protective strip fixing | 75392-42030 |
| 75867B | Door sill panel protective strip clip | 75867-33050 |
| 76085 | Rear spoiler sub-assembly | 76085-42908 |
| 76087B | Right rear spoiler sub-assembly | 76087-42050 |
| 76087C | PROTECTEUR, BECQUET ARR | 87268-42010 |
| 76088B | Left rear spoiler sub-assembly | 76088-42050 |
| 76621D | Right front fender fender | 76621-42130 |
| 76622D | Left front fender fender | 76622-42130 |
| 76625G | Right rear side fender | 76625-42160 |
| 76626E | Left rear side fender | 76626-42220 |
| 76872A | No. 1 rear spoiler protective strip | 76872-42060 |
| 76873B | No. 2 rear spoiler protective strip | 76873-42020 |
| 76876C | PROTECTEUR, BECQUET ARR, NO.4 | 76875-42020 |
