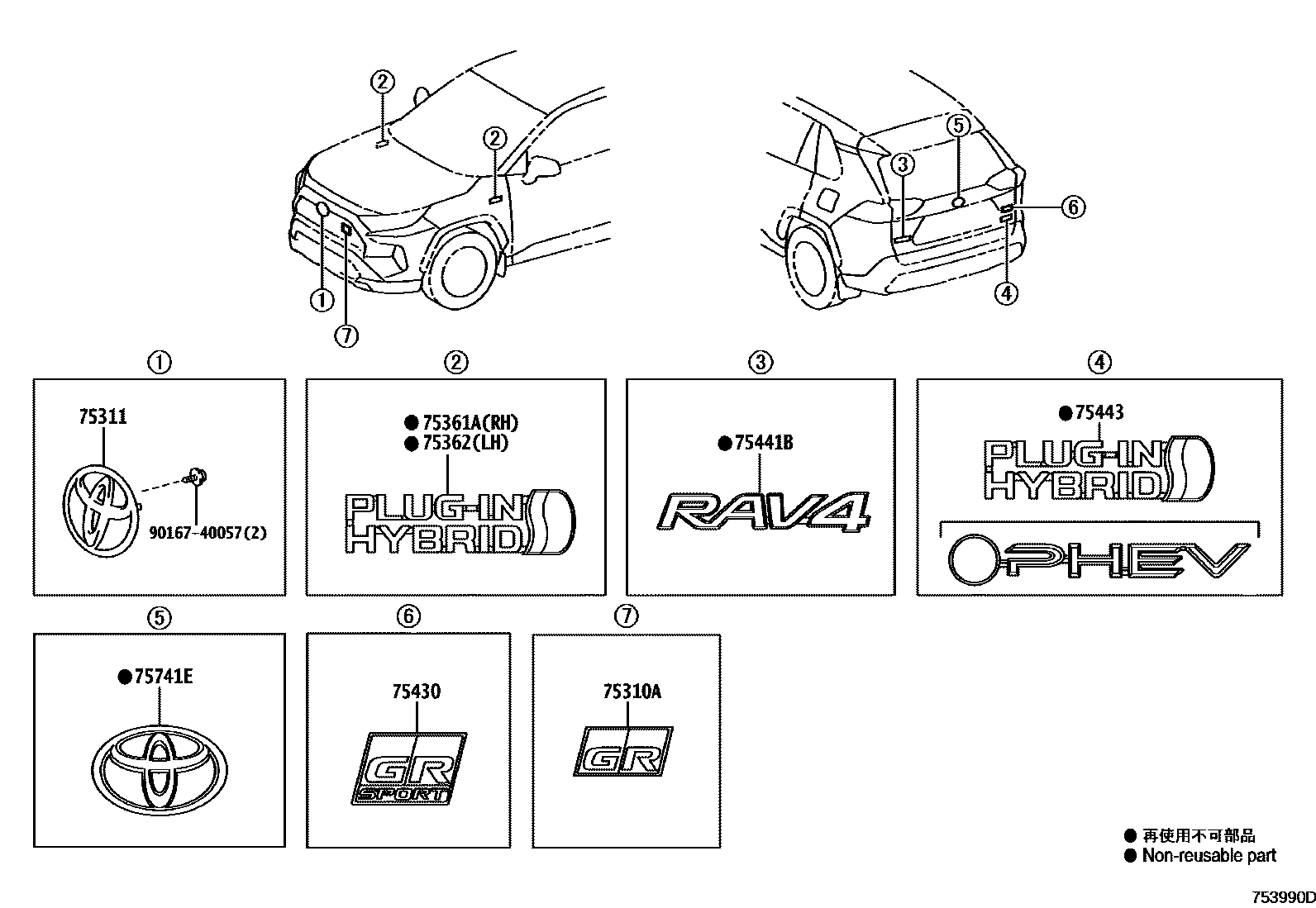

Toyota RAV4 徽标和铭牌 — Figure 7551
Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 75310-52050 |
| 75311 | Radiator grille (or front panel) plate | 53141-33140 · 53141-42030 · 75301-42081 |
| 75361A | Front fender No. 1 nameplate | 75361-42070 |
| 75362 | Front fender No. 2 nameplate | 75362-42070 |
| 75430 | Rear door No. 1 sign assembly | 75430-42030 |
| 75441B | Back door nameplate | 75431-42180 |
| 75443 | No. 3 nameplate on back door | 75440-42130 · 75445-42070 |
| 75741E | logo | 75403-42060 · 90975-02138 |
