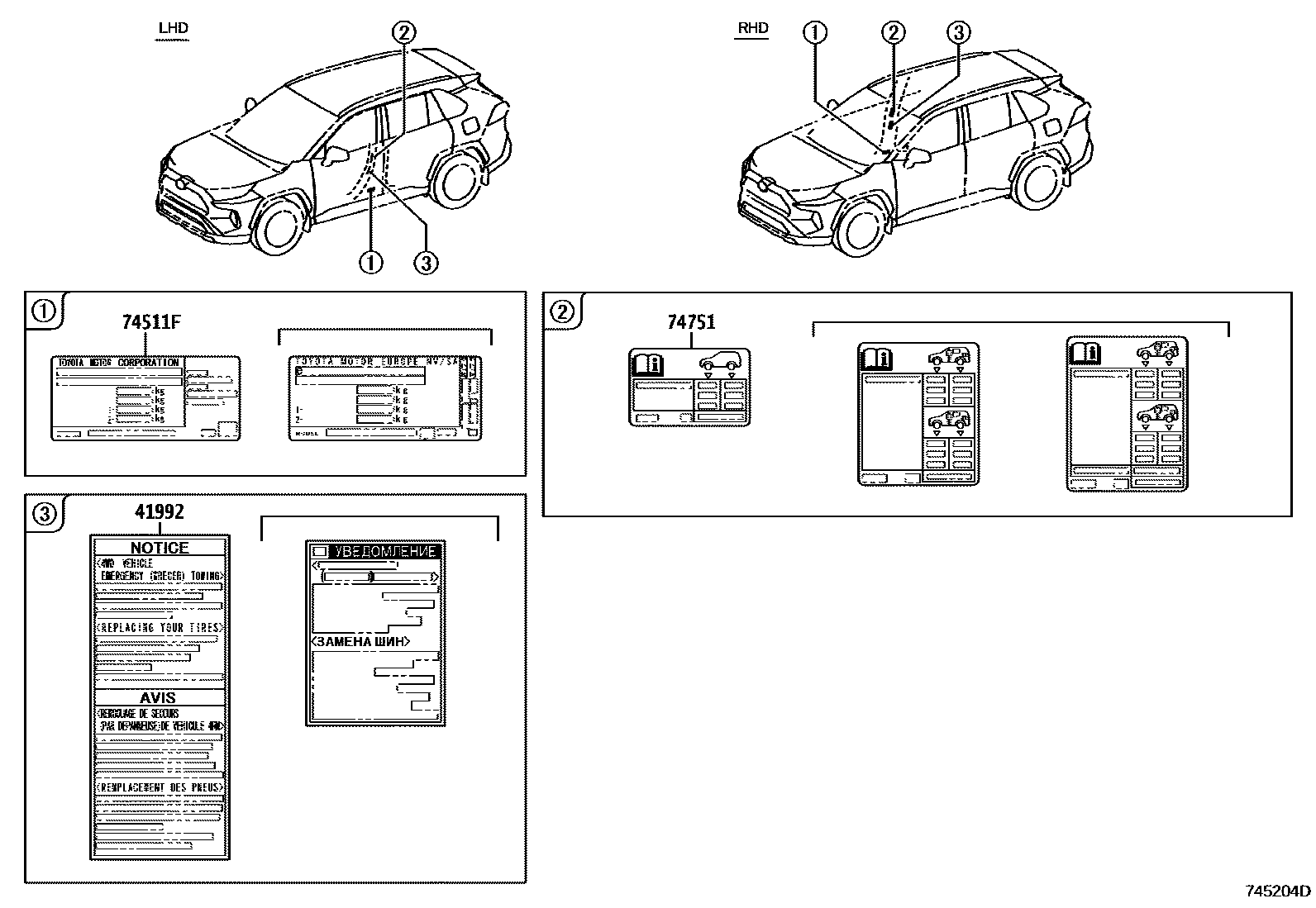

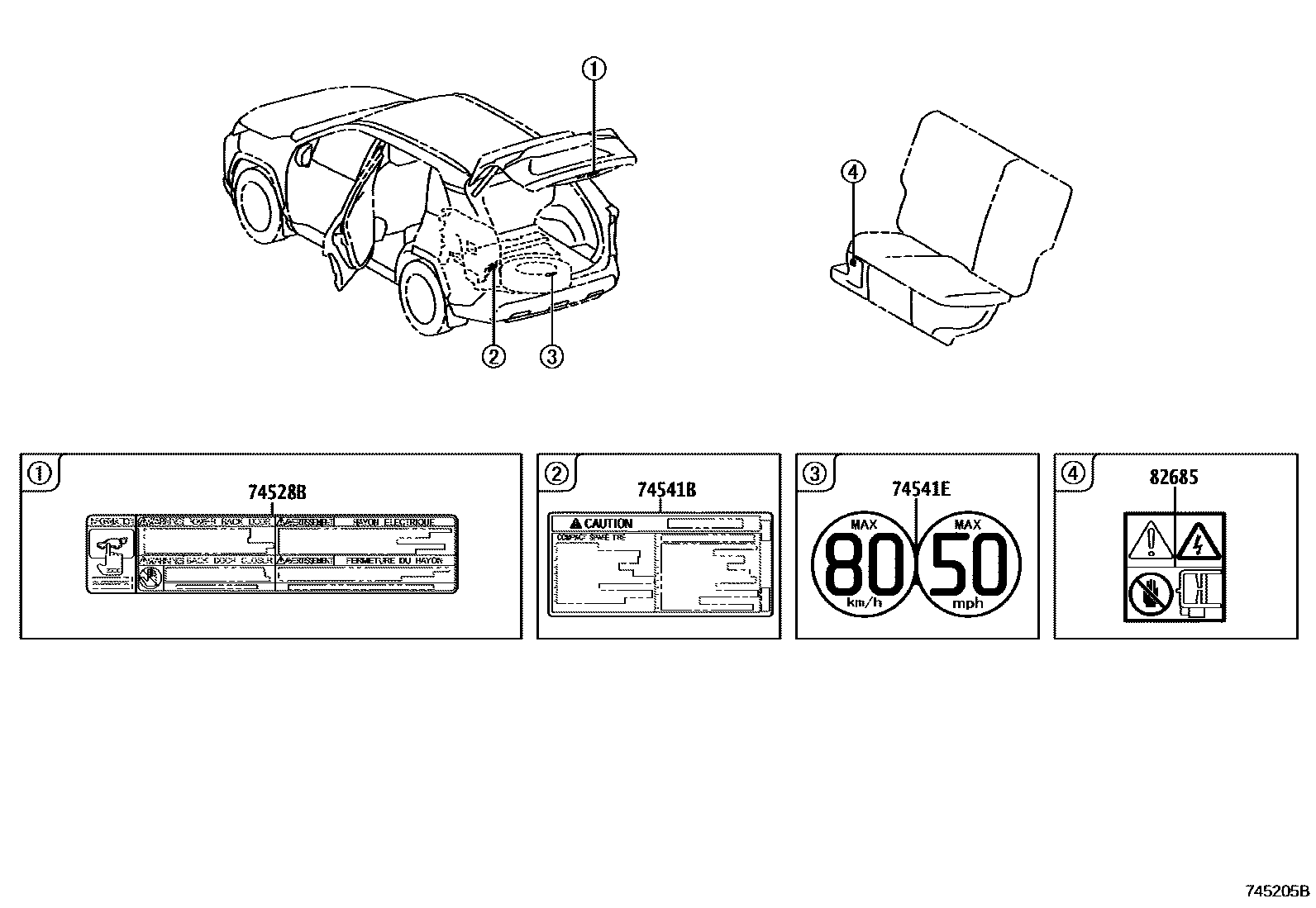

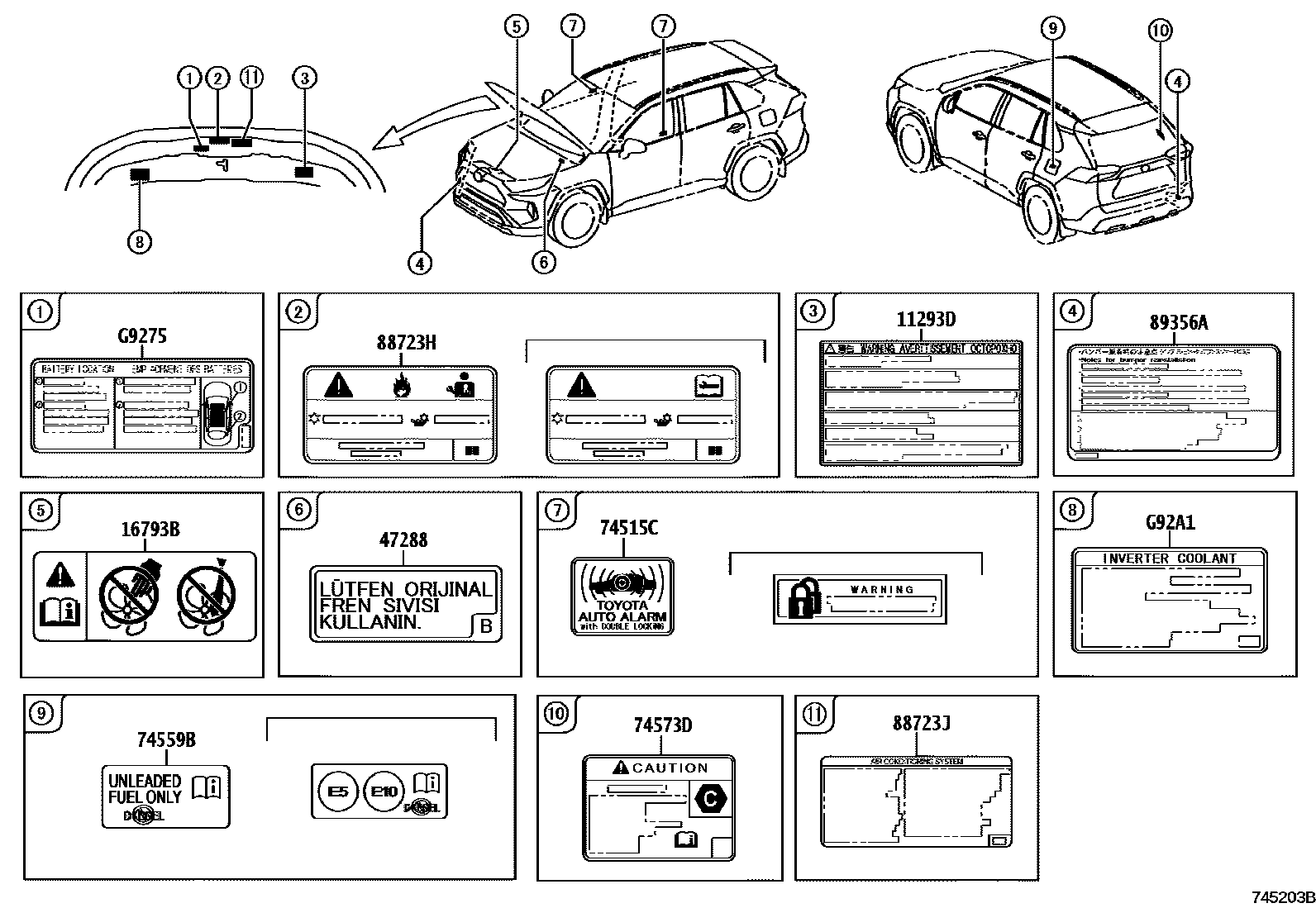

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 16793B | Cooling fan information label | 16793-36030 |
| 41992 | Differential attention label | 41992-42040 · 41992-48020 |
| 47288 | Brake Fluid Caution Label | 47288-64010 |
| 74511F | Nameplate (laser identification label) | 74511-33070 · 74511-48020 · 74511-60480 |
| 74515C | Anti-theft warning information label | 74515-20010 · 74515-42010 |
| 74528B | Back door warning label | 74528-42011 |
| 74541B | Small spare tire warning plate | 42668-42020 · 42668-42030 · 42668-42070 · 42668-42080 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559B | fuel information label | 74559-11030 · 74559-20140 |
| 74573D | Electric vehicle battery warning labels | 74573-42120 · 74573-42140 |
| 74751 | tire pressure information label | 42661-42A50 · 42661-42A80 · 42661-42C20 · 42661-42C70 · 42661-42D90 · 42661-42E00 · 42661-42E10 · 42661-42F10 |
| 82685 | warning nameplate | 82685-47110 · 82685-47111 |
| 88723H | Cooler maintenance warning label | 88723-42100 · 88723-42130 · 88723-42230 |
| 88723J | Cooler No. 2 maintenance warning label | 88733-52160 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-42030 |
| G92A1 | HV coolant system information label | G92A1-76010 |
