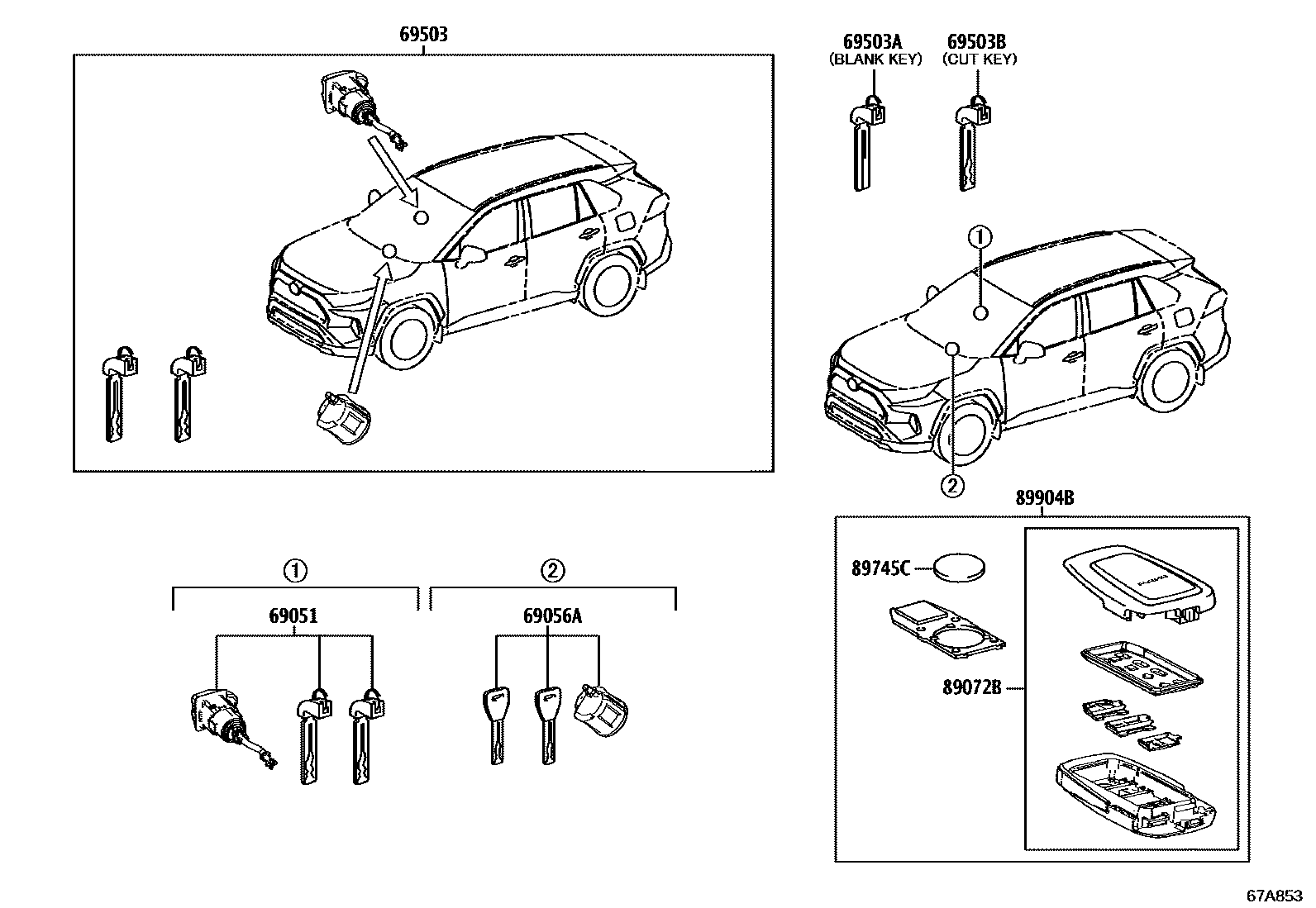

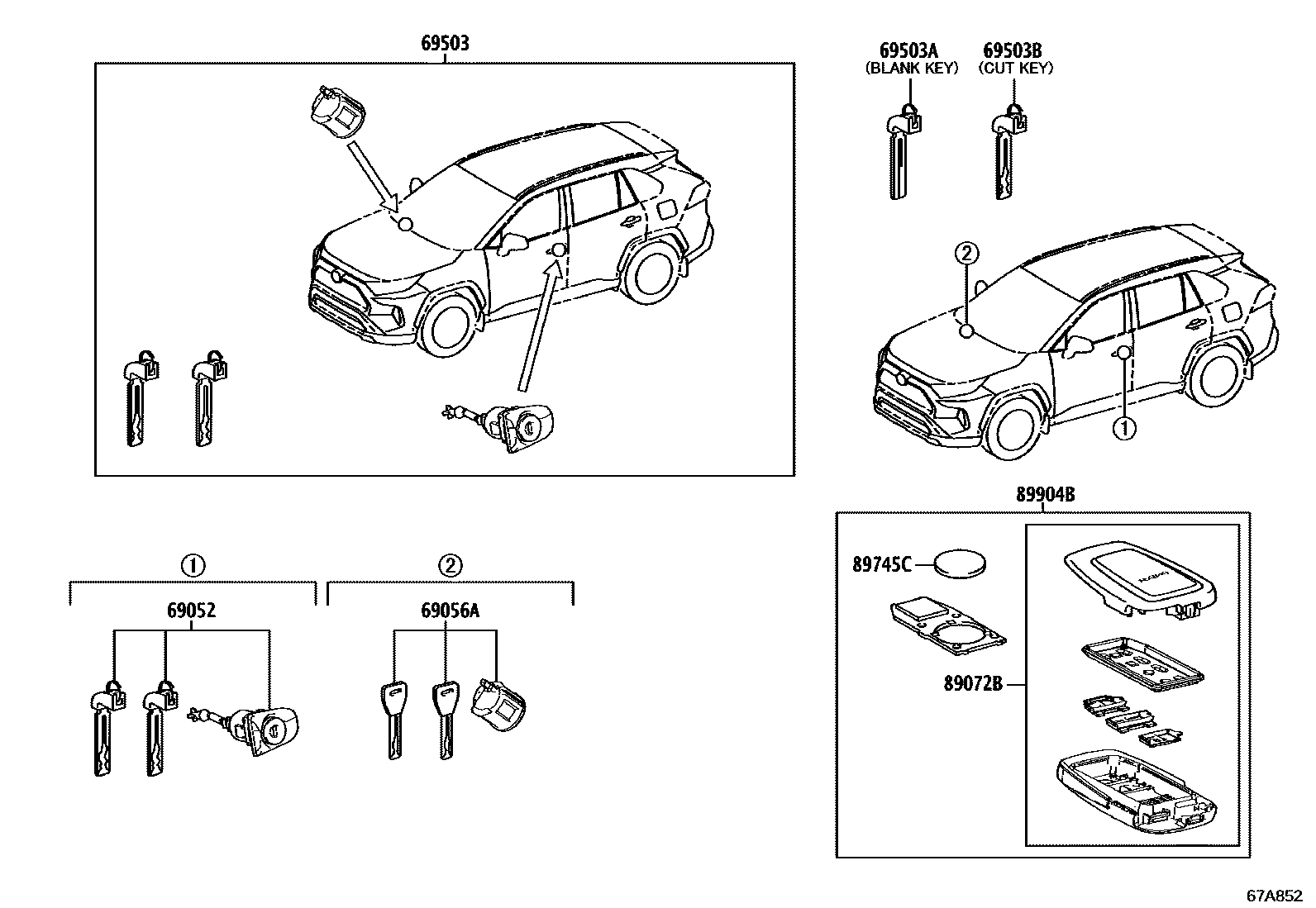

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-42290 |
| 69052 | Left door lock cylinder and key assembly | 69052-42270 |
| 69056A | Glove box lock cylinder and key assembly | 69056-50160 |
| 69503 | Door lock cylinder components | 69005-42A30 · 69005-42A40 |
| 69503A | external tooth key | 69515-K0020 |
| 69503B | internal tooth key | 69515-K0010 |
| 89072B | Remote key shell assembly (for smart key) | 89072-42A90 · 89072-42A91 · 89072-42B00 · 89072-42B01 · 89072-42D60 · 89072-42D70 |
| 89745C | Transmitter battery | 89745-K0020 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-42410 · 8990H-42411 · 8990H-42420 · 8990H-42421 · 8990H-42A60 · 8990H-42A61 · 8990H-42A70 · 8990H-42A71 |
