Toyota RAV4 背门锁和合页 — Figure 6762

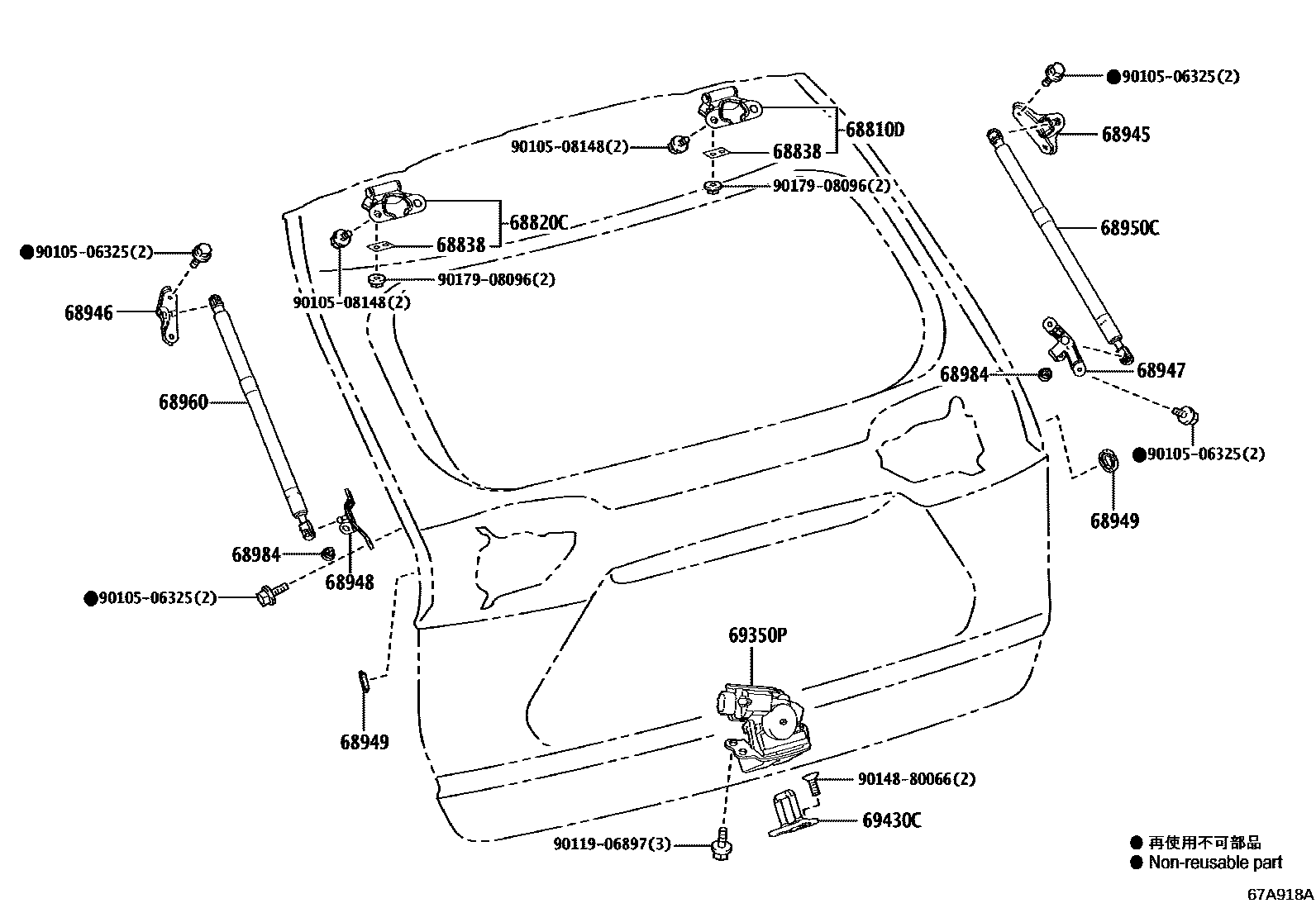

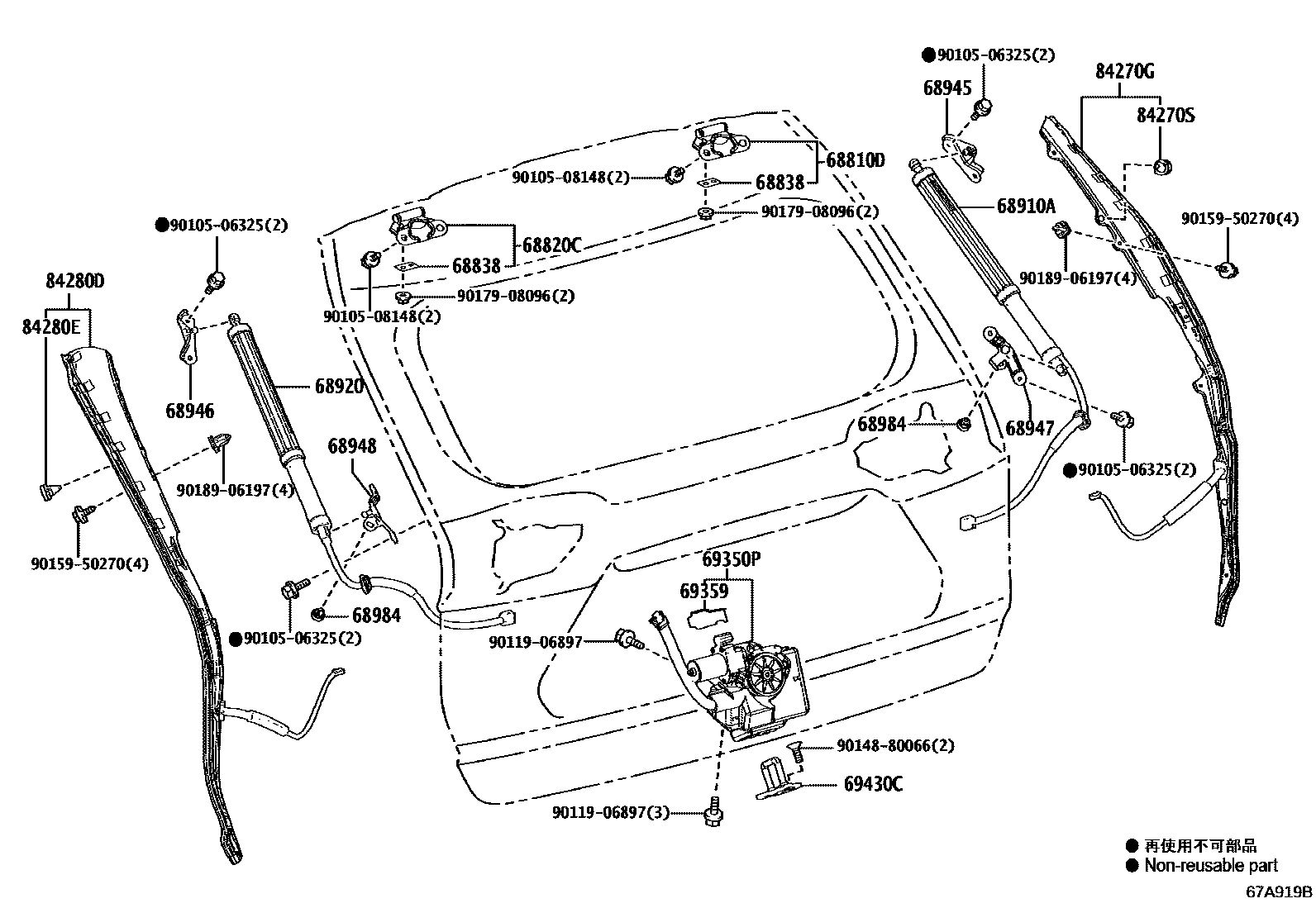

Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810D | Back door right hinge assembly | 68810-42100 · 68810-42101 · 68810-42110 |
| 68820C | Back door left hinge assembly | 68810-42100 · 68810-42101 · 68810-42110 |
| 68838 | Back door hinge No. 1 gasket | 68838-42010 · 68838-42020 · 68838-42030 · 68838-47010 · 68838-47020 · 68838-47030 |
| 68910A | JEU D'ENSEMBLE ELEMENT, PORTE COMMANDEE ARRIERE, MD | 68910-42060 · 68910-42110 |
| 68920 | JEU D'ENSEMBLE ELEMENT, PORTE COMMANDEE ARRIERE, MG | 68920-42020 · 68920-42090 |
| 68945 | Back door right damping stay upper bracket | 68945-42030 · 68945-42031 · 68945-42050 |
| 68946 | Rear door left damping strut upper bracket | 68946-42030 · 68946-42031 · 68946-42050 |
| 68947 | Back door right damping strut lower bracket | 68947-42030 |
| 68948 | Rear door left damping strut lower bracket | 68948-42030 |
| 68949 | JOINT, SUPPORT PIECE MAINTIEN HAYON | 68949-42010 |
| 68950C | Back door right support rod assembly | 68950-0R110 |
| 68960 | Back door left support rod assembly | 68960-0R110 |
| 68984 | BOUCHON, BUTOIR DE LA PORTIERE ARRIERE | 68984-42030 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-42080 · 69350-42090 · 69350-42101 · 69350-42110 · 69350-42111 |
| 69359 | Back door lock cushion | 69359-42030 |
| 69430C | Back door lock assembly | 69430-48030 |
| 84270G | Electric back door right side sensor assembly | 84270-42020 · 84270-42040 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42080 |
| 84280D | Electric back door left sensor assembly | 84280-42020 · 84280-42040 |
| 84280E | Catch (electric back door left sensor) | 61617-42080 |
