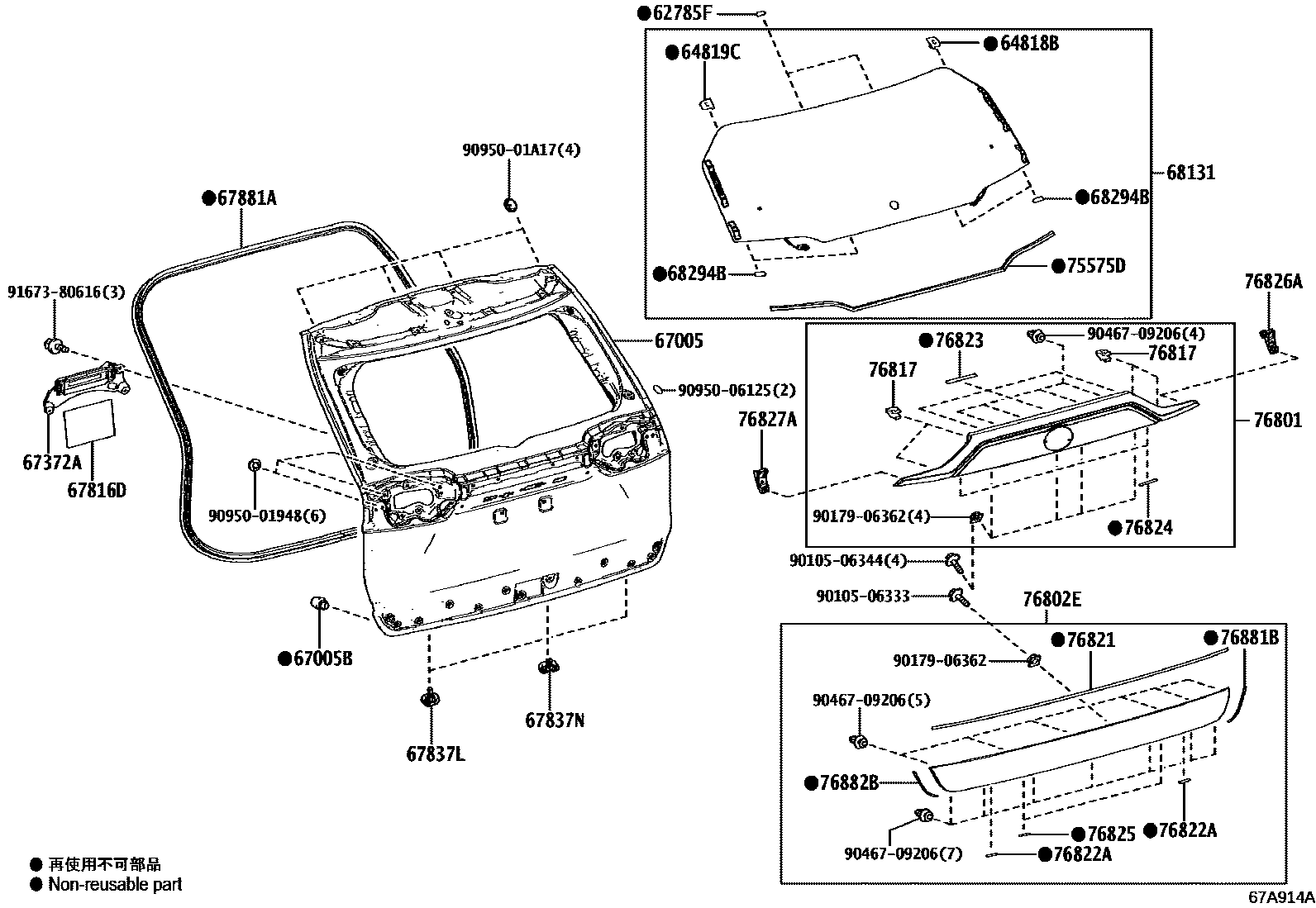

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-60030 |
| 64818B | No. 1 back door glass spacer | 64818-42050 |
| 64819C | No. 2 rear door glass spacer | 64819-42050 |
| 67005 | Rear door panel sub-assembly | 67005-42650 · 67005-42670 |
| 67005B | Cushion pad (for back door panel) | 69478-42010 · 69478-42020 |
| 67372A | Back door counterweight | 67372-42030 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67816D | Rear door silencer panel | 67816-42020 |
| 67837L | Door dust seal retainer | 67837-42050 |
| 67837N | JOINT D'ETANCHEITE, ANTI-POUSSIERE HAYON | 67837-52040 |
| 67881A | Back door seal | 67881-42080 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68105-42280 · 68105-42320 · 68105-42330 |
| 68294B | Rear door glass adhesive seal | 68294-26030 |
| 75575D | Protective strip under rear window | 75575-42040 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-42904 · 76801-42907 · 76801-42908 |
| 76817 | Rear door exterior decorative strip clip | 90467-05171 |
| 76821 | Protective cover for rear door trim strip | 76821-42060 |
| 76822A | Protective cover under rear door trim strip | 76822-42060 |
| 76823 | Rear door right side decorative strip protective cover | 76823-42030 |
| 76824 | Rear door left side decorative strip protective cover | 76824-42030 |
| 76825 | Rear door exterior decorative strip protective cover | 76882-42010 |
| 76826A | No. 1 rear door trim strip fixing | 76826-42140 |
| 76827A | No. 2 rear door trim strip fixings | 76827-42050 |
| 76881B | Back door lower right protective strip protection device | 76881-42010 |
| 76882B | Back door lower left protective strip protection device | 76881-42010 |
