Toyota RAV4 后地板和后地板梁 — Figure 5852

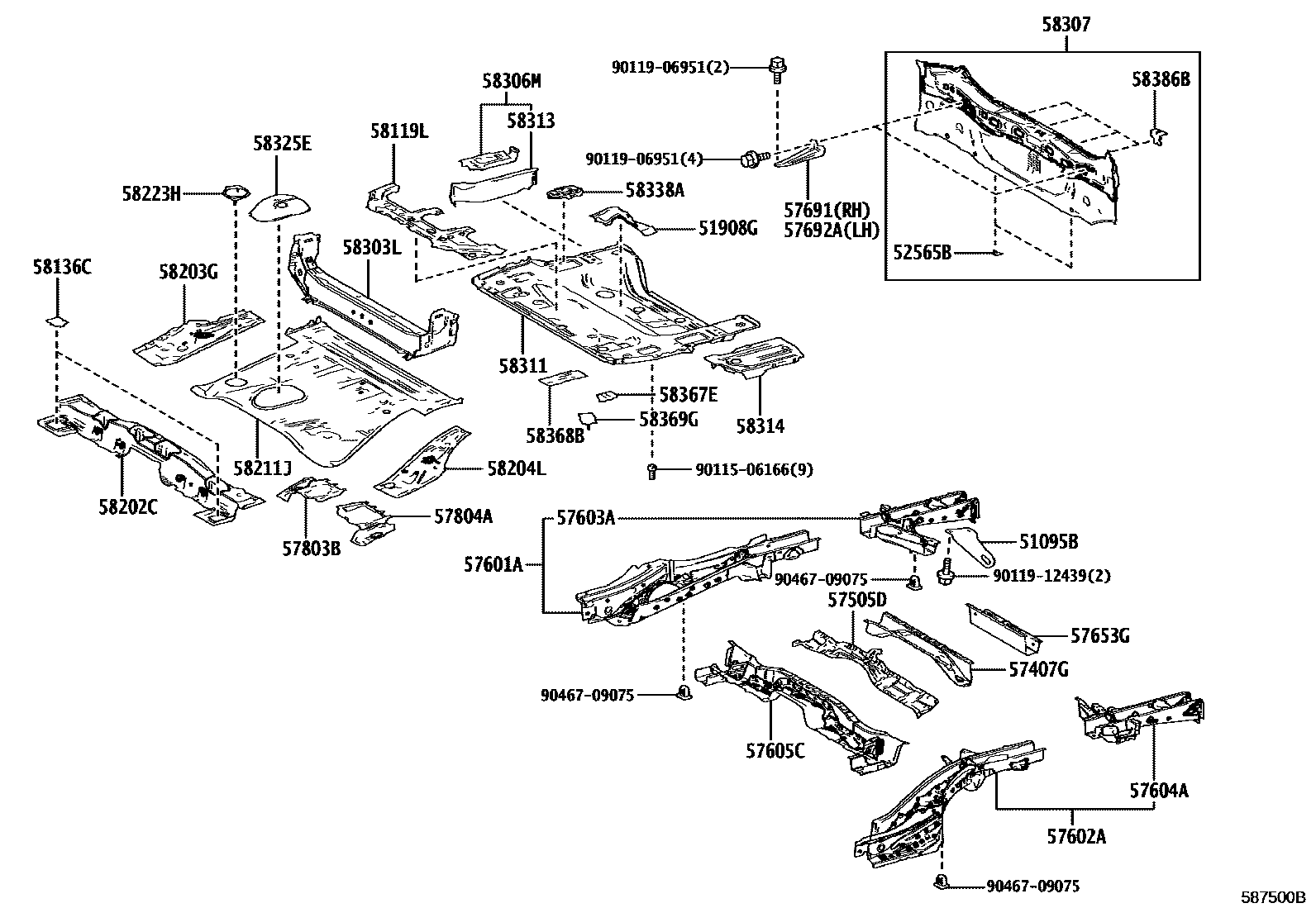

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51095B | Right rear transport hook sub-assembly | 51095-42010 |
| 51908G | SOUS-ENS. SUPPORT, SUPPORT ROUE SECOURS | 51908-42060 |
| 52565B | Rear bumper lower fixing bracket | 52565-42040 |
| 57407G | SOUS-ENS. TRAVERSE, PLANCHER CENTRAL | 57407-42021 · 57407-42022 |
| 57505D | SOUS-ENS. RENFORT, DESSOUS PLANCHER AVANT | 57505-42130 |
| 57601A | Rear floor right longitudinal beam sub-assembly | 57601-42160 |
| 57602A | Rear floor left longitudinal beam sub-assembly | 57602-42160 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-42070 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-42070 |
| 57605C | Rear floor cross member sub-assembly | 57605-42040 |
| 57653G | No. 2 rear floor cross member | 57653-42060 |
| 57691 | Rear floor No. 2 cross member right inner bracket | 57691-42010 |
| 57692A | Rear floor No. 2 cross member left inner bracket | 57692-42010 |
| 57803B | SOUS-ENS. RENFORT, ANCRAGE CEINTURE, NO.2 MD | 57803-42030 |
| 57804A | SOUS-ENS. RENFORT, ANCRAGE CEINTURE, NO.2 MG | 57804-42030 |
| 58119L | rear floor side panel | 58335-42010 · 58335-42011 |
| 58136C | Rear floor hole cover | 58136-42030 |
| 58202C | SS-ENS. PAN, PLANCHER CENTRAL, AV | 58202-42050 |
| 58203G | RENFORCEMENT DE PANNEAU DROIT DE PLANCHER CENTRAL | 58203-42020 |
| 58204L | RENFORCEMENT DE PANNEAU GAUCHE DE PLANCHER CENTRAL | 58204-42020 |
| 58211J | central floor base | 58211-42040 |
| 58223H | Floor right reinforcement | 58223-42020 |
| 58303L | SS-ENS. PANNEAU, SEPARATION PLANCHER ARR | 58303-42020 |
| 58306M | Rear floor side panel sub-assembly | 58306-42070 |
| 58307 | Body lower back panel sub-assembly | 58307-42050 · 58307-42080 |
| 58311 | rear floor pan | 58311-42150 · 58311-78040 · 58311-78060 |
| 58313 | Rear floor right panel | 58313-42070 |
| 58314 | rear floor left panel | 58314-42060 |
| 58325E | Rear floor access hole cover | 58325-42060 |
| 58338A | Rear floor floor reinforcement No. 2 | 58338-42050 |
| 58367E | SUPPORT, TUBE D'ALIMENTATION, NO.1 | 58367-47020 |
| 58368B | No. 2 fuel pipe bracket | 58368-42020 |
| 58369G | No. 3 fuel pipe bracket | 58369-47020 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-47020 |
