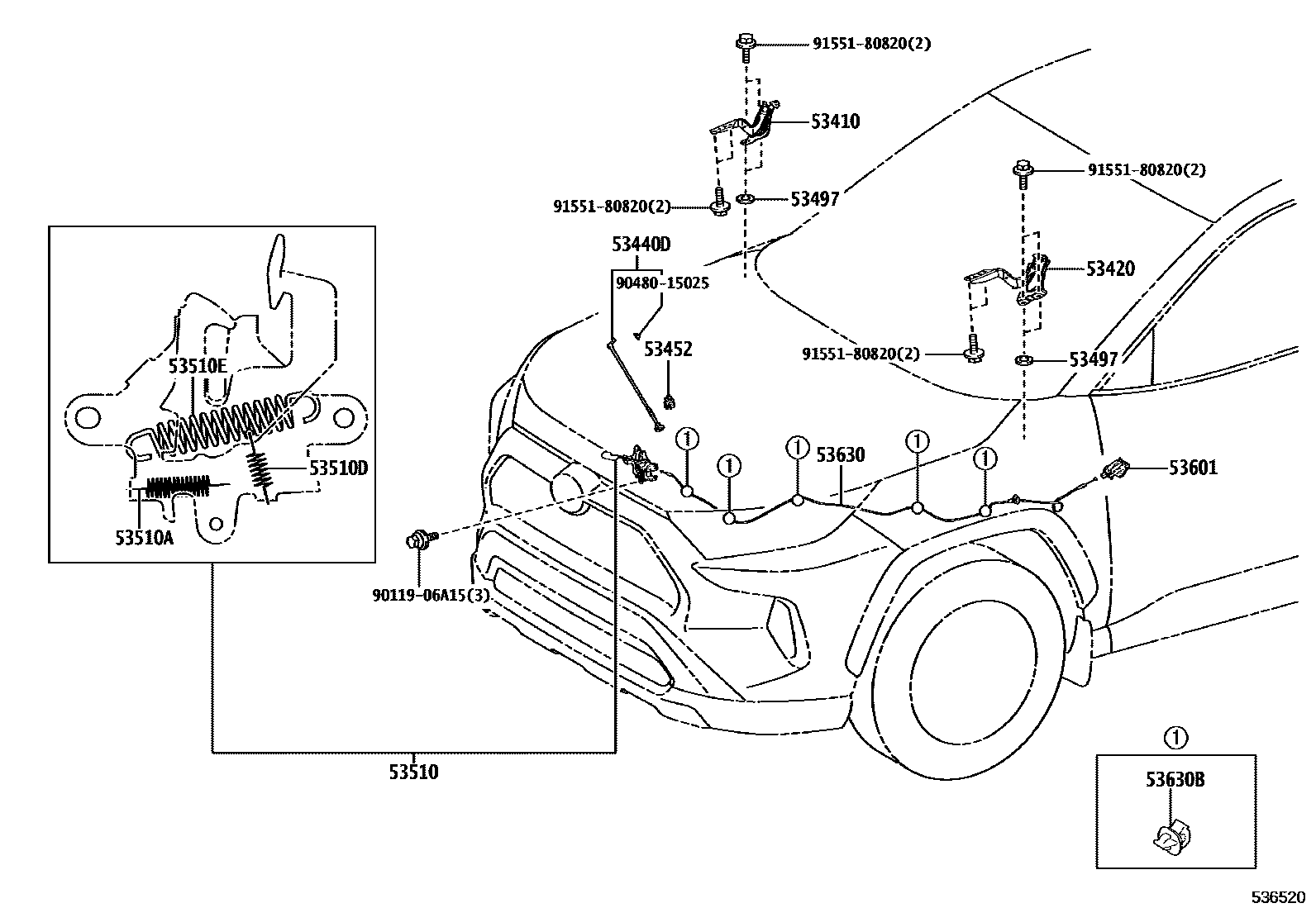

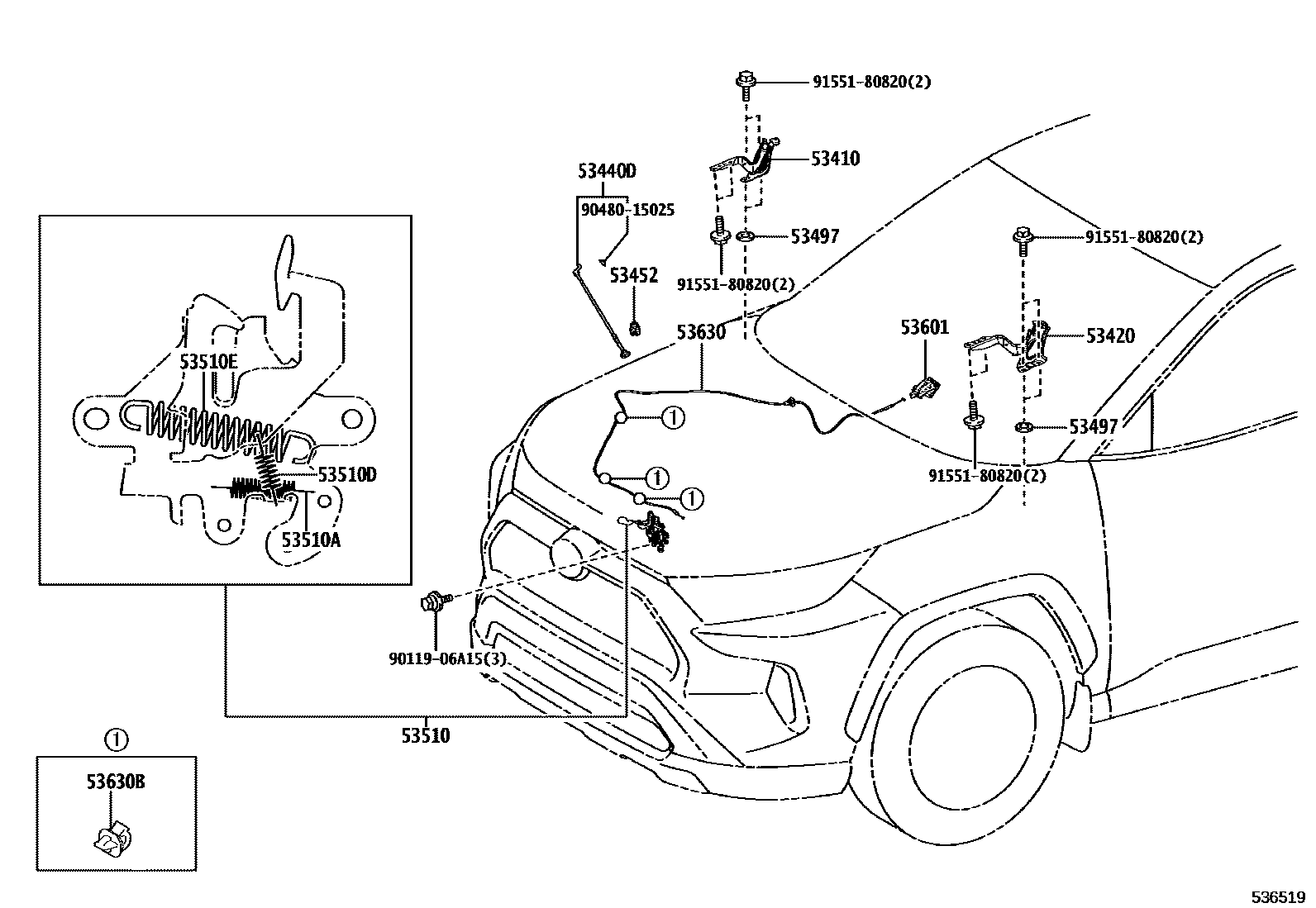

Toyota RAV4 发动机盖锁和铰链 — Figure 5354
Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-42140 |
| 53420 | Engine cover left hinge assembly | 53420-42140 |
| 53440D | Engine cover support rod assembly | 53440-42070 · 53440-42071 |
| 53452 | Engine cover stay rod fixing | 53452-12130 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-42130 · 53510-42150 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-14085 · 90506-16077 |
| 53630 | Engine hood lock control cable assembly | 53630-42130 · 53630-42140 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
