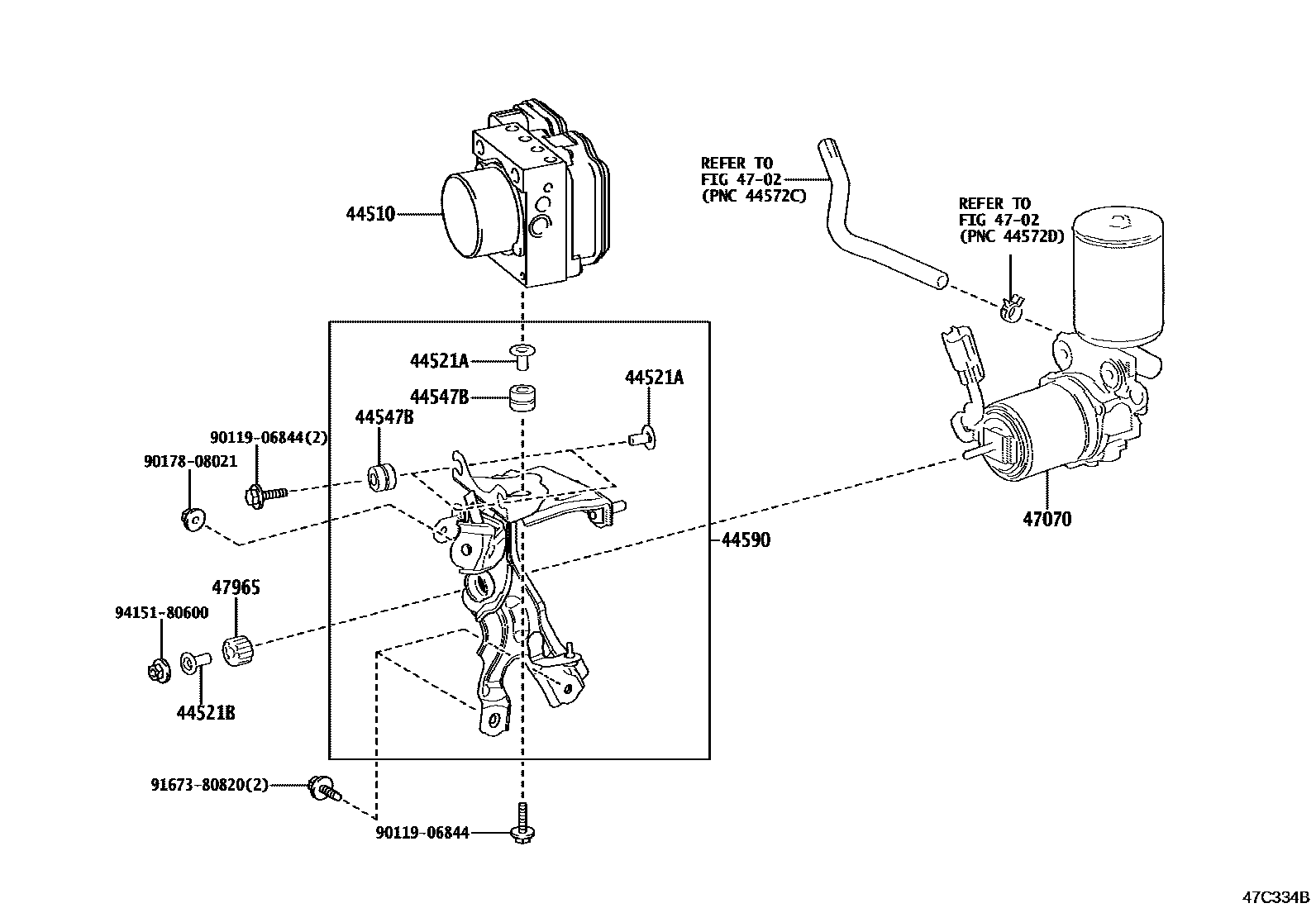

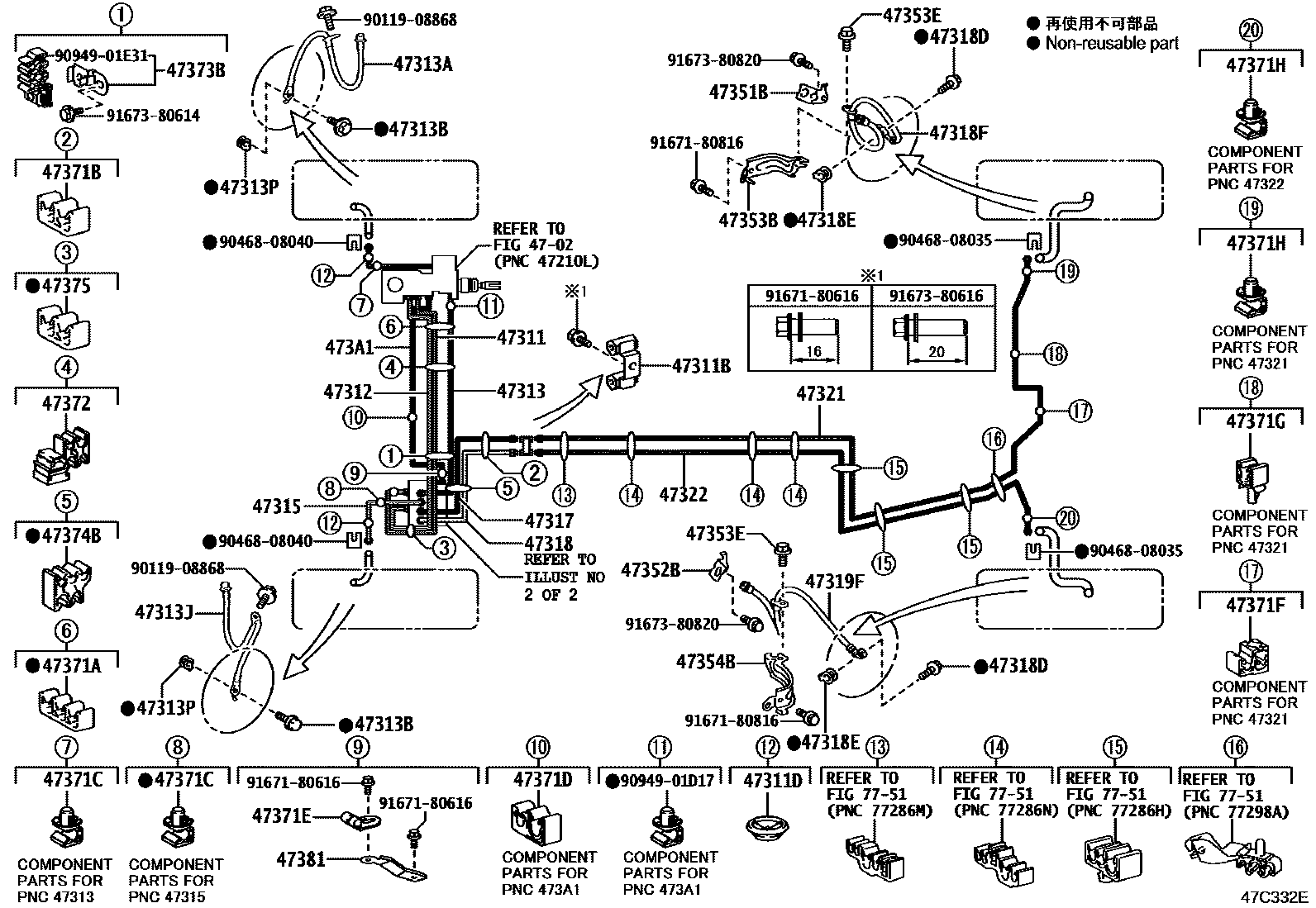

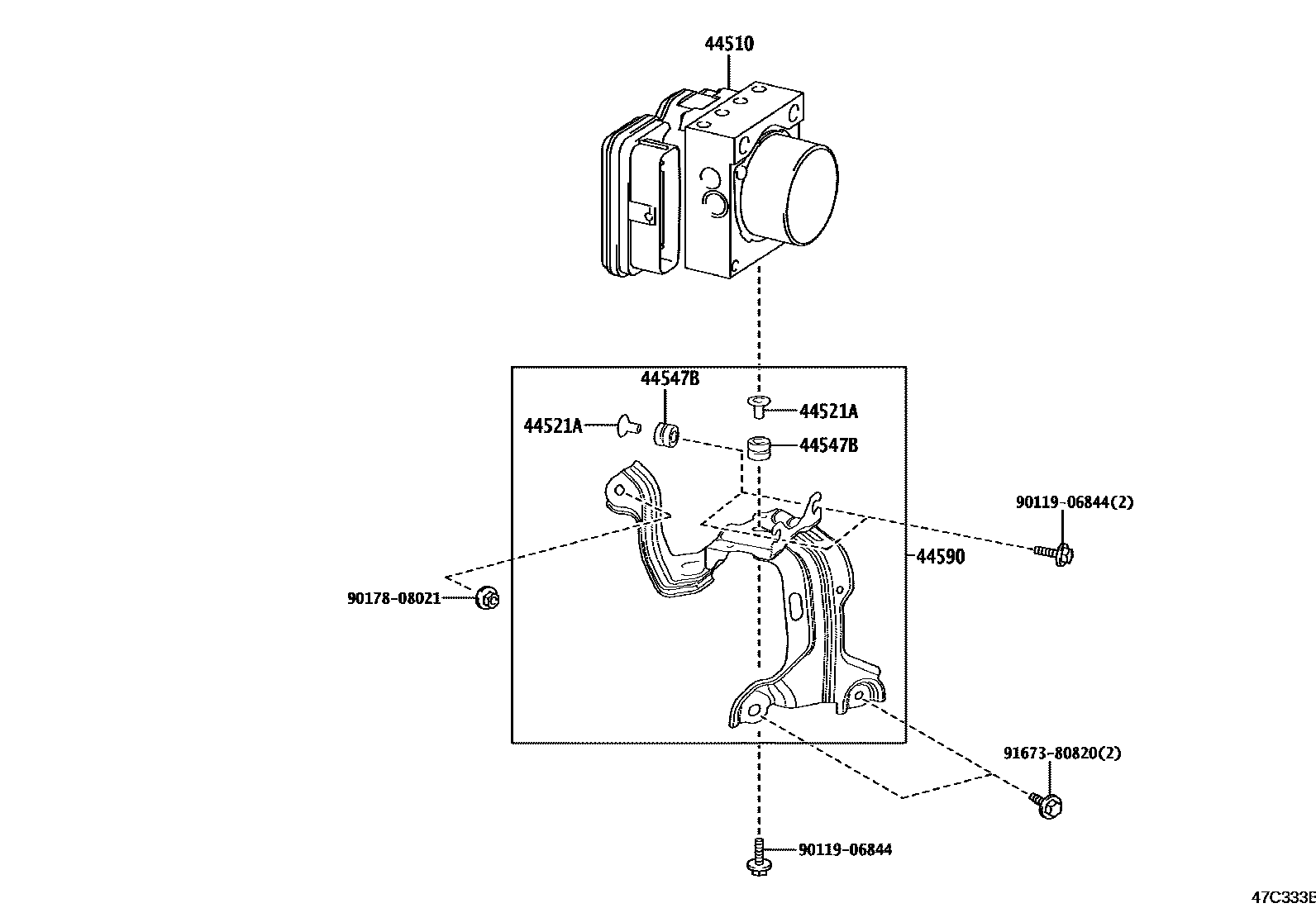

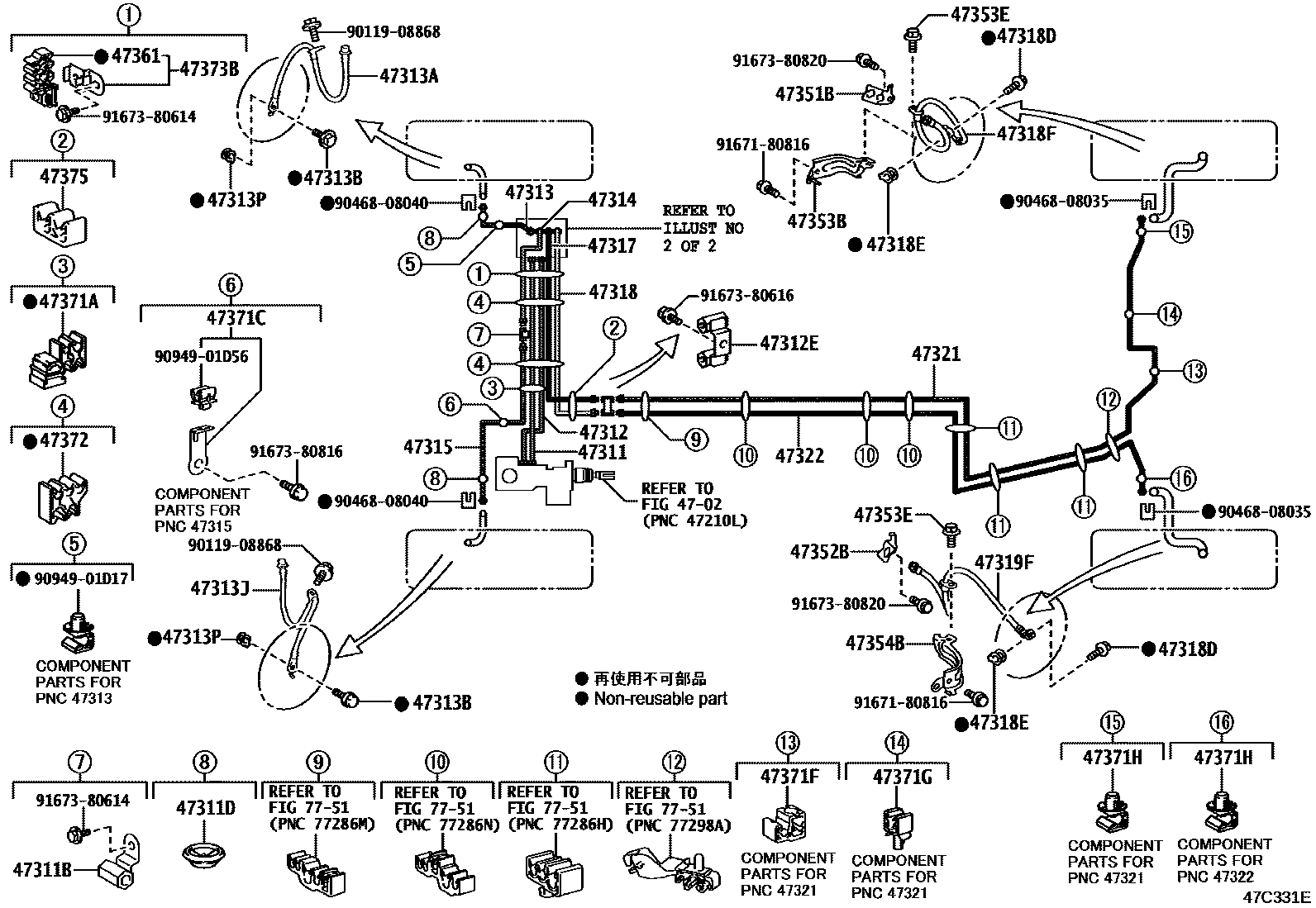

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 4 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-42J70 · 44050-42J71 · 44050-42J72 · 44050-42P00 · 44050-42P01 · 44050-42Q80 · 44050-42R00 · 44050-42R10 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 |
| 44521B | COLLIER, BOITIER ACTIONNEUR FREIN, NO.2 | 44521-47010 |
| 44547B | brake actuator bracket cushion | 44546-12120 |
| 44590 | Brake actuator bracket assembly | 44590-42190 · 44590-42200 |
| 47070 | Brake booster pump assembly | 47070-42080 |
| 47311 | No. 1 front brake pipe | 47311-42260 · 47311-42270 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 · 90412-10285 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-42430 · 47312-42440 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10285 |
| 47313 | No. 3 front brake pipe | 47313-42460 · 47313-42470 |
| 47313A | No. 1 front flexible hose | 90947-02J12 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02J15 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-42280 |
| 47315 | No. 5 front brake pipe | 47315-42310 · 47315-42320 |
| 47317 | No. 7 front brake pipe | 47317-42290 · 47317-42300 |
| 47318 | No. 8 front brake pipe | 47318-42290 · 47318-42300 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02J43 |
| 47319F | Left rear flexible hose | 90947-02J44 |
| 47321 | No. 1 rear brake pipe | 47321-42220 |
| 47322 | No. 2 rear brake pipe | 47322-42200 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-10110 |
| 47353E | BOULON(POUR SUPPORT TUYAU FLEXIBLE) | 90119-08868 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-10060 |
| 47361 | pipe clamp | 90949-01E31 |
| 47371A | No. 1 brake pipe clamp | 90949-01E30 · 90949-01E43 |
| 47371B | No. 6 brake pipe clamp | 90464-00903 |
| 47371C | No. 7 brake pipe clamp | 47371-42140 · 90949-01D17 |
| 47371D | No. 8 brake pipe clamp | 47371-42180 |
| 47371E | No. 9 brake pipe clamp | 90461-10854 |
| 47371F | No. 10 brake pipe clamp | 90949-01C82 |
| 47371G | No. 11 brake pipe clamp | 90949-01E01 |
| 47371H | No. 12 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90949-01E30 · 90949-01E40 |
| 47373B | No. 3 brake pipe clamp | 47371-42150 |
| 47374B | No. 4 brake pipe clamp | 90949-01E40 |
| 47375 | No. 5 brake pipe clamp | 90464-00903 · 90949-01E23 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-42200 |
| 473A1 | TUYAU, ACCUMULATEUR AU MAITRE-CYLINDRE DE FREIN | 473A1-42030 |
| 47965 | brake booster pump bushing | 47965-30010 |
