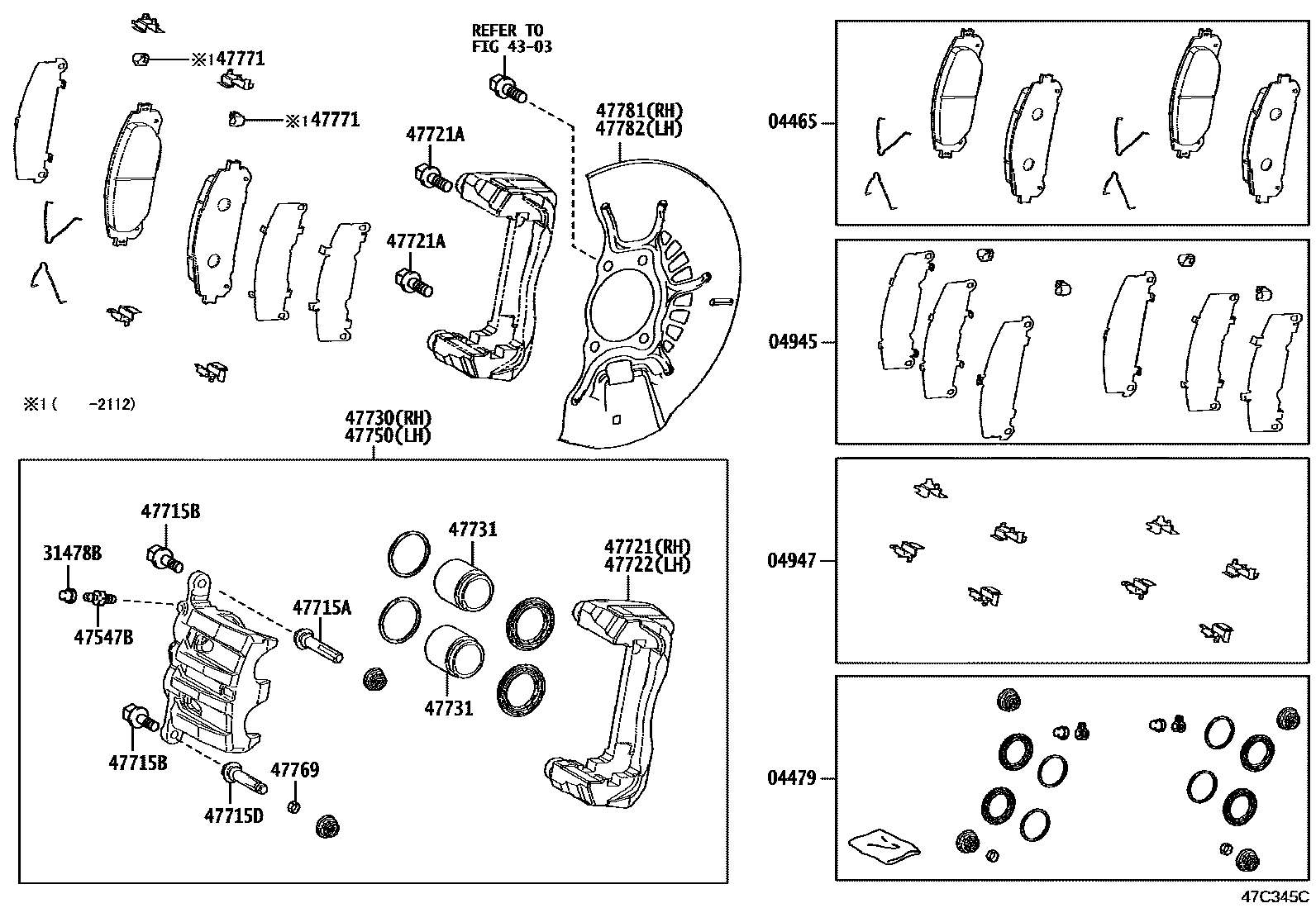

Toyota RAV4 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota RAV4 EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-48240 · 04465-78030 |
| 04479 | Front disc brake cylinder assembly | 04478-48210 |
| 04945 | Front silencer gasket assembly | 04945-48180 · 04945-48200 |
| 04947 | Front disc brake mounting kit | 04947-48090 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47715A | Front disc brake cylinder sliding pin | 47714-48200 |
| 47715B | Slide bolt (for front disc brake cylinder) | 90015-AA605 · 90015-AA608 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-48200 |
| 47721 | Right front disc brake cylinder retainer | 47721-48200 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90105-12401 |
| 47722 | Left front disc brake cylinder retainer | 47722-48170 |
| 47730 | Right front disc brake cylinder assembly | 47730-48200 |
| 47731 | Front disc brake piston | 47731-48200 |
| 47750 | Left disc brake cylinder assembly | 47750-48170 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-0E070 |
| 47771 | No. 1 pad wear indicator plate | 47771-33380 |
| 47781 | Right front disc brake dust cover | 47781-42060 |
| 47782 | Left front disc brake dust cover | 47782-42060 |
