Toyota RAV4 前转向齿轮和连杆 — Figure 4505

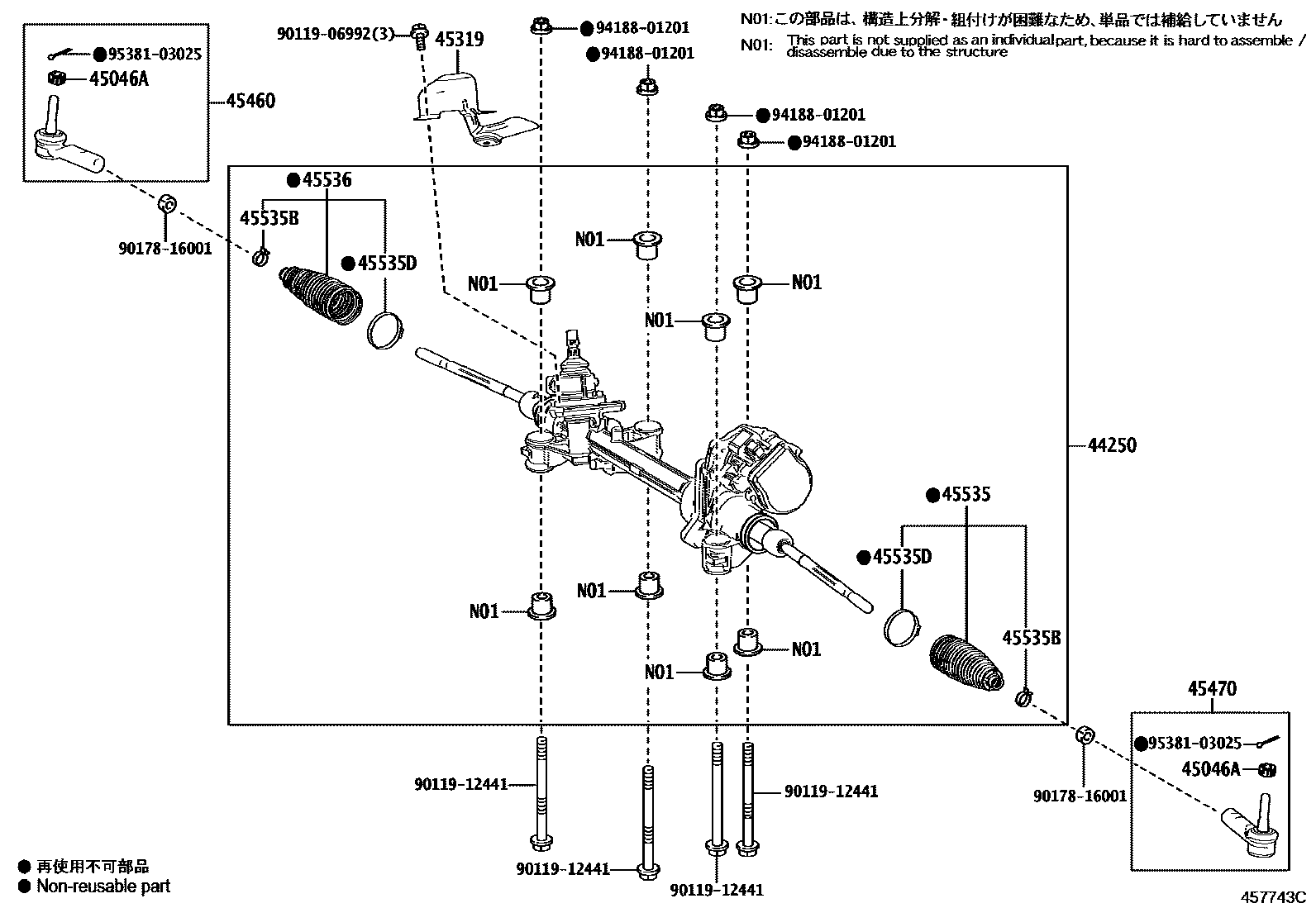

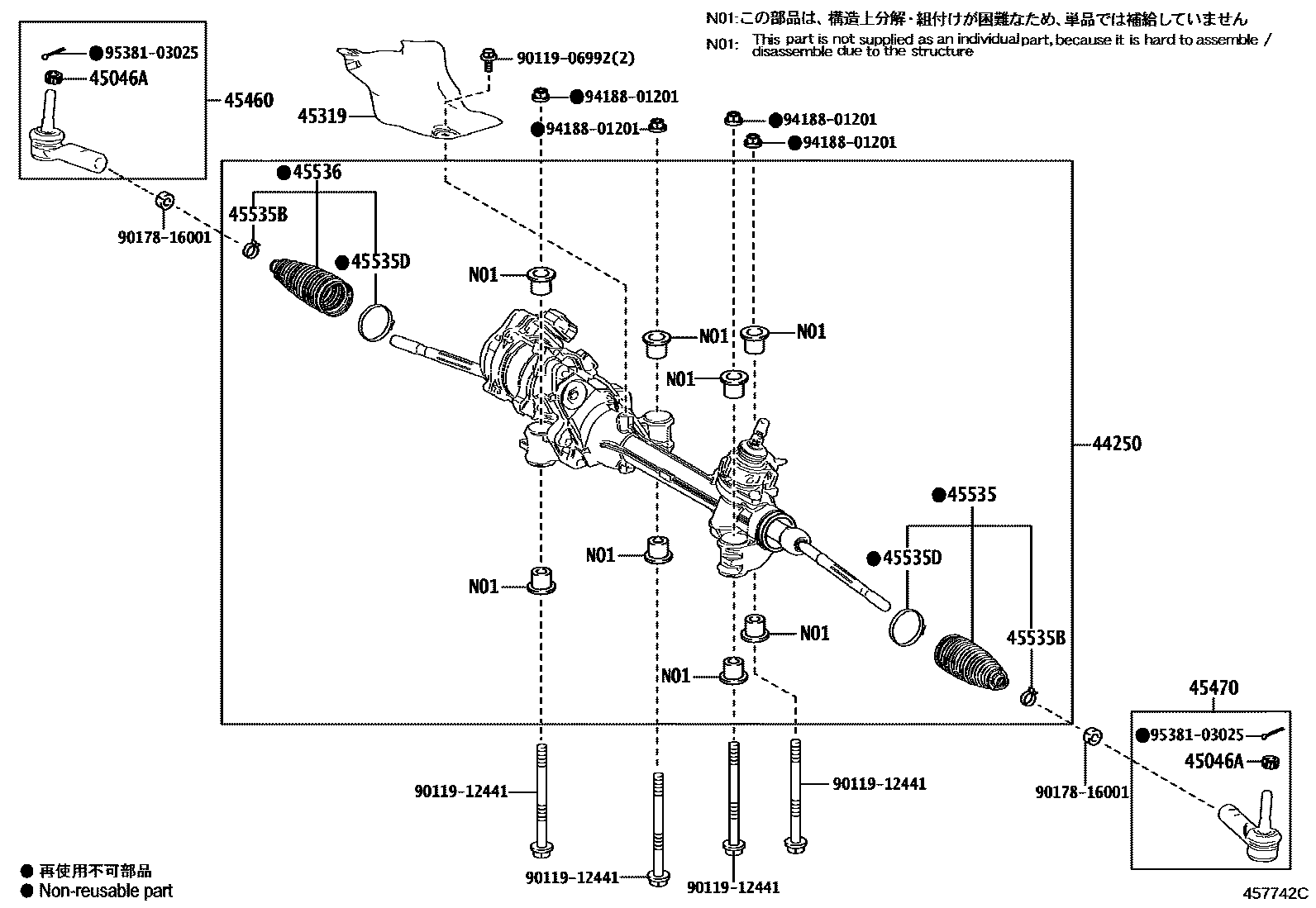

Toyota RAV4 EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-42310 · 44250-42311 · 44250-42320 · 44250-42321 · 44250-42330 · 44250-42331 · 44250-42340 · 44250-42341 · 44250-42350 · 44250-42351 · 44250-42460 · 44250-42470 · 44250-42610 · 44250-42620 · 44250-42630 · 44250-42640 · 44250-42650 · 44250-42660 · 44250-42680 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12015 |
| 45319 | Steering gear heat insulation pad | 45319-42020 · 45319-42030 |
| 45460 | Right tie rod assembly | 45460-49095 |
| 45470 | Left tie rod assembly | 45460-49095 |
| 45535 | No. 1 steering rack dust cover | 45535-49095 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-06030 |
| 45536 | No. 2 steering rack dust cover | 45535-49095 |
