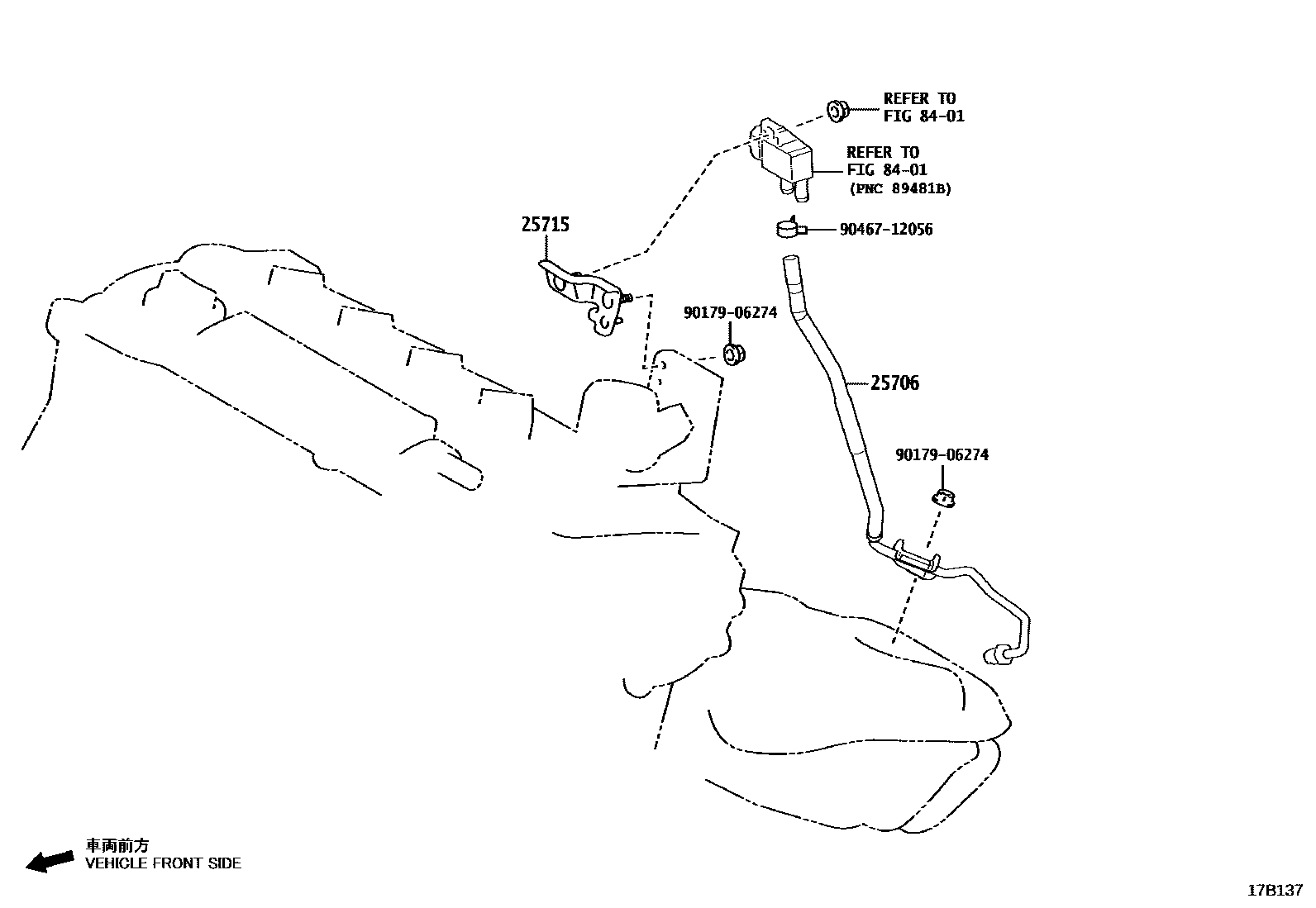

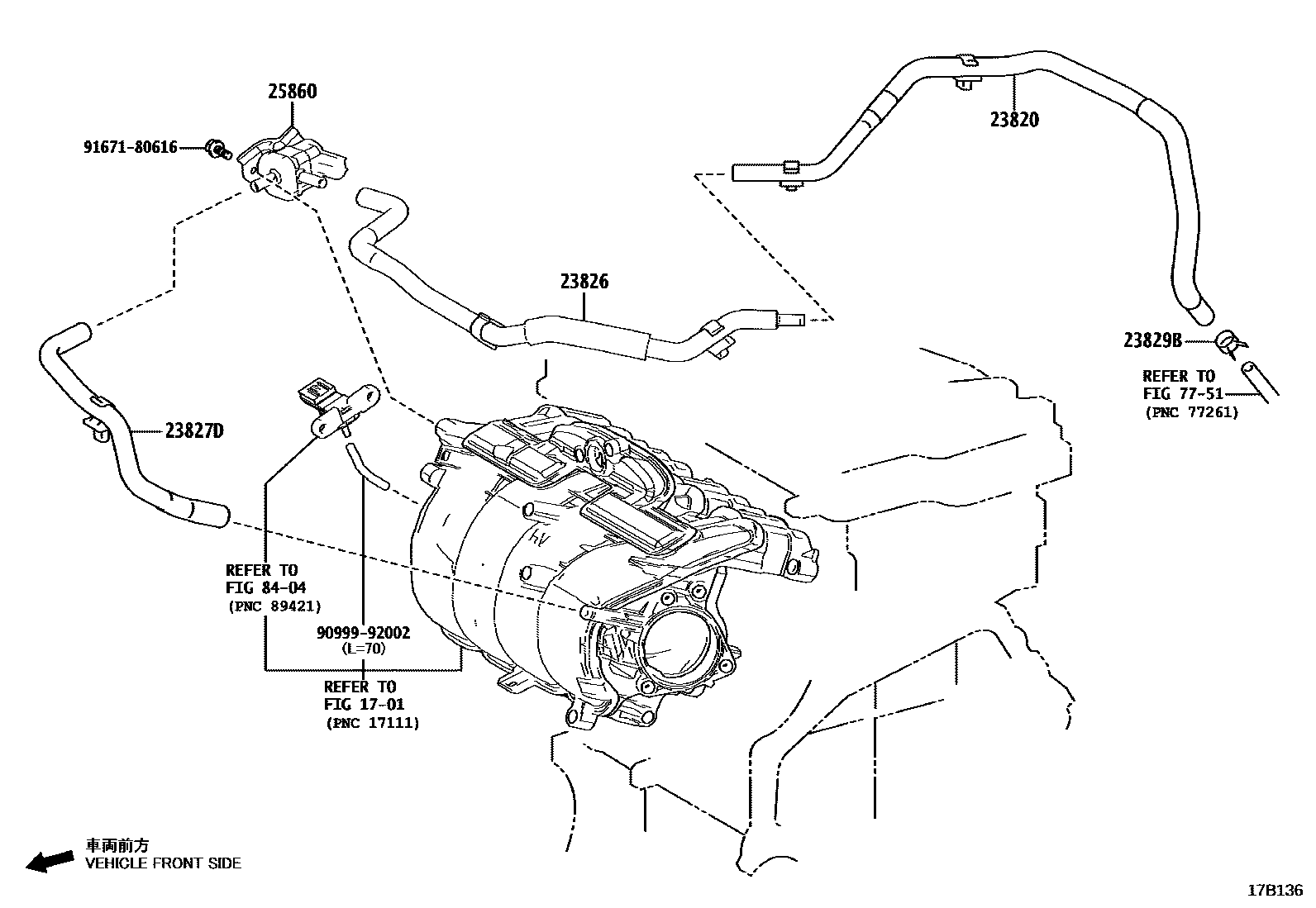

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-25200 · 23820-25600 |
| 23826 | No. 1 fuel vapor supply hose | 23820-25051 |
| 23827D | No. 2 fuel vapor supply hose | 23820-25130 |
| 23829B | Clamp (for fuel vapor supply hose) | 96136-41801 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-25010 |
| 25715 | Emission control valve bracket | 25715-25010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-25020 |
