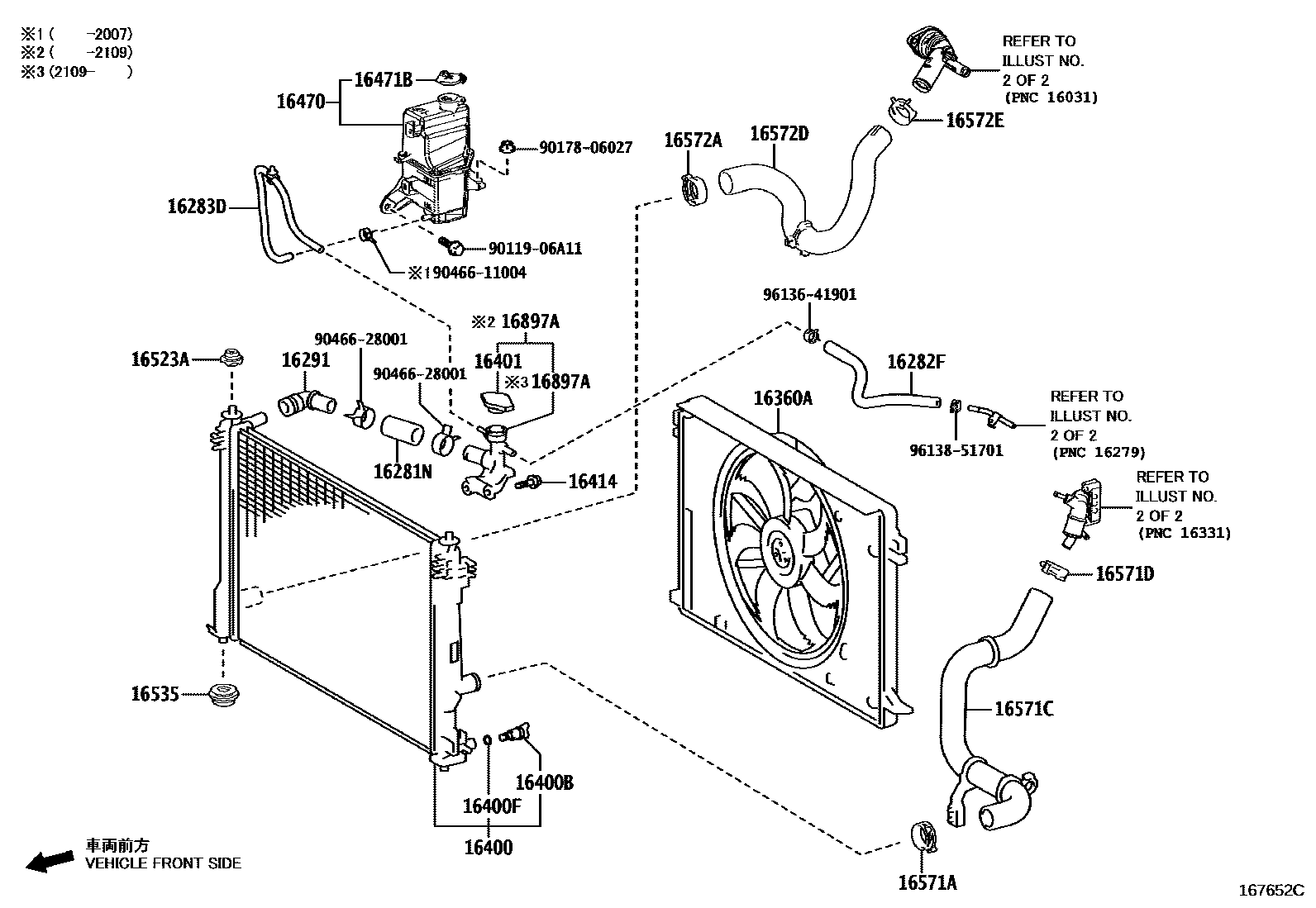

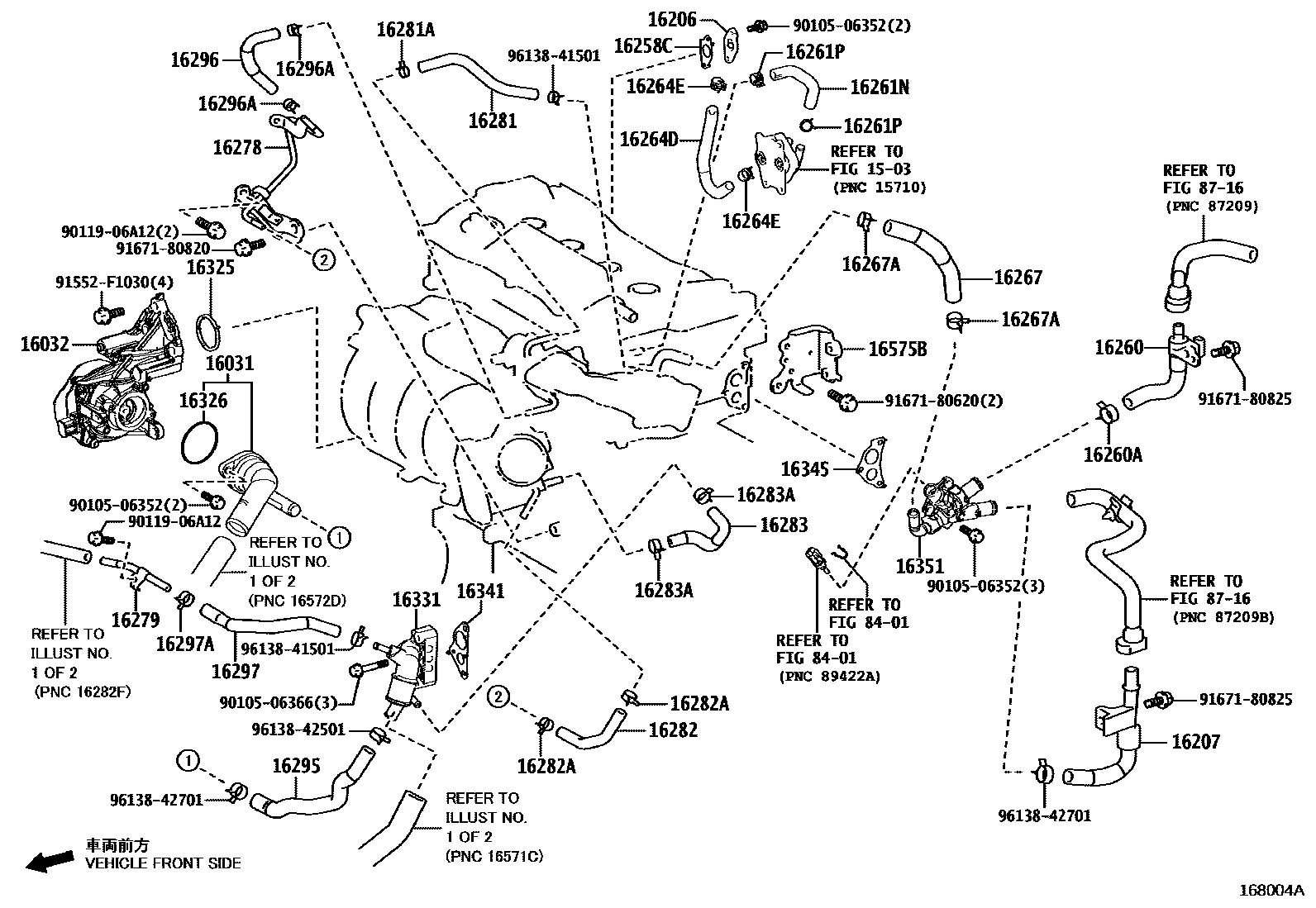

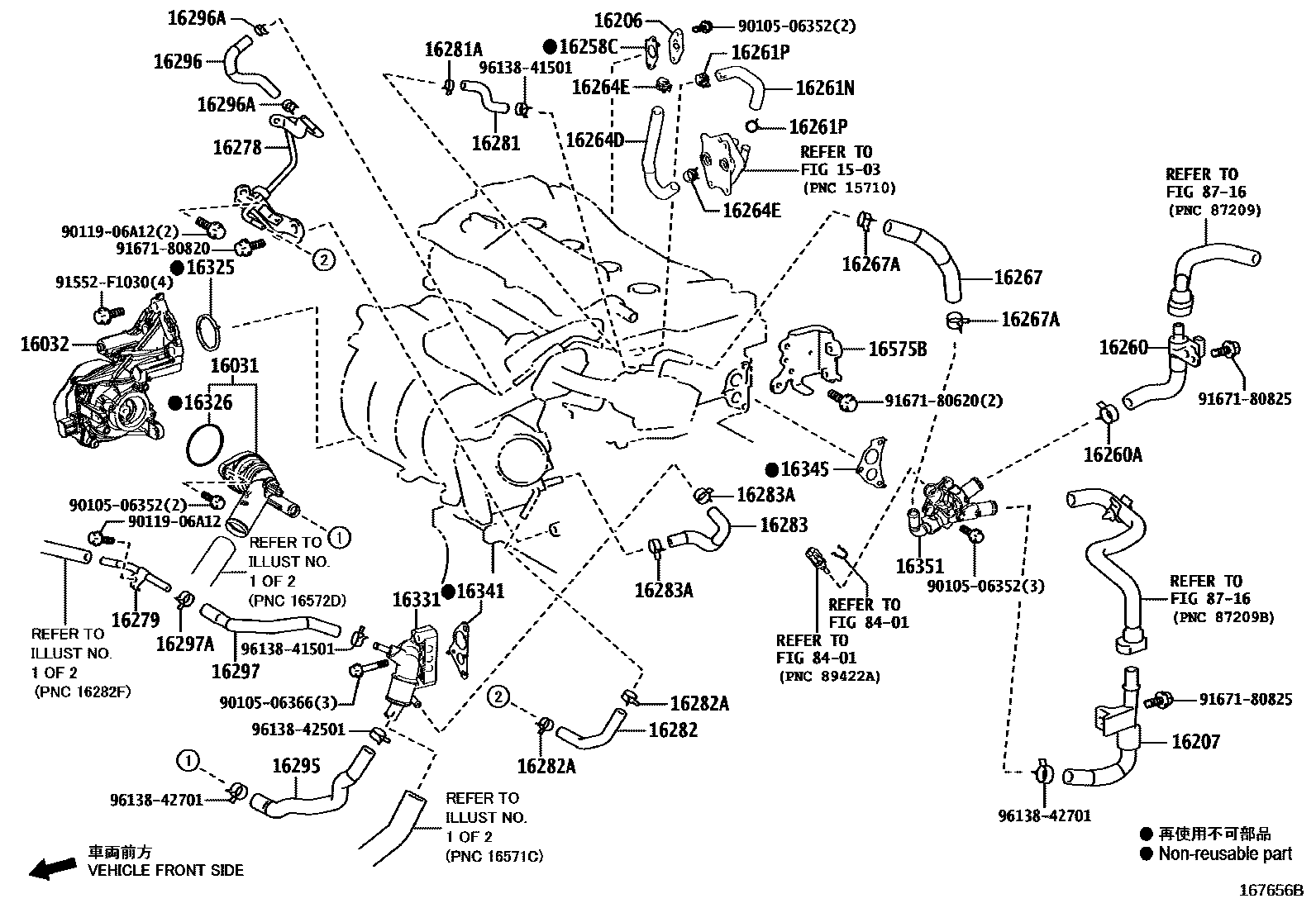

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-25011 · 16031-25040 |
| 16032 | SOUS-ENS. LOGEMENT, ENTREE EAU AV POMPE EAU | 16032-25010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-25030 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-25010 |
| 16258C | Gasket (for water bypass pipe) | 16258-25010 |
| 16260 | Water bypass hose assembly | 16260-25021 |
| 16260A | Clamp (for water bypass hose assembly) | 96138-42701 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-25050 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42101 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-25030 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-25020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-25030 |
| 16279 | No. 3 water bypass pipe | 16279-25020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-25021 · 99555-10200 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16281N | FLEX, DERIVATION EAU, NO.4 | 16281-25040 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-25040 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16282F | FLEX, DERIVATION EAU, NO.5 | 16282-25100 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-25020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-41501 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-25070 |
| 16291 | water hose connector | 16291-25020 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-25010 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-25020 · 16296-25060 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-25020 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-25010 · 16326-47020 |
| 16331 | Water outlet | 16331-25030 |
| 16341 | GASKET, WATER OUTLET | 16341-25010 |
| 16345 | Outlet pipe gasket | 16345-25030 |
| 16351 | water bypass outlet | 16351-25040 |
| 16360A | Fan assembly with motor | 16360-25030 |
| 16400 | Radiator assembly | 16400-25130 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-36030 |
| 16414 | Radiator tank pipe bolts | 90119-06A11 |
| 16470 | Radiator reservoir assembly | 16470-25050 |
| 16471B | Reservoir tank cover | 16471-23010 |
| 16523A | Radiator bracket cushion | 16523-25010 |
| 16535 | Radiator lower support | 16535-28030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-39002 |
| 16571C | Radiator hose No. 1 | 16571-25120 |
| 16571D | No. 1 radiator hose clip | 90466-43002 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-39002 |
| 16572D | Radiator hose No. 2 | 16572-25060 |
| 16572E | No. 2 radiator hose clip | 90466-43002 |
| 16575B | No. 2 water hose clamp bracket | 16575-25050 |
| 16897A | Filling port neck | 16897-25040 · 16897-25041 |
