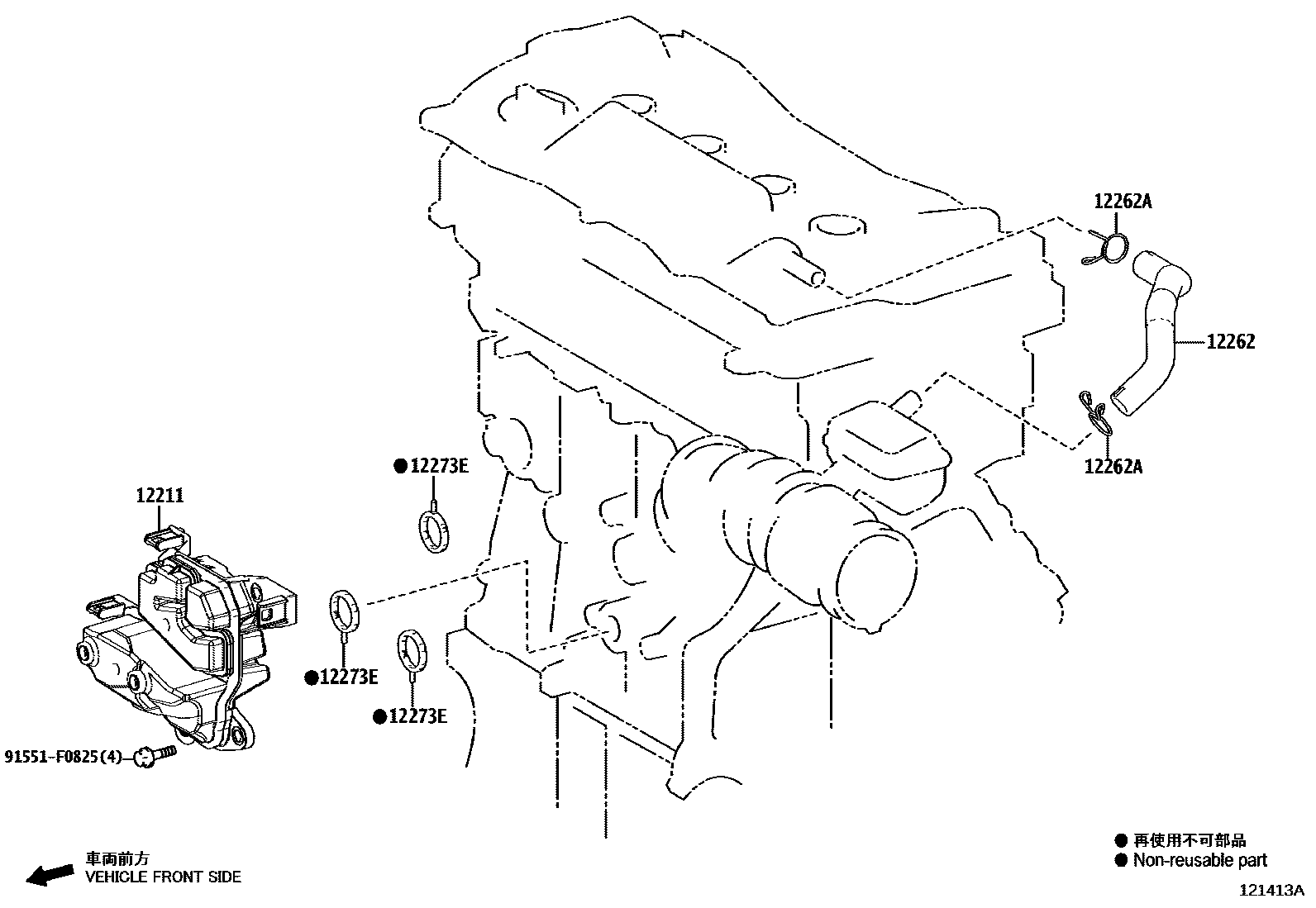

Toyota RAV4 Ventilation Hose — Figure 1201
Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12211 | Ventilation box No. 1 | 12211-25010 · 12211-25011 |
| 12262 | Ventilation hose No. 2 | 12262-25080 |
| 12262A | Clamp (for vent hose No. 2) | 90467-21004 |
| 12273E | JOINT(POUR CARTER VENTILATION) | 12273-24010 |
