Toyota RAV4 Engine Mounting — Figure 1107

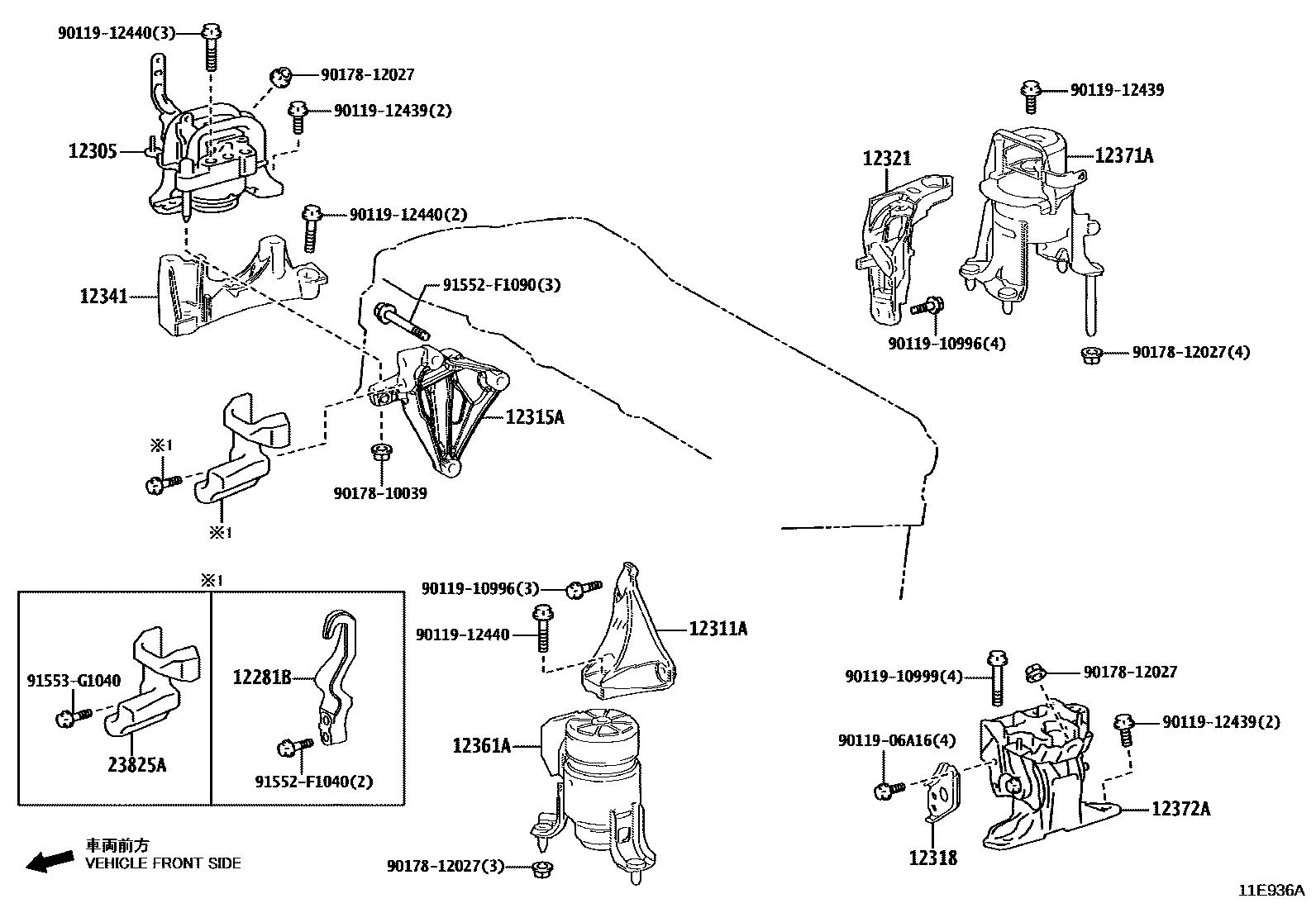

Toyota RAV4 EPC diagram 1107, Engine Mounting, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | CROCHET SUSPENSION MOTEUR NO.1 | 12281-25030 · 12281-25050 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-25050 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-25120 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25031 |
| 12318 | Engine left mounting bracket | 12318-25040 |
| 12321 | Engine No. 1 rear suspension bracket | 12321-25050 |
| 12341 | engine mounting spacer | 12341-25010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-25110 |
| 12371A | Engine rear mount vibration isolation pad | 12371-25100 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-25040 |
| 23825A | PROTECTION, ALIM CARBURANT | 23825-25010 |
