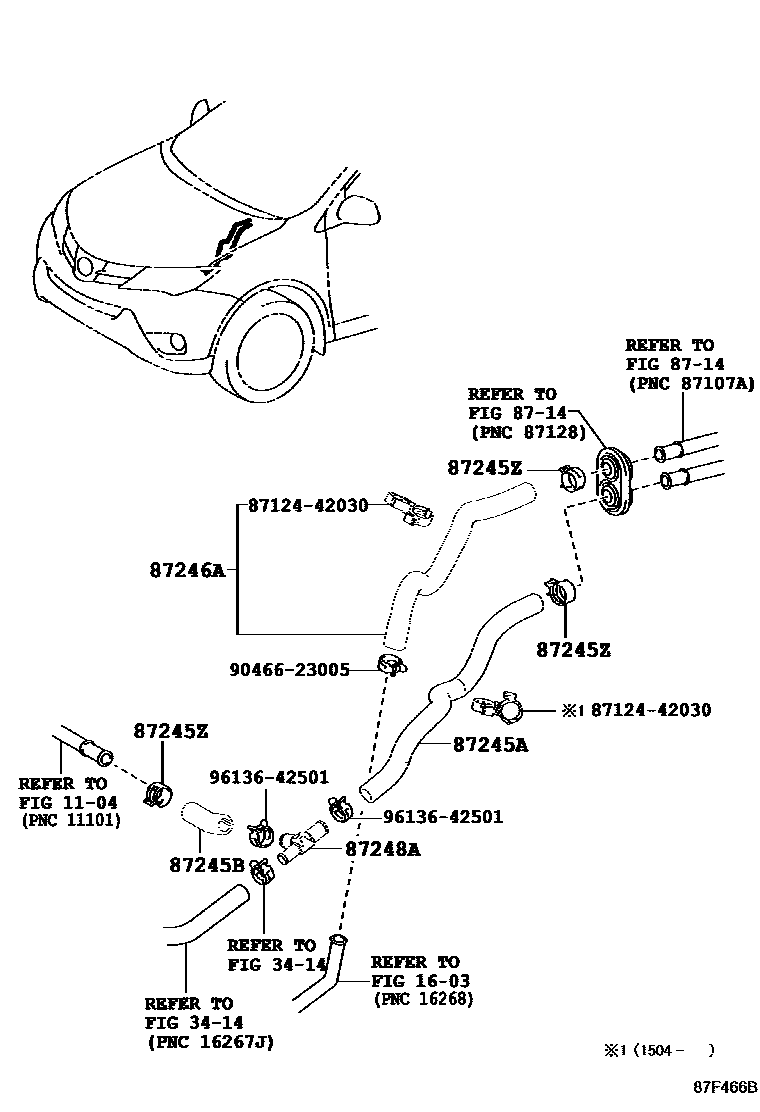

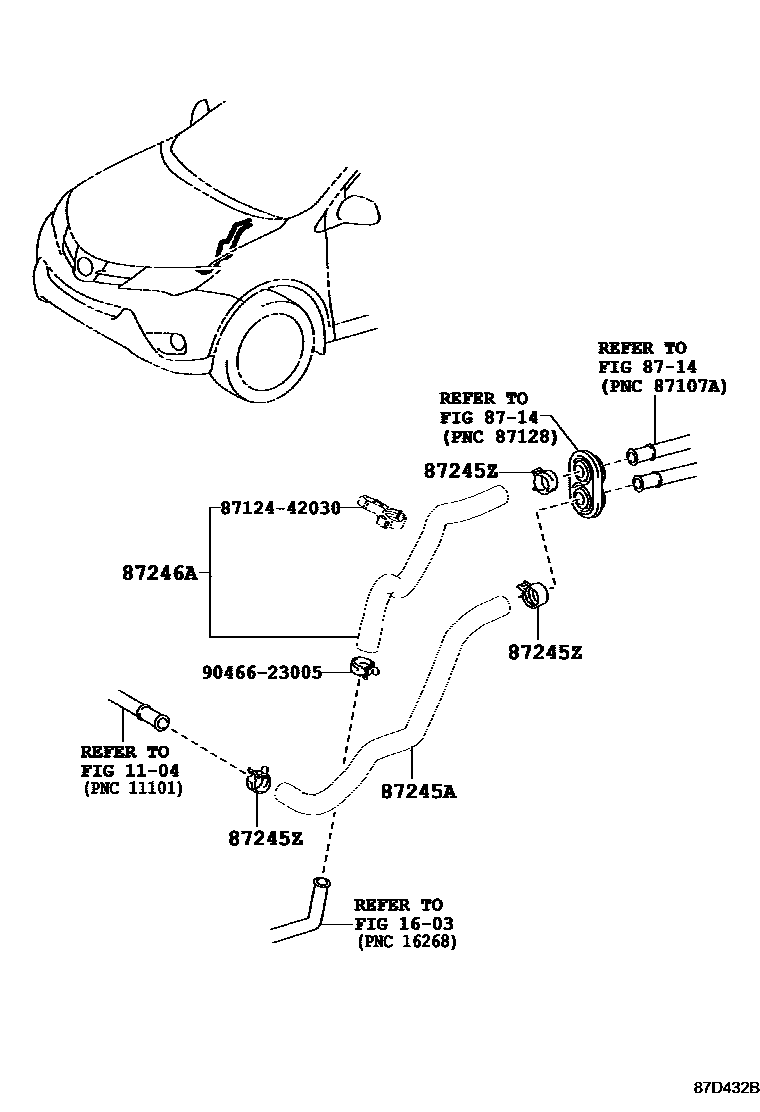

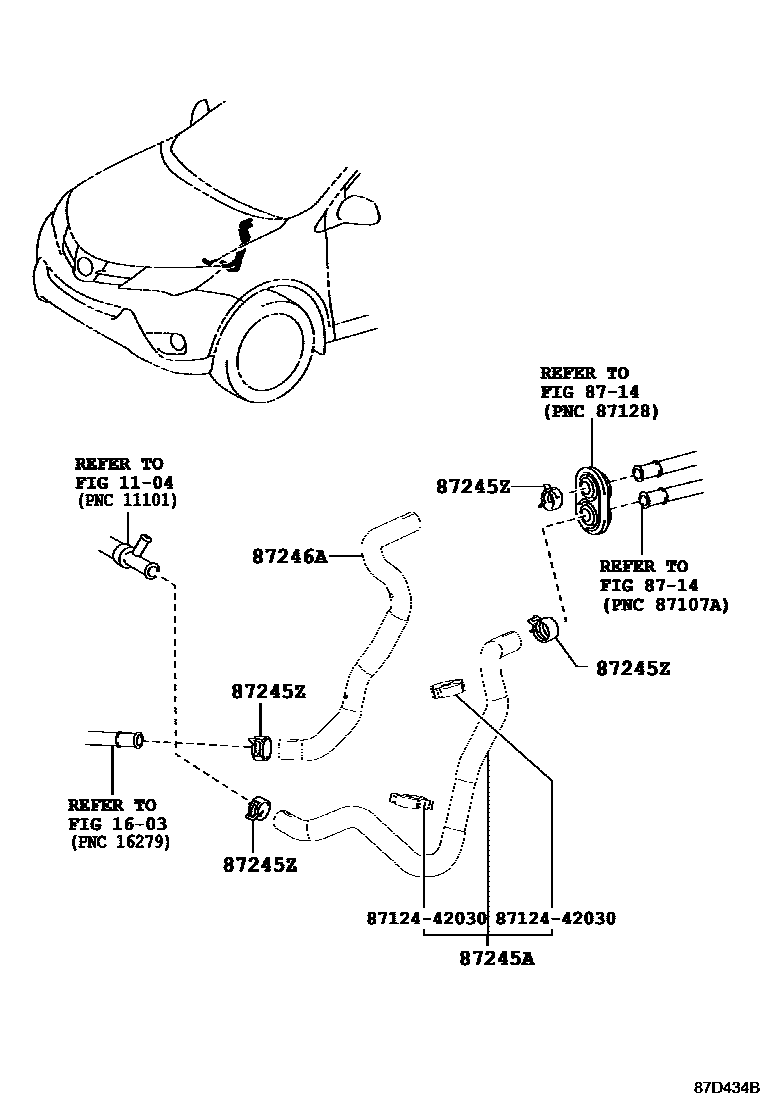

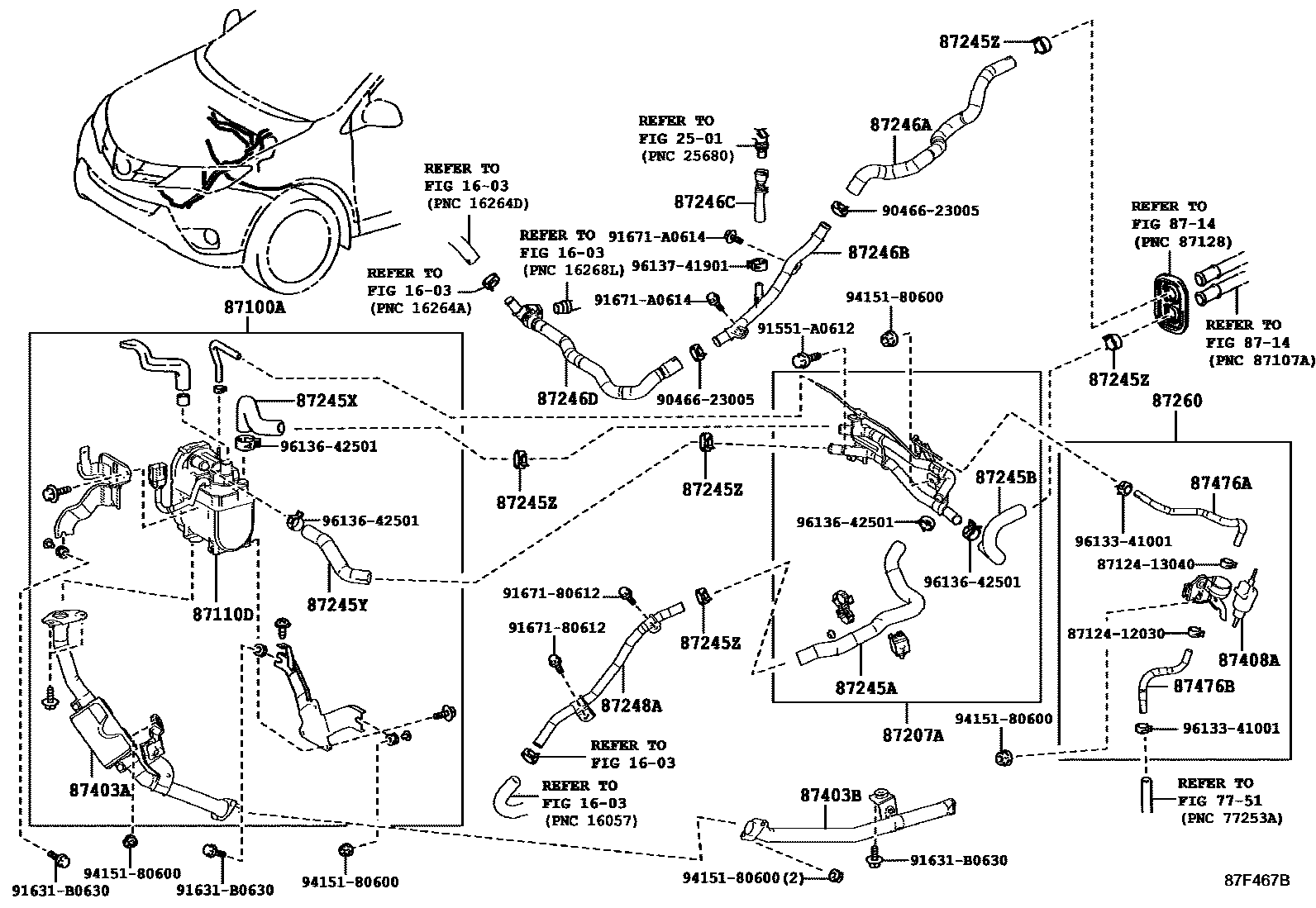

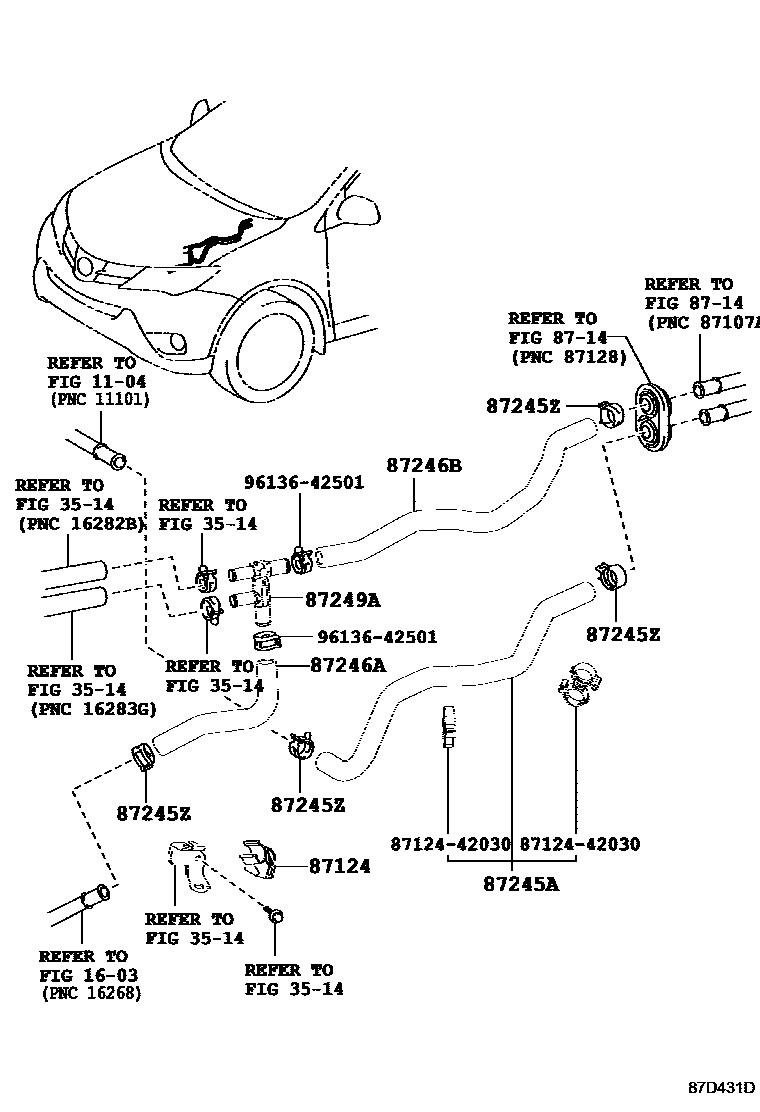

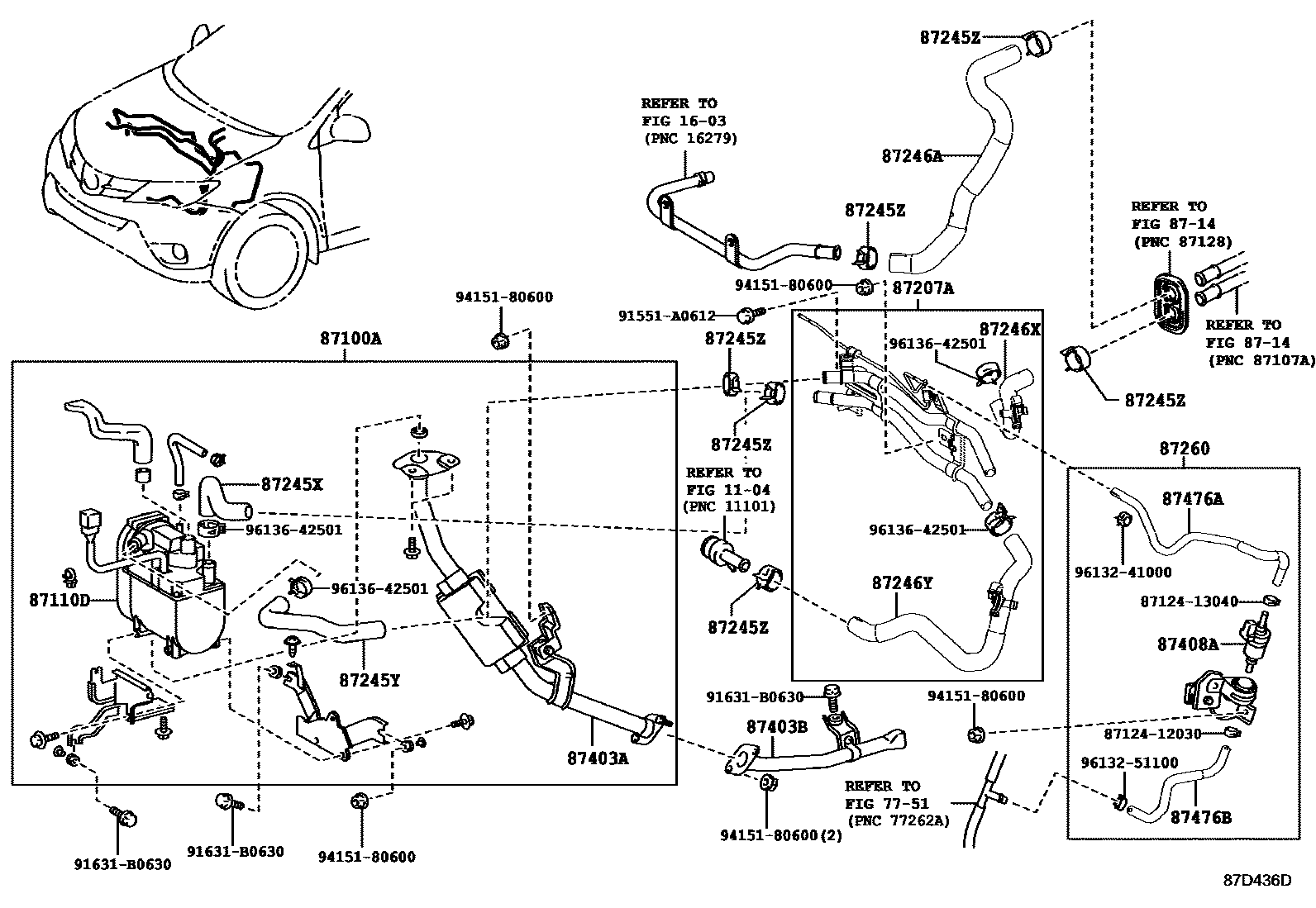

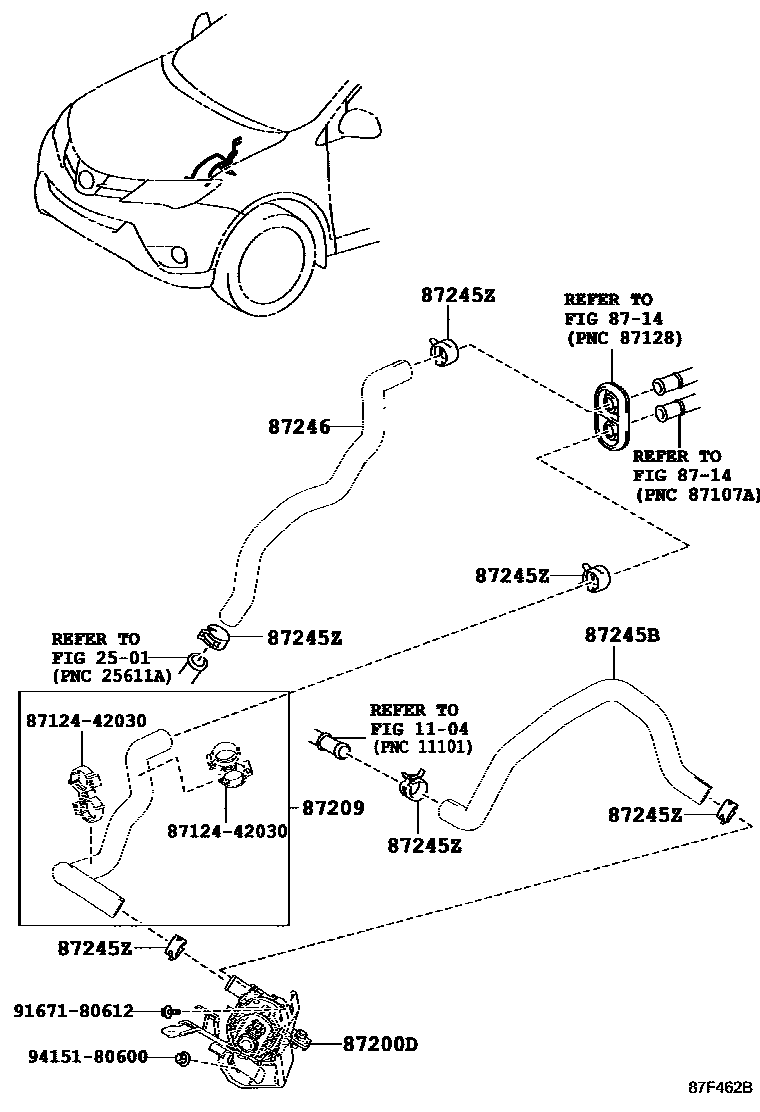

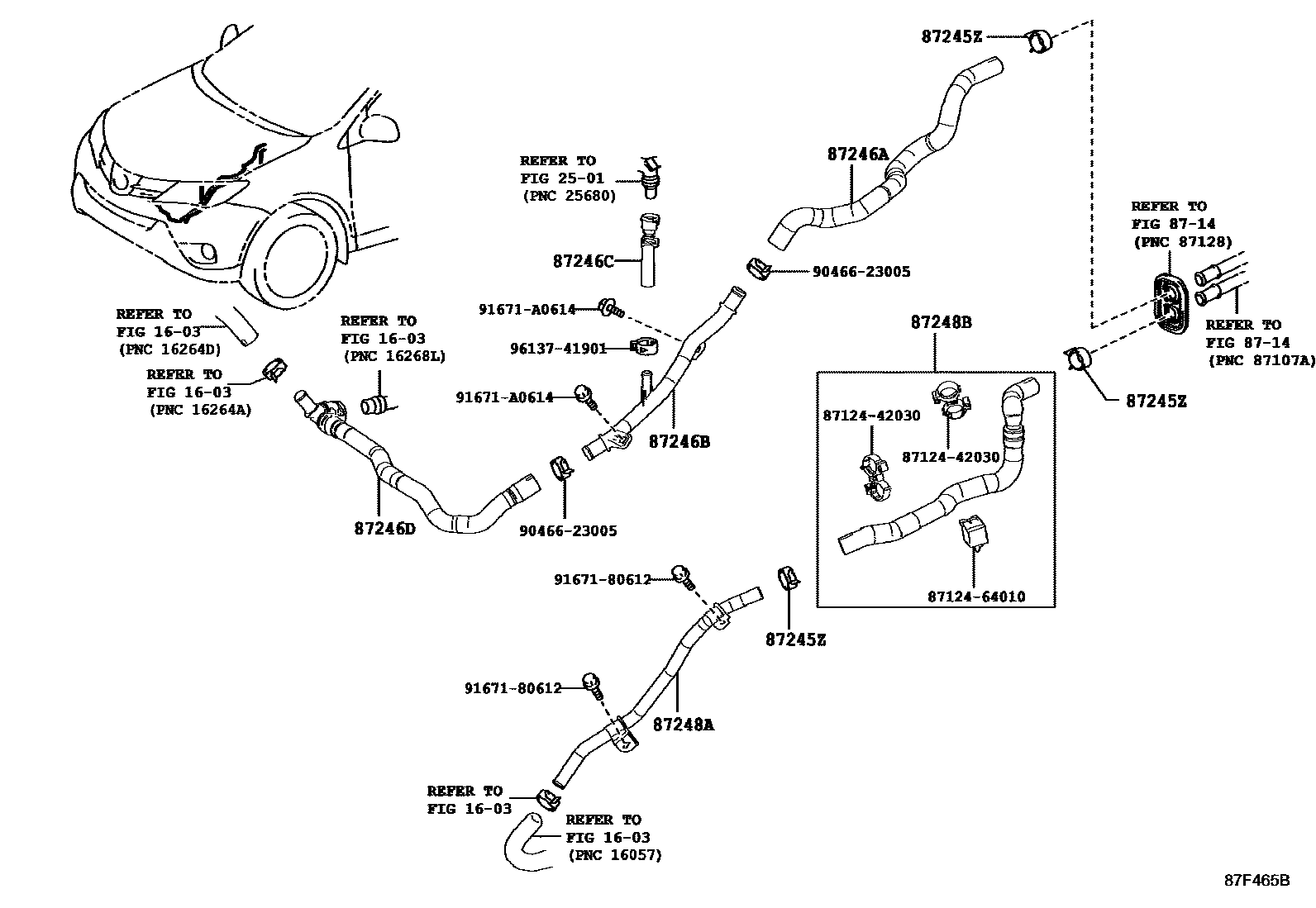

Toyota RAV4 暖风和空调系统 - 水管 — Figure 8716
Toyota RAV4 EPC diagram 8716, 暖风和空调系统 - 水管, with 9 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87100A | Heater and accessories assembly | 87100-42030 · 87100-42040 |
| 87110D | heater assembly | 87110-42010 · 87110-42030 |
| 87124 | heater clip | 87124-42050 |
| 87200D | Heater accessory assembly | 87200-48110 |
| 87207A | Water pipe and hose sub-assembly A | 87207-42020 · 87207-42030 |
| 87209 | Water hose sub-assembly | 87209-78050 |
| 87245A | Heater water inlet hose A | 87209-42160 · 87209-42161 · 87209-42170 · 87209-42210 · 87245-42500 · 87245-42650 · 87245-48C90 |
| 87245B | Heater water inlet hose B | 87245-42440 · 87245-42640 · 87245-48B40 |
| 87245X | heater water hose | 87245-42550 |
| 87245Y | heater water hose | 87245-42560 · 87245-42660 |
| 87245Z | Clip or clip (for heater water hose) | 96136-42501 · 96138-42501 |
| 87246 | Heater outlet hose | 87245-78080 |
| 87246A | Heater outlet hose A | 87245-42470 · 87245-42480 · 87245-42481 · 87245-42540 · 87245-42590 · 87245-42630 · 87245-48B60 |
| 87246B | Heater outlet hose B | 16578-0X011 · 87245-42530 |
| 87246C | Heater outlet hose C | 16281-0X020 |
| 87246D | Heater outlet hose D | 16260-0R010 |
| 87246X | heater water hose | 87245-42570 |
| 87246Y | heater water hose | 87245-42580 |
| 87248A | Heater water inlet pipe A | 87248-12310 · 87248-42050 |
| 87248B | Heater water inlet pipe B | 87209-42150 |
| 87249A | Heater outlet pipe A | 87248-33020 |
| 87260 | Heater pump assembly | 87260-42020 · 87260-42030 |
| 87403A | Exhaust pipe sub-assembly | 87403-42030 |
| 87403B | Exhaust pipe sub-assembly | 87403-42020 |
| 87408A | Fuel pump sub-assembly | 87408-0D011 |
| 87476A | Heater No. 1 fuel hose | 87476-42030 · 87476-42050 |
| 87476B | Heater No. 2 fuel hose | 87476-42010 · 87476-42040 |
