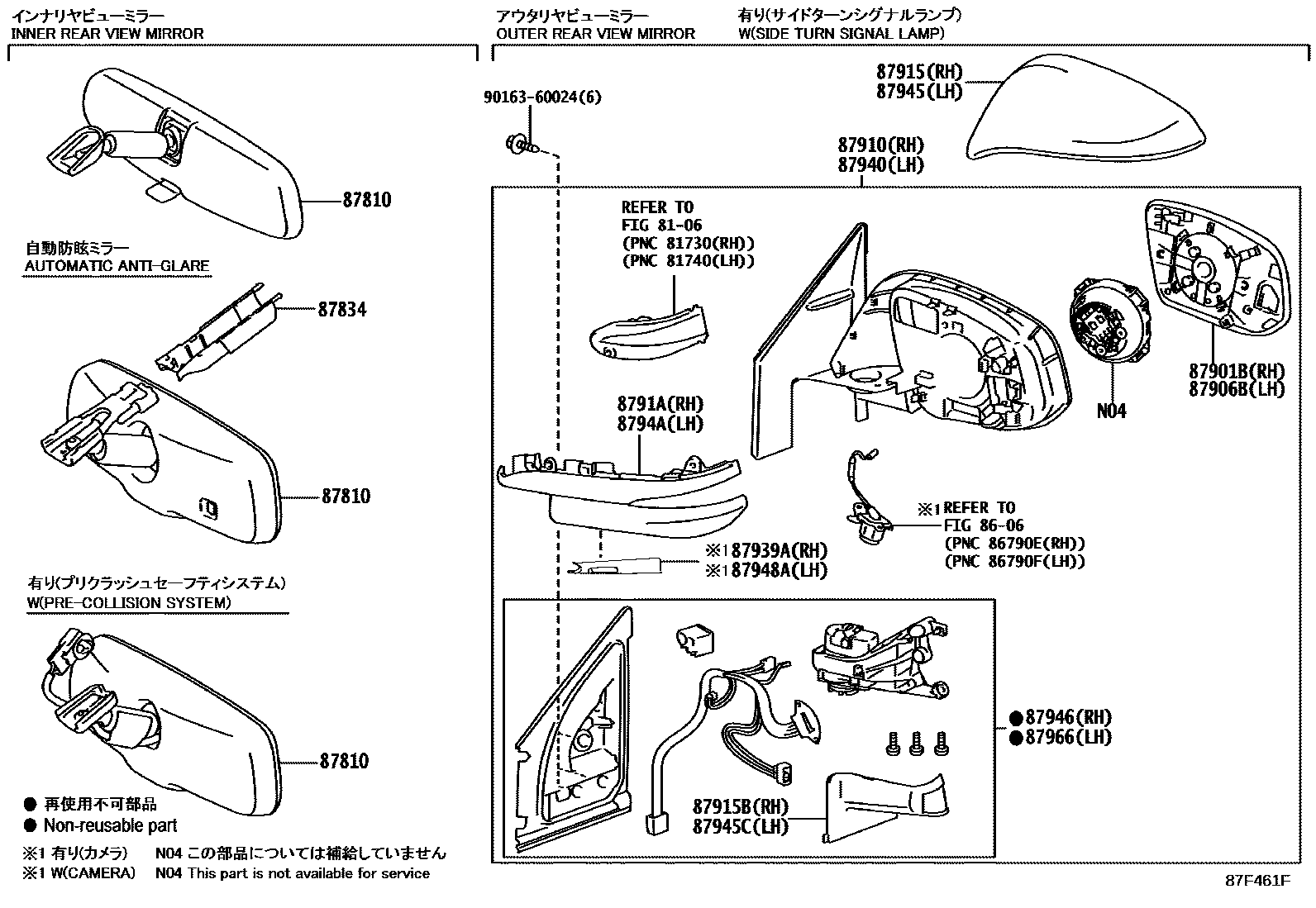

Toyota RAV4 后视镜 — Figure 8701
Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0WK00 · 87810-0WK20 · 87810-0WQ10 · 87810-0WQ40 · 87810-52041 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-47010 · 87818-76010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42C00 · 87931-42C10 · 87931-42C20 · 87931-42E20 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42B70 · 87961-42B80 · 87961-42B90 · 87961-42D90 |
| 87910 | Right exterior rearview mirror assembly | 87910-42C00 · 87910-42C10 · 87910-42C20 · 87910-42C50 · 87910-42C60 · 87910-42C70 · 87910-42D70 · 87910-42E20 · 87910-42G10 · 87910-42G20 · 87910-42G30 · 87910-42G40 · 87910-42G50 |
| 87915B | Right exterior rearview mirror lower cover | 87915-42140 · 87915-42170 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791B-35C00 · 8791B-42C10 |
| 87939A | Right exterior rearview mirror hole cover | 87939-42D70 |
| 87940 | Left exterior rearview mirror assembly | 87940-42B70 · 87940-42B80 · 87940-42B90 · 87940-42C20 · 87940-42C30 · 87940-42C40 · 87940-42D40 · 87940-42D90 · 87940-42F90 · 87940-42G00 · 87940-42G10 · 87940-42G20 · 87940-42G30 |
| 87945C | Left exterior rearview mirror lower cover | 87945-42140 · 87945-42170 |
| 87946 | Right exterior rearview mirror retractor | 00000-00000 · 87946-42C10 · 87946-42C20 · 87946-42C50 · 87946-42C70 |
| 87948A | Left exterior rearview mirror hole cover | 87948-42D40 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794B-35B70 · 8794B-42B80 |
| 87966 | Left exterior rearview mirror retractor | 00000-00000 · 87966-42B80 · 87966-42B90 · 87966-42C20 · 87966-42C40 |
