Toyota RAV4 车载电话和呼救装置 — Figure 8615

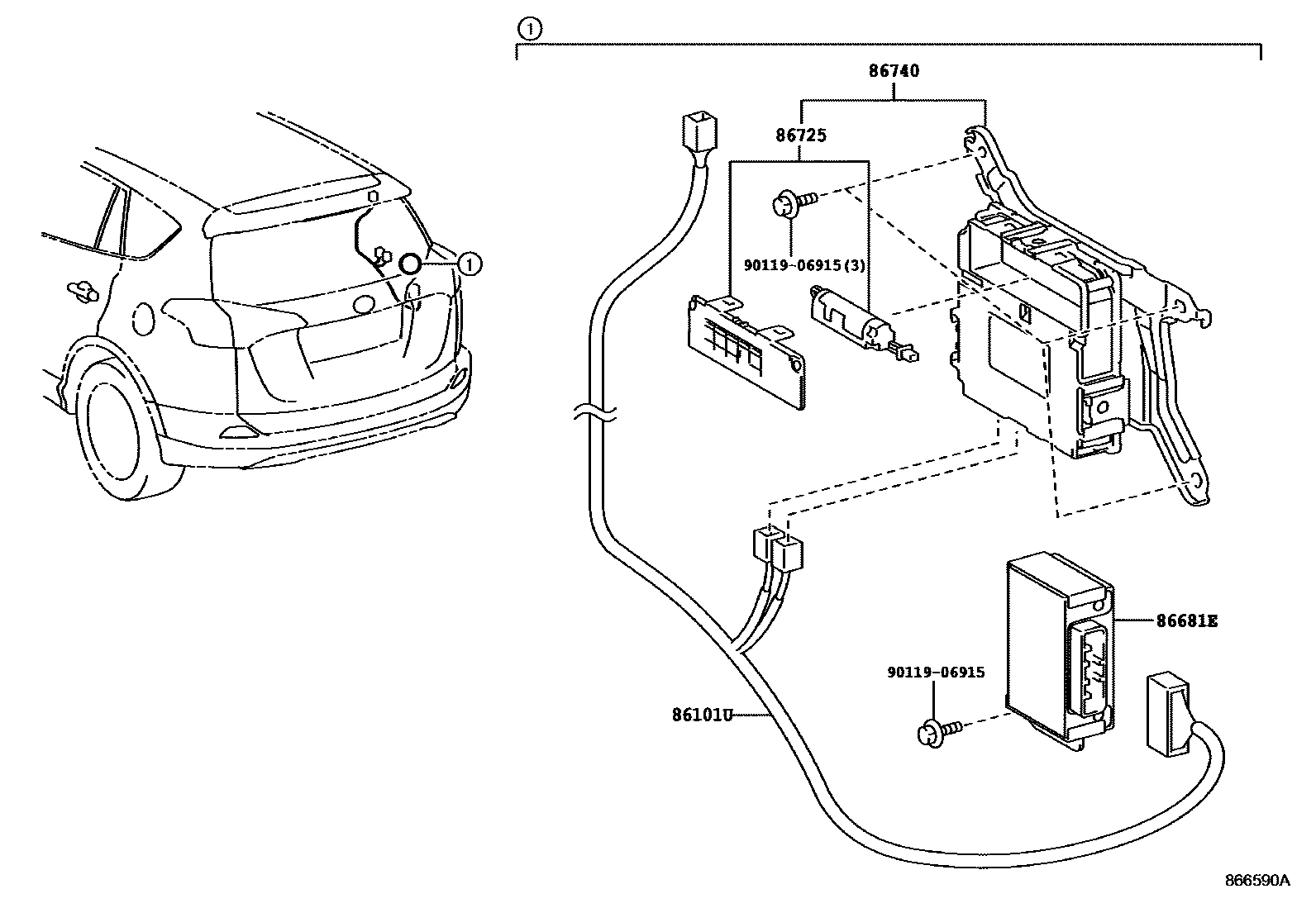

Toyota RAV4 EPC diagram 8615, 车载电话和呼救装置, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101U | Antenna wire sub-assembly | 86101-42A20 |
| 86681E | Antenna splitter | 86681-42020 |
| 86725 | mobile phone battery | 86725-48010 |
| 86740 | Telephone transceiver assembly | 86740-42060 |
