Toyota RAV4 扬声器 — Figure 8602

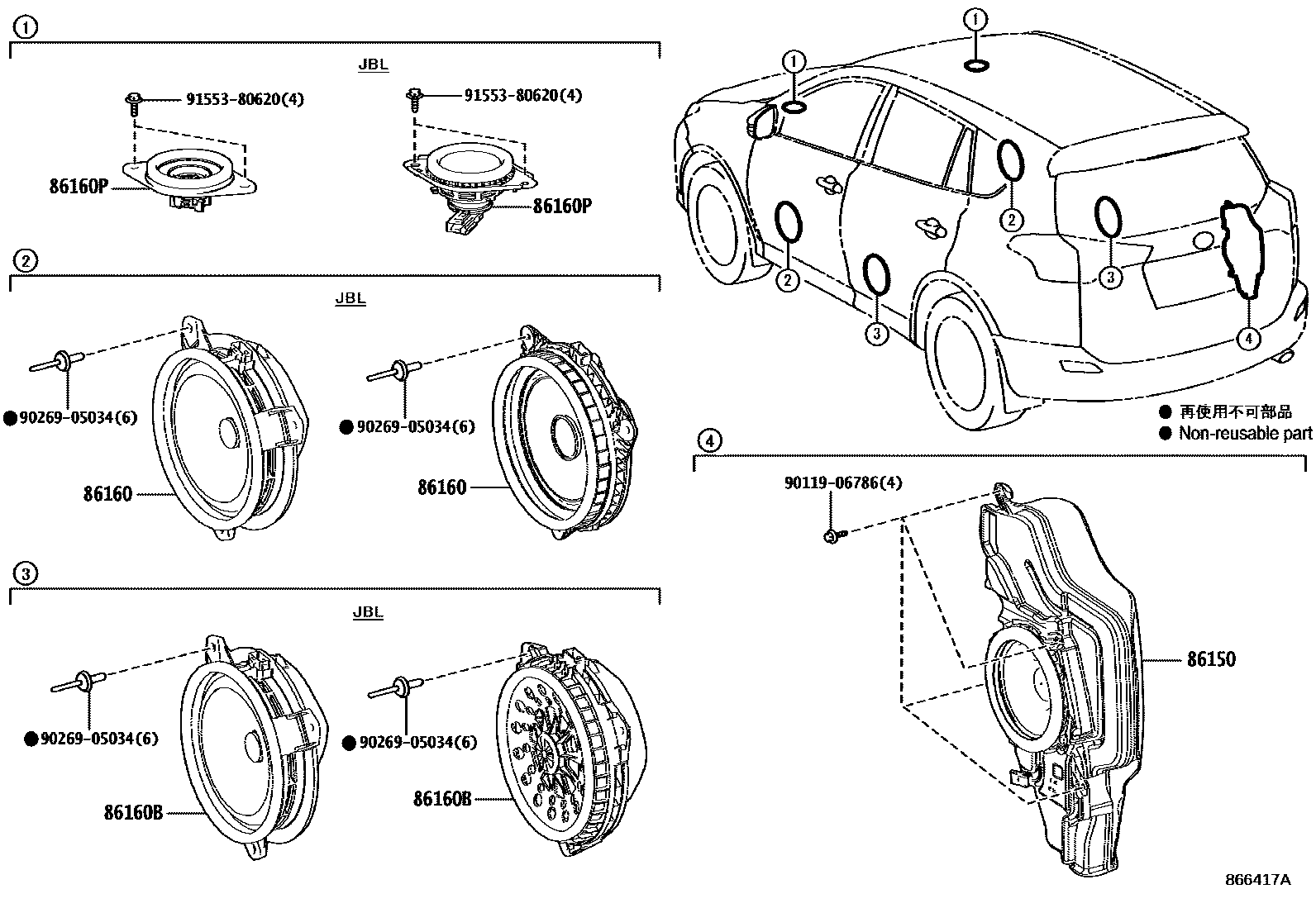

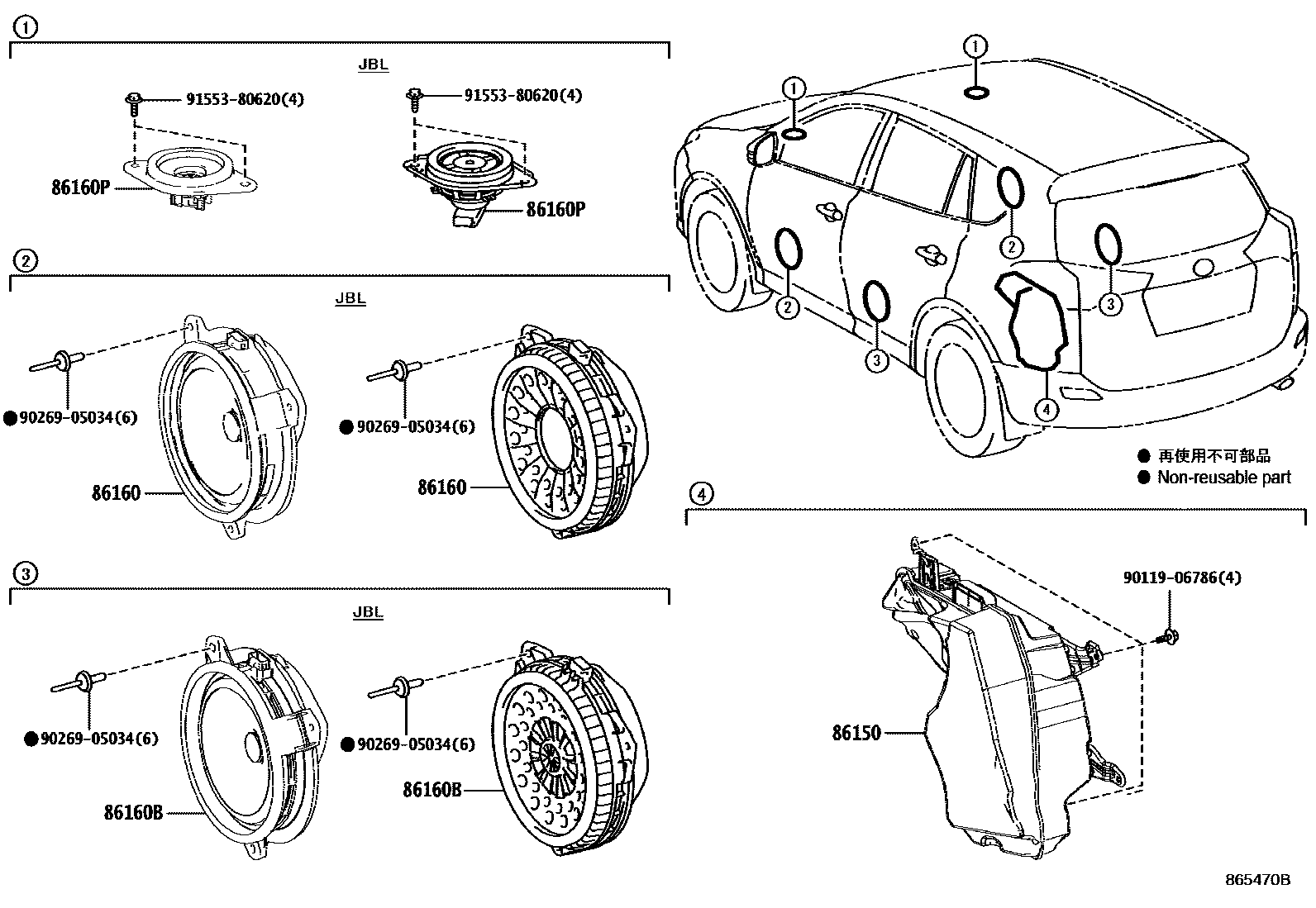

Toyota RAV4 EPC diagram 8602, 扬声器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-0R010 · 86150-0R030 · 86150-42060 |
| 86160 | No. 1 front speaker assembly | 86150-47010 · 86160-0R110 · 86160-0WX80 · 86160-52330 · 86160-52331 |
| 86160B | Rear speaker assembly | 86160-0R140 · 86160-47270 · 86160-52330 · 86160-52331 |
| 86160P | No. 2 front speaker assembly | 86150-42010 · 86160-0WU50 · 86160-33840 |
