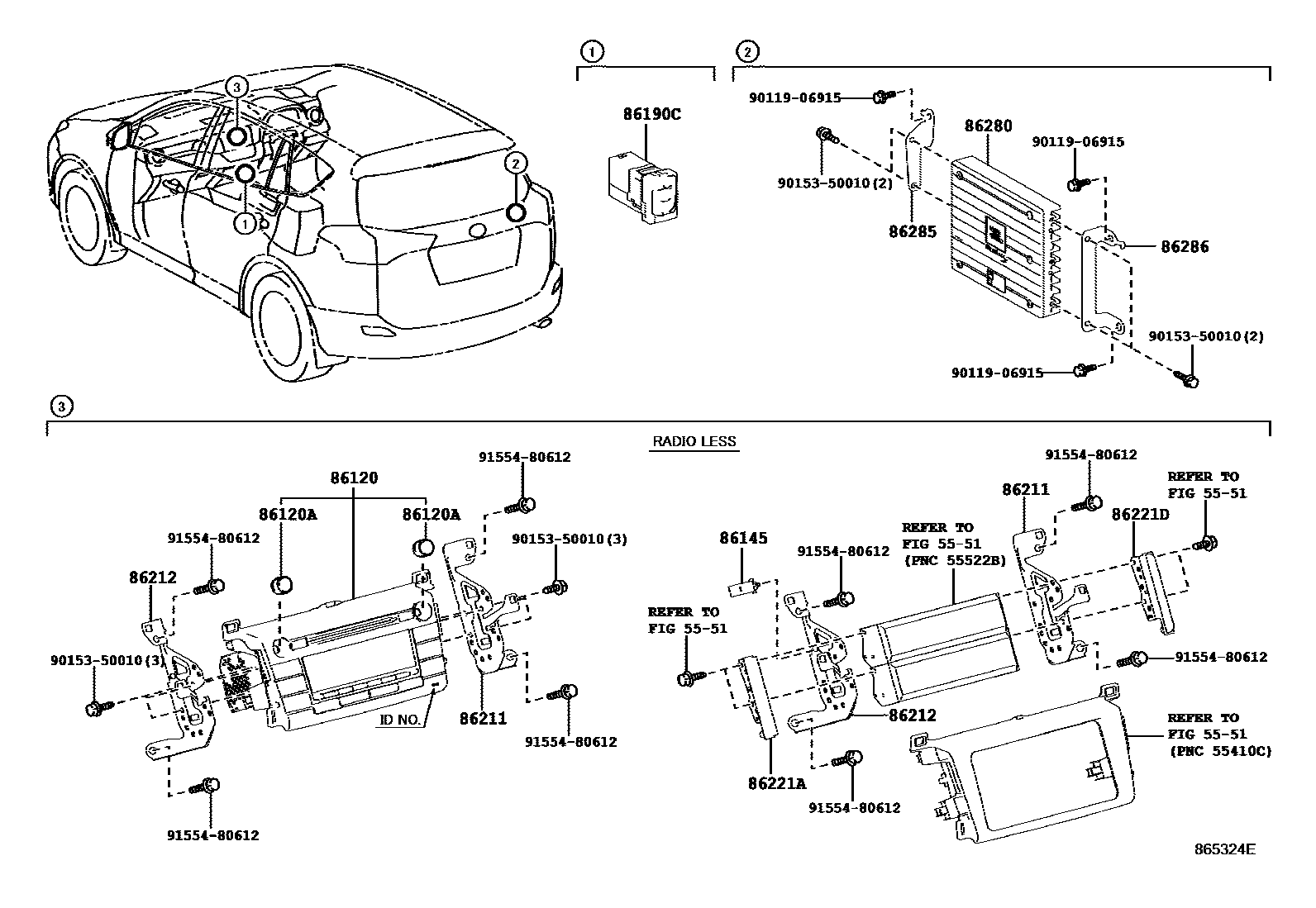

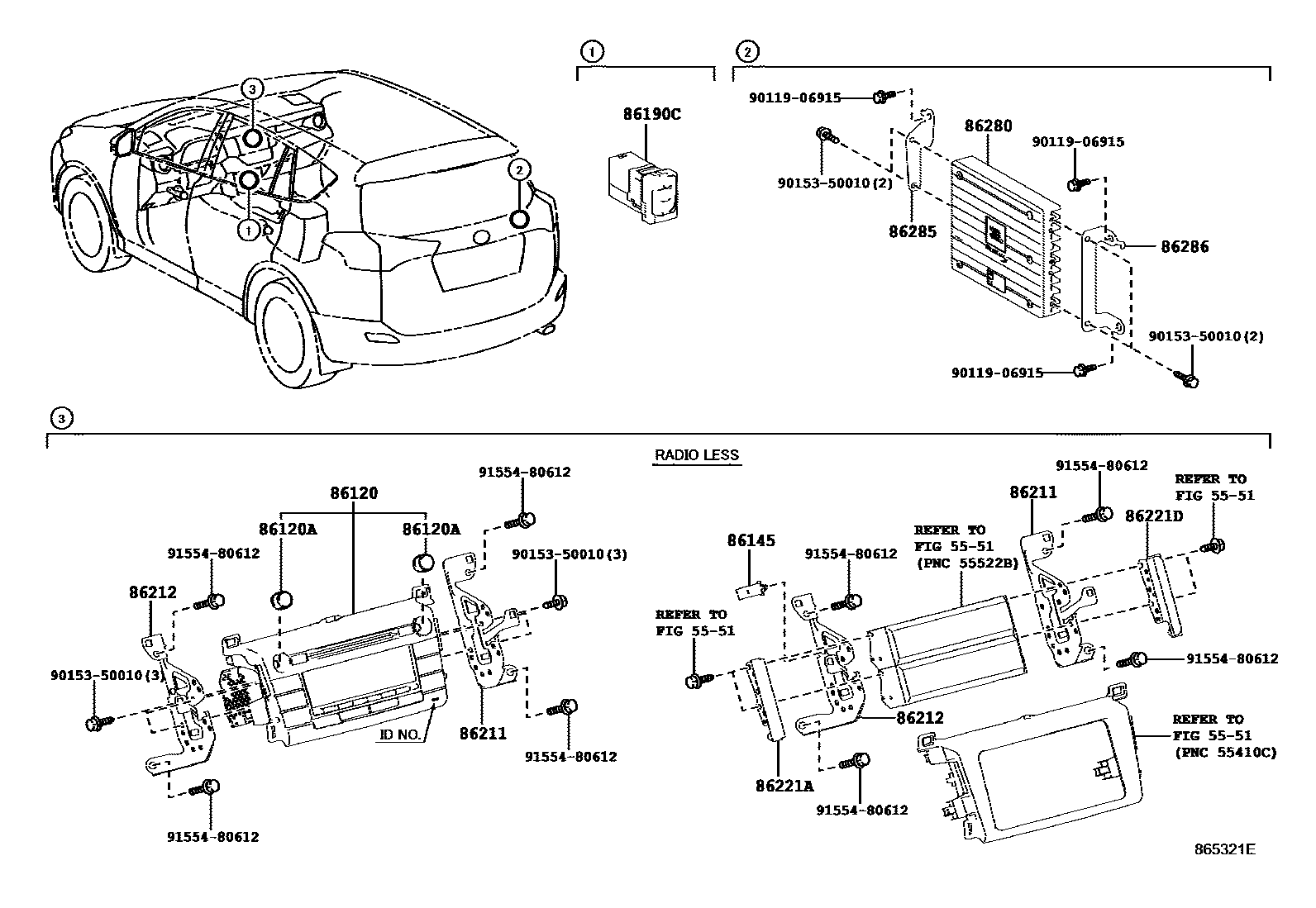

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

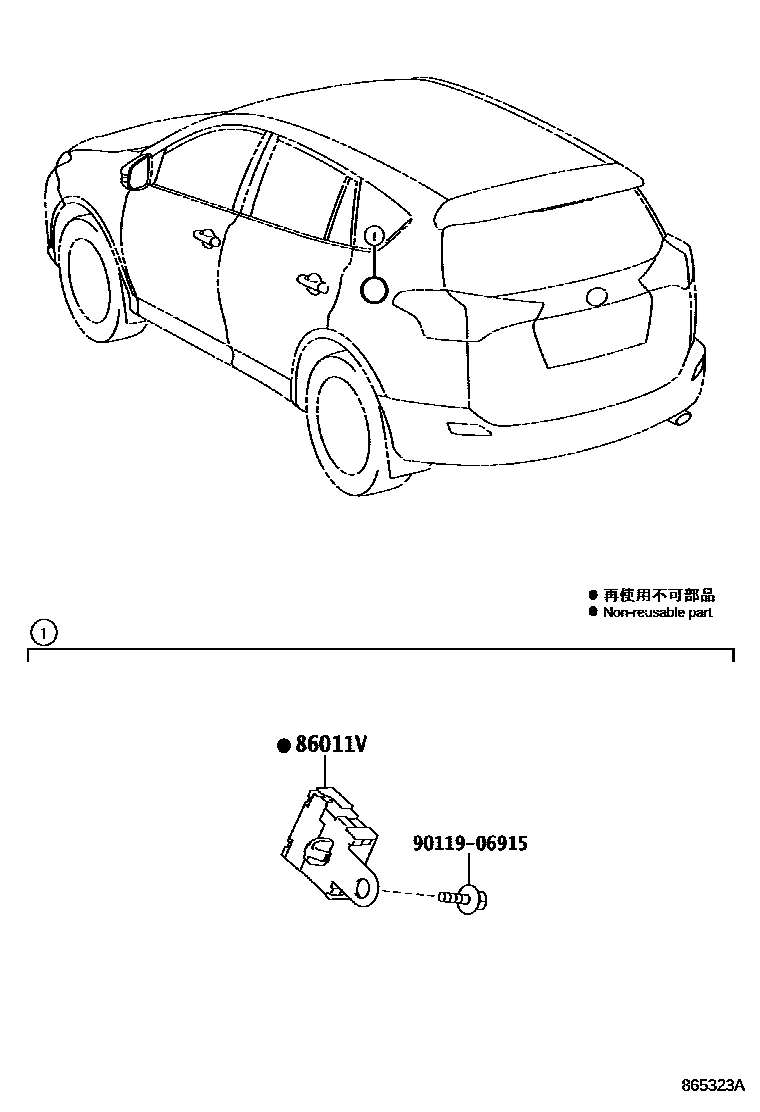

| 86011V | radio settings phase modulator | 90980-04189 |
| 86120 | Radio assembly | 86120-42400 · 86120-42410 · 86120-42460 · 86120-42480 · 86120-42490 · 86120-42500 · 86120-42501 |
| 86120A | Radio switch knob | 90010-23041 · 90010-23052 |
| 86145 | Antenna connector | 86145-52010 |
| 86190C | Stereo socket connector assembly No. 1 | 00000-00000 · 86190-42040 |
| 86211 | No. 1 radio bracket | 86211-42080 |
| 86212 | No. 2 radio bracket | 86212-42080 |
| 86221A | radio panel | 86221-52050 |
| 86221D | radio panel | 86221-52060 |
| 86280 | Stereo parts amplifier assembly | 86280-0WC70 · 86280-42030 · 86280-42050 |
| 86285 | Amplifier Stand No. 1 | 86285-42030 |
| 86286 | Amplifier Stand No. 2 | 86286-0R010 |
