Toyota RAV4 挡风玻璃清洗器 — Figure 8503

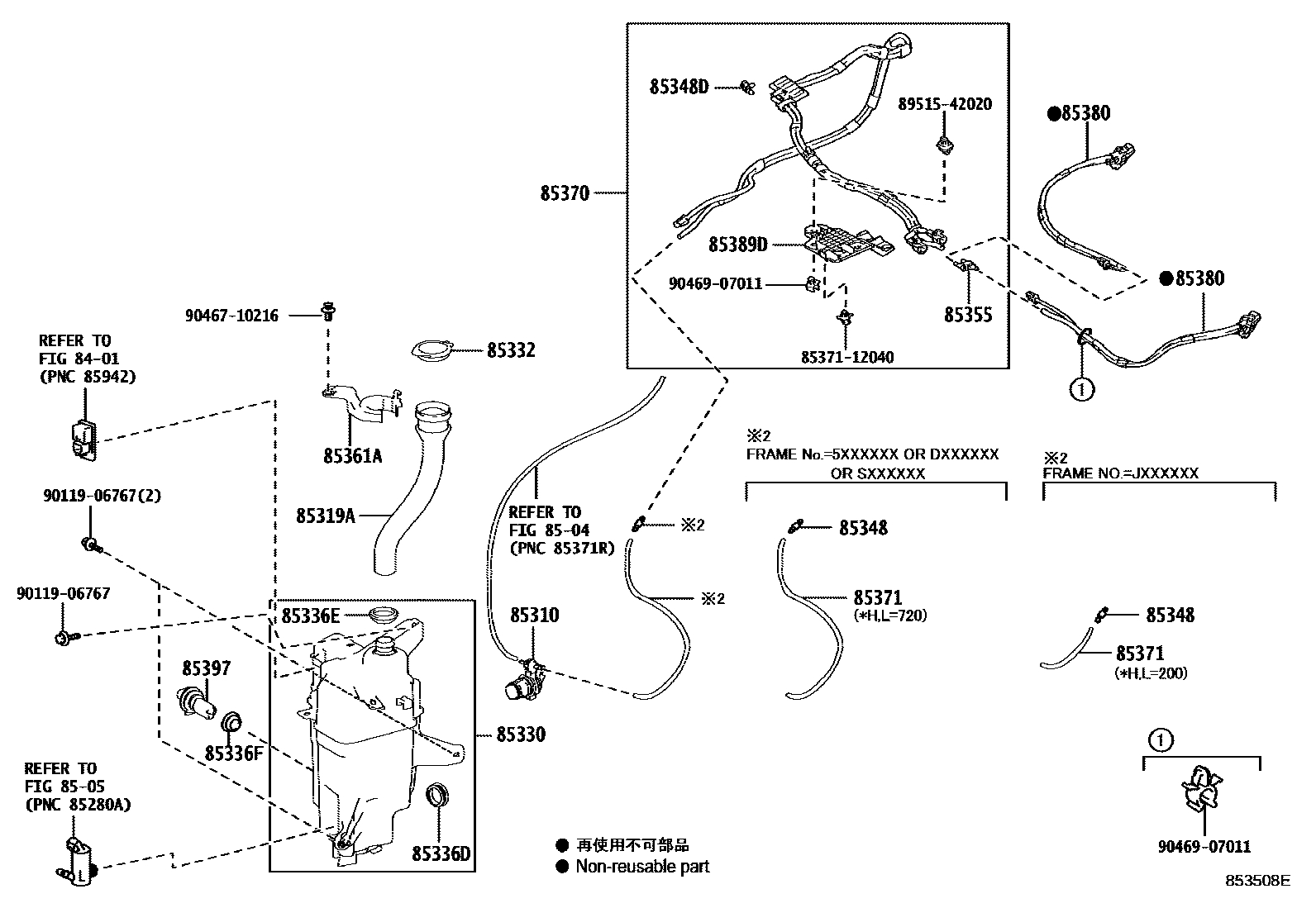

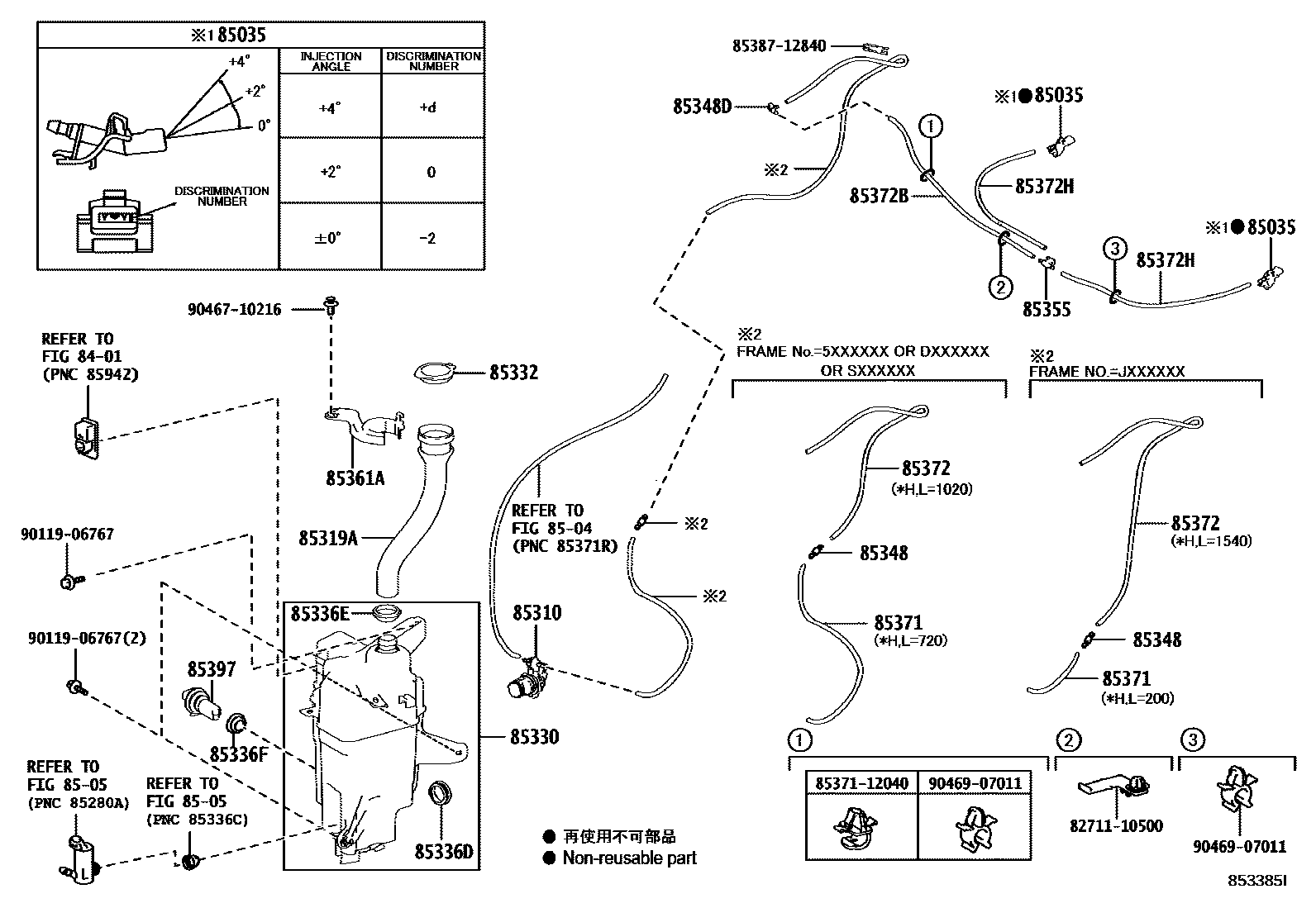

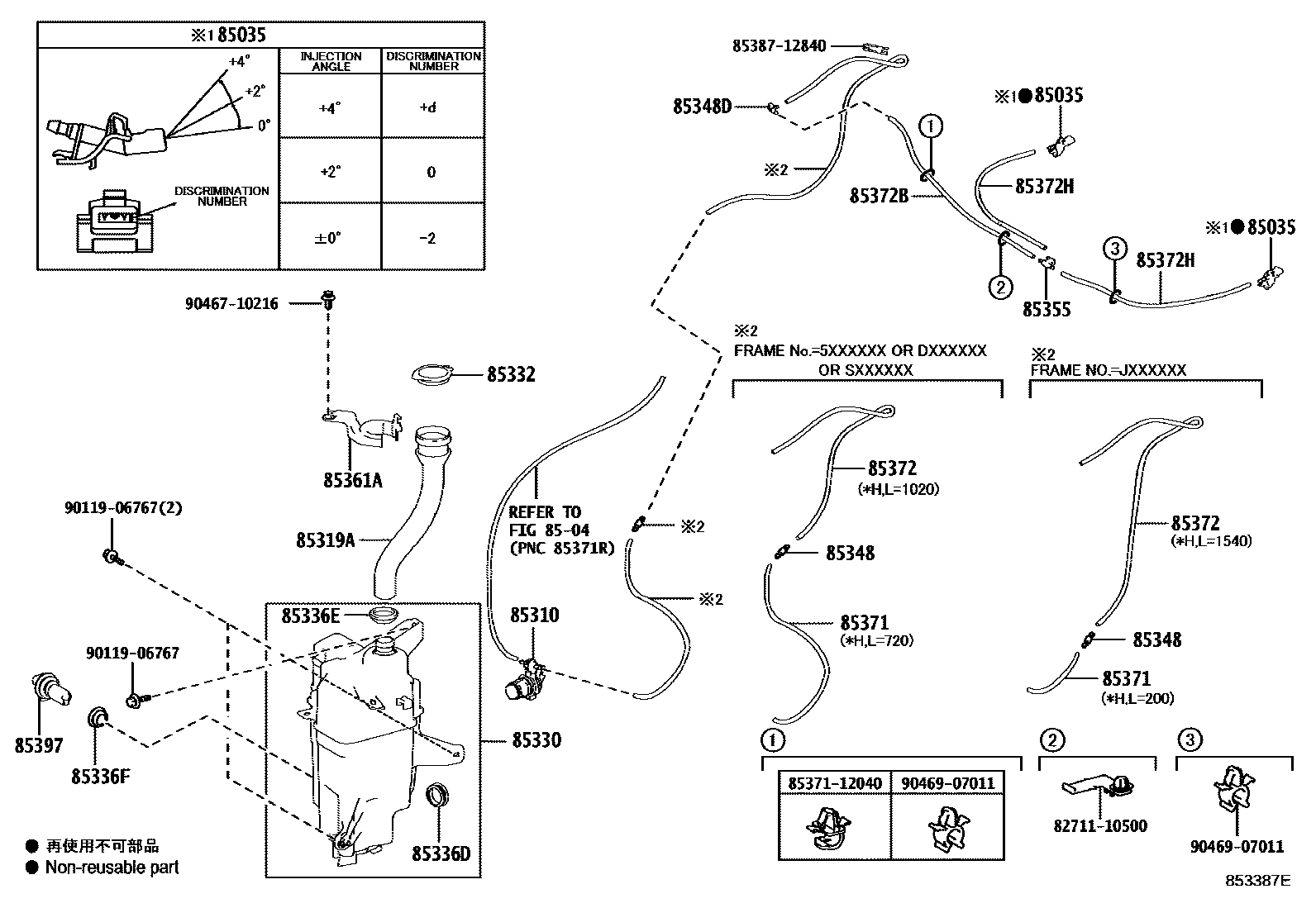

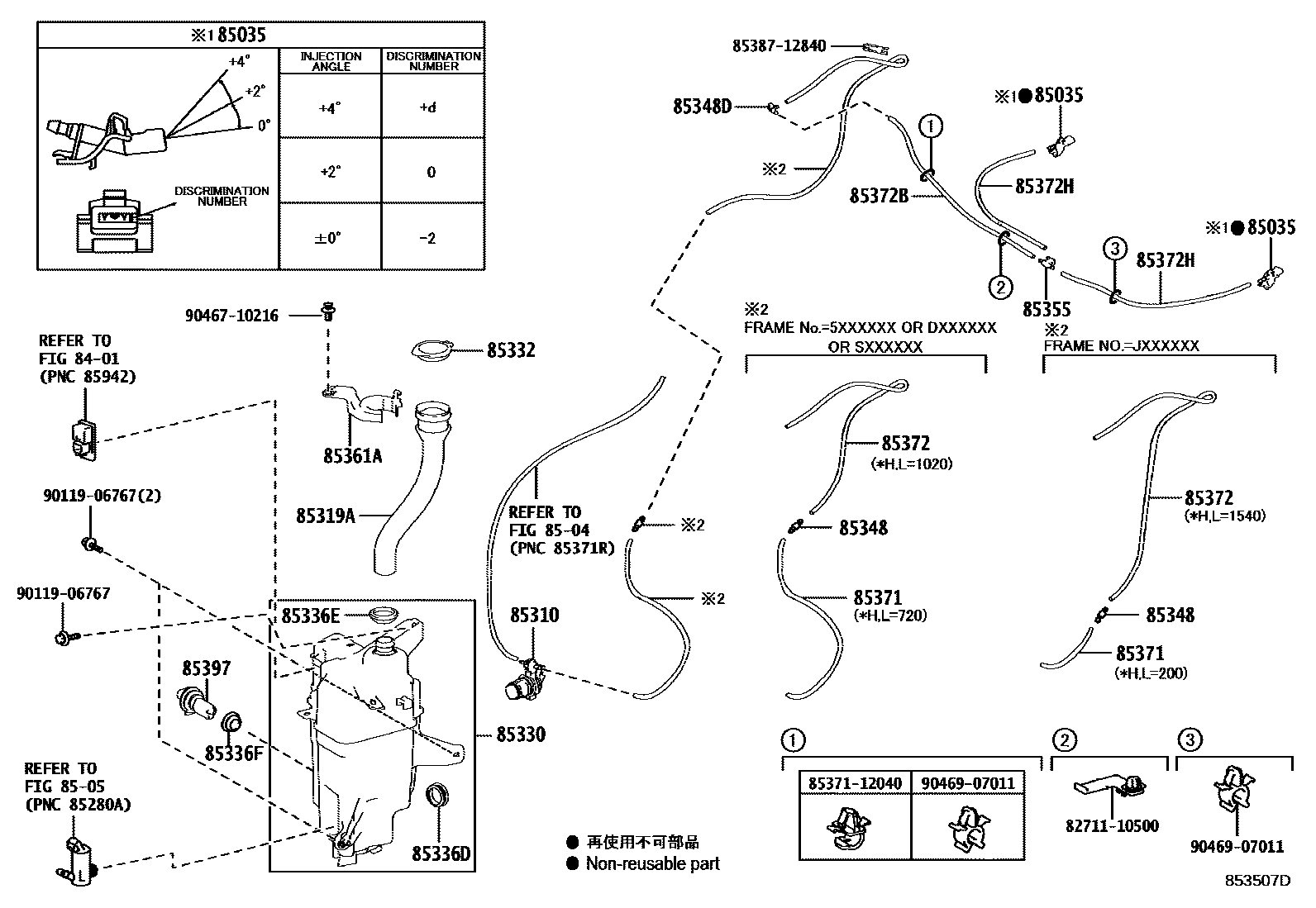

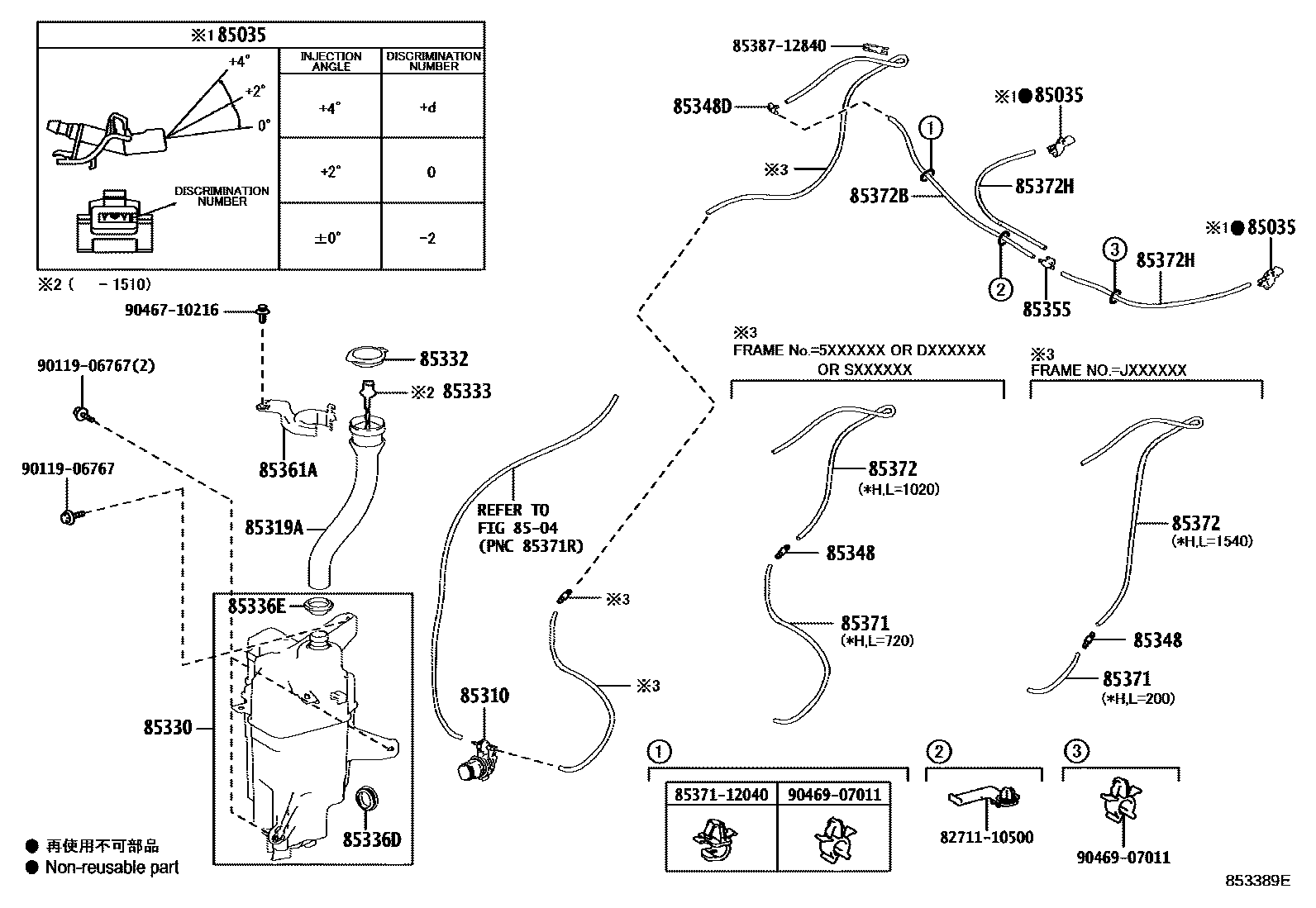

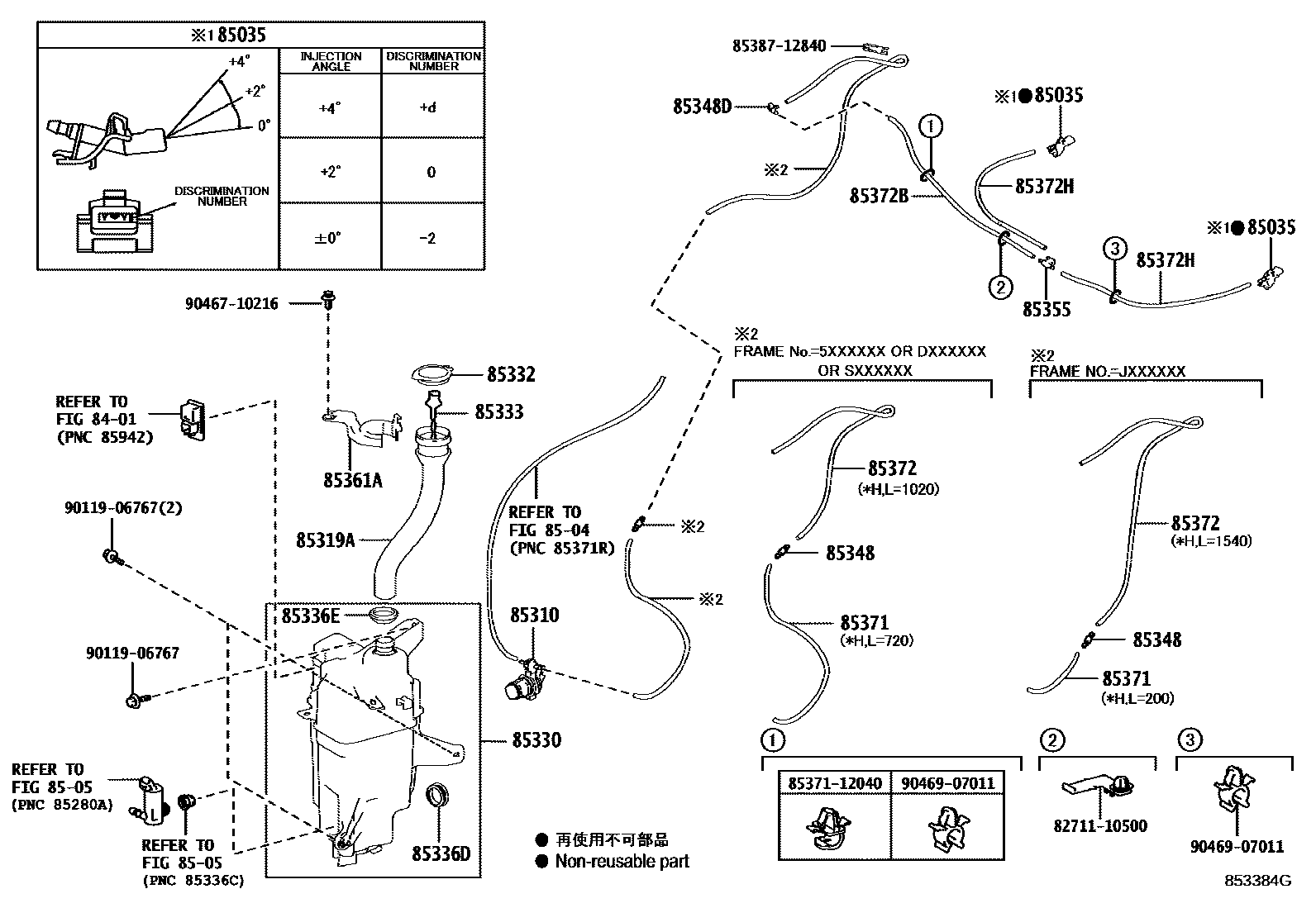

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12420 · 85381-12430 |
| 85310 | Windshield washer motor and pump assembly | 85330-42010 |
| 85319A | water inlet hose | 85319-42230 |
| 85330 | Windshield washer fluid tank assembly | 85315-42320 · 85315-42350 · 85315-42360 · 85355-42100 · 85355-42130 · 85355-42170 |
| 85332 | Windshield washer fluid tank cap | 85316-42360 · 85316-48060 |
| 85333 | Windshield washer fluid tank filter | 85312-47020 |
| 85336D | Windshield washer fluid tank seal | 85336-60300 |
| 85336E | Windshield washer water inlet hose seal | 85336-42320 |
| 85336F | Windshield washer fluid tank seal | 85319-33230 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85375-60290 |
| 85355 | Windshield washer hose valve | 85321-12040 · 85321-28020 |
| 85361A | Windshield washer bracket No. 1 | 85337-42350 |
| 85370 | Windshield washer hose assembly | 85370-42250 · 85370-42260 |
| 85380 | Front washer nozzle and hose assembly | 85380-42160 · 85380-42161 |
| 85389D | Spring (washer hose) | 85389-42250 |
| 85397 | Liquid level warning switch assembly | 85397-30400 |
