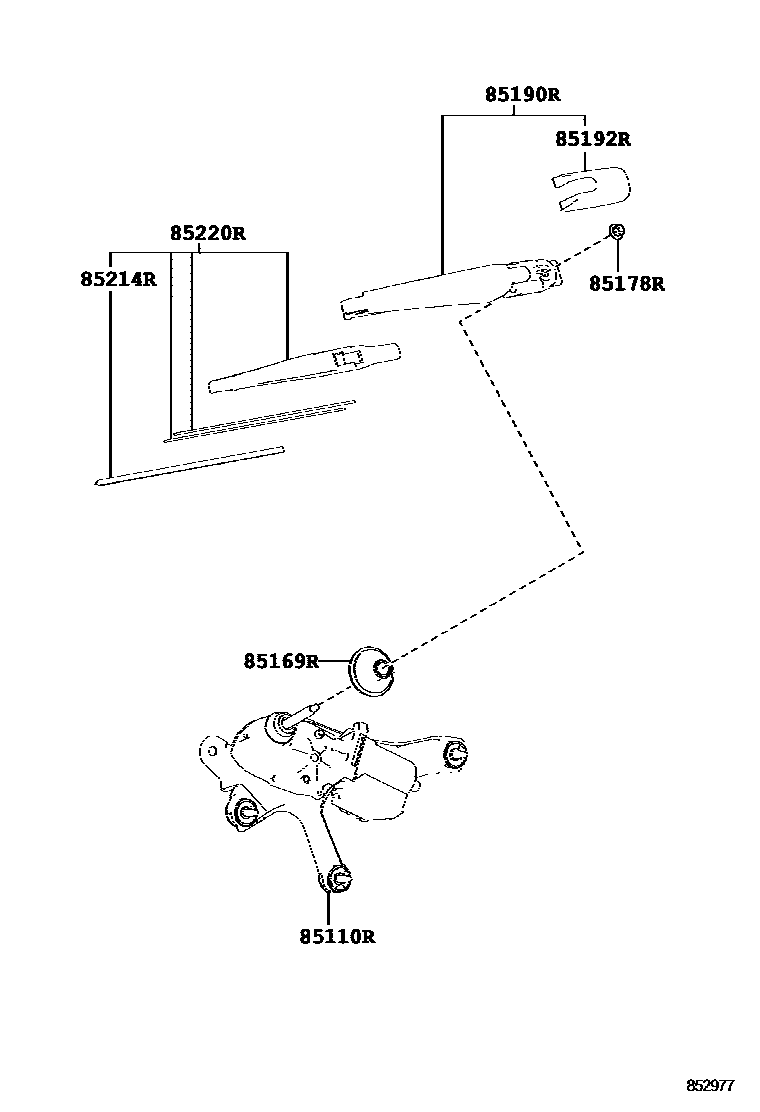

Toyota RAV4 后刮水器 — Figure 8502
Toyota RAV4 EPC diagram 8502, 后刮水器, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-42070 · 85130-42080 |
| 85169R | No. 1 rear wiper link pivot washer | 85143-42040 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-42090 |
| 85192R | Rear wiper arm cover | 85292-42010 |
| 85214R | Rear wiper rubber strip | 85214-42060 |
| 85220R | Rear wiper blade assembly | 85242-42040 |
