Toyota RAV4 挡风玻璃刮水器 — Figure 8501

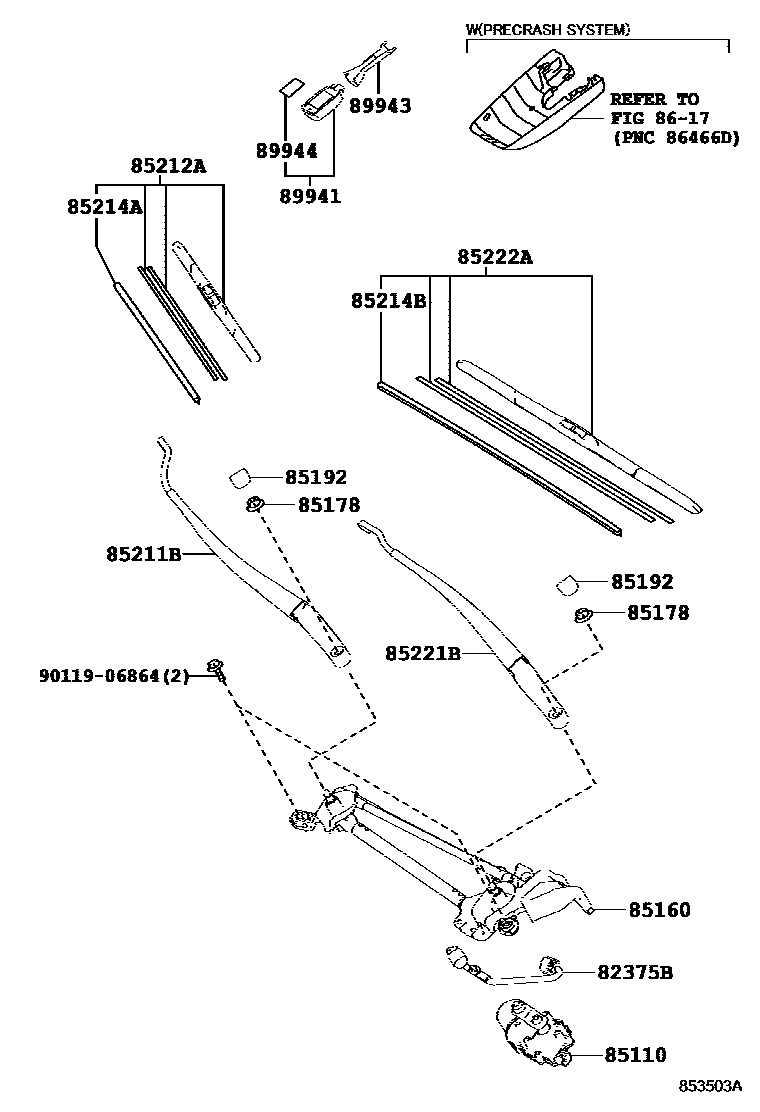

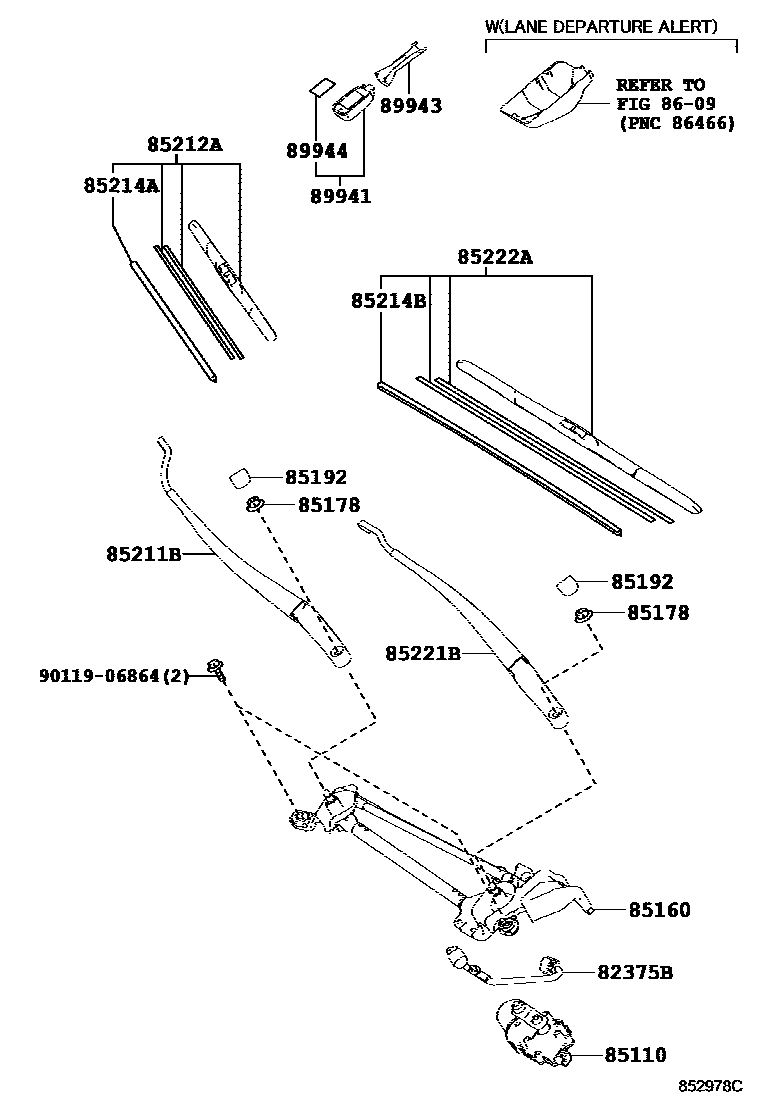

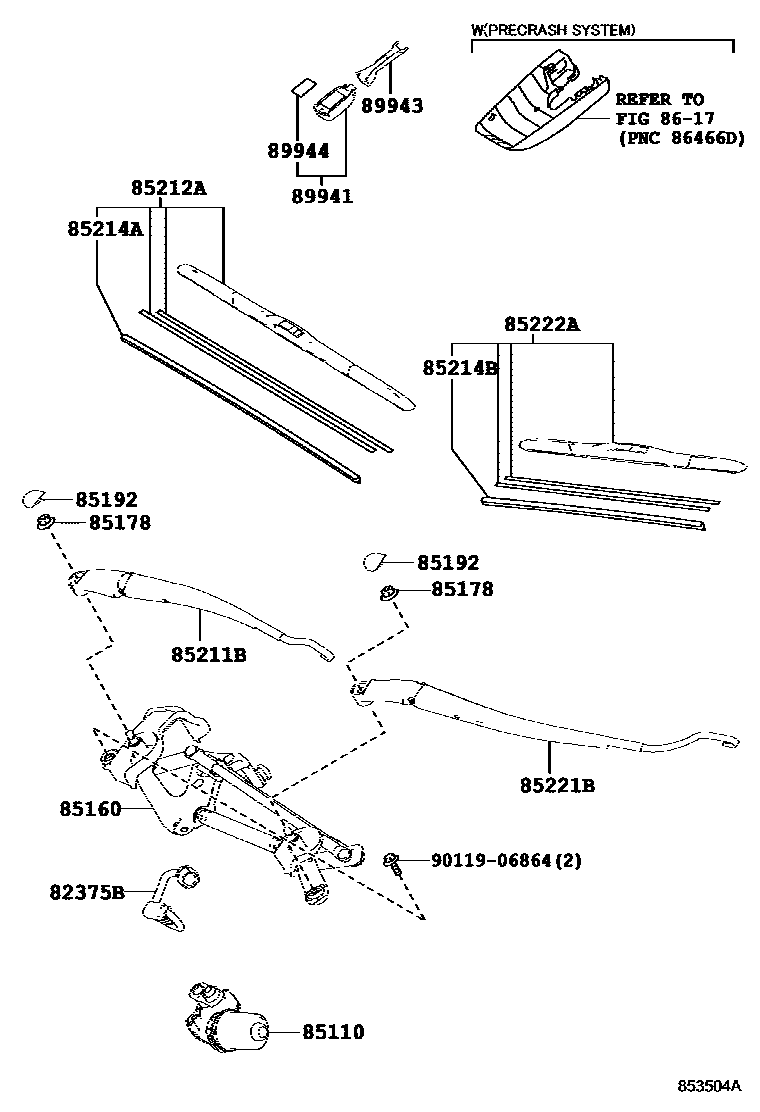

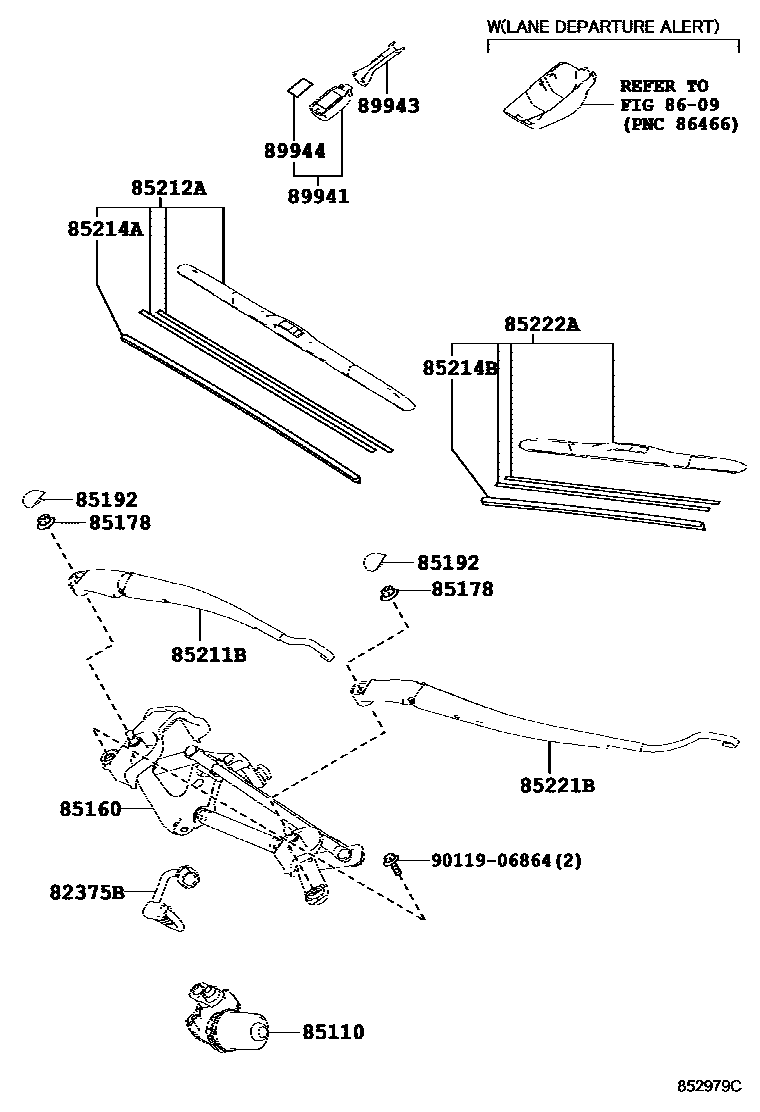

Toyota RAV4 EPC diagram 8501, 挡风玻璃刮水器, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82375B | Wiper motor wiring harness | 82375-48020 |
| 85110 | Windshield wiper motor assembly | 85110-42190 · 85110-42200 · 85110-42201 · 85110-42210 |
| 85160 | Windshield wiper connecting rod assembly | 85150-42170 · 85150-42180 · 85150-42190 |
| 85178 | Nut (for securing front wiper arm) | 90182-10006 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-42140 · 85211-42160 · 85211-42170 |
| 85212A | Right front wiper blade | 85212-42130 · 85212-42150 · 85212-52250 |
| 85214A | Right wiper rubber strip | 85214-28090 · 85214-52110 · 85214-68020 |
| 85214B | Left wiper rubber strip | 85214-28090 · 85214-52110 · 85214-68020 |
| 85221B | Left front wiper arm | 85221-42140 · 85221-42150 · 85221-42160 |
| 85222A | Left front wiper blade | 85222-42120 · 85222-42130 · 85222-42140 |
| 89941 | rain sensor | 89941-52010 |
| 89943 | Rain sensor cover | 89943-33050 · 89943-42020 |
| 89944 | Rain sensor tape | 89944-42010 |
