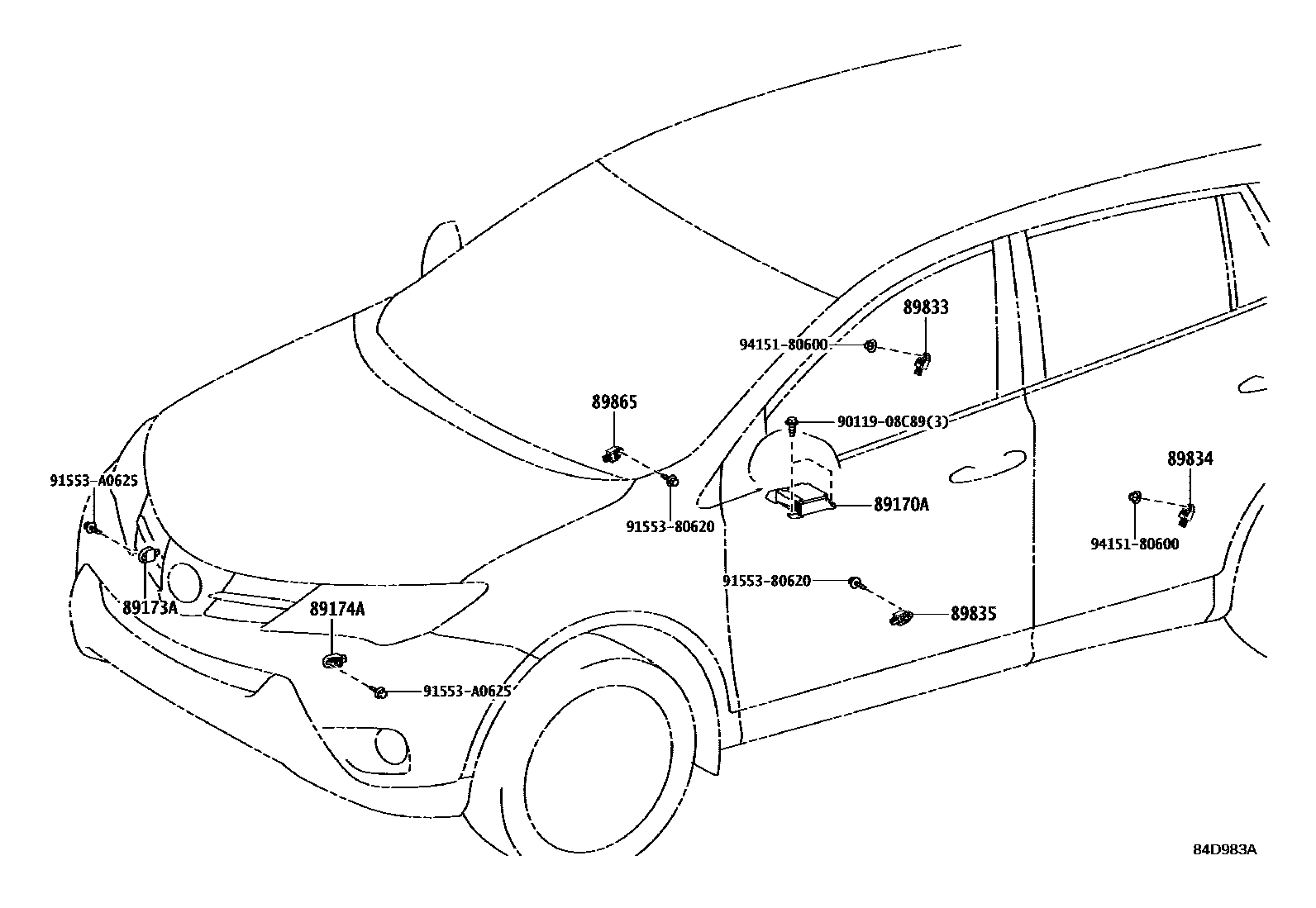

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-42400 · 89170-42430 · 89170-42450 · 89170-42500 · 89170-42750 · 89170-42760 · 89170-42820 |
| 89173A | Right front air bag sensor | 89173-19465 |
| 89174A | Left front air bag sensor | 89173-19465 |
| 89833 | Right rear air bag sensor | 89831-12030 |
| 89834 | Left rear air bag sensor | 89831-12030 |
| 89835 | Left door side air bag sensor | 89831-33050 |
| 89865 | Right door side air bag sensor | 89831-33050 |
