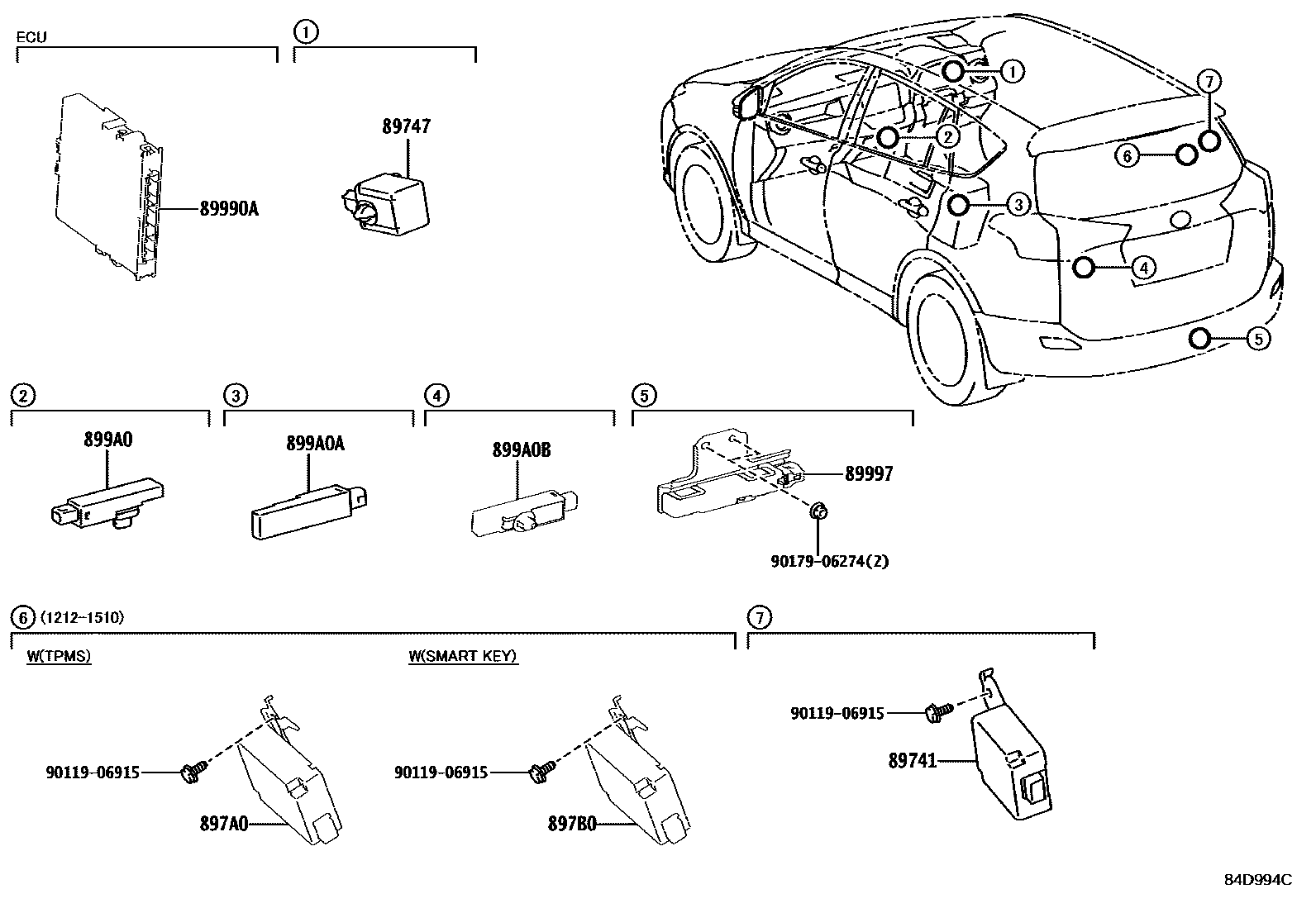

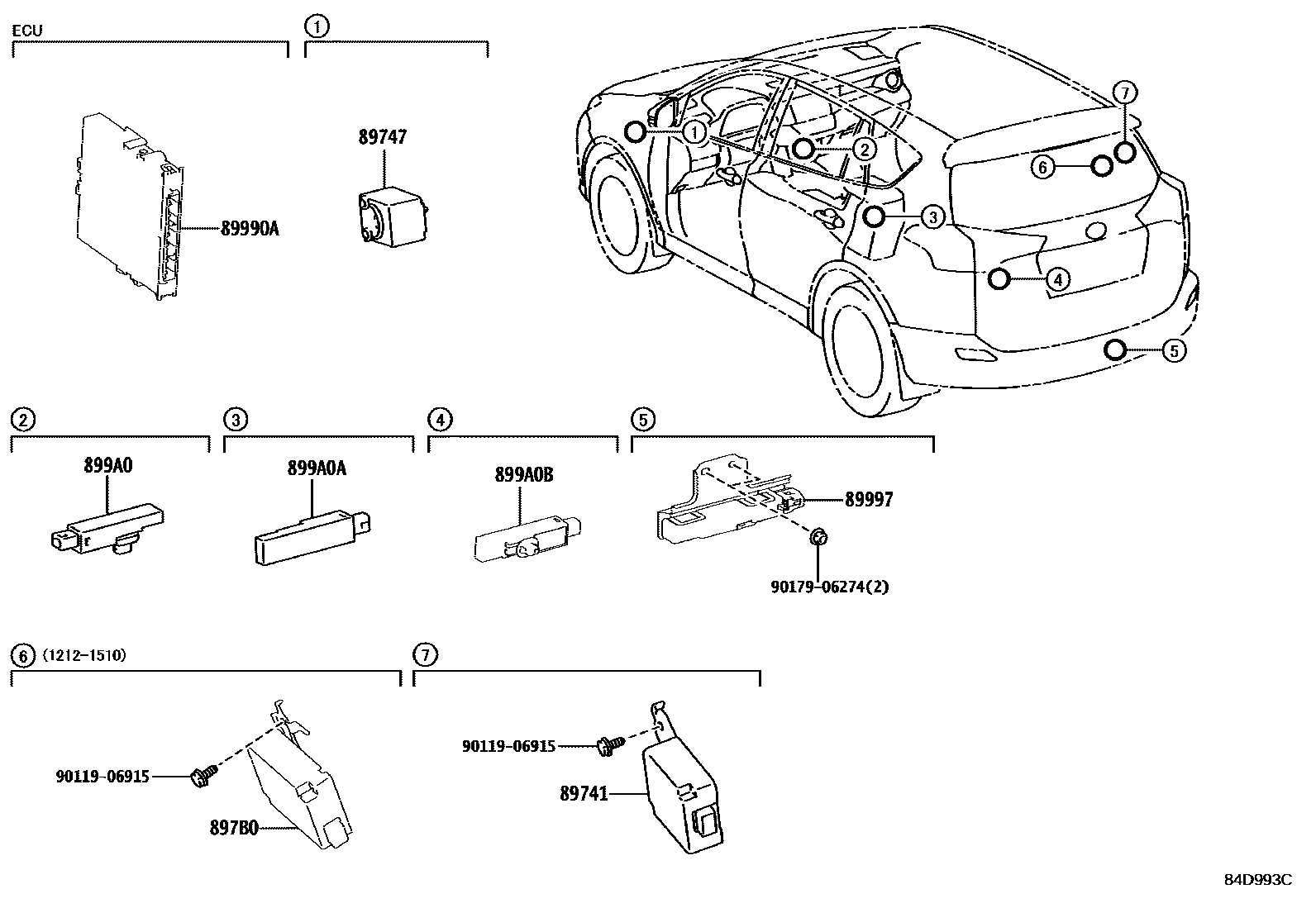

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-42050 · 89740-42110 · 89740-42140 · 89740-42190 · 89741-42260 · 89741-42261 · 89741-42262 · 89741-42290 · 89741-42300 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897A0 | Door control and tire pressure detection system receiver assembly | 897A0-42030 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-42030 |
| 89990A | Smart key ECU assembly | 89990-42070 · 89990-42071 · 89990-42090 · 89990-42091 · 89990-42110 · 89990-42111 · 89990-42112 |
| 89997 | electronic key antenna | 89997-42010 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-60010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-47010 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-47010 |
