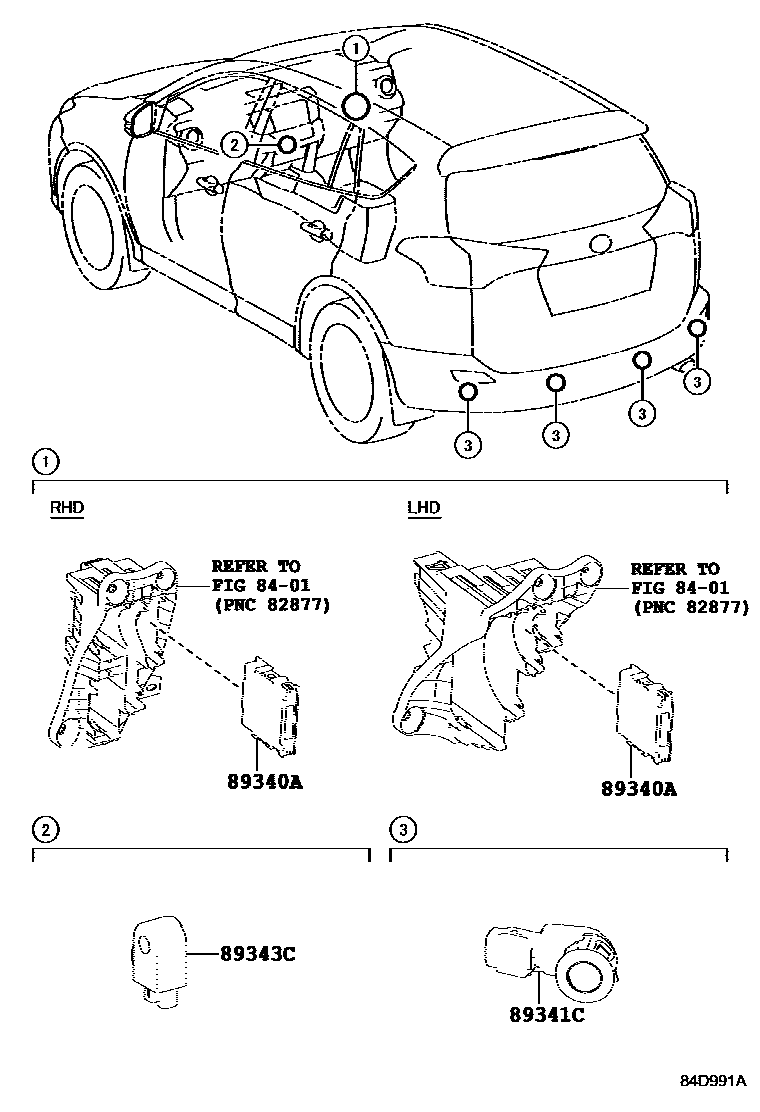

Toyota RAV4 测距雷达和倒车雷达 — Figure 8417
Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89340A | Distance warning ECU assembly | 89340-42010 · 89340-42011 · 89340-42030 · 89340-42040 · 89340-42050 |
| 89341C | Ultrasonic sensor No. 3 | 89341-42010 · 89341-42030 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 · 89343-72010 |
| 89348D | Ultrasonic sensor clip | 89348-12020 |
