Toyota RAV4 电子控制柴油机(ECD) — Figure 8405

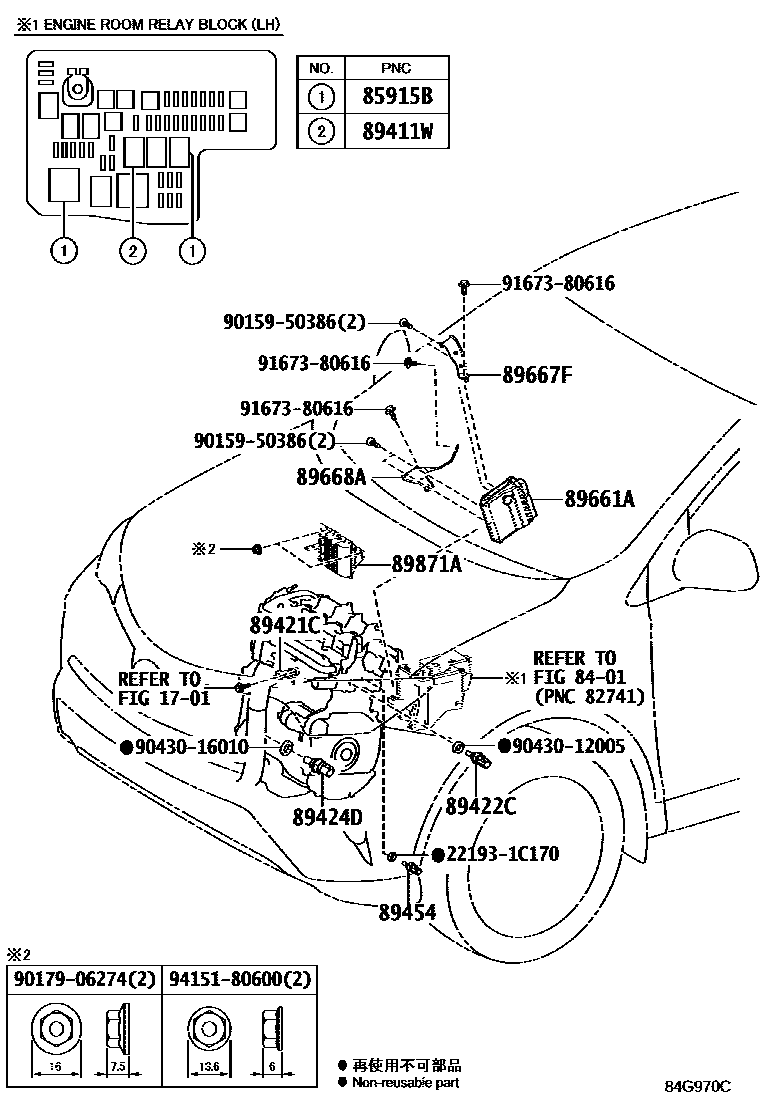

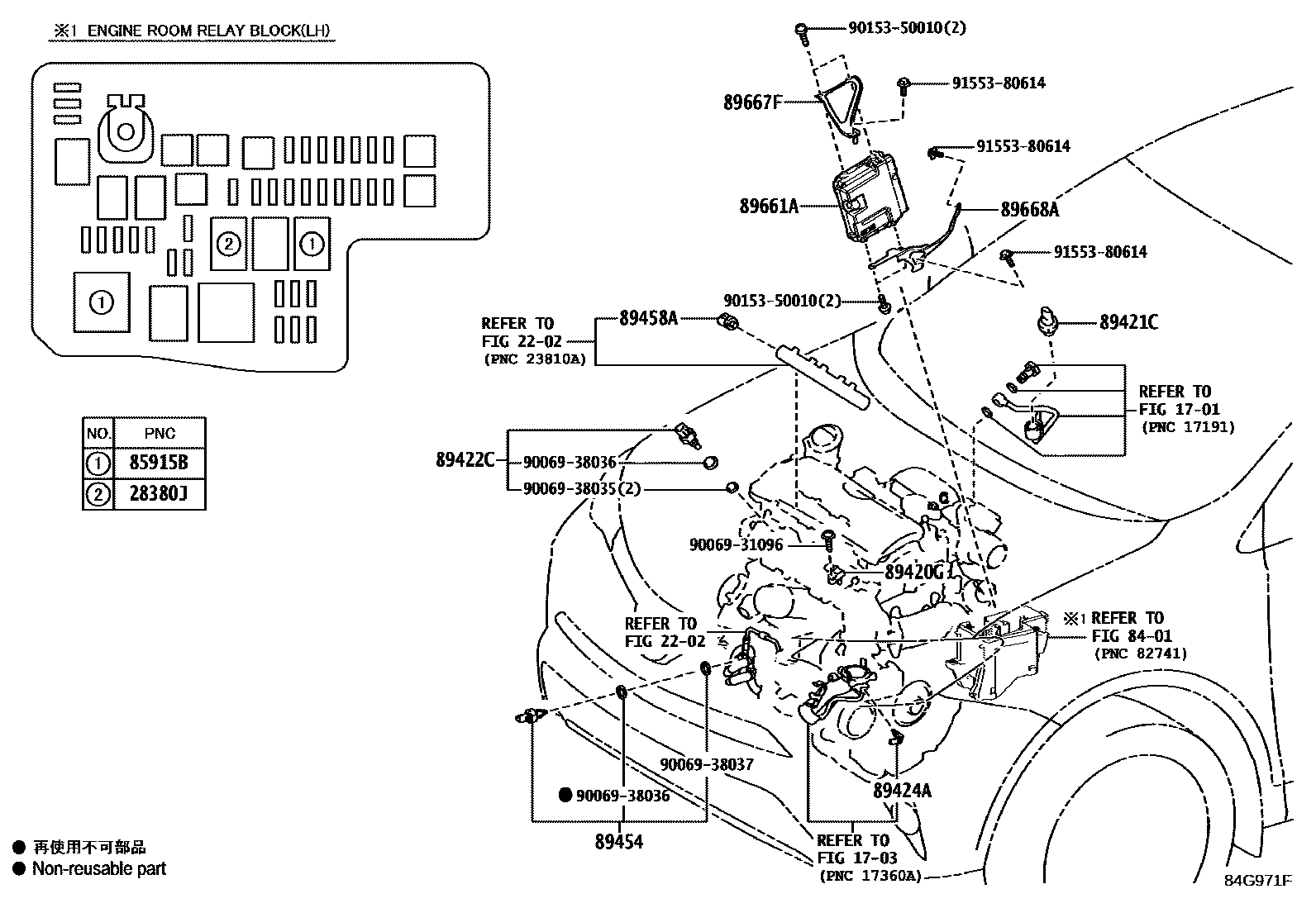

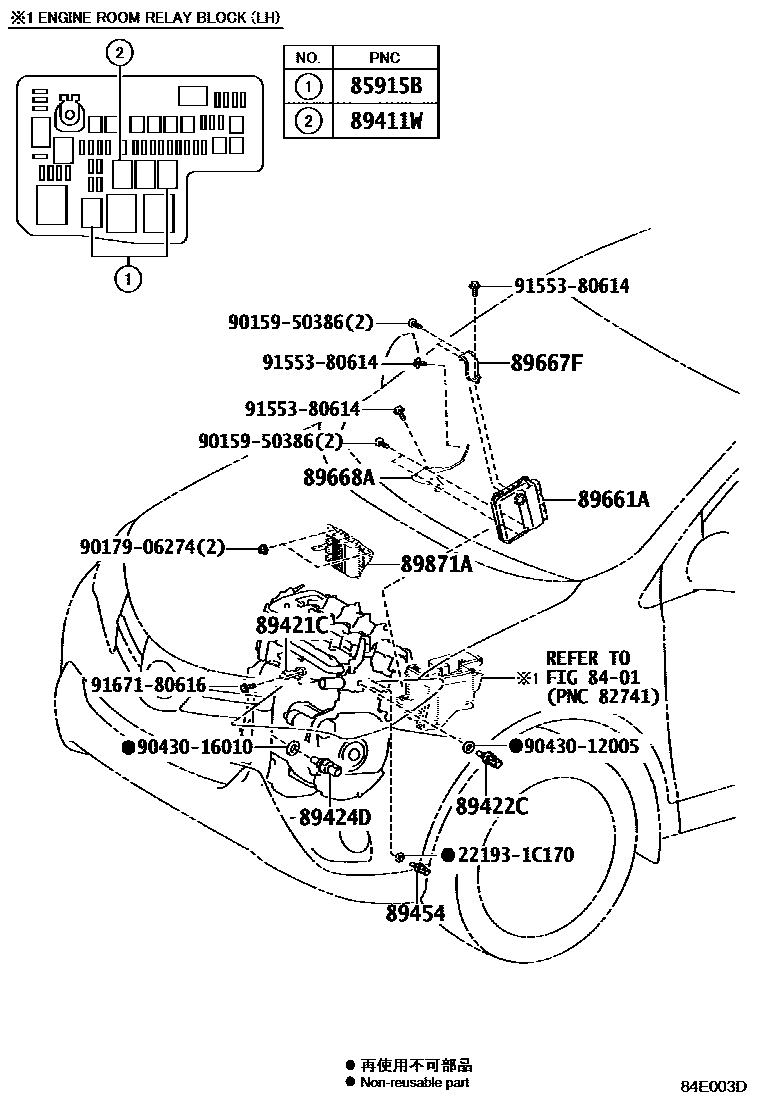

Toyota RAV4 EPC diagram 8405, 电子控制柴油机(ECD), with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28380J | fuel pump relay | 90987-02027 |
| 85915B | Main relay (for diesel turbine) | 90987-02027 |
| 89411W | RELAIS, UNITE DE PILOTAGE ELECTRONIQUE | 90987-02027 |
| 89420G | Turbocharger pressure sensor assembly | 89420-WA010 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 · 89421-WA010 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 · 89422-WA010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-WA010 |
| 89424D | Intake air temperature sensor | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60020 · 89454-WA010 |
| 89458A | fuel pressure sensor | 89458-WA010 |
| 89661A | Engine control ECU | 89661-0R260 · 89661-0R500 · 89661-0R590 · 89661-0R591 · 89661-0R660 · 89661-0R661 · 89661-42J40 · 89661-42J50 · 89661-42J60 · 89661-42J70 · 89661-42J71 · 89661-42M10 · 89661-42M11 · 89661-42T30 · 89661-42T31 · 89661-42U20 · 89661-42X10 · 89661-42X30 |
| 89667F | No. 1 engine control ECU bracket | 89667-42070 · 89667-42100 |
| 89668A | No. 2 engine control ECU bracket | 89668-42070 · 89668-42090 |
| 89871A | Injector driver | 89870-42070 |
