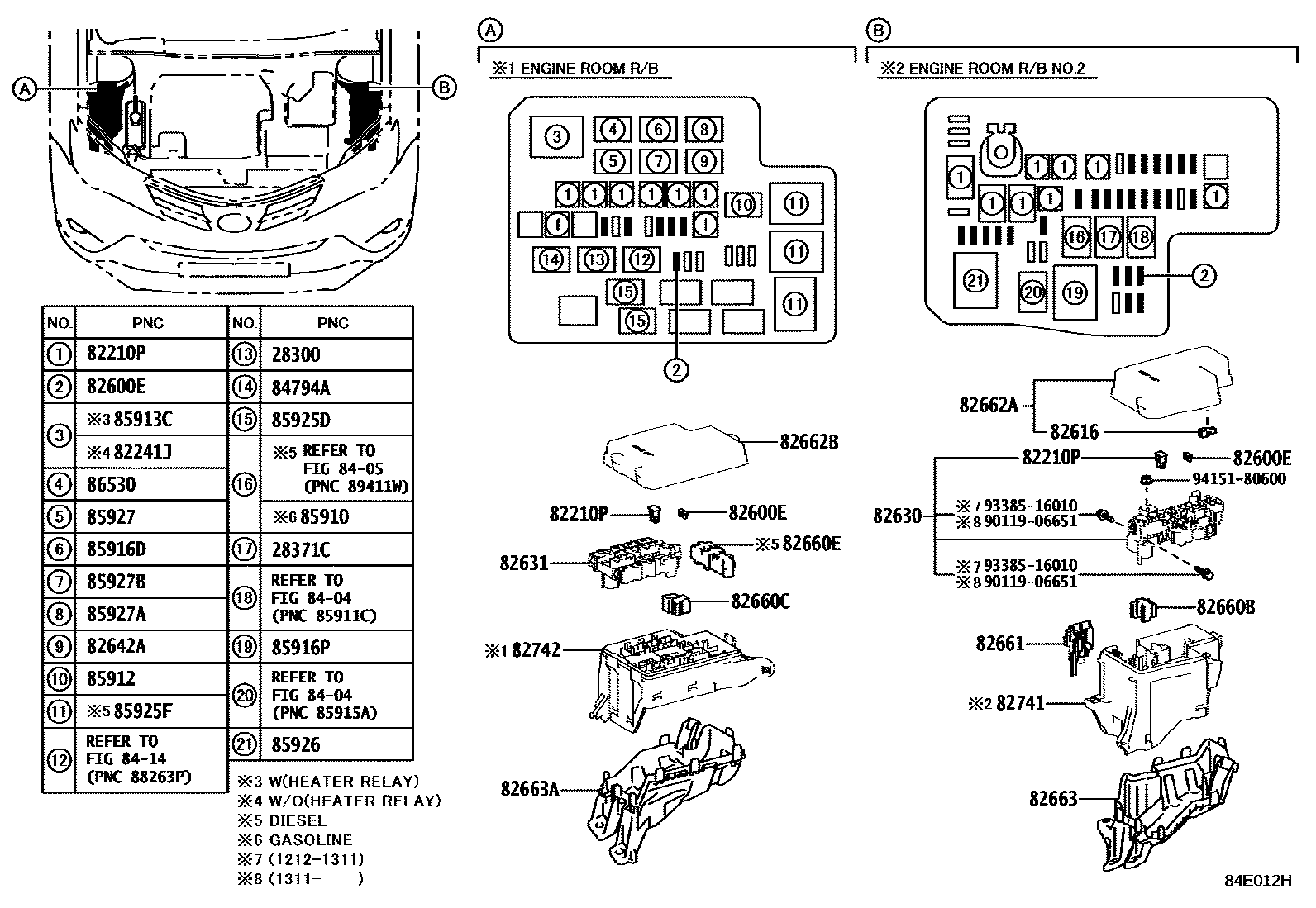

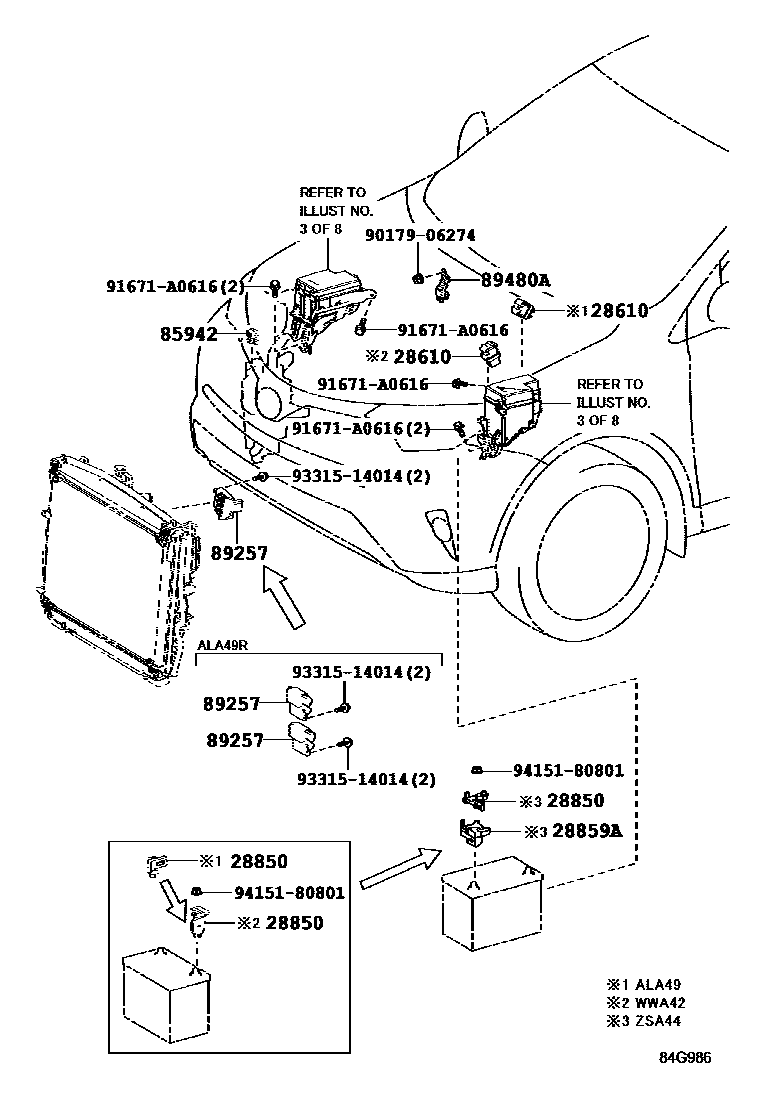

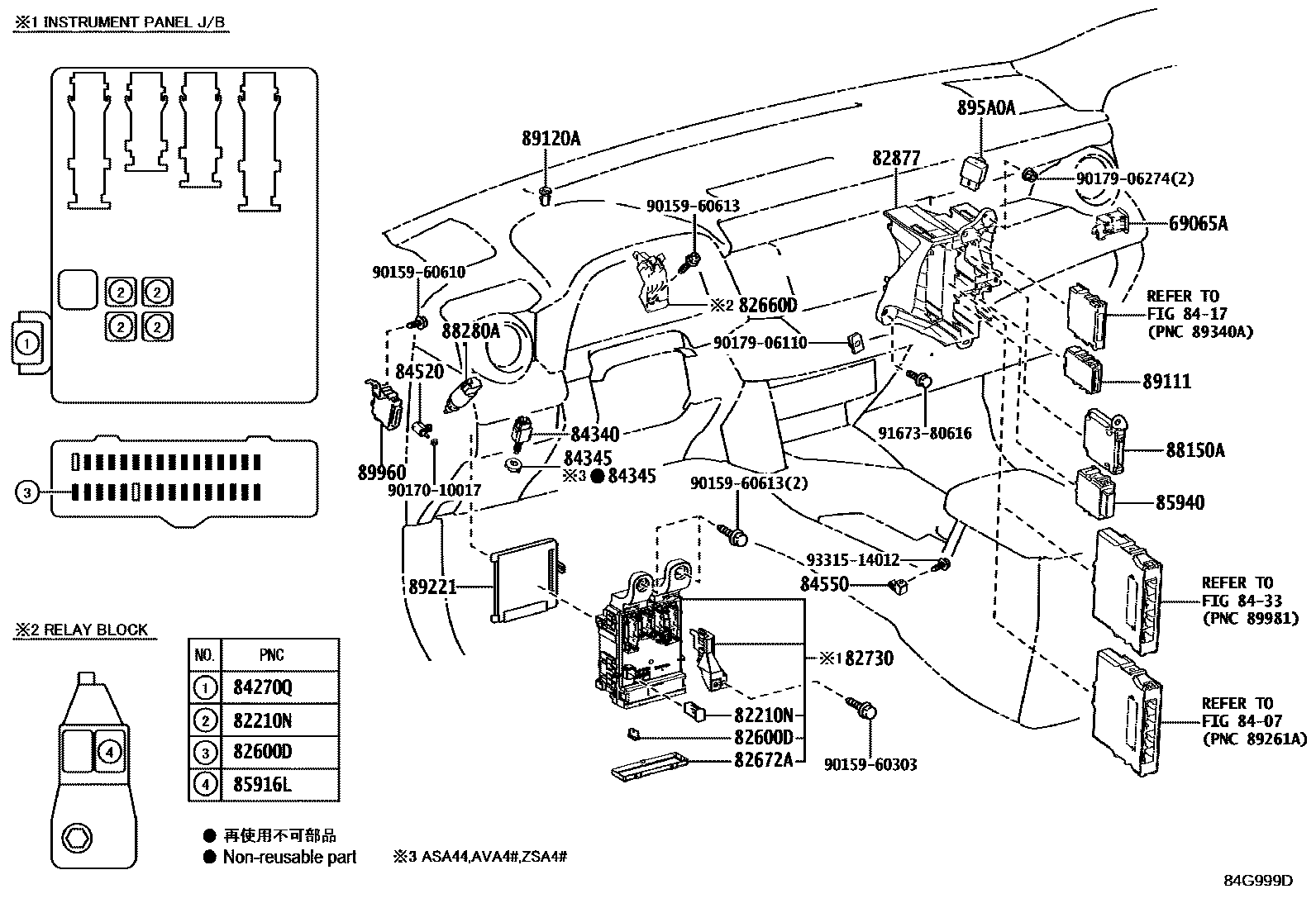

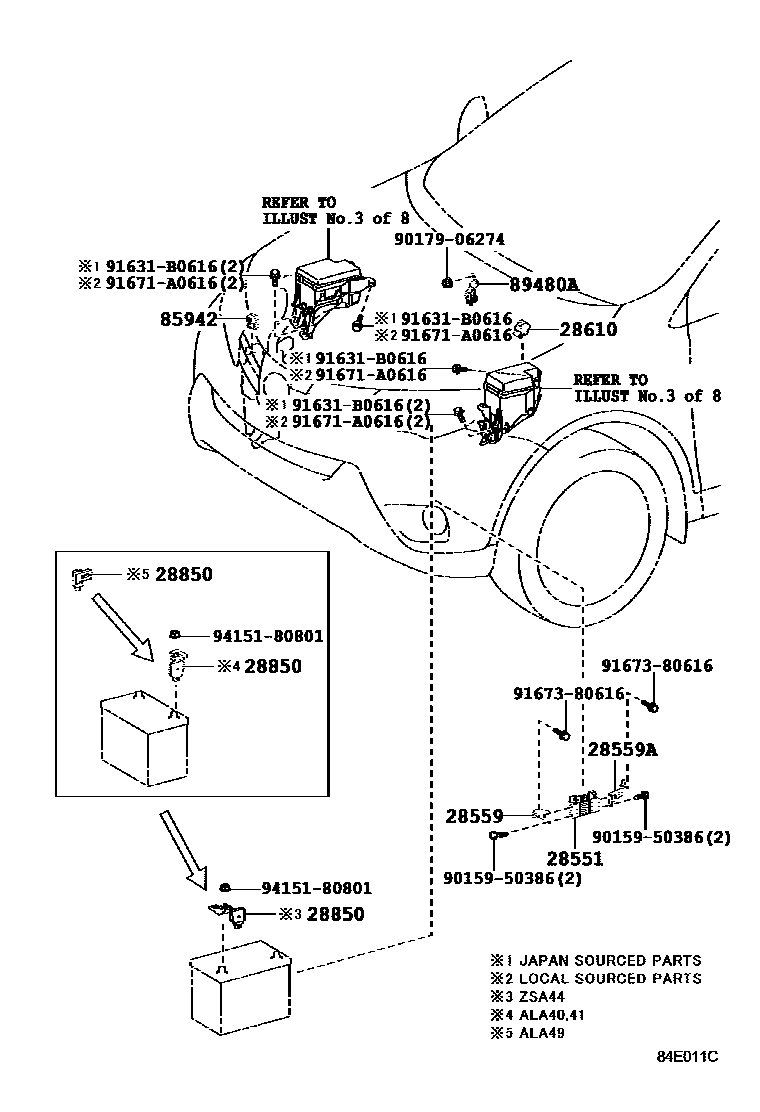

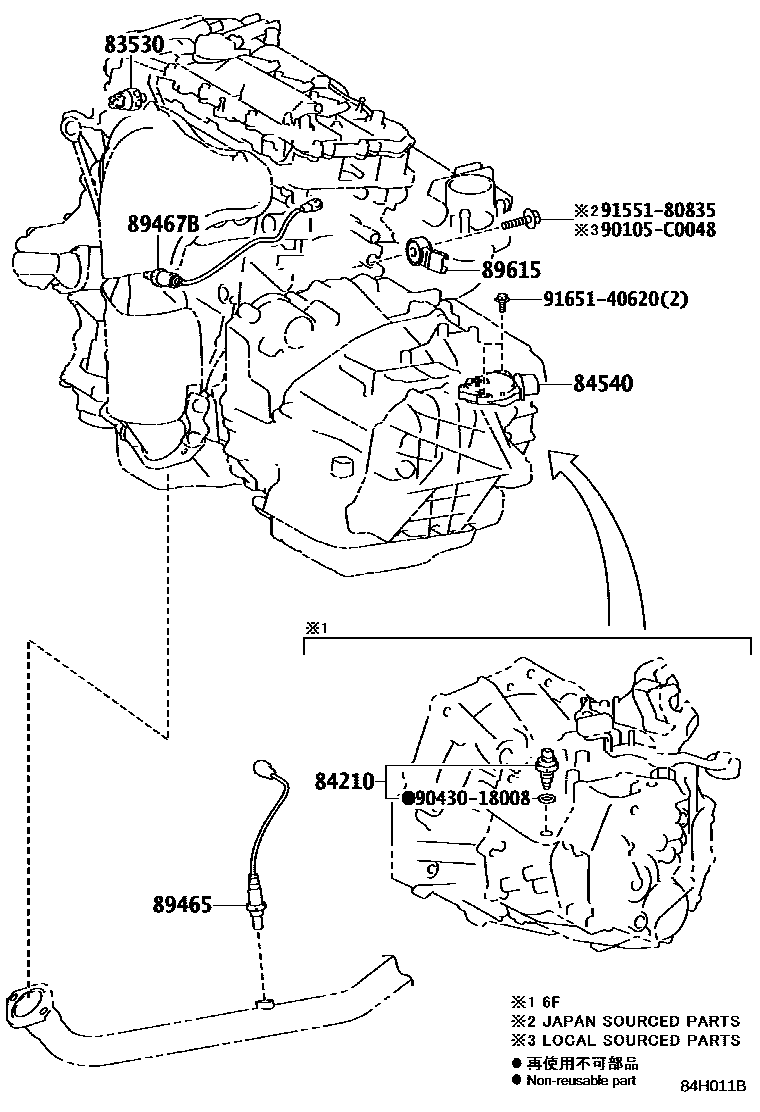

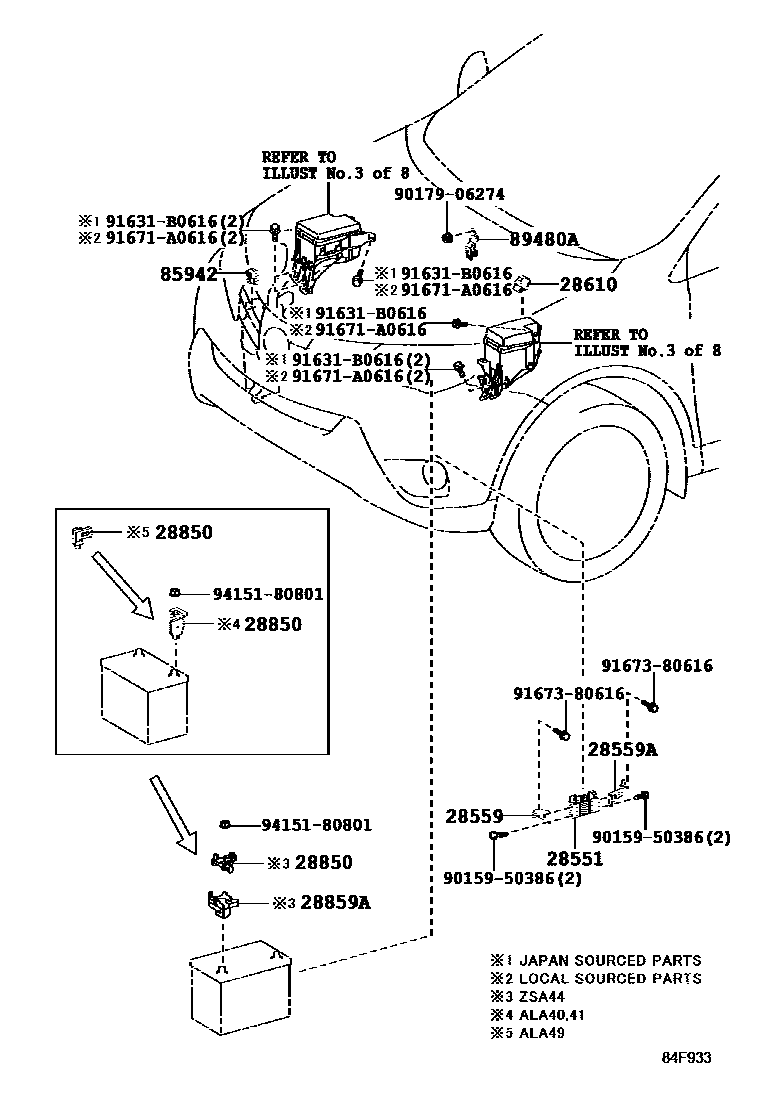

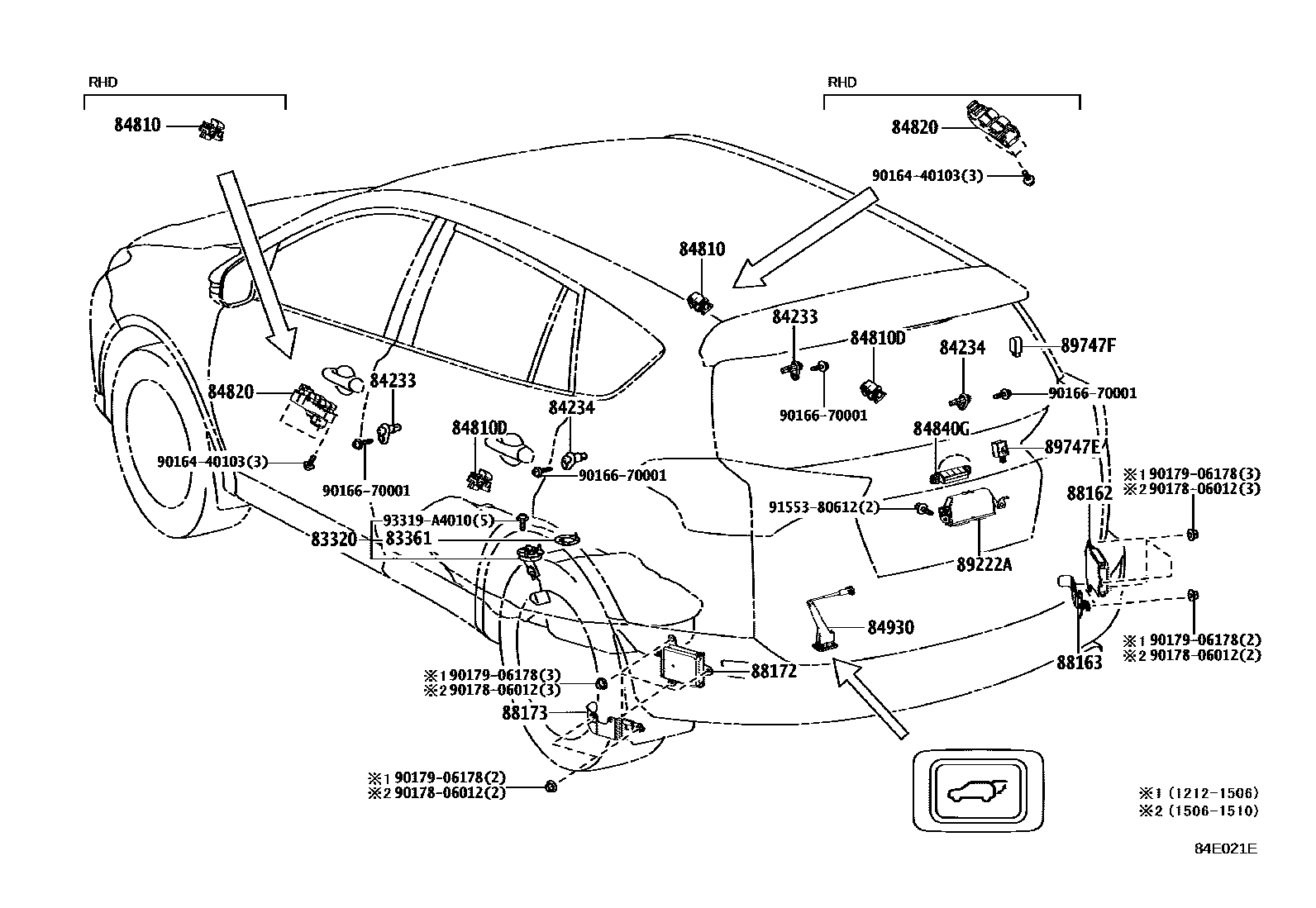

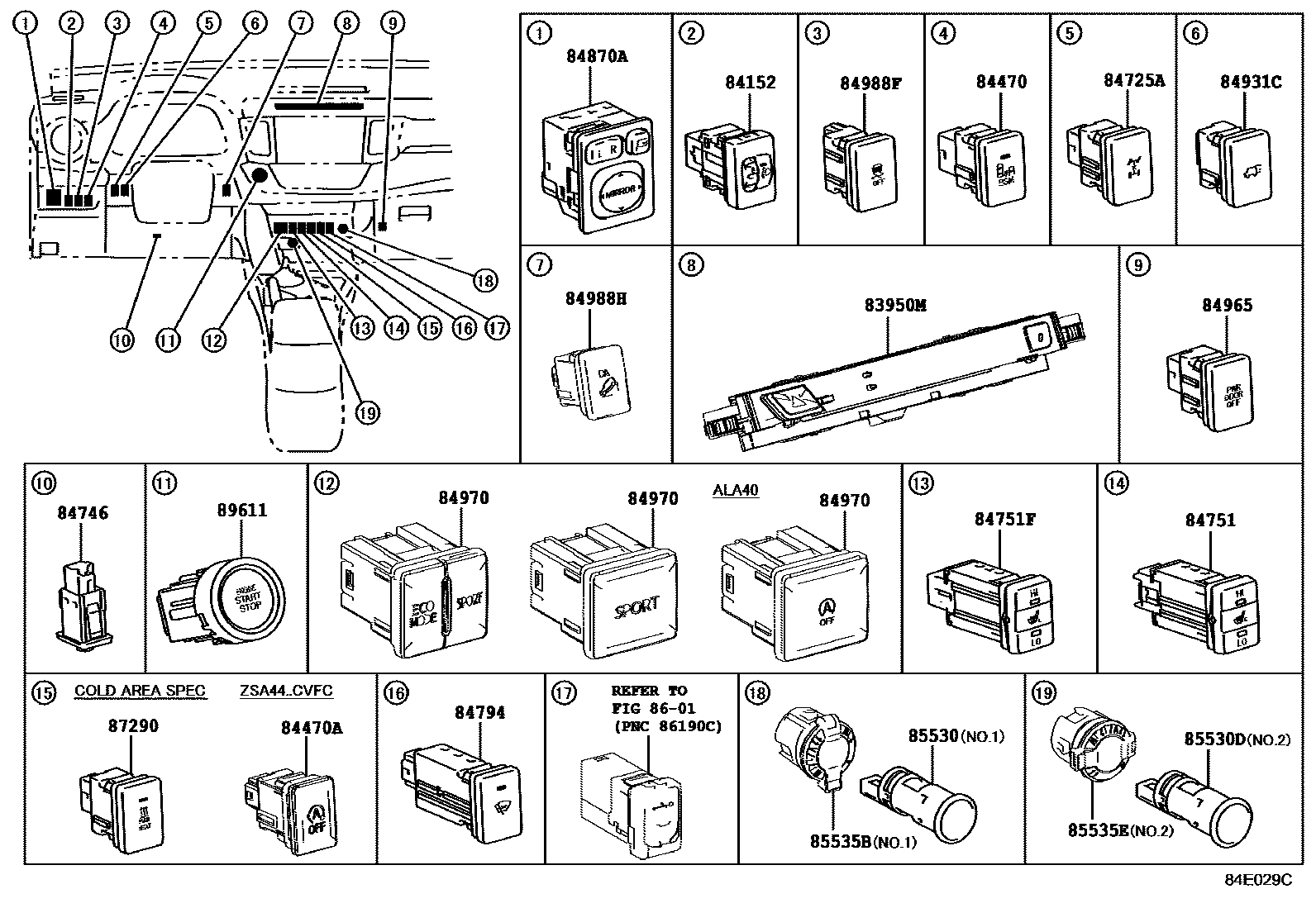

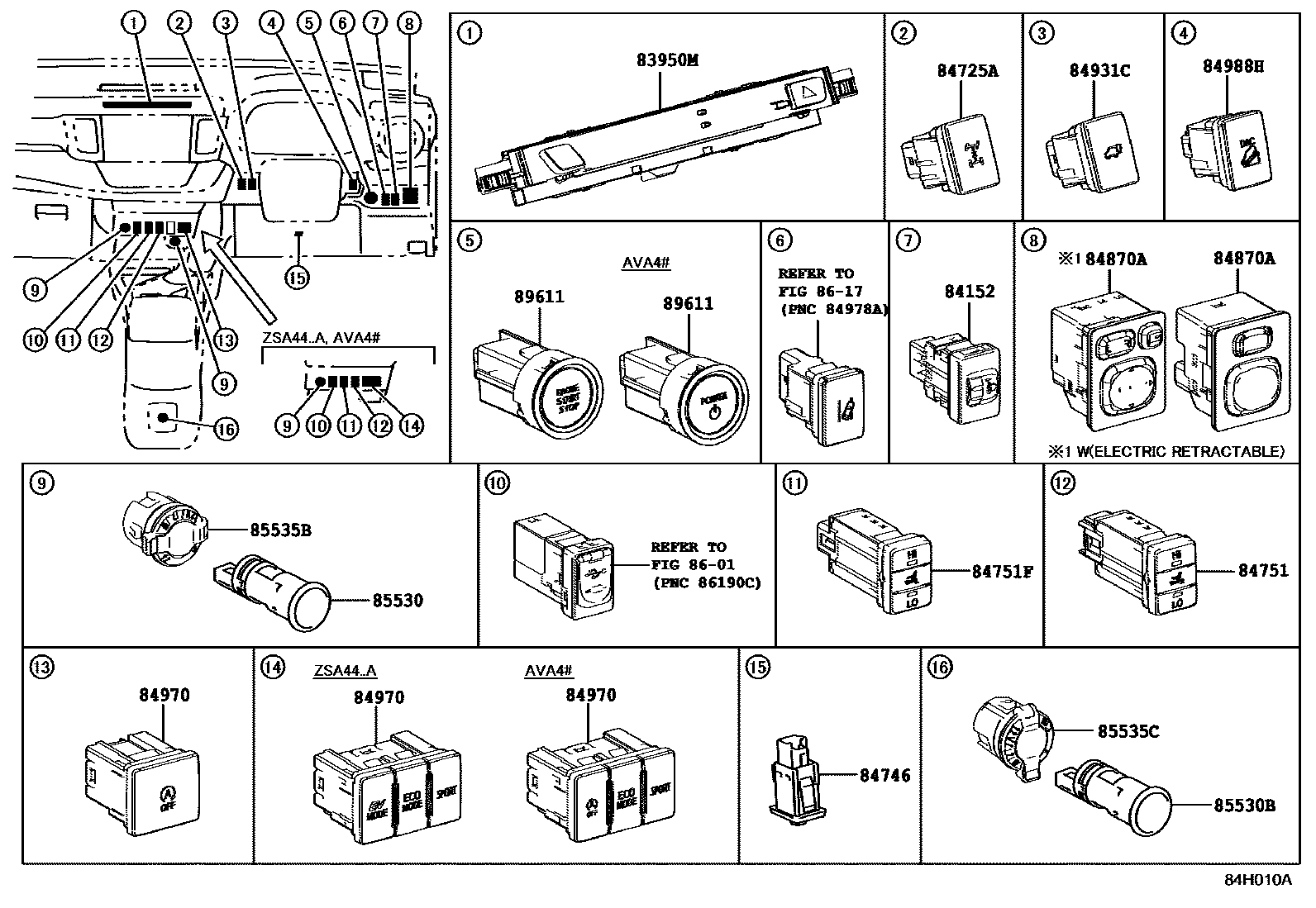

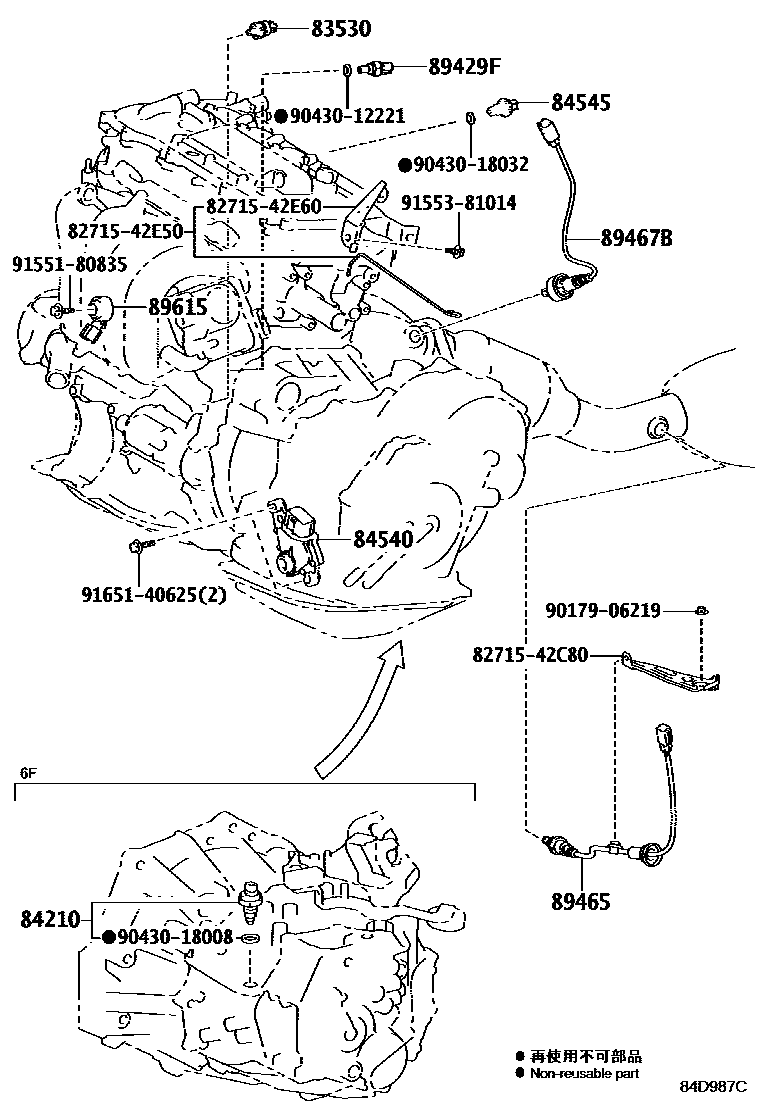

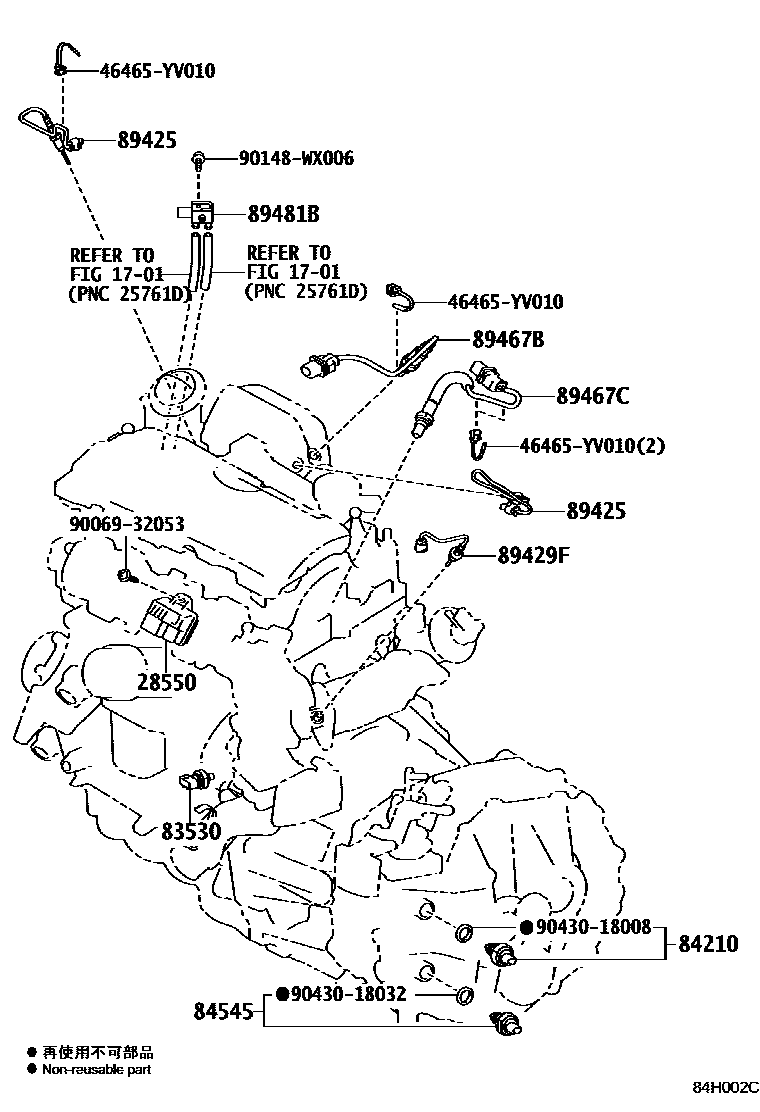

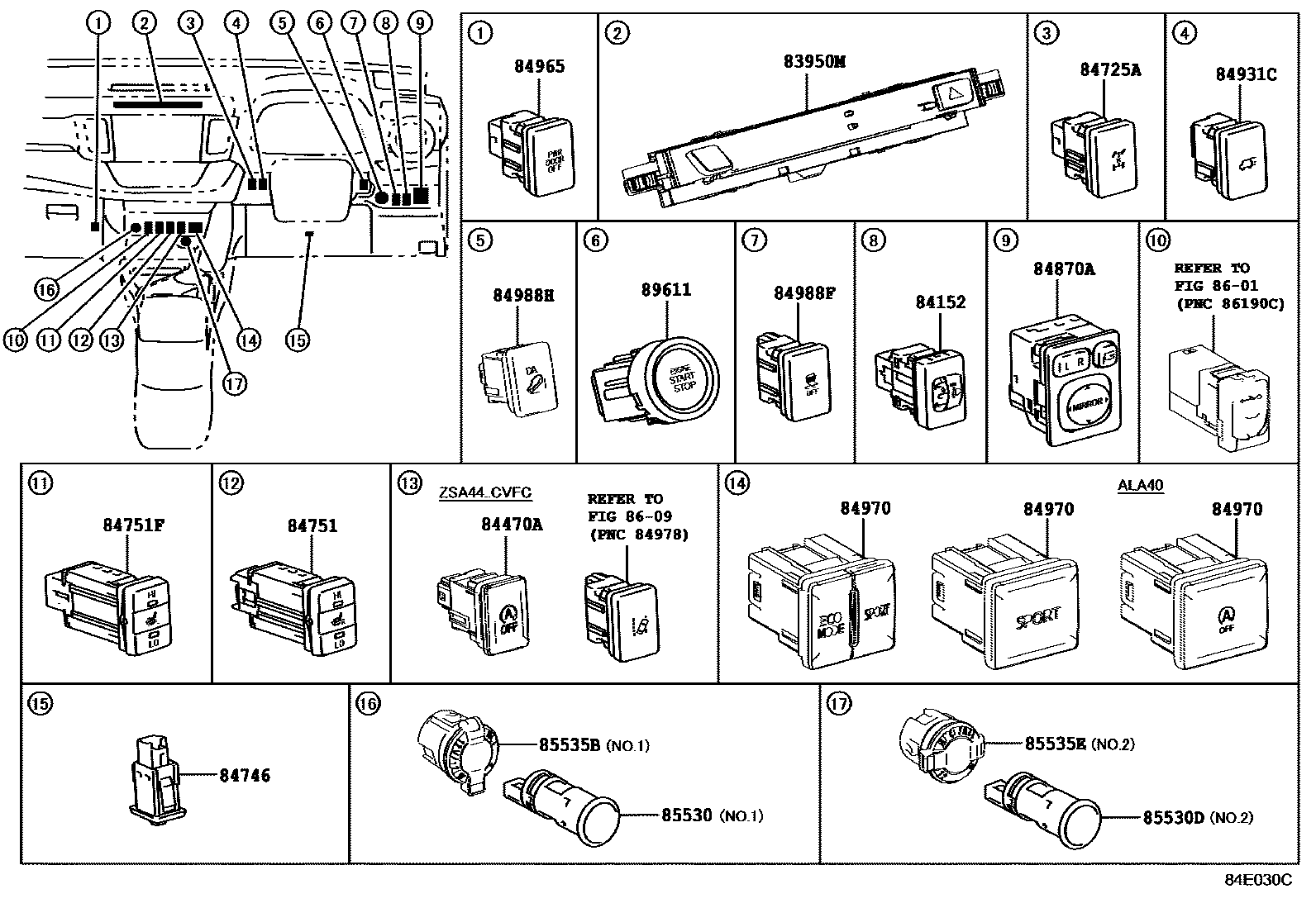

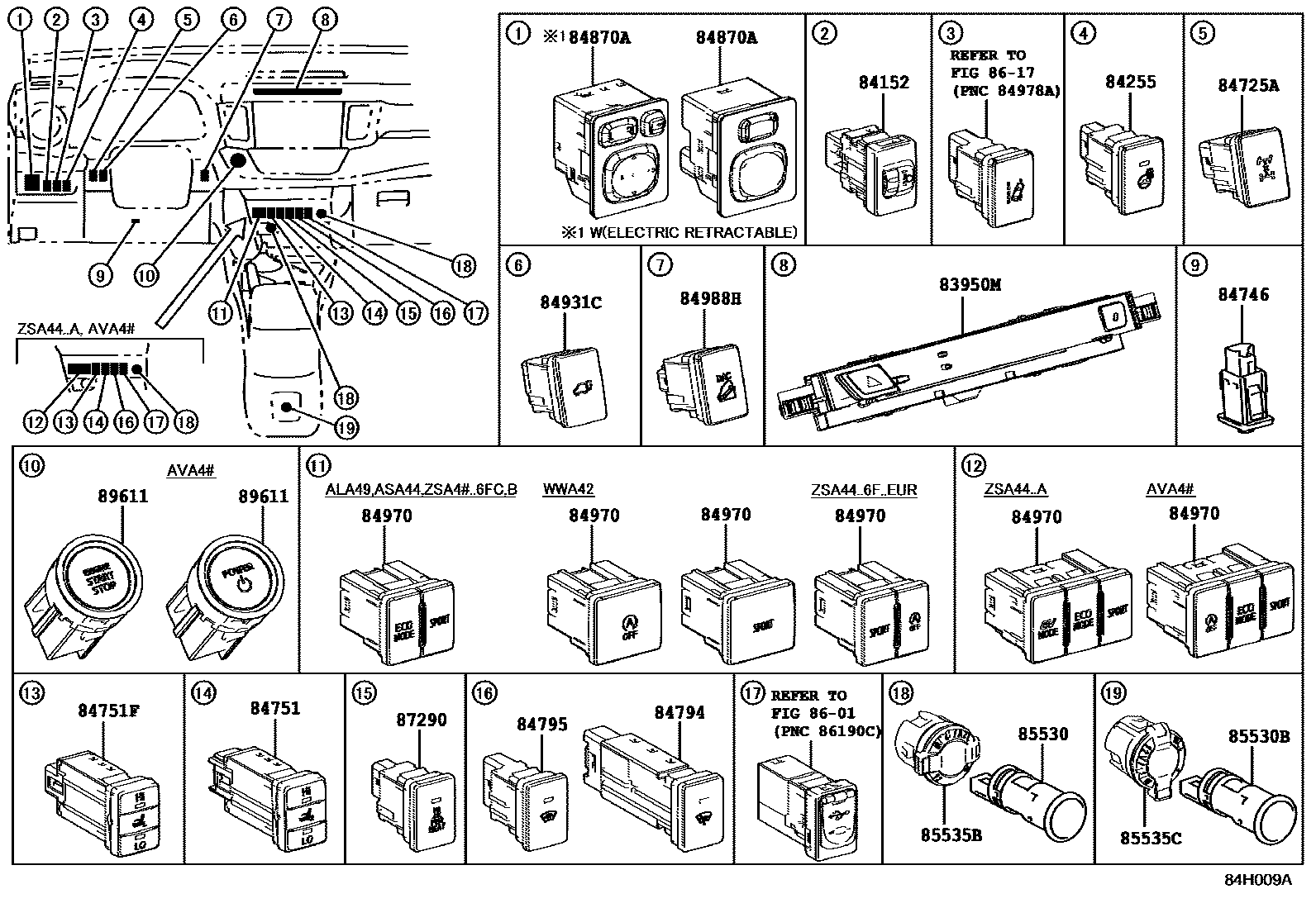

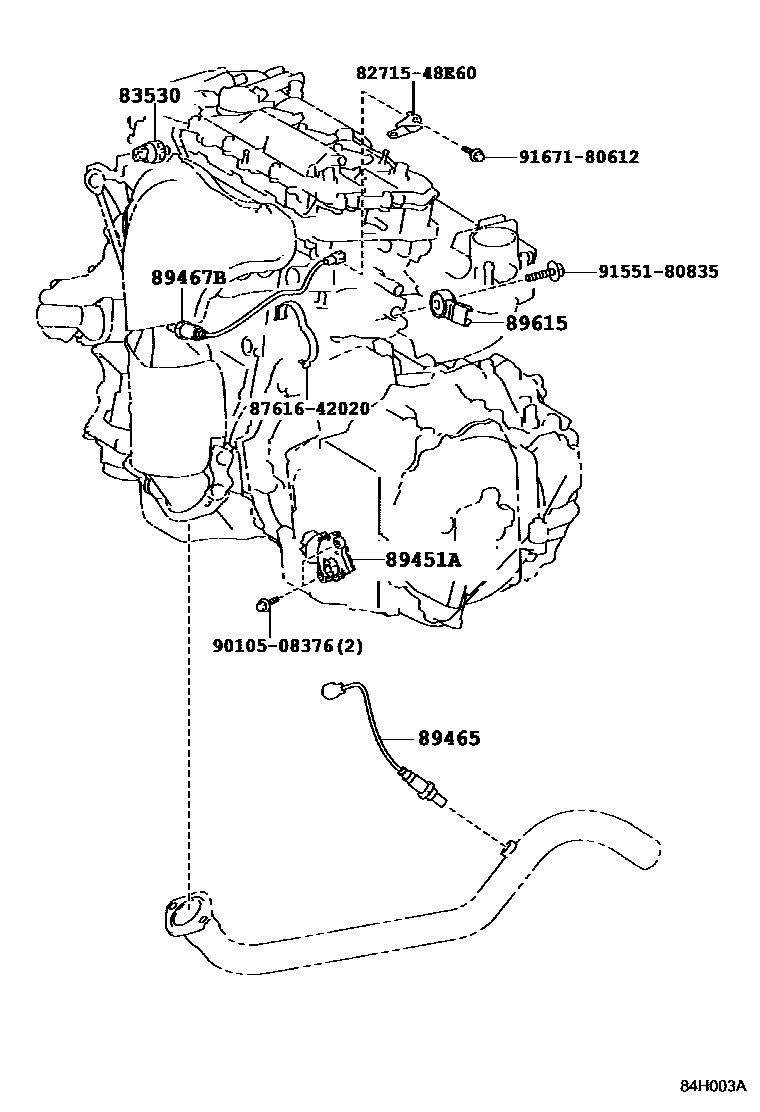

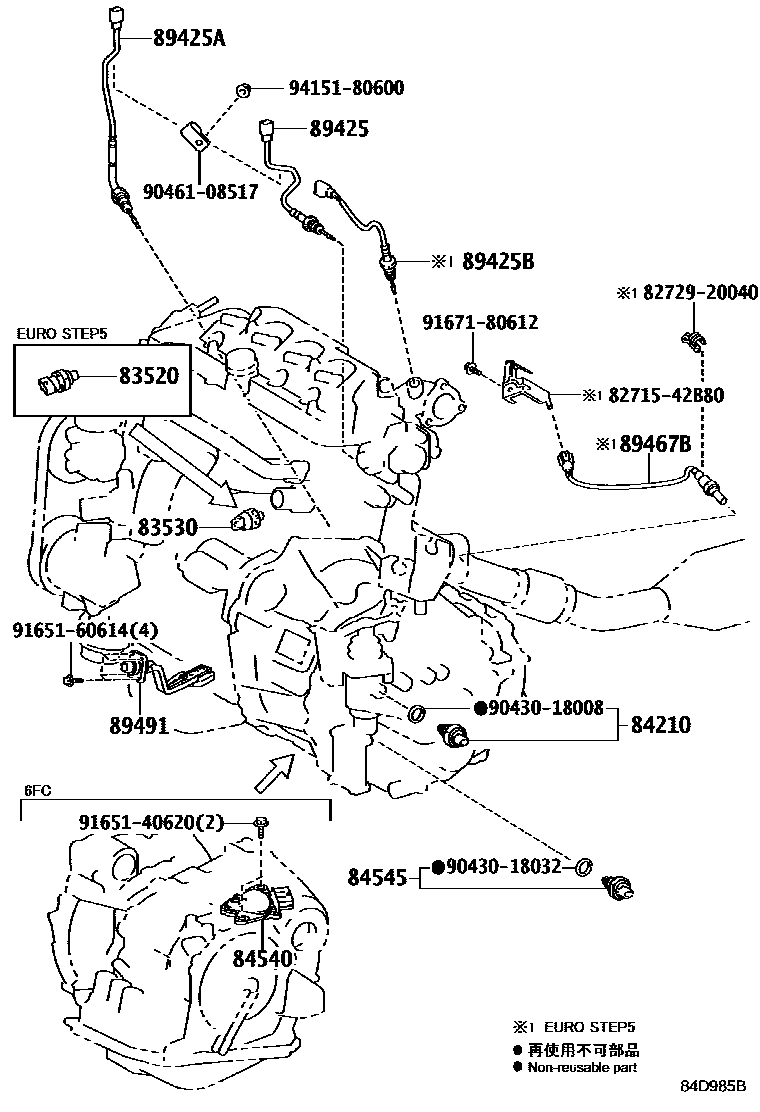

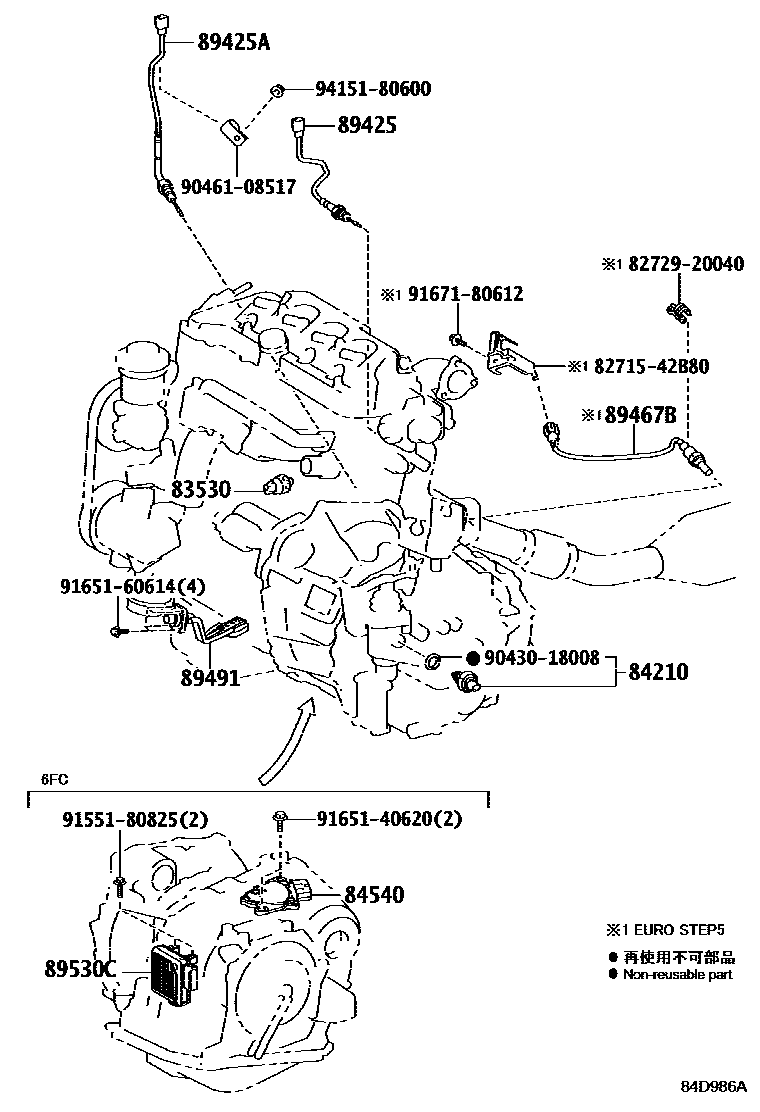

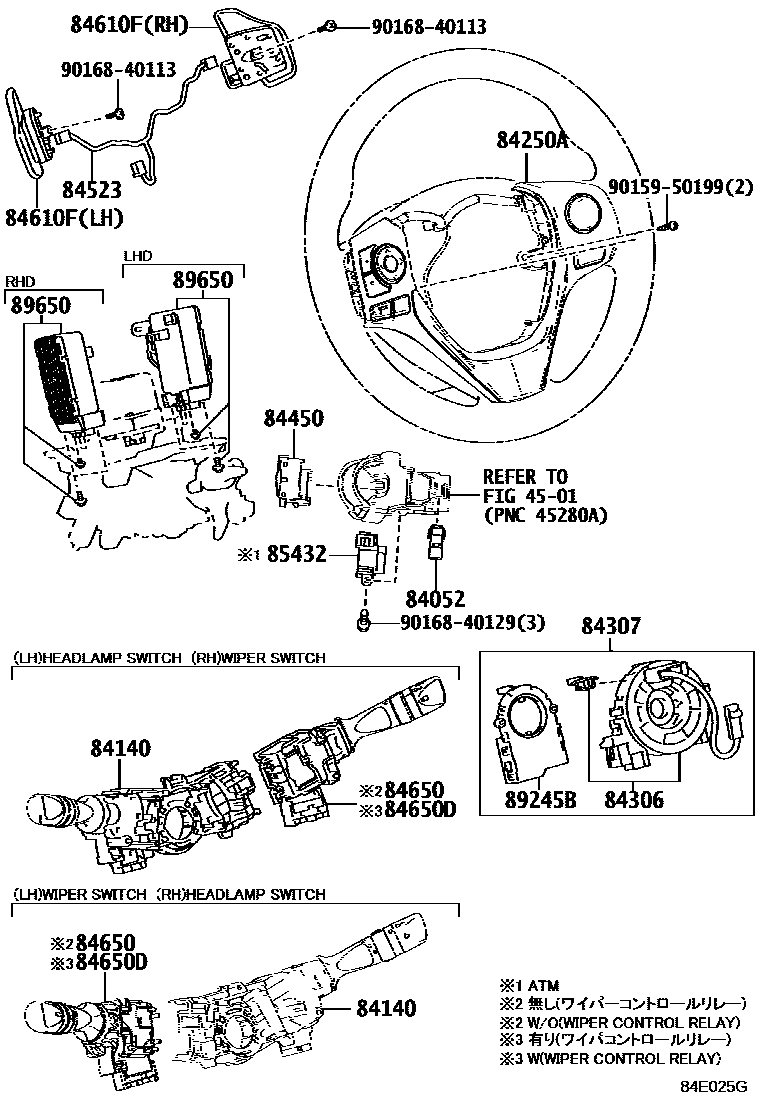

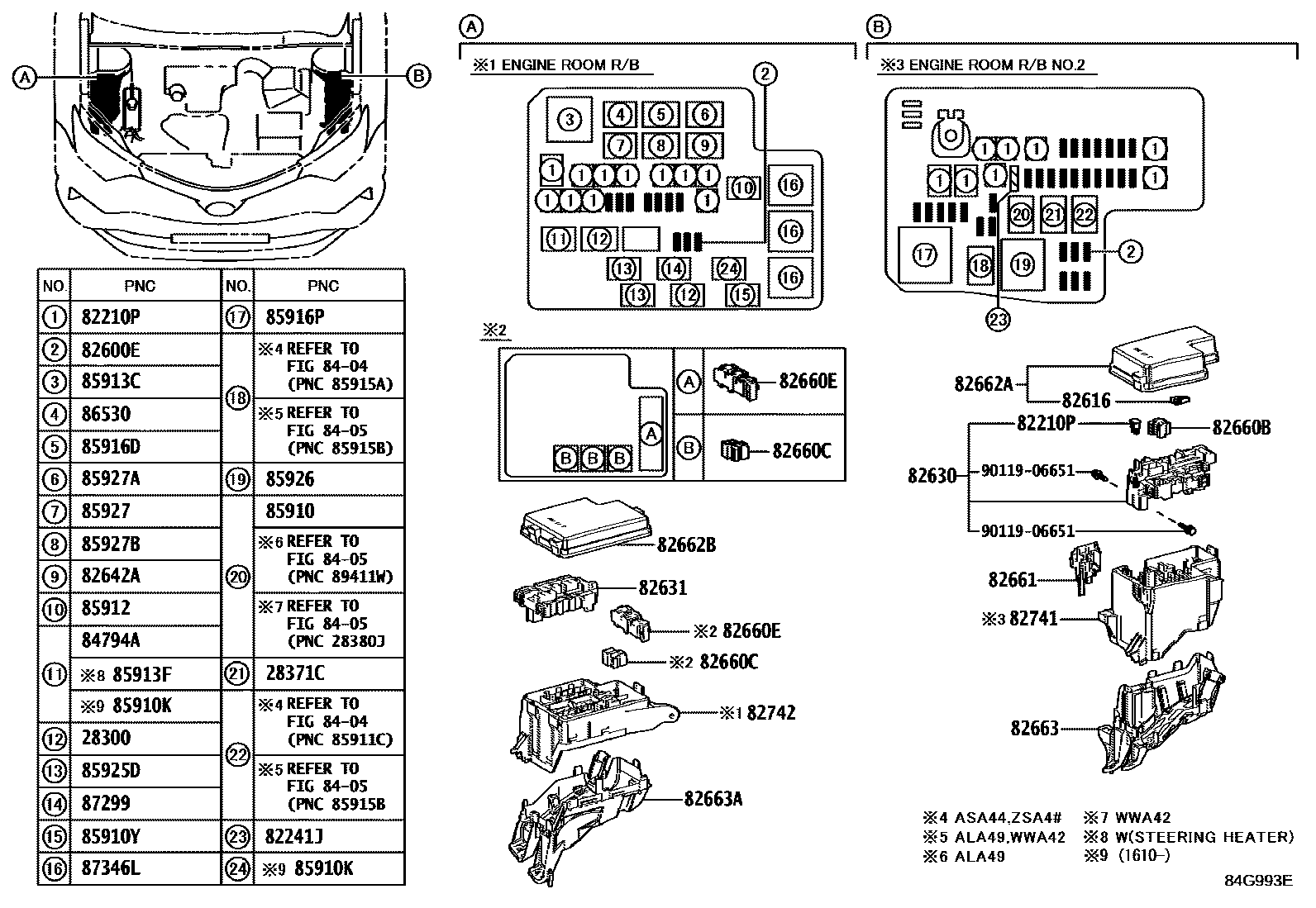

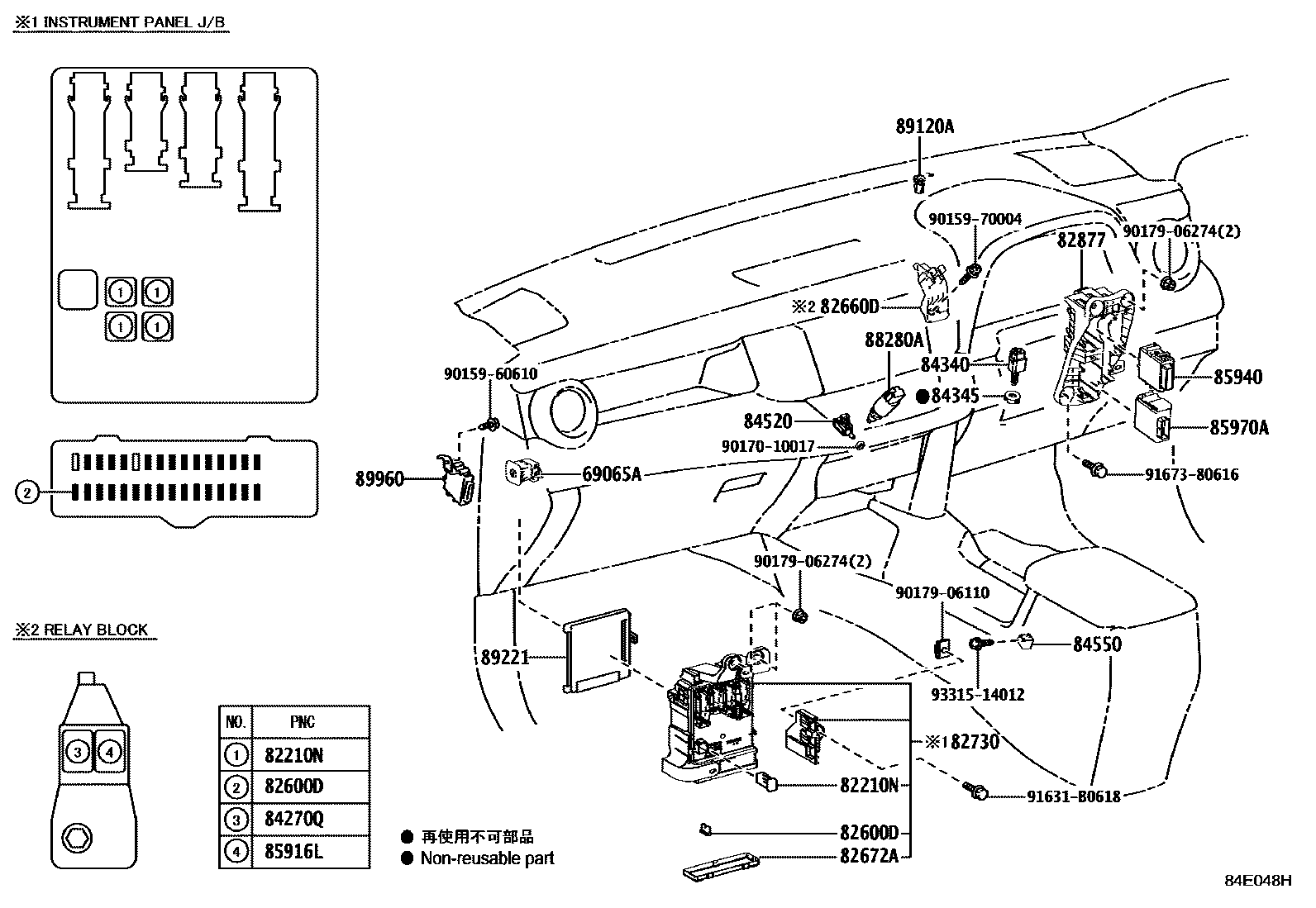

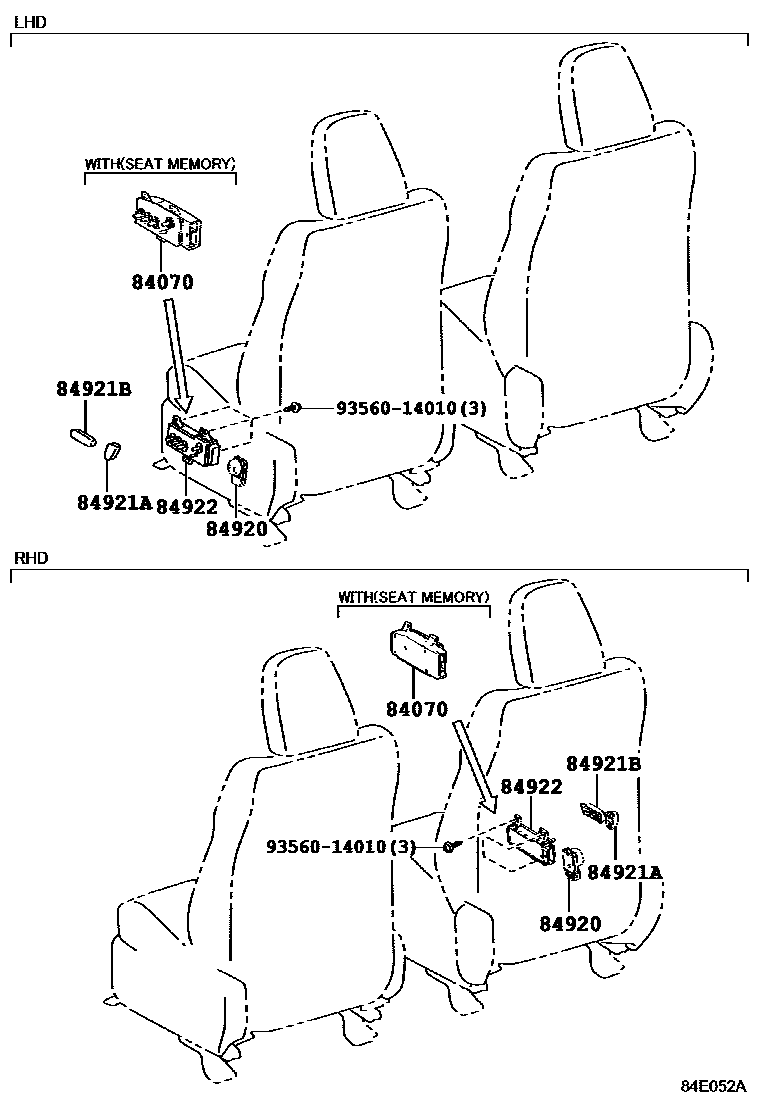

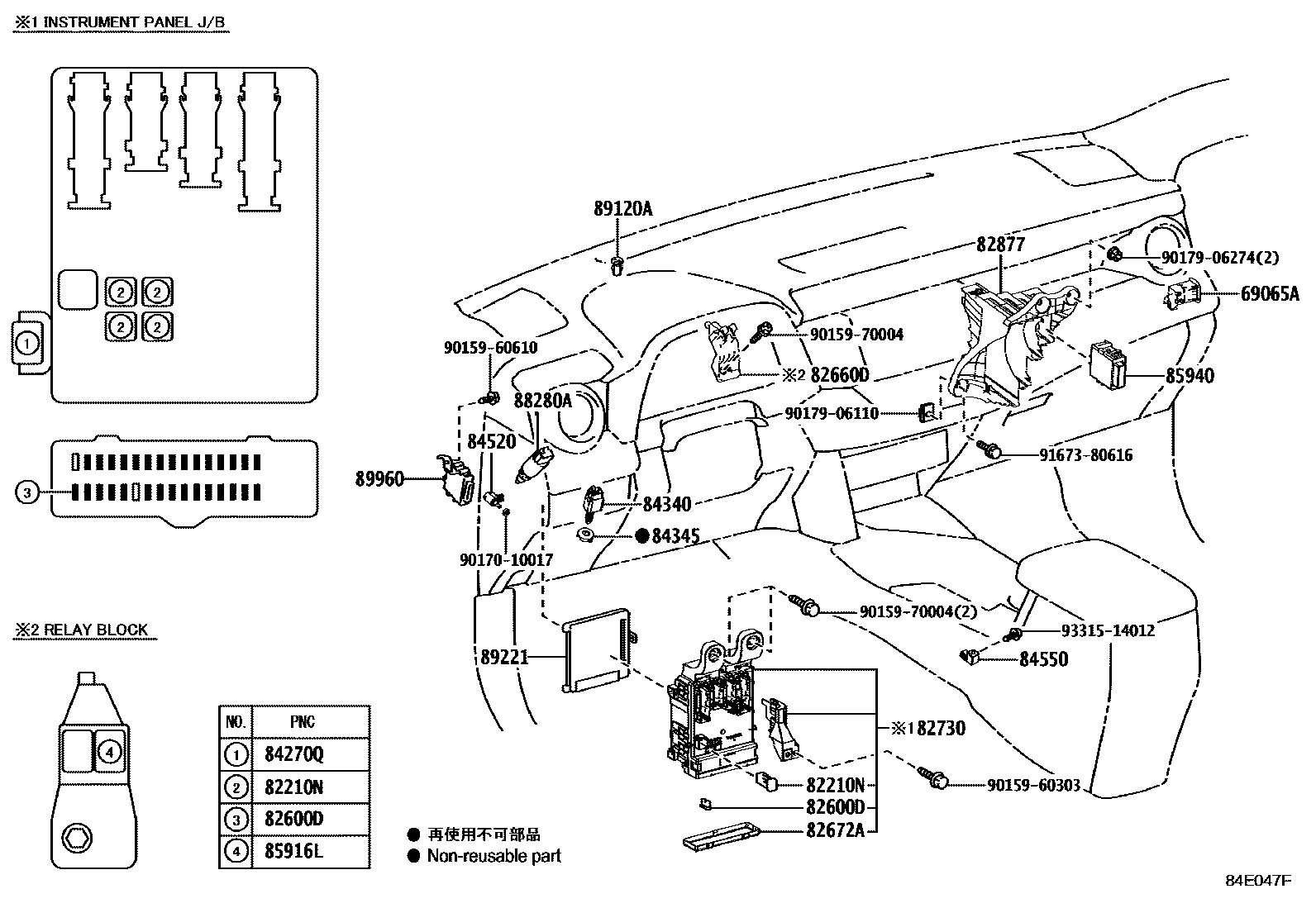

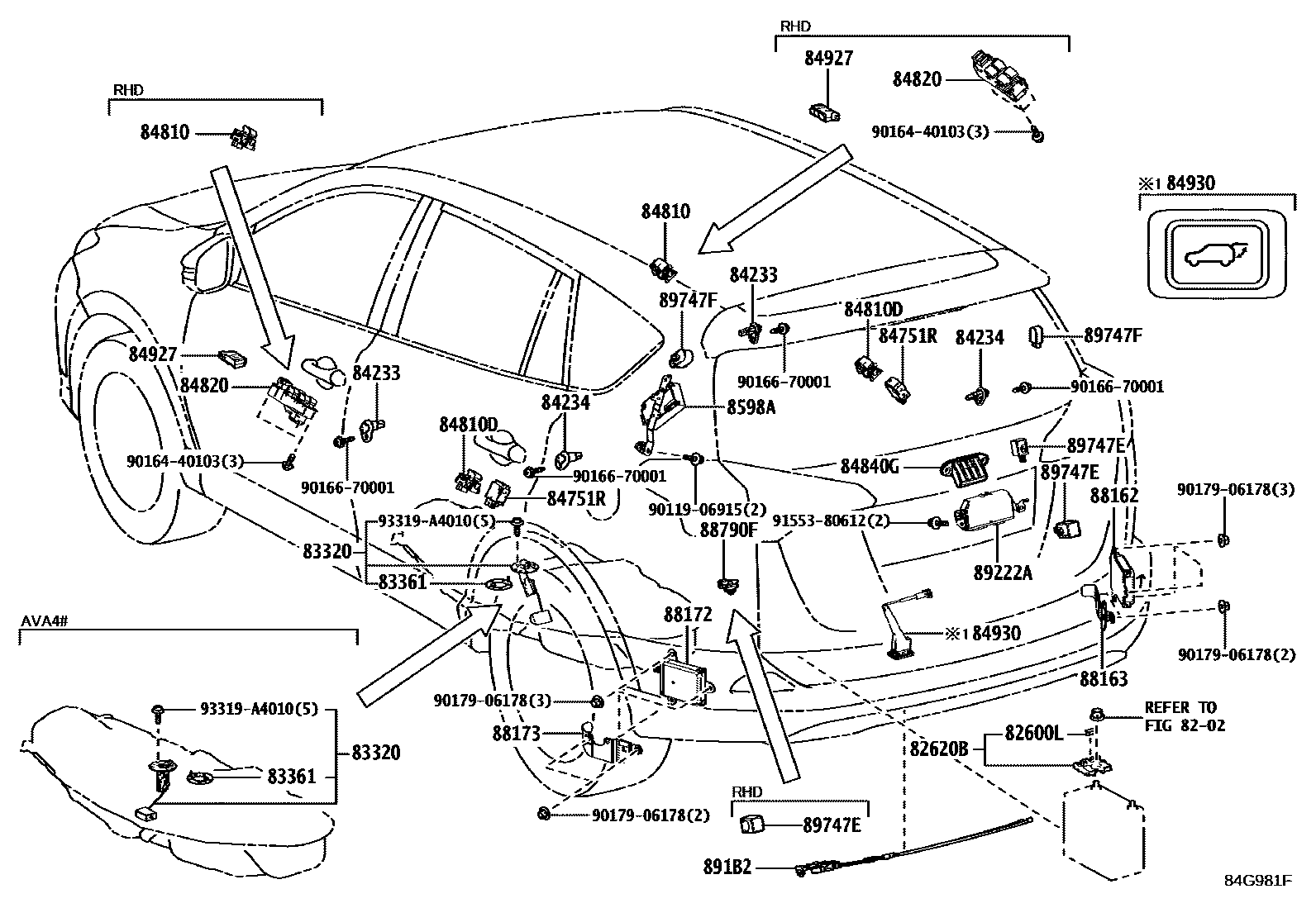

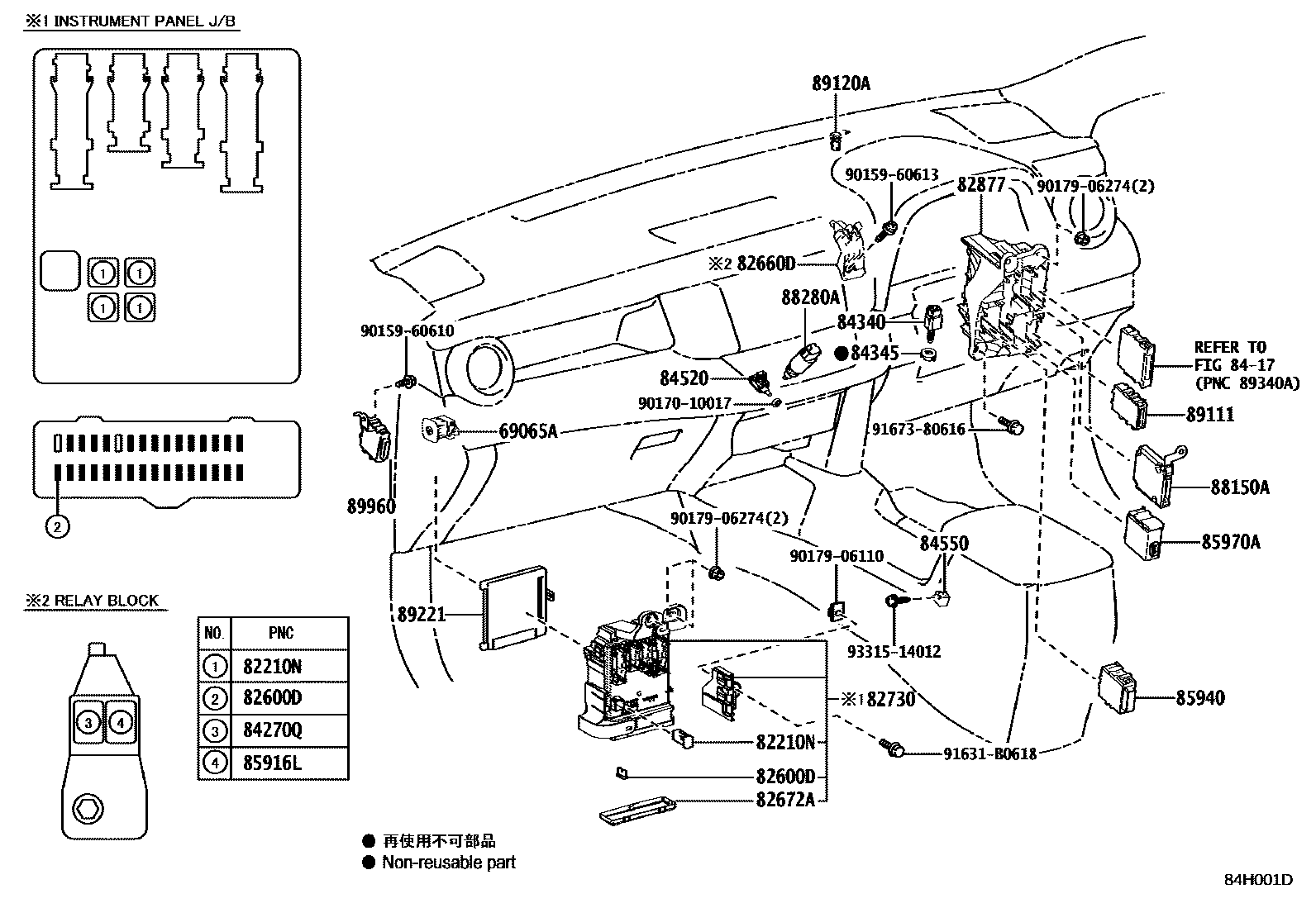

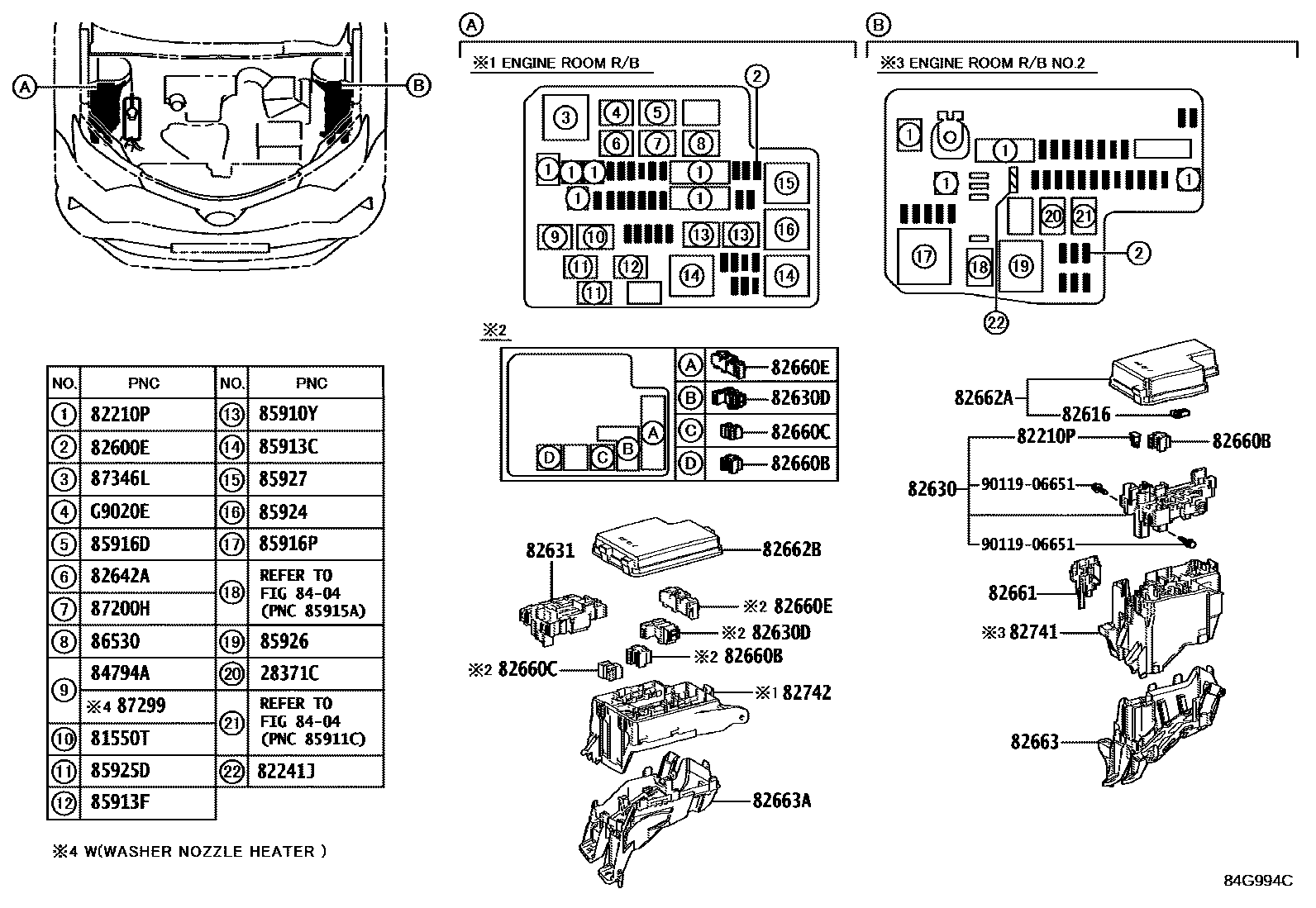

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 24 images and 154 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 28550 | Glow plug controller assembly | 28550-WA020 |
| 28551 | glow plug controller | 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-26020 |
| 28559A | Glow plug controller bracket No. 2 | 28559-26030 |
| 28610 | Glow plug relay assembly | 28610-67010 |
| 28850 | Battery current sensor assembly | 28850-26011 · 28850-26012 · 28850-28040 · 28850-36030 · 28850-37010 · 28850-37031 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-36020 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 |
| 81550T | Reversing light relay | 90987-02027 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08274 · 90982-08286 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08302 · 90982-08303 · 90982-08305 |
| 82241J | Shorting pin | 82241-42010 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | FUSIBLE DU COMPARTIMENT BAGAGE | 90982-09020 |
| 82616 | fuse puller | 82616-58010 |
| 82620B | Fuse box assembly | 82620-30300 |
| 82630 | Fuse holder assembly | 82630-42010 · 82630-42020 · 82630-48010 · 82631-42040 |
| 82630D | fuse holder | 82631-78010 |
| 82631 | fuse holder | 82631-42060 · 82631-48020 |
| 82642A | driving light relay | 90987-02027 |
| 82660B | Relay assembly | 82660-0H070 · 82660-52130 |
| 82660C | Relay assembly | 82660-52010 |
| 82660D | Relay assembly | 82660-42070 |
| 82660E | Relay assembly | 82660-26290 |
| 82661 | No. 1 relay box cover | 82661-42040 · 82661-42050 |
| 82662A | No. 1 relay box upper cover | 82662-42240 · 82662-42241 · 82662-42330 · 82662-42331 · 82662-42390 · 82662-42391 · 82662-42400 · 82662-42401 · 82662-42410 · 82662-42420 · 82662-42430 · 82662-42500 · 82662-42510 · 82662-42520 · 82662-42530 · 82662-42600 · 82662-42601 |
| 82662B | No. 2 relay box upper cover | 82662-42350 · 82662-42360 · 82662-42361 · 82662-42440 · 82662-42550 · 82662-42560 · 82662-42561 · 82662-42570 · 82662-42571 · 82662-42572 · 82662-42580 · 82662-42581 · 82662-42590 · 82662-42591 · 82662-42592 · 82662-42610 · 82662-42611 · 82662-42620 · 82662-42621 |
| 82663 | Relay box lower cover | 82663-42100 |
| 82663A | No. 2 relay box lower cover | 82663-42110 |
| 82672A | Junction box cover | 82672-42150 · 82672-42190 |
| 82730 | Instrument panel junction box assembly | 82730-42750 · 82730-42770 · 82730-42810 · 82730-42811 · 82730-42820 · 82730-42821 |
| 82741 | Engine room relay box | 82741-42020 · 82741-48080 |
| 82742 | Engine room No. 2 relay box | 82741-42030 · 82741-42031 · 82741-48090 |
| 82877 | Right ECU integrated box | 82877-42010 · 82877-42020 · 82877-42030 · 82877-42040 |
| 83320 | Fuel gauge sensor assembly | 83320-49205 · 83320-49206 · 83320-49215 · 83320-49255 |
| 83361 | fuel gauge sensor gasket | 77169-14020 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12050 · 83530-28020 · 83530-60010 · 83530-WA011 |
| 83950M | Warning light assembly | 83950-42050 · 83950-42060 · 83950-42070 · 83950-42080 · 83950-42090 · 83950-42100 · 83950-42110 · 83950-42120 · 83950-42150 · 83950-42160 · 83950-42220 · 83950-42230 · 83950-42240 · 83950-42270 · 83950-42280 · 83950-42300 · 83950-42580 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84070 | Position control ECU and switch assembly | 84070-48061 · 84070-76011 |
| 84140 | Headlight dimmer switch assembly | 84140-12770 · 84140-12800 · 84140-12830 · 84140-12850 · 84140-33230 · 84140-33231 · 84140-33250 · 84140-47200 · 84140-F4050 |
| 84152 | Headlight beam height adjustment switch | 84152-42050 · 84152-42051 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-42250 · 84250-42270 · 84250-42280 |
| 84255 | Steering heater switch | 84255-42010 |
| 84270Q | headlight relay | 90987-02027 |
| 84306 | Spiral cable sub-assembly | 84308-12010 · 84308-12011 · 84308-42010 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-12100 · 84307-42060 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-30130 · 84340-49065 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12320 |
| 84470 | Warning release switch assembly | 84470-42010 · 84470-42011 |
| 84470A | Economic operation cancel switch assembly | 84470-42021 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-28030 · 84540-33010 · 84540-52070 |
| 84545 | INTERRUPTEUR, POSITION NEUTRE | 84545-20021 · 84545-52010 |
| 84550 | Parking brake switch assembly | 84550-16060 · 84550-33010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650 | Windshield wiper switch assembly | 84652-02670 · 84652-12A90 · 84652-12B10 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02540 · 84652-12B00 · 84652-1A860 · 84652-42150 |
| 84725A | Differential lock switch | 84725-42010 · 84725-42011 |
| 84746 | tire pressure warning switch | 84746-50010 |
| 84751 | Seat heater switch | 84751-42070 · 84751-42071 · 84751-42072 |
| 84751F | Seat heater switch | 84751-42080 · 84751-42081 · 84751-42082 |
| 84751R | Seat heater switch (rear) | 84751-33090 |
| 84794 | Front wiper de-icer switch | 84794-42030 · 84794-42031 · 84794-48021 |
| 84794A | Front wiper de-icer relay | 90987-02025 · 90987-02027 |
| 84795 | INTERRUPTEUR, DEGIVRAGE DE VITRE AVANT | 84795-33011 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-42200 · 84820-42210 · 84820-42220 |
| 84840G | Back door opener switch assembly | 84840-28030 · 84840-28040 · 84840-48020 · 84840-78010 |
| 84870A | Exterior rearview mirror switch assembly | 84870-52050 · 84870-74010 |
| 84922 | Front electric seat switch | 84922-60180 · 84922-60190 |
| 84927 | Seat memory switch | 84927-42020 · 84927-42030 |
| 84930 | Door control switch assembly | 84930-42040 |
| 84931C | Back door control switch | 84930-42050 · 84930-42051 |
| 84965 | Electric back door main switch | 84962-42020 · 84962-42021 |
| 84970 | Combination switch assembly | 84970-42010 · 84970-42020 · 84970-42030 · 84970-42080 · 84970-42090 · 84970-42120 |
| 84988F | traction control switch | 84988-42080 · 84988-42081 |
| 84988H | Downhill assist control switch | 84988-42070 · 84988-42071 |
| 85432 | Key interlock solenoid valve | 85432-52010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85530D | No. 2 power socket assembly | 85530-42010 |
| 85535B | No. 1 power outlet cover | 85535-42060 |
| 85535C | Rear power outlet cover | 85535-42070 |
| 85535E | No. 2 power outlet cover | 85535-42060 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910K | Rear seat heater relay | 90987-02027 |
| 85910Y | rear heater relay | 90987-02027 |
| 85912 | defogger relay | 90987-02027 |
| 85913C | Heater relay No. 1 | 90987-02028 · 90987-04010 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85916L | Rear fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85924 | Ignition control relay | 90987-02025 |
| 85925D | PTC heater relay | 90987-02027 |
| 85925F | No. 2 PTC heater relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 |
| 85927 | cooling fan relay | 90987-02025 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-02027 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 · 90987-04004 |
| 85940 | Windshield wiper relay assembly | 85940-42030 |
| 85942 | Headlight washer control relay | 85942-02060 |
| 85970A | Double lock door control relay assembly | 85970-42010 · 85970-42020 |
| 8598A | BATTERIE, COMMANDE DES PORTES | 8598A-42010 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87200H | RELAIS, POMPE EAU CHAUFFAGE | 90987-02027 |
| 87290 | Heater switch assembly | 87290-42030 · 87290-71010 |
| 87299 | heater relay | 90987-02027 |
| 87346L | PTC heater relay | 90987-02025 |
| 88150A | Driving assistance ECU assembly | 88150-42010 · 88150-42011 · 88150-42020 · 88150-42021 · 88150-42030 · 88150-42031 · 88150-42040 · 88150-42041 |
| 88162 | Blind spot monitor right sensor | 88162-0W070 · 88162-0W190 · 88162-0W380 · 88162-0W381 · 88162-0W382 · 88162-0W383 · 88162-0W384 |
| 88163 | Blind spot monitor right side cover | 88163-42010 |
| 88172 | Blind spot monitor left sensor | 88162-0W070 · 88162-0W190 · 88162-0W380 · 88162-0W381 · 88162-0W382 · 88162-0W383 · 88162-0W384 |
| 88173 | Blind spot monitor left cover | 88173-42010 |
| 88280A | Clutch switch assembly | 88280-42010 |
| 88790F | Thermistor assembly | 88790-22131 |
| 89111 | Network gateway ECU | 89111-42020 · 89111-42021 |
| 89120A | Automatic light control sensor | 89121-50020 |
| 891B2 | CAPTEUR, COMMANDE ARRET PORTE AU PIED | 891B2-0W030 |
| 89221 | Multi-channel network body ECU | 89220-42090 · 89220-42091 · 89220-42100 · 89220-42101 · 89220-42110 · 89220-42120 · 89220-42130 · 89220-42330 · 89220-42350 · 89220-42351 · 89220-42360 · 89220-42361 · 89220-42380 · 89220-42390 · 89220-42410 · 89220-42411 · 89220-42420 · 89220-42430 · 89220-42440 · 89220-42441 · 89220-42460 · 89220-42461 · 89220-42470 · 89220-42550 · 89220-42551 · 89220-42552 · 89220-42560 · 89220-42561 · 89220-42562 · 89220-42570 · 89220-42571 · 89220-42572 · 89220-42610 · 89220-42611 · 89220-42612 · 89220-42630 · 89220-42631 · 89220-42632 · 89220-42640 · 89220-42641 · 89220-42642 · 89220-42660 · 89220-42661 · 89220-42662 · 89220-42670 · 89220-42671 · 89220-42672 · 89220-42680 · 89220-42681 · 89220-42682 · 89220-42760 · 89220-42770 · 89220-42771 · 89220-42772 · 89220-42A50 · 89220-42A60 · 89220-42X30 · 89220-42X40 · 89220-42X50 · 89220-42X60 · 89220-42X70 · 89220-42X80 · 89220-4A160 · 89220-4A170 · 89220-4A180 · 89220-4A190 · 89220-4A200 · 89220-4A210 · 89220-4A220 · 89220-4A230 · 89220-4A240 · 89220-4A250 · 89220-4A260 · 89220-4A270 · 89220-4A280 · 89220-4A290 · 89220-4A300 · 89220-4A310 · 89220-4A320 · 89220-4A330 · 89220-4A340 · 89220-4A350 · 89220-4A360 · 89220-4A370 · 89220-4A380 · 89220-4A390 · 89220-4A400 · 89220-4A410 · 89220-4A420 · 89220-4A430 · 89220-4A440 · 89220-4A450 · 89220-4A460 · 89220-4A850 · 89220-4A860 · 89220-4A870 · 89220-4A880 · 89220-4A890 · 89220-4AA00 · 89220-4AD50 · 89220-4AD60 · 89220-4AD70 · 89220-4AD80 · 89220-4AD90 · 89220-4AE00 · 89220-4AE10 · 89220-4AE20 · 89220-4AE30 · 89220-4AE40 · 89220-4AE50 · 89220-4AE60 · 89220-4AE70 · 89220-4AE80 · 89220-4AF00 · 89220-4AF10 · 89220-4AF20 · 89220-4AF30 · 89220-4AF40 · 89220-4AF50 · 89220-4AF60 · 89220-4AF70 · 89220-4AF80 · 89220-4AF90 · 89220-4AG00 · 89220-4AG10 · 89220-4AG20 · 89220-4AG70 · 89220-4AG80 · 89220-4AG90 · 89220-4AJ10 · 89220-4AJ20 · 89220-4AJ30 · 89220-4AJ40 · 89220-4AJ60 · 89220-4AJ70 · 89220-4AJ80 · 89220-4AJ90 · 89220-4AK00 |
| 89222A | Multi-channel network door ECU | 89222-42030 · 89222-42033 · 89222-42040 · 89222-42041 · 89222-42050 · 89222-42060 · 89222-42090 |
| 89245B | steering sensor | 8924B-12010 |
| 89257 | Cooling fan ECU | 89257-30110 |
| 89425 | Exhaust gas temperature sensor | 89425-20380 · 89425-YV010 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-20390 |
| 89425B | No. 3 exhaust gas temperature sensor | 89425-20400 |
| 89429F | temperature sensor | 89429-12010 · 89429-WA010 |
| 89451A | shift lever position sensor | 89451-52040 |
| 89465 | oxygen sensor | 89465-42210 · 89465-42230 · 89465-48340 |
| 89467B | air fuel ratio sensor | 89467-06200 · 89467-0R060 · 89467-12030 · 89467-21020 · 89467-42130 · 89467-42140 · 89467-48270 · 89467-52060 · 89467-YV010 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-YV020 |
| 89480A | Differential pressure sensor assembly | 89480-42020 |
| 89481B | Differential pressure sensor | 89481-YV020 |
| 89491 | Engine oil level sensor | 89491-20131 · 89491-20140 |
| 89530C | Transmission control ECU assembly | 89530-42020 · 89530-42050 |
| 895A0A | Brake light control ECU assembly | 895A0-20020 |
| 89611 | push button start switch | 89611-30141 · 89611-30142 · 89611-42010 · 89611-42011 · 89611-42012 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-42120 · 89650-42121 · 89650-42130 · 89650-42131 · 89650-42240 · 89650-42241 · 89650-42250 · 89650-42251 · 89650-42270 · 89650-42271 · 89650-42280 · 89650-42281 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-42110 · 89960-42170 |
| G9020E | Hybrid water pump relay | 90987-02027 |
